ByteNick Posted January 7 Share Posted January 7 @SimonF, thank you for the plugin and for the support. Is the Supermicro X13SAE-F supported? Asking because in the Json area of the Settings Editor it says something about this: { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "NOT_AVAILABLE": "01", "FRNT_FAN1": "01", "FRNT_FAN2": "01", "FRNT_FAN3": "01", "FRNT_FAN4": "11" } } } Also, anyone else here has a X13SAE-F, please? Quote Link to comment
spl147 Posted January 7 Share Posted January 7 @SimonF have you had a chance to look into adding the ability to use seperate high and low values for CPU fan curve? Quote Link to comment
SimonF Posted January 7 Author Share Posted January 7 2 hours ago, ByteNick said: @SimonF, thank you for the plugin and for the support. Is the Supermicro X13SAE-F supported? Asking because in the Json area of the Settings Editor it says something about this: { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "NOT_AVAILABLE": "01", "FRNT_FAN1": "01", "FRNT_FAN2": "01", "FRNT_FAN3": "01", "FRNT_FAN4": "11" } } } Also, anyone else here has a X13SAE-F, please? The json is only used for ASRock servers and was added so Asrock users could edit from the GUI. Fan control should work, I only have X9 and X10 SMs. but have you tried to enable Fan control should show Model details at top of screen. Quote Link to comment
SimonF Posted January 7 Author Share Posted January 7 1 hour ago, spl147 said: @SimonF have you had a chance to look into adding the ability to use seperate high and low values for CPU fan curve? Sorry not looked at it. Been working on other projects. Quote Link to comment
The Transplant Posted January 16 Share Posted January 16 Hi, I just installed this on my Dell R730XD. I cannot seem to get it to connect. I get connection unsuccessful using the IP address, userid and password for IPMI. I am able to run ipmitools from windows using these credentials - can connect, change fan speeds, etc. I tried the /usr/sbin/ipmi-sensors --output-sensor-thresholds --comma-separated-output --output-sensor-state --no-header-output --interpret-oem-data --always-prefix -h "192.168.2.225" -u “root” -p “MYPASSWORD” command and this times out. I have enable IPMI over lan set in iDrac - but windows ipmitools would fail without this. I am sure I am missing something? Thanks. Quote Link to comment
spl147 Posted January 16 Share Posted January 16 (edited) 12 hours ago, The Transplant said: Hi, I just installed this on my Dell R730XD. I cannot seem to get it to connect. I get connection unsuccessful using the IP address, userid and password for IPMI. I am able to run ipmitools from windows using these credentials - can connect, change fan speeds, etc. I tried the /usr/sbin/ipmi-sensors --output-sensor-thresholds --comma-separated-output --output-sensor-state --no-header-output --interpret-oem-data --always-prefix -h "192.168.2.225" -u “root” -p “MYPASSWORD” command and this times out. I have enable IPMI over lan set in iDrac - but windows ipmitools would fail without this. I am sure I am missing something? Thanks. Read people read, i just explained this up a bit, this is a local connection NOT lan! You do not need to use ip, your local on the device, ip control is for a remote machine. You need to modprobe ipmi-si ipmi-devintf Edited January 16 by spl147 Quote Link to comment
wobblewoo Posted January 17 Share Posted January 17 Hello. Is there a way to reset my IPMI logins using this? Thank you for your time. Quote Link to comment
Gunny Posted January 19 Share Posted January 19 (edited) On 1/17/2024 at 1:41 PM, wobblewoo said: Hello. Is there a way to reset my IPMI logins using this? Thank you for your time. No, this is primarily a tool to control fan speed via IPMI. It does install some ipmi functions onto the path, but you could do the same thing with nerdtools. https://www.intel.com/content/www/us/en/support/articles/000055688/server-products.html https://www.servethehome.com/reset-supermicro-ipmi-password-default-lost-login/ Edited January 19 by Gunny Quote Link to comment

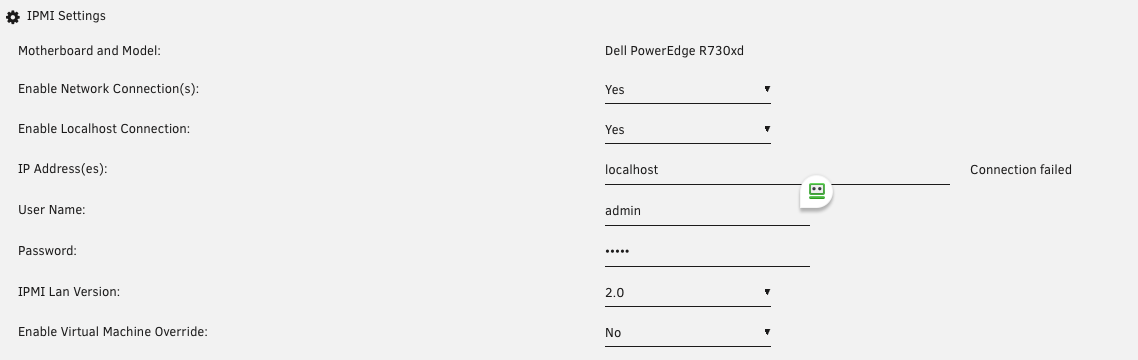

The Transplant Posted January 21 Share Posted January 21 On 1/16/2024 at 7:49 AM, spl147 said: Read people read, i just explained this up a bit, this is a local connection NOT lan! You do not need to use ip, your local on the device, ip control is for a remote machine. You need to modprobe ipmi-si ipmi-devintf Thanks for your help. I don't understand what that means. I looked up modprobe and I am not making the connection. I could take a few months or years to get to your level, or perhaps you can help me out and give me some pointers on what to put in the fields below. I am sure there are others that would benefit from this. Thanks again. Quote Link to comment
SimonF Posted January 22 Author Share Posted January 22 7 hours ago, The Transplant said: modprobe ipmi-si ipmi-devintf You need to run this on a command line. To make it run each reboot, edit /boot/config/go and add the same line. Then set network connect to no. Quote Link to comment
spl147 Posted January 22 Share Posted January 22 6 hours ago, SimonF said: You need to run this on a command line. To make it run each reboot, edit /boot/config/go and add the same line. Then set network connect to no. @SimonF can this be incorporated into the plugin? Quote Link to comment

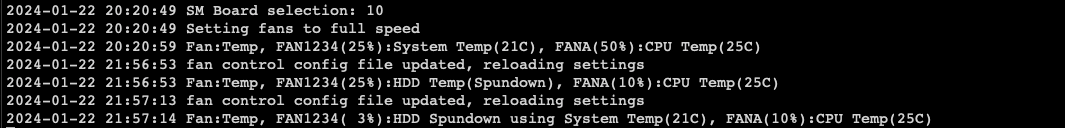

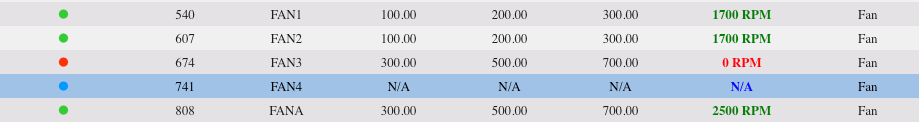

gutenmorgenuhu Posted January 22 Share Posted January 22 On 12/17/2023 at 1:26 PM, SimonF said: Did you have a temp sensor set as auto will just use motherboard auto mode. I have the same problem with a Supermicro X10SLM. After activating Fan Control, the fans spin up to max (1700 RPM) and stay there FAN1: HDD Fans FAN2: Chassis Fans FANA: CPU This is the log output: Should it output a temperature polling success line after 1 minute? Quote Link to comment

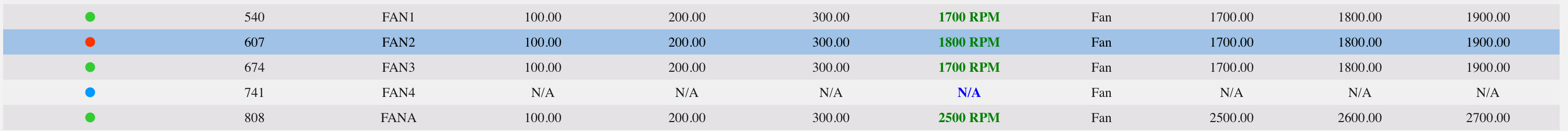

JorgeB Posted January 22 Share Posted January 22 5 minutes ago, gutenmorgenuhu said: After activating Fan Control, the fans spin up to max (1700 RPM) and stay there FAN3 is in red at 0 rpm, did you disconnect that fan? If a fan goes below the minimum threshold all others go to max speed. Quote Link to comment
SimonF Posted January 22 Author Share Posted January 22 5 hours ago, spl147 said: @SimonF can this be incorporated into the plugin? Sure I can look at adding option for the modprobe, is it specific to Dell Models as I dont want to load if not required. Quote Link to comment

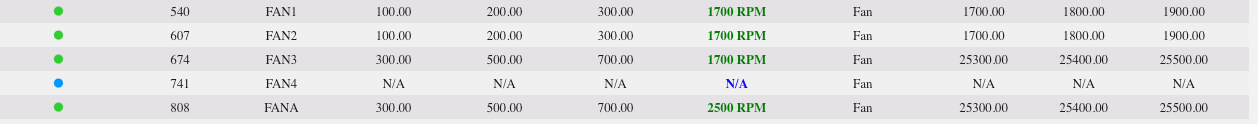

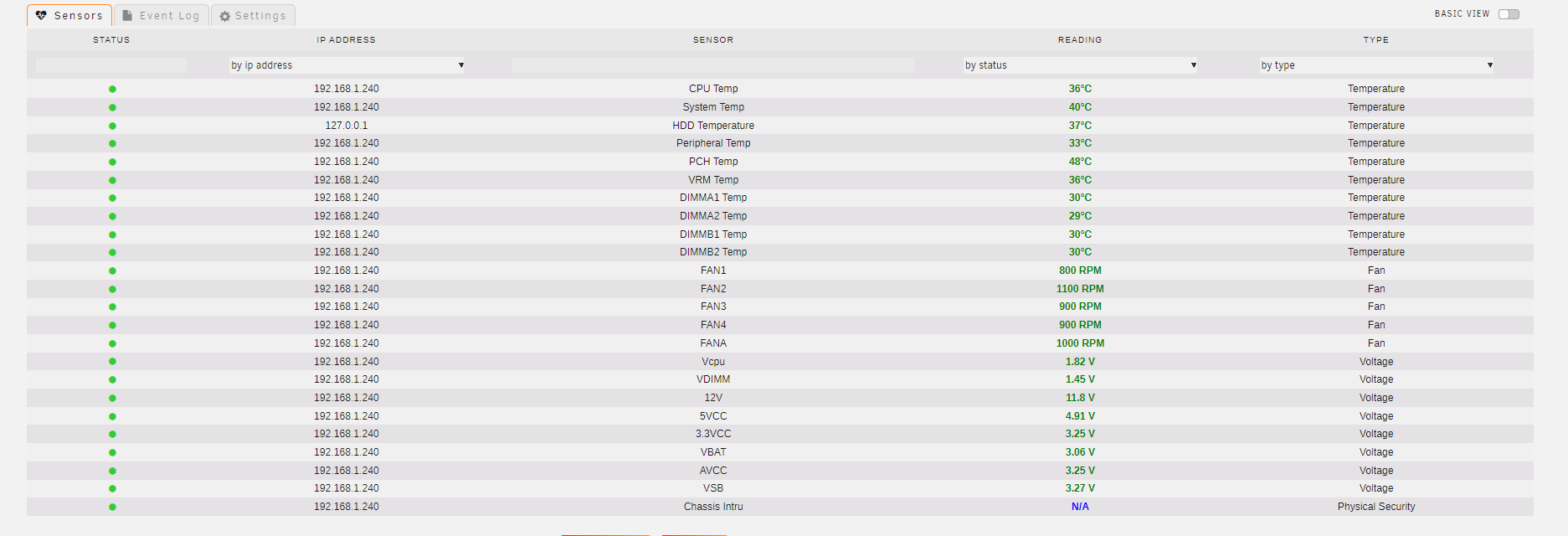

gutenmorgenuhu Posted January 22 Share Posted January 22 8 minutes ago, JorgeB said: FAN3 is in red at 0 rpm, did you disconnect that fan? If a fan goes below the minimum threshold all others go to max speed. Thank you for the fast reply. I connected the fan: Unfortunately this did not change anything. Even when I change the fan-Speed maximum to 50%, there is no change in RPM: Always Full throttle Quote Link to comment
JorgeB Posted January 22 Share Posted January 22 After connecting the fan disable auto fan and then re-enable. Quote Link to comment

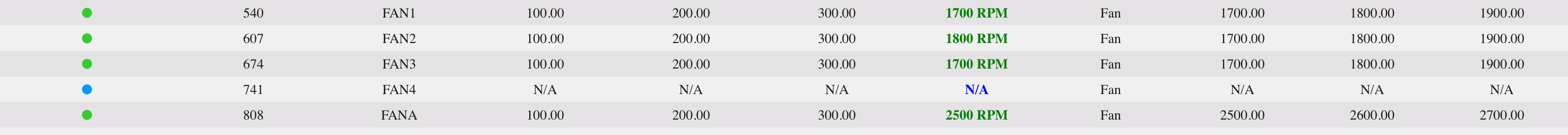

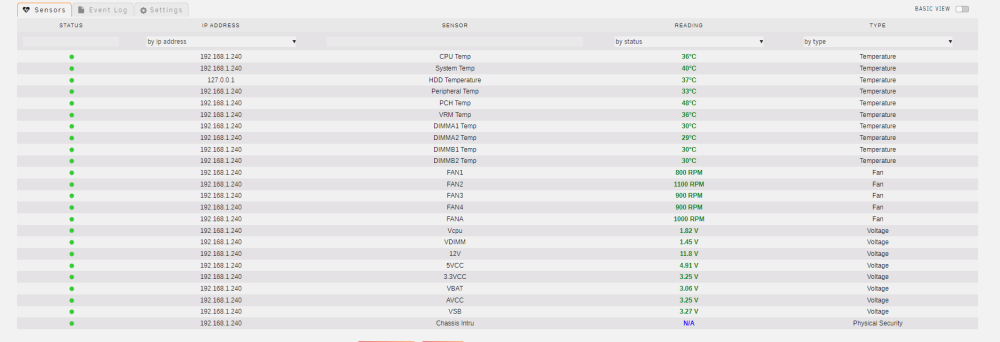

gutenmorgenuhu Posted January 22 Share Posted January 22 4 minutes ago, JorgeB said: After connecting the fan disable auto fan and then re-enable. Thanks for trying to help. I did that, but it did not change anything. I even disconnected the fans briefly. Now one is even running at RPM: Quote Link to comment

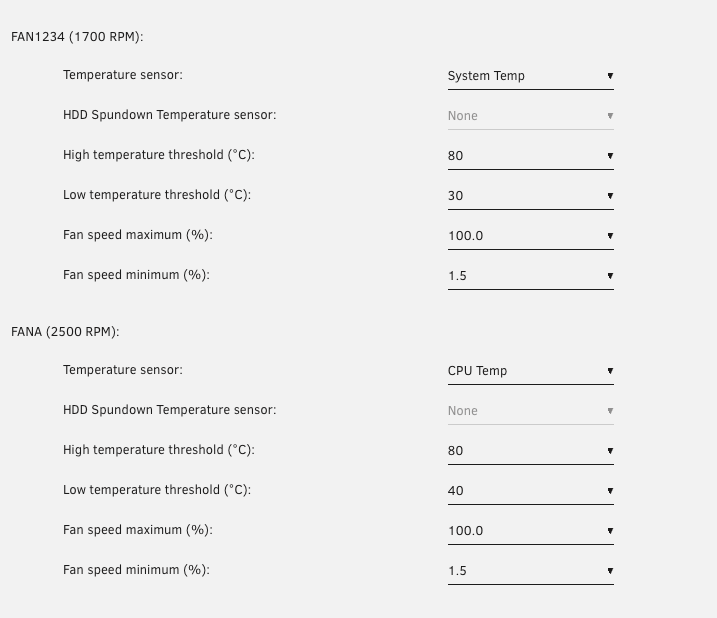

spl147 Posted January 22 Share Posted January 22 I have the same problem with a Supermicro X10SLM. After activating Fan Control, the fans spin up to max (1700 RPM) and stay there http://upload.forums.unraid.net/live/monthly_2024_01/image.png.6ceb571b78d60be63412989efe6bad0b.png FAN1: HDD Fans FAN2: Chassis Fans FANA: CPU http://upload.forums.unraid.net/live/monthly_2024_01/image.png.41d98d98b0069da8ad33dd3bd03b744f.png This is the log output: http://upload.forums.unraid.net/live/monthly_2024_01/image.thumb.png.04050727846074cf03dc67552d2c3410.png Should it output a temperature polling success line after 1 minute?Your cpu fan should be controlled by bios! The other 2 should be set to hdd Quote Link to comment
spl147 Posted January 22 Share Posted January 22 Sure I can look at adding option for the modprobe, is it specific to Dell Models as I dont want to load if not required.Im pretty sure all, but i can not test. Maybe just have a button to load/unload Quote Link to comment
SimonF Posted January 22 Author Share Posted January 22 1 hour ago, gutenmorgenuhu said: Thanks for trying to help. I did that, but it did not change anything. I even disconnected the fans briefly. Now one is even running at RPM: This is the output from my X10. 2024-01-22 20:47:15 Starting Fan Control 2024-01-22 20:47:15 Board: Supermicro Board Model: X10SL7-F 2024-01-22 20:47:15 SM Board selection: 10 2024-01-22 20:47:15 Setting fans to full speed 2024-01-22 20:47:26 Fan:Temp, FAN1234(29%):HDD Spundown using System Temp(37C), FANA(46%):CPU Temp(47C) 2024-01-22 20:48:26 Fan:Temp, FAN1234(31%):HDD Spundown using System Temp(38C), FANA(34%):CPU Temp(40C) 2024-01-22 20:49:26 Fan:Temp, FAN1234(34%):HDD Spundown using System Temp(40C), FANA(29%):CPU Temp(37C) 2024-01-22 20:50:26 Fan:Temp, FAN1234(29%):HDD Temp(37C), FANA(28%):CPU Temp(36C) May take upto 3 mins to stabilise if using HDD temp. Quote Link to comment

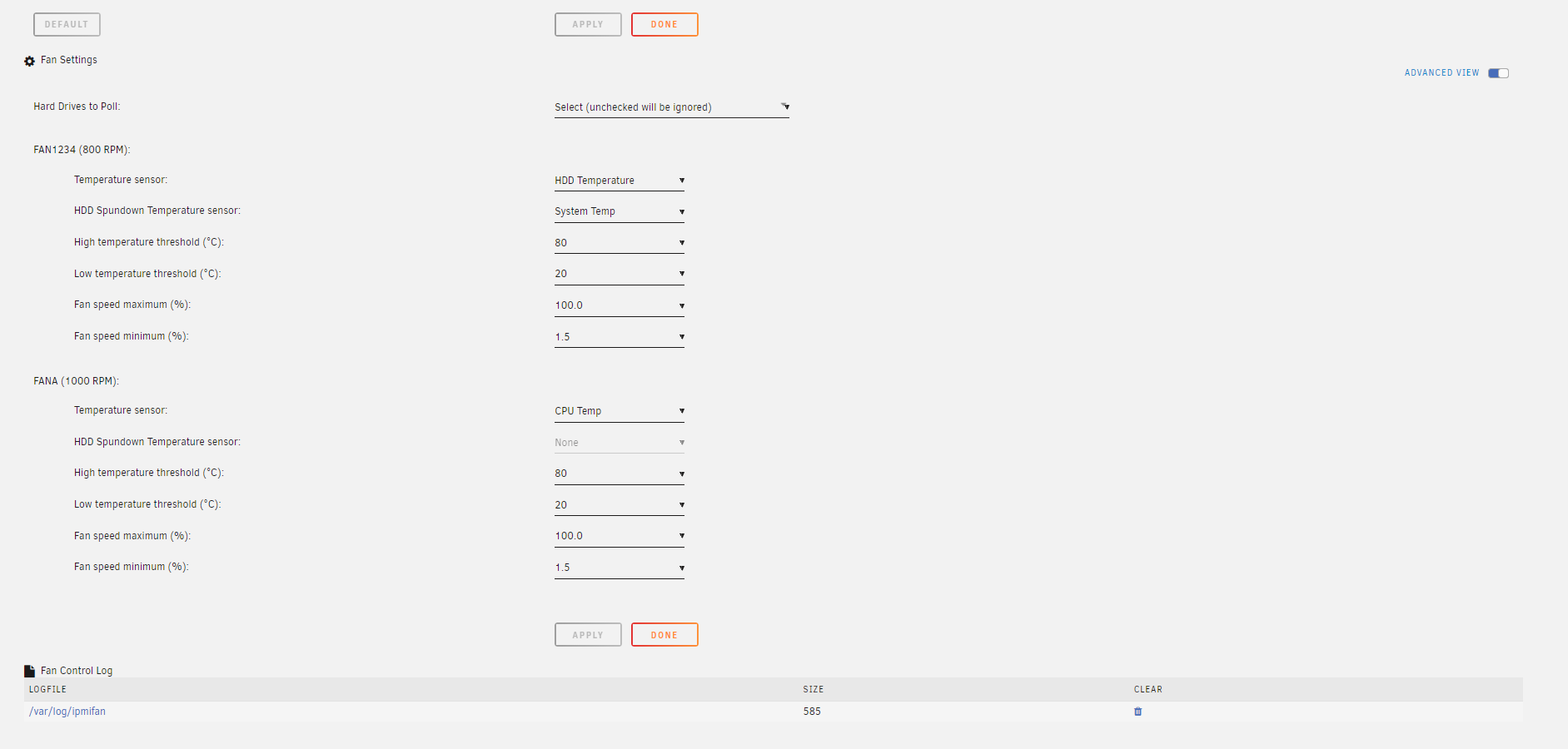

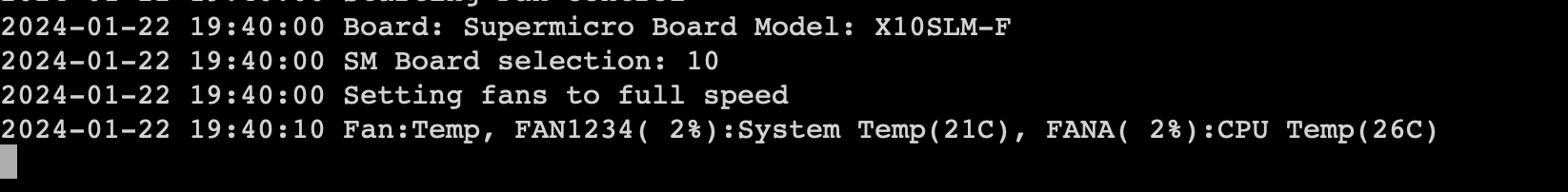

gutenmorgenuhu Posted January 22 Share Posted January 22 5 minutes ago, SimonF said: This is the output from my X10. 2024-01-22 20:47:15 Starting Fan Control 2024-01-22 20:47:15 Board: Supermicro Board Model: X10SL7-F 2024-01-22 20:47:15 SM Board selection: 10 2024-01-22 20:47:15 Setting fans to full speed 2024-01-22 20:47:26 Fan:Temp, FAN1234(29%):HDD Spundown using System Temp(37C), FANA(46%):CPU Temp(47C) 2024-01-22 20:48:26 Fan:Temp, FAN1234(31%):HDD Spundown using System Temp(38C), FANA(34%):CPU Temp(40C) 2024-01-22 20:49:26 Fan:Temp, FAN1234(34%):HDD Spundown using System Temp(40C), FANA(29%):CPU Temp(37C) 2024-01-22 20:50:26 Fan:Temp, FAN1234(29%):HDD Temp(37C), FANA(28%):CPU Temp(36C) May take upto 3 mins to stabilise if using HDD temp. I changed my settings to match yours and the log output looks goot, but the fans dont react. Do I have to set a special Fan Mode in the IPMI web UI? Quote Link to comment
SimonF Posted January 22 Author Share Posted January 22 6 minutes ago, gutenmorgenuhu said: I changed my settings to match yours and the log output looks goot, but the fans dont react. Do I have to set a special Fan Mode in the IPMI web UI? Not sure if it does not like fan 4 is not installed. Quote Link to comment
gutenmorgenuhu Posted January 22 Share Posted January 22 I fixed it. I rebootet the ipmi system via wegui. Sorry for the hazzle Quote Link to comment

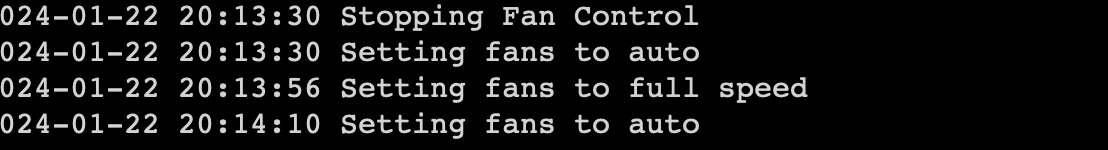

gutenmorgenuhu Posted January 23 Share Posted January 23 Unfortunately. After a reboot, everything is back to the state before (Fans spinning at max). The last "fix" was just accidentially it seems: Quote Link to comment

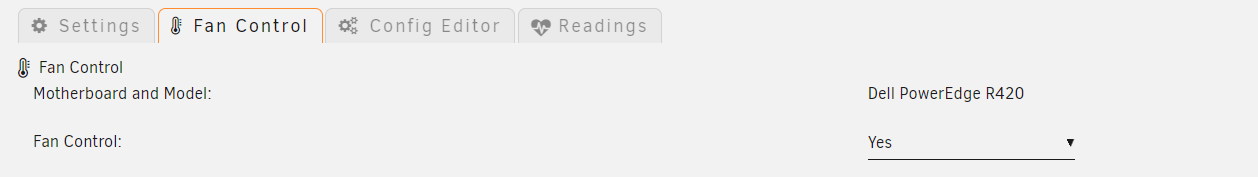

SimonF Posted January 23 Author Share Posted January 23 21 hours ago, spl147 said: Im pretty sure all, but i can not test. Maybe just have a button to load/unload Looks like my 420 loads by default. ipmi_devintf 16384 0 ipmi_ssif 32768 0 i2c_core 86016 5 drm_kms_helper,i2c_algo_bit,mgag200,ipmi_ssif,drm ipmi_si 57344 0 Quote Link to comment
