12 hours ago, Zonediver said:

May i ask, which model these Cam's are?



The different camera views are all powered by the Logitech Brio set to 4K output and broadcasting at 1080p.

33 minutes ago, jbartlett said:



The different camera views are all powered by the Logitech Brio set to 4K output and broadcasting at 1080p.



Thanks for this Info John

On 4/21/2018 at 2:01 AM, Zonediver said:

which model these Cam's are?



Logitech Brio.

This worked great for me. Thanks!

After updating to unraid 6.5.1 I’m getting this display in the docker tab where disk speed should be-

Warning: DOMDocument::load(): Document is empty in /boot/config/plugins/dockerMan/templates-user/._my-DiskSpeed.xml, line: 1 in /usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php on line 215

Warning: DOMDocument::load(): Document is empty in /boot/config/plugins/dockerMan/templates-user/._my-DiskSpeed.xml, line: 1 in /usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php on line 215

Warning: DOMDocument::load(): Document is empty in /boot/config/plugins/dockerMan/templates-user/._my-DiskSpeed.xml, line: 1 in /usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php on line 215

Also got an email with the same warning.



brunnhilde-diagnostics-20180423-1813.zip

31 minutes ago, wgstarks said:

After updating to unraid 6.5.1 I’m getting this display in the docker tab where disk speed should be



What version did you upgrade from? The reason I ask is that I'm currently using 6.5.1-rc6 and I don't see the problem you report so I'm wondering if the cause is in the diff between -rc6 and -final.

Just now, John_M said:



What version did you upgrade from? The reason I ask is that I'm currently using 6.5.1-rc6 and I don't see the problem you report so I'm wondering if the cause is in the diff between -rc6 and -final.

Upgraded from 6.5.0.

Ran the update assistant tool first and it didn’t report any issues.

1 hour ago, wgstarks said:

After updating to unraid 6.5.1 I’m getting this display in the docker tab where disk speed should be-

Those are hidden metadata files created by your Mac.  Safe to delete

17 minutes ago, Squid said:

Those are hidden metadata files created by your Mac.  Safe to delete

Thanks squid.

Removed the hidden file, deleted the orphaned image and re-installed from CA. Everything looks good now.

Maybe I need to modify my cleanup user script to delete these as well as the .ds files?

Guess it's time to replace my aging 2TB HDD

Works well for me on uR 6.4.0, confirmed my suspicions that I should definitely not add those Seagate 5TB drives to the array.







41 minutes ago, Virtike said:

Seagate 5TB



I've been shying away from all the Seagate DM drives except for NAS backup systems. They all seem to spin at 5,980 RPM and none of the drives I've tested has a smooth graph from start to end.

While there are 5 regular disks and one ARC 1200 RAID Volume on my server, only 4 disks, disk 2,3,4 and cache get benched.  I attach diagnostics.

[0:0:0:0]	disk Generic- USB3.0 CRW -0 1.00 /dev/sda 3.90GB
[0:0:0:1]	disk Generic- USB3.0 CRW -1 1.00 /dev/sdb -
[1:0:0:0]	disk Areca ARC-1200-VOL R001 /dev/sdc 3.00TB
[2:0:0:0]	disk ATA ST2000DM001-1CH1 CC43 /dev/sdd 2.00TB
[2:0:1:0]	disk ATA Hitachi HDS72202 A20N /dev/sde 2.00TB
[3:0:0:0]	disk ATA ST2000DM001-1CH1 CC43 /dev/sdf 2.00TB
[4:0:0:0]	disk ATA ST9500325AS SDM1 /dev/sdg 500GB
[5:0:0:0]	disk ATA Hitachi HUA72202 A3FD /dev/sdh 2.00TB



preclear-diagnostics-20180425-1355.zip

Edited April 25, 20188 yr by dikkiedirk

8 hours ago, dikkiedirk said:

While there are 5 regular disks and one ARC 1200 RAID Volume on my server, only 4 disks, disk 2,3,4 and cache get benched.  I attach diagnostics.



If you mean that it didn't detect the drives, the next beta will partially resolve that.

On 2018-04-25 at 8:04 AM, dikkiedirk said:

While there are 5 regular disks and one ARC 1200 RAID Volume on my server, only 4 disks, disk 2,3,4 and cache get benched.  I attach diagnostics.

[0:0:0:0]	disk Generic- USB3.0 CRW -0 1.00 /dev/sda 3.90GB
[0:0:0:1]	disk Generic- USB3.0 CRW -1 1.00 /dev/sdb -
[1:0:0:0]	disk Areca ARC-1200-VOL R001 /dev/sdc 3.00TB
[2:0:0:0]	disk ATA ST2000DM001-1CH1 CC43 /dev/sdd 2.00TB
[2:0:1:0]	disk ATA Hitachi HDS72202 A20N /dev/sde 2.00TB
[3:0:0:0]	disk ATA ST2000DM001-1CH1 CC43 /dev/sdf 2.00TB
[4:0:0:0]	disk ATA ST9500325AS SDM1 /dev/sdg 500GB
[5:0:0:0]	disk ATA Hitachi HUA72202 A3FD /dev/sdh 2.00TB



preclear-diagnostics-20180425-1355.zip

Getting the same issue. 2 of my disks are being detected, but aren't getting benched. Where can I get you the diags/logs?

1 hour ago, Caldorian said:

Getting the same issue. 2 of my disks are being detected, but aren't getting benched. Where can I get you the diags/logs?



Wait until the next beta and then click on the "Create Debug File" link at the bottom of the drives. I'm finalizing testing on it now. I'll post a change log when it's ready.

Hi.

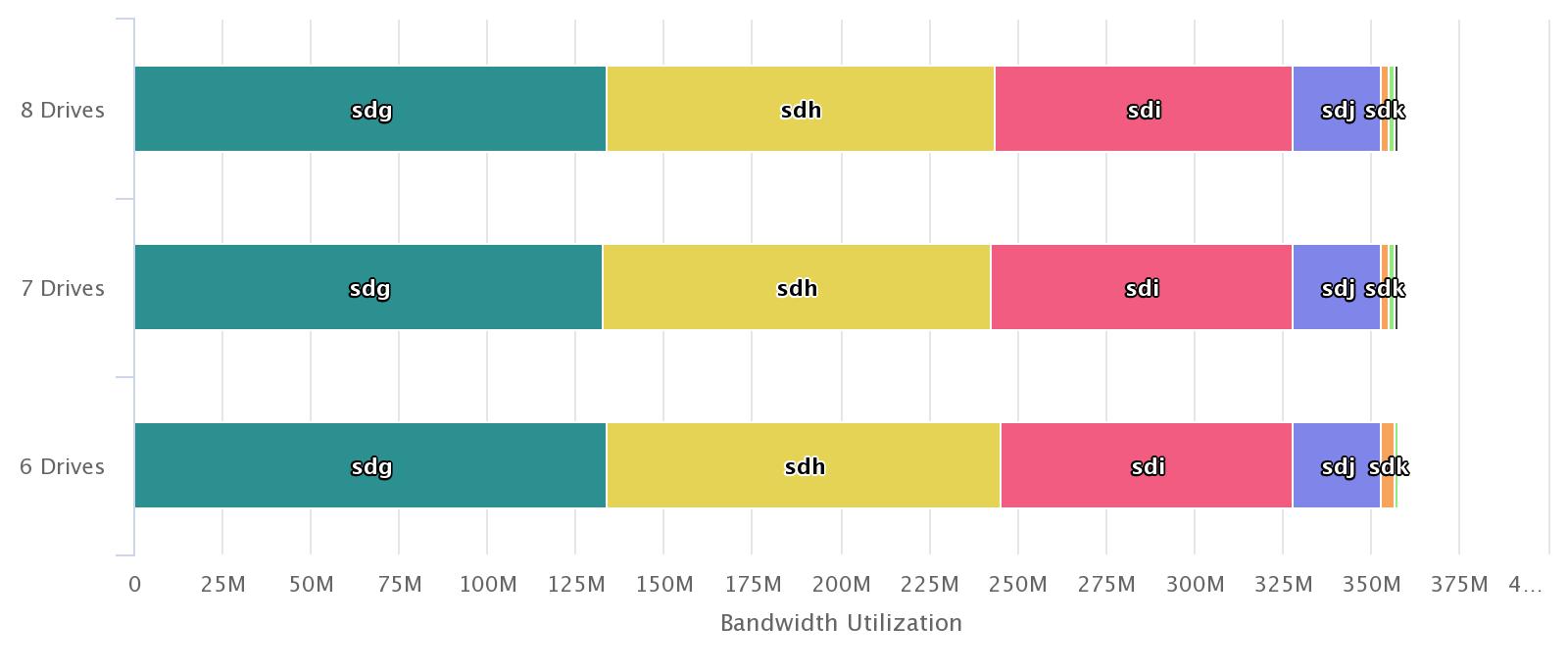

I run diskspeed for a controller that has 8 disks attached (attached file). The controller is an AOC-SASLp-MV8 (PCIe x4).

Do those results indicate that the 4x PCIe lanes are saturated by the 4 first drives? Or could it be something else?





On 4/27/2018 at 11:56 PM, papnikol said:

I run diskspeed for a controller that has 8 disks attached (attached file). The controller is an AOC-SASLp-MV8 (PCIe x4).

Do those results indicate that the 4x PCIe lanes are saturated by the 4 first drives? Or could it be something else?



That's fascinating.  It does look like that but I haven't seen any controller not load-share the reads like that. It should have kept scanning fewer drives though until it gets under 90% of the max throughput detected or it runs out of drives.

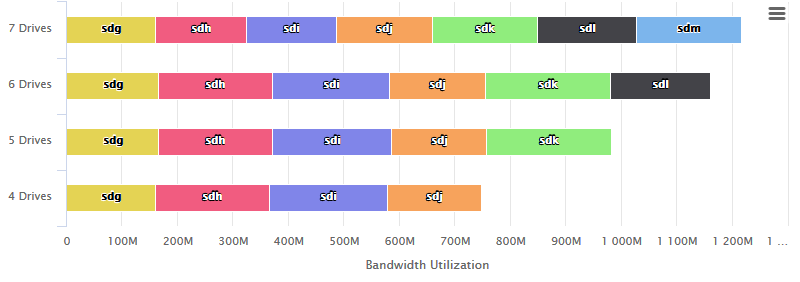

Here's a controller test on my test rig. It gives all the drives equal time on the first pass which maxed out the bandwidth even though it meant capping the read speeds of each drive.



Beta 3A

NOTE: Ryzen Threadripper (X399 Chipsets) with IOMMU enabled will not run this version successfully. I am diagnosing the issue.



If you have missing controllers or missing drives, please click on "Create Debug File" link at the bottom of the DiskSpeed home page to create a debug file with controller information included. Do not submit unRAID diagnostic files unless asked. Email the debug file to [email protected]



Change Log

• Single thread the process which analyzes & cleans up the benchmarks to prevent against a race condition where two threads try to process it at the same time
• Reworked how NVMe drives are detected
• Scan all PCI root ports for controllers
• Modified IOMMU detection
• Handle drives rebranded with Apple
• Drive model cleanup for ADATA, Corsair, LITEONIT
• If the first word of the Model matches the Vendor, remove it
• If the drive is not found in the Hard Drive Database, add a link to allow the Vendor to be modified.
• Move benchmark processing files to Docker contained temp file to allow for auto-cleanup during docker updates
• Detect if a drive was added to the Host after the Docker started
• Do not submit benchmark results if the drive was tested at fewer than every 10%
• Do not submit benchmark results if bandwidth capping was detected
• Do not include labels for drives never benchmarked on the main page benchmark graph
• Expand the debug file creation to include certain PCI device information to help identify controllers not yet supported
• Don't display benchmark average if there's only one benchmark done
• Fix text overlay style error on drive images, hopefully drives will now match the editor
• Change the label of the "Purge Everything" button to make it more clear and add a confirmation dialog

Edited April 30, 20188 yr by jbartlett

7 hours ago, jbartlett said:



That's fascinating.  It does look like that but I haven't seen any controller not load-share the reads like that. It should have kept scanning fewer drives though until it gets under 90% of the max throughput detected or it runs out of drives.

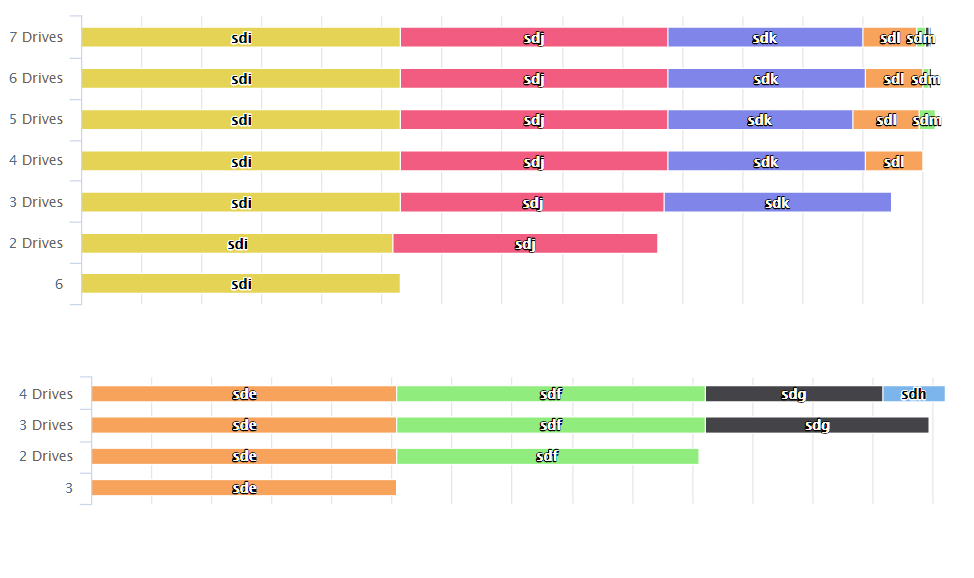

Wow, I like your graph much more than mine. So, my array has 2 AOC-SASLP controllers with 8 and 3 HDDs respectivelly. I moved one drive so that there are 7 and 4 HDDs on each controller, in order to exceed both controllers' max bandwidth. The balancing problem appears in both controllers. Maybe it is a problem with the controller settings. Maybe I should try disabling int 13h (although I never understood what that is)....











Edited April 30, 20188 yr by papnikol

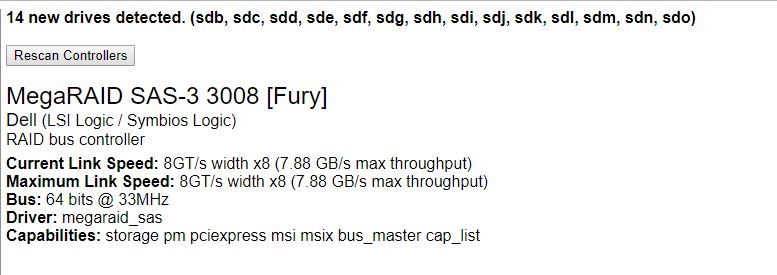

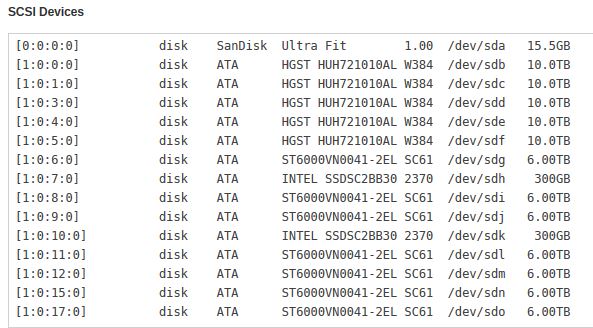

I think my SAS Expander does not play nice with drive detection....



Already send an email with the debug-file



On 4/23/2018 at 6:14 PM, wgstarks said:

After updating to unraid 6.5.1 I’m getting this display in the docker tab where disk speed should be-

Warning: DOMDocument::load(): Document is empty in /boot/config/plugins/dockerMan/templates-user/._my-DiskSpeed.xml, line: 1 in /usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php on line 215

Warning: DOMDocument::load(): Document is empty in /boot/config/plugins/dockerMan/templates-user/._my-DiskSpeed.xml, line: 1 in /usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php on line 215

Warning: DOMDocument::load(): Document is empty in /boot/config/plugins/dockerMan/templates-user/._my-DiskSpeed.xml, line: 1 in /usr/local/emhttp/plugins/dynamix.docker.manager/include/DockerClient.php on line 215

Also got an email with the same warning.



brunnhilde-diagnostics-20180423-1813.zip

Fixed in 6.5.2-rc1+

Beta 3a: Remove debug line which had drives testing for only 5 seconds instead of the intended 15.



This may have resulted in slightly less accurate speed scores but should still be in an acceptable margin of error.

On 4/27/2018 at 11:56 PM, papnikol said:

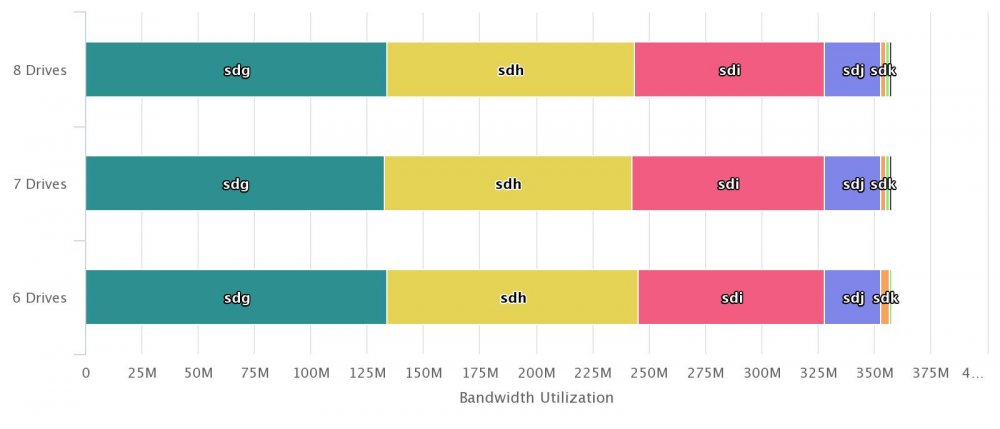

Hi.

I run diskspeed for a controller that has 8 disks attached (attached file). The controller is an AOC-SASLp-MV8 (PCIe x4).

Do those results indicate that the 4x PCIe lanes are saturated by the 4 first drives? Or could it be something else?







How many CPU threads do you have available to unRAID (& Docker)? As in, not pinned to any VM or the like?

1. I have no VMs.



2. I have already changed my MOBO/CPU/RAM to much better configuration (but the 2 SASLP controllers remain).

MSI RD480/AMD Athlon 64 3700+/3GB

->

Asrock FM2A88X Pro+/: AMD Athlon™ X4 840 Quad Core @ 3100/8GB

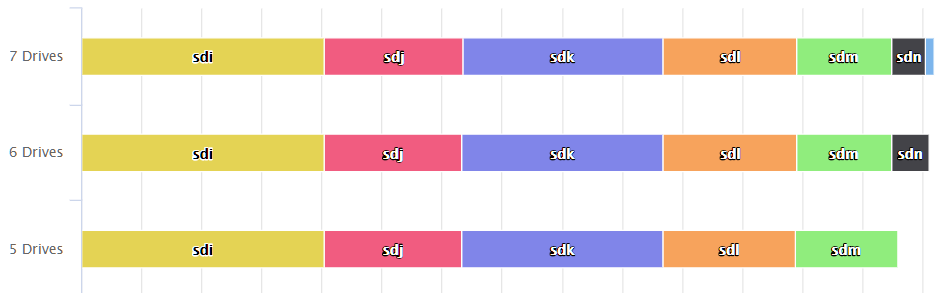

3. These are the results for one of the controllers with the new configuration:



There is more bandwidth due to the move from PCI e 1.0 to PCIe 2.x. But still, the bandwidth is not balanced across all disks. The bandwidth usage is maximized for each drive until the last 2-3 drives have very little bandwidth available.

Edited May 8, 20188 yr by papnikol
