25 minutes ago, Taddeusz said:

The left side is the original video format, in this case HEVC. That’s what it is decoding. The right side is showing that it is encoding to H.264 using hardware.



 Your E3 is a Haswell architecture CPU so it cannot decode or encode HEVC in hardware.

Ok thanks for your answer

On 10/9/2019 at 9:11 AM, Lappen71 said:

Its an Intel Xeon E3 1225 v3

It you look at the picture it shows hw even with HEVC but only in one place.

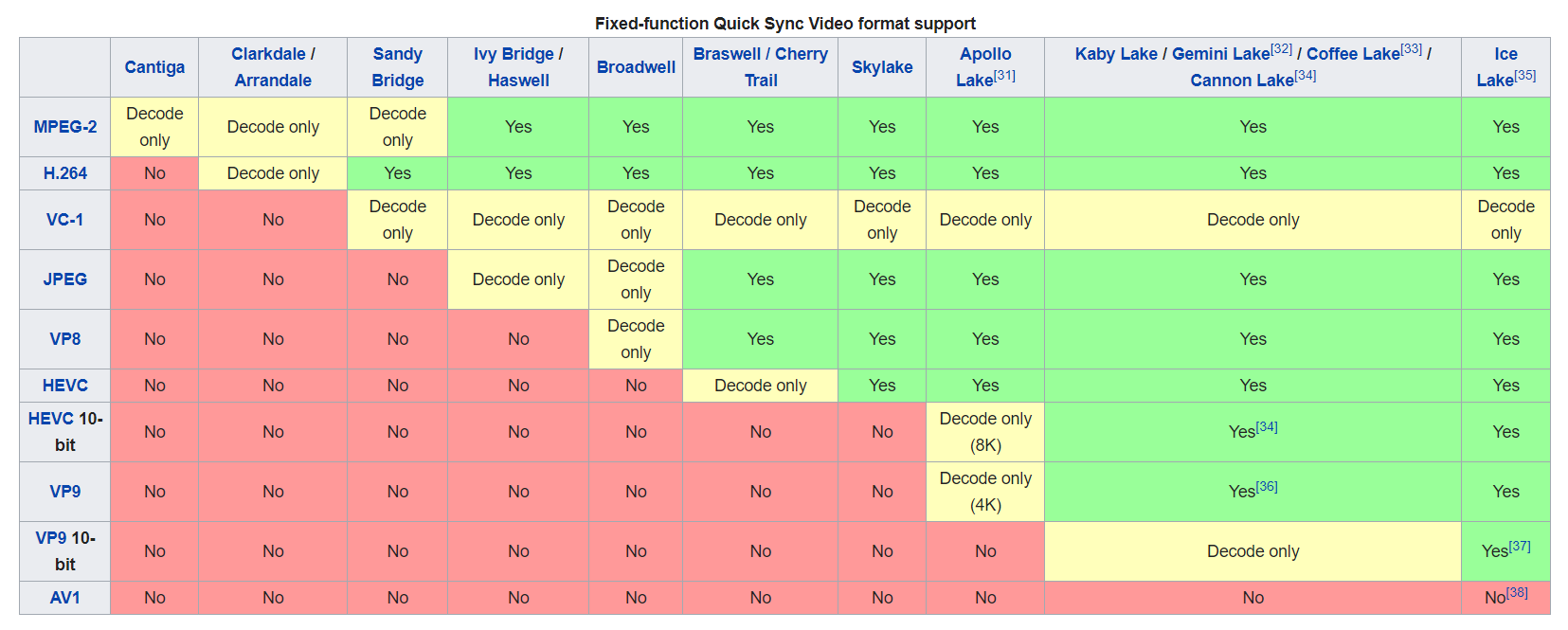

You might find this useful (Yes means the iGPU can both encode and decode.):



BTW: this chart is from the Quick Sync Video Wikipedia page.



Edited October 10, 20196 yr by Hoopster

2 hours ago, Taddeusz said:

@Zonediver Just to discount Quick Sync hardware acceleration out of hand because it doesn’t meet your own quality standards doesn’t mean it wouldn’t be acceptable for others in different situations. Coming on here berating others for using it is rather rude.

Thats not rude - it's a fact - QuickSync transcoding needs "extra money" (PlexPass) - thats useless.

Investing in a stronger CPU makes more sense. But his Xeon is fast enough - so he dont need QuickSync transcoding and can safe money too.

Edited October 9, 20196 yr by Zonediver

13 minutes ago, Zonediver said:

Thats not rude - it's a fact - QuickSync transcoding needs "extra money" (PlexPass) - thats useless.

Investing in a stronger CPU makes more sense. But his Xeon is fast enough - so he dont need QuickSync transcoding and can safe money too.



Yes it's rude and not for you decide. You don't know anything what i want or need so mind your own business.

Edited October 9, 20196 yr by Lappen71

7 minutes ago, Lappen71 said:



Yes it's rude and not for you decide. You don't anything what i want or need so mind your own business.

You didn't tell us, "what you want" - so what do you want? And if you dont like my comment, just ignore it... 😉

And besides, I think you do not have enough experience. Therefore also the forum that should show you alternatives.

Edited October 9, 20196 yr by Zonediver

4 minutes ago, Zonediver said:

You didn't tell us, "what you want" - so what do you want? And if you dont like my comment, just ignore it... 😉

And besides, I think you do not have enough experience. Therefore also the forum that you should show alternatives

Ignore the comment you directing to me? Are you really this stupid.

Mind you business i got the answer i wanted.

Just now, Lappen71 said:

Ignore the comment you directing to me? Are you really this stupid.

Mind you business i got the answer i wanted.

Stupid??? Wow... this is rude...

Edited October 9, 20196 yr by Zonediver

4 minutes ago, Lappen71 said:

Ignore the comment you directing to me? Are you really this stupid.

Mind you business i got the answer i wanted.

Please be courteous and respectful to one another. Thank you

I like Quicksync, it allows those on crappy connections to get videos without putting a burden on my machine. With Quicksync my CPU hardly registers any work. Without it it maxes out a core. Causing buffering and a poor viewing experience. Some people can't do anything about their connection speed as they're out in the sticks. So +1 to QuickSync.

cd dev/drils was not working for med but

cd /dev/dri

# ls
by-path/  card0  renderD128

works and rest of the guide help me. Now I have HW transcoding on my I5 6500.

Take two days to figure out what was wrong.

Has anyone gotten 9 series igpus to use quicksync in unraid 6.8 rc?  Tried following this guide and while I can ls and get the right info, plex isnt kicking to HW.  I have a 9900k.

12 minutes ago, sittingmongoose said:

Has anyone gotten 9 series igpus to use quicksync in unraid 6.8 rc?  Tried following this guide and while I can ls and get the right info, plex isnt kicking to HW.  I have a 9900k.

I assume this is not the issue, but, is your version of Plex the latest (1.18.0.xxxx)?  Plex began supporting 9th-generation CPUs with version 1.17.0.xxxx so you need to have at least that version of PMS installed.

3 minutes ago, Hoopster said:

I assume this is not the issue, but, is your version of Plex the latest (1.18.0.xxxx)?  Plex began supporting 9th-generation CPUs with version 1.17.0.xxxx so you need to have at least that version of PMS installed.

I have the newest beta build.  I also know my igpu is enabled because it works in my VM.  I also have a display dongle plugged into the igpu as well.  And i disabled my vm before i tried doing anything with plex.

Edited October 17, 20196 yr by sittingmongoose

Are you using HandBrake or any other docker container that allows passing through the iGPU via /dev/dri?  If so, does it work there?

1 minute ago, Hoopster said:

Are you using HandBrake or any other docker container that allows passing through the iGPU via /dev/dri?  If so, does it work there?

I tried emby but that didnt work.  I have handbrake but I dont know how to use it lol

1 minute ago, sittingmongoose said:

I tried emby but that didnt work.  I have handbrake but I dont know how to use it lol

Well, if you had it properly set up in Emby and it also did not work there, that's an indication there might still be Linux kernel/i915 UHD 630 driver issues.



Unfortunately, I am still using a 5th generation Skylake CPU in which everything works so I cannot test 9th generation iGPU support.



Perhaps someone with a 9th generation CPU/iGPU will chime in.

2 hours ago, stormense said:

cd dev/drils was not working for med but

cd /dev/dri

# ls
by-path/  card0  renderD128

works and rest of the guide help me. Now I have HW transcoding on my I5 6500.

Take two days to figure out what was wrong.

It would be useful if the original post could be updated to insert the missing linefeeds.

FYI, got the 9900k working in 6.8 RC1!  with the help from someone on the unraid reddit.  Nothing special was needed, I was doing it wrong.

9 minutes ago, sittingmongoose said:

FYI, got the 9900k working in 6.8 RC1!  with the help from someone on the unraid reddit.  Nothing special was needed, I was doing it wrong.

👍 Glad to hear it is working for you.

Edited October 18, 20196 yr by Hoopster

On 10/17/2019 at 8:24 PM, stormense said:

cd dev/drils was not working for med but

cd /dev/dri

# ls
by-path/  card0  renderD128

works and rest of the guide help me. Now I have HW transcoding on my I5 6500.

Take two days to figure out what was wrong.

Apologies, for some reason all the carriage returns were removed from my code blocks. All sorted now Thanks for the heads up

On 10/17/2019 at 11:06 PM, John_M said:

It would be useful if the original post could be updated to insert the missing linefeeds.

Done Thanks!

I just started having issues with Quicksync on 6.8 (it worked smoothely on 6.7.2):

Any help would be appreciated

So I have a Xeon E-2176g and Supermicro X11SCZ-F motherboard. Reading the first post, it mentioned that if the board has IPMI than it getting Quick Sync to work wouldn't be possible.



I'm assuming my configuration falls within that category and if it does, is there any way to get it working?

12 minutes ago, Geran said:

So I have a Xeon E-2176g and Supermicro X11SCZ-F motherboard. Reading the first post, it mentioned that if the board has IPMI than it getting Quick Sync to work wouldn't be possible.



I'm assuming my configuration falls within that category and if it does, is there any way to get it working?

It works. This is from a different motherboard but it’s the same company and chipset. Everything should be the same.





So I have a Xeon E-2176g and Supermicro X11SCZ-F motherboard. Reading the first post, it mentioned that if the board has IPMI than it getting Quick Sync to work wouldn't be possible.

I'm assuming my configuration falls within that category and if it does, is there any way to get it working?





The reason some boards won’t work is because their implementation of IPMI sends all video through the IPMI controller. This is done so that you can “Remote Desktop” into your machine using IPMI.



As a result your Intel chip isn’t recognised as being the display adapter, rather it’s the IPMI controller.



I can understand why it’s done this way but it can make for a bit of hassle in occasions such as this.

@ramblinreck47 mentioned it might work though. Only other option would be to install a graphics card, but then you lose quick sync altogether. HW transcoding is possible with some Nvidia cards if you’re going that route.



Give it a shot though it might work!
