I just tried out two other ports, the default one and 27100. With the default one it works, with the other it doesn't show up. Not sure why.

2 hours ago, IppoKun said:

I just tried out two other ports, the default one and 27100. With the default one it works, with the other it doesn't show up. Not sure why.

I tried it now with 27100, 28015, 27015 and also 27030 (default on my server) and everything is working as it should...

Is it possible that the steamcmd that I re-used (from one of your 7dtd servers) is making something break?

59 minutes ago, IppoKun said:

Is it possible that the steamcmd that I re-used (from one of your 7dtd servers) is making something break?

No, steamcmd is only used when the container is fresh started to downlaod the game and check for updates, after that it doesn't run anymore, or better speaking it doesn't run anymore when the application (CS:GO) is started.



I also have reused the SteamCMD directory from another container and was already in place.



Can you check if other services are running on those ports and are reachable from outside? I have a few reports that some ISP block certain ports or port ranges.

45 minutes ago, ich777 said:

No, steamcmd is only used when the container is fresh started to downlaod the game and check for updates, after that it doesn't run anymore, or better speaking it doesn't run anymore when the application (CS:GO) is started.



I also have reused the SteamCMD directory from another container and was already in place.



Can you check if other services are running on those ports and are reachable from outside? I have a few reports that some ISP block certain ports or port ranges.

These ports should be free, since no other docker image is using them. I even tried out host network, added -port 27030 on the GAME_PARAMS, edited also the GAME_PORT just in case and I get the following image (attached).





I'm out of ideas it simply does not want to work.

Edited October 7, 20224 yr by IppoKun

9 hours ago, IppoKun said:

added -port 27030

Why? As said above, don‘t do this, this handled by the GAME_PORT variable.

Hello,



I have been trying to launch the Squad game server docker but it doesn't seem to be showing up in the in-game 'Custom Server' list, (where I would expect it to appear as it is classified as an "unlicensed" server), and I am unsure if it is even fully operational following boot? The docker log itself appears to be showing a number of errors and warnings and I wondered if you could kindly advise as to what I should do to get it operational please?



This is a fresh install of the docker. Please let me know if you need any other information or require it in a different format.



Thank you,

Zee

zoreo-diagnostics-20221009-2216.zip Log for_ Squad Zee-Unraid.html

Edited October 9, 20224 yr by Zee-Unraid

7 hours ago, Zee-Unraid said:

I have been trying to launch the Squad game server docker but it doesn't seem to be showing up in the in-game 'Custom Server' list

First I would strongly recommend that you upgrade to Unraid 6.11.1



7 hours ago, Zee-Unraid said:

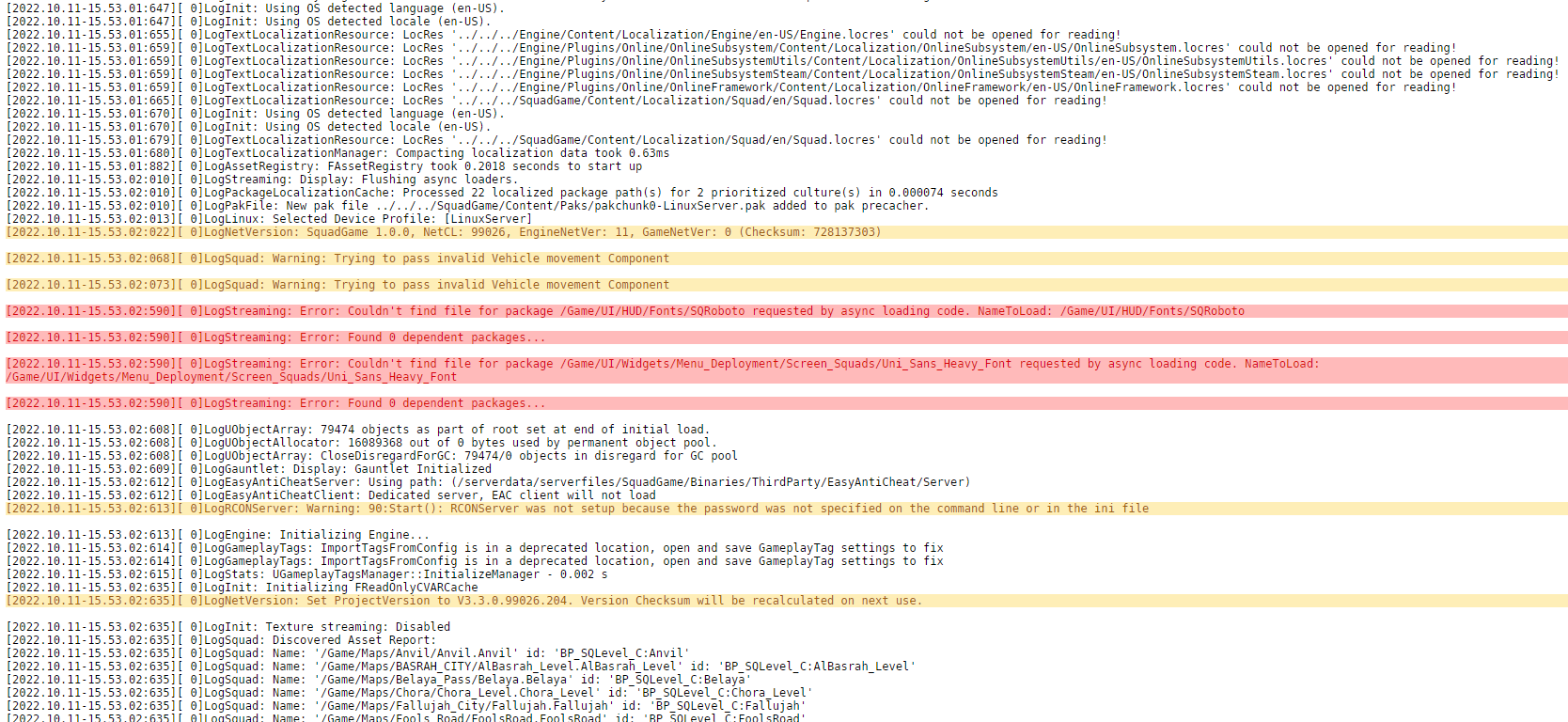

The docker log itself appears to be showing a number of errors and warnings and I wondered if you could kindly advise as to what I should do to get it operational please?

The logs seems okay from what I see so far.



7 hours ago, Zee-Unraid said:

This is a fresh install of the docker. Please let me know if you need any other information or require it in a different format.

Did you forward all ports from the template with the appropriate protocol in your router too?

Did you change any of the ports or settings in the template itself?

12 hours ago, ich777 said:

Did you forward all ports from the template with the appropriate protocol in your router too?

Did you change any of the ports or settings in the template itself?



Hi

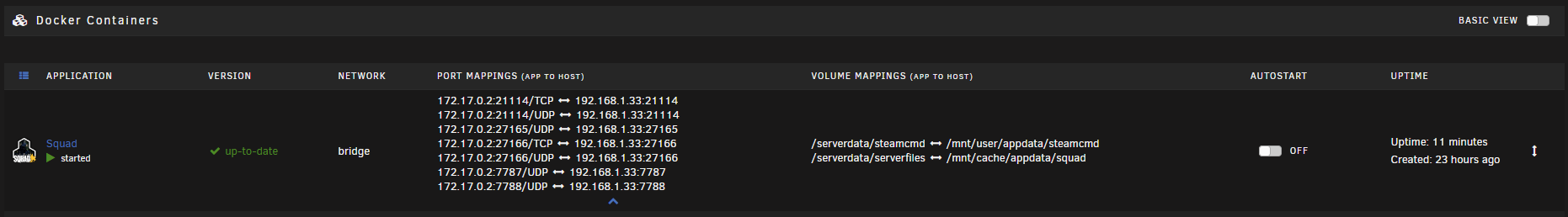

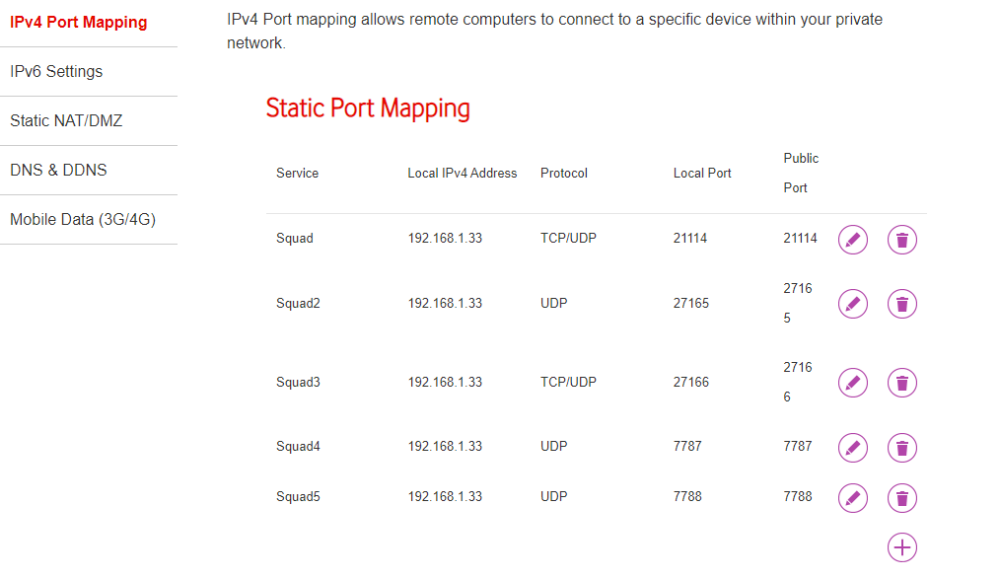

I did not change any template. I believe I have changed them... See below.



Thanks!





1 hour ago, Zee-Unraid said:

I did not change any template. I believe I have changed them... See below.

I will try this again on my computer, can you at least browse it from the Steam Server Browser?



Try YOURSERVERIP:27165 and/or YOURSERVERIP:7787

Hi @ich777,



I am able to find it in the steam server browser (using add favourite feature) when searching for my local UnraidIP and port 27165. It looks like it is online at least locally at the IP. The Squad server would not show up in the LAN tab though...

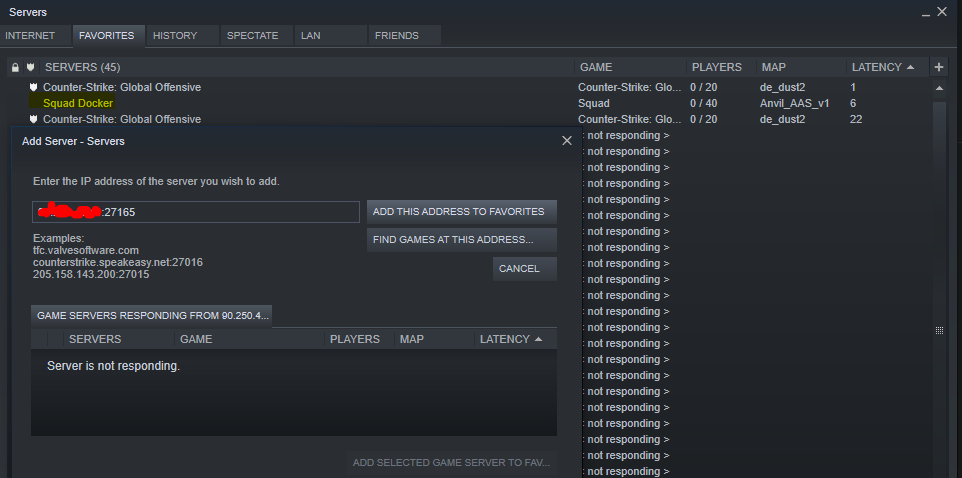

I am unable to see the squad server on my PUBLIC IP address port 27165 using add favourite function, (nor does it show up on the LAN tab); however, when I spin up your CSGO docker server and allow that port through, I am able to see the CSGO server using add favourite and on LAN tab with the public IP?...



I have tried disabling and re-enabling my firewall on my router. The CSGO server is fine regardless and shows up with public IP. The Squad server still does not show searching it on my public IP.



So, to summarise, I can see the CSGO server using my public IP - but I cannot see the squad server on my public IP - only the local unraid IP and only when "adding favourite" and not in the LAN tab?



Many thanks in advance!

Edited October 10, 20224 yr by Zee-Unraid
edit

Just installed the Beta DayZ Server Docker. Anyone ever set it up? Need help. I have been hoping a DayZ docker would be started.

3 hours ago, GOODWINML said:

Just installed the Beta DayZ Server Docker. Anyone ever set it up? Need help. I have been hoping a DayZ docker would be started.

What's the exact issue?

Any logs? Do you try to log in from the beta client or the default one (only beta is supported).

From what I know several people run it.

14 hours ago, Zee-Unraid said:

The Squad server would not show up in the LAN tab though...

That's just normal, you have to put the query port in the range of 27015-27030 to show up there, but you have to delete the old port for the query port and create a new port with the appropriate protocol and also change the query port in the GAME_PARAMS.



14 hours ago, Zee-Unraid said:

The Squad server still does not show searching it on my public IP.

I will try to set up a Squad server later on my server again.



EDIT: I've set it up now on my server and it runs just fine but I can't test any further since this was a game I did on request and I actually didn't own the game, if you report it as broken I will remove it from the CA App.



Back then the users @dave234ee and @Pede reported that it was working.

8 hours ago, ich777 said:

That's just normal, you have to put the query port in the range of 27015-27030 to show up there, but you have to delete the old port for the query port and create a new port with the appropriate protocol and also change the query port in the GAME_PARAMS.



I will try to set up a Squad server later on my server again.



EDIT: I've set it up now on my server and it runs just fine but I can't test any further since this was a game I did on request and I actually didn't own the game, if you report it as broken I will remove it from the CA App.



Back then the users @dave234ee and @Pede reported that it was working.



Hi Ich777,

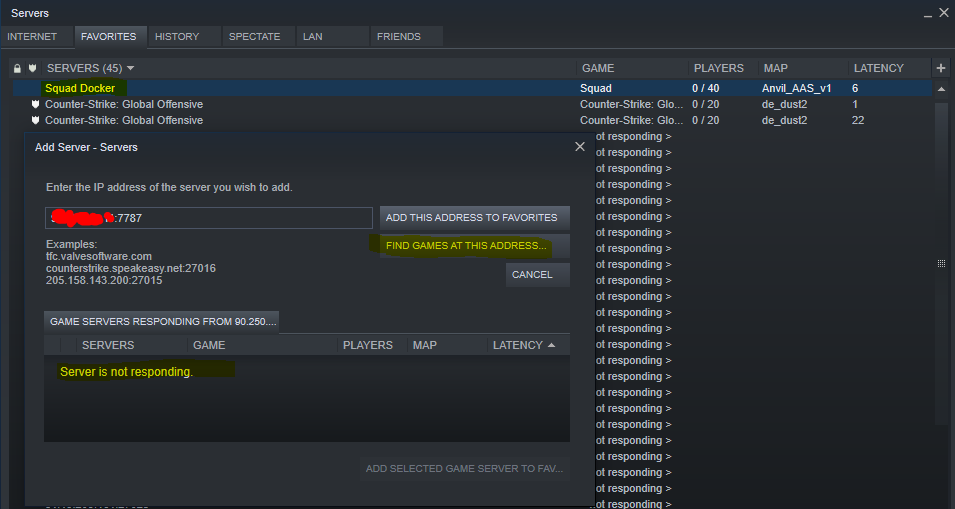

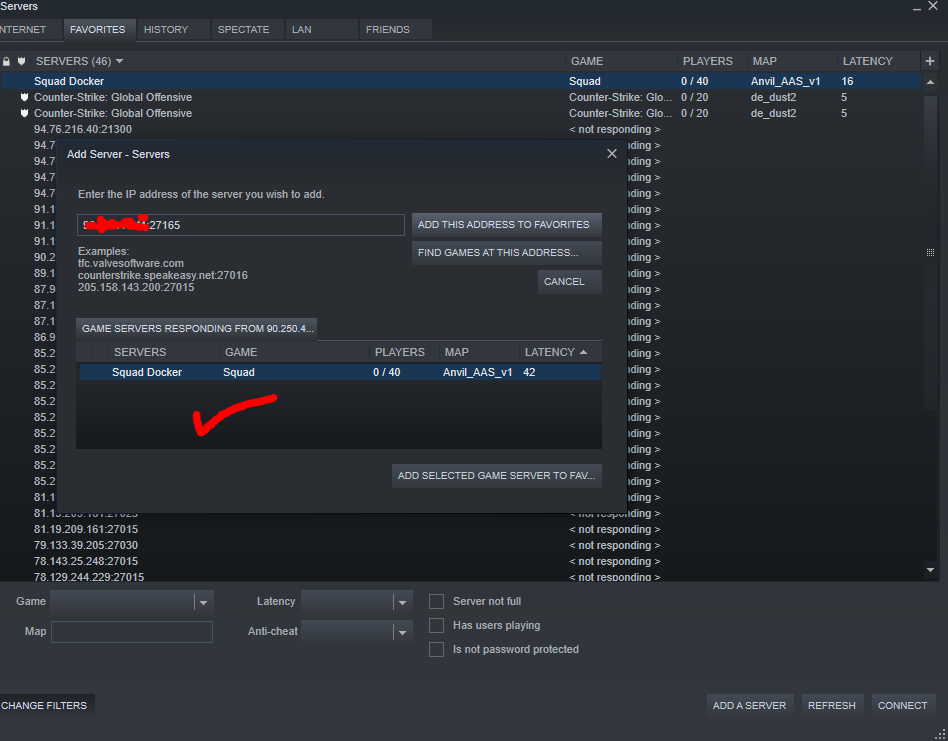

Were you able to identify it via your PublicIP:27165 from the add favourites list in steam or port 7787? Here is what it looks like for me, you can see the CSGO server x 2, (public and local IP address mapping), as well as the internal IP address Squad server being active and showing up.

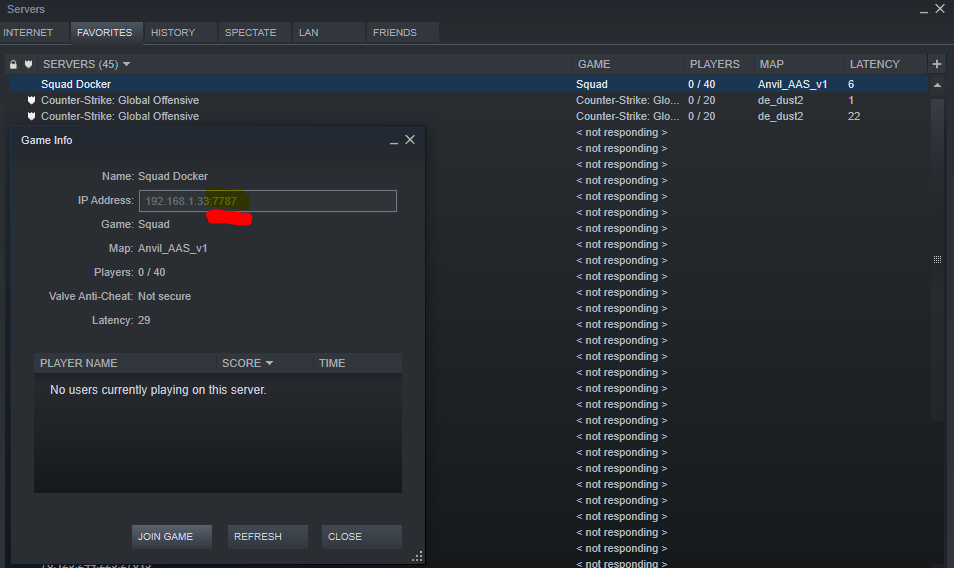

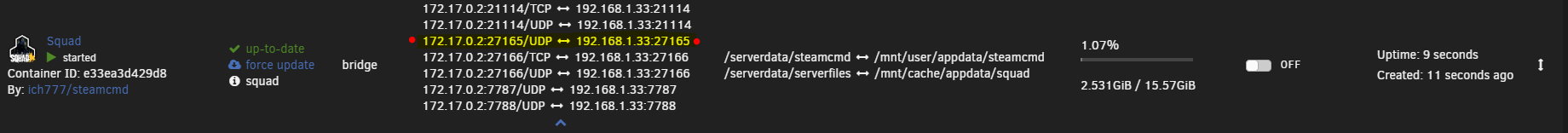

But public IP, hidden in red, is not showing up. I noticed the docker on my internal IP seems to respond to port 7787, not 27165, but neither work on my public IP?



Is yours the same?









It feels like some sort of network mapping issue with the docker, but it could also be my network.



Ideally it would be helpful if someone else with the game could help test this before we delete the docker completely.



Clutching at straws here... but if you don't see any issues with any of the above, could any of the below errors from my log have anything to do with it, please?

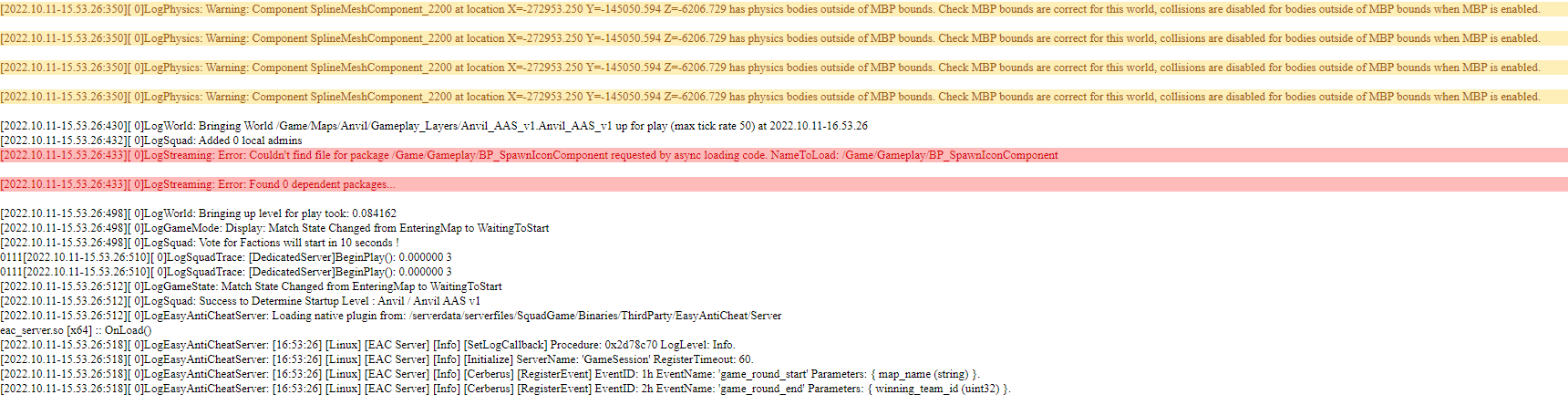

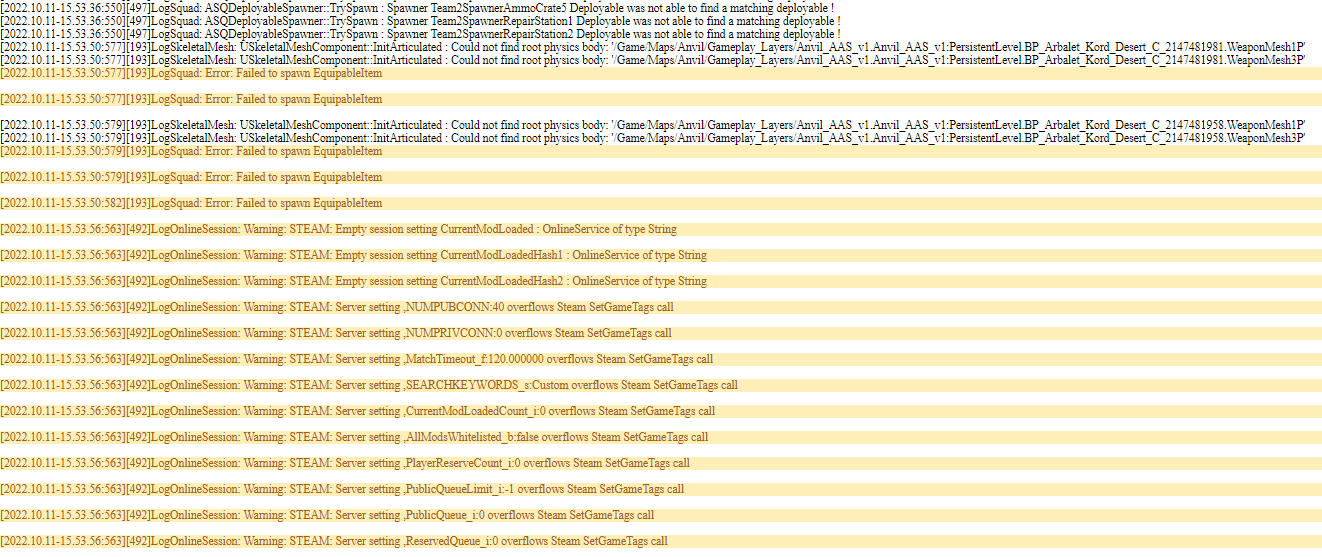

And finally, at the end of my log, I am left with warnings, some of which repeat every minute and do relate to settings and steam - any of these??





I am about to upgrade my unraid version to see if that has any effect.



If you are happy, for testing purposes, I am also fine to try and connect to your squad docker via your public IP, you can PM me if I can help you further, just let me know.



I really hope we can fix this, please, as I really want this docker!  Please let me know what you think to the above, hopefully we can get to the bottom of it.



Thanks so much!

Zee

Edited October 11, 20224 yr by Zee-Unraid

15 minutes ago, Zee-Unraid said:

Were you able to identify it via your PublicIP:27165 from the add favourites list in steam or port 7787?

Yes, I can connect via my public IP or at least add it with MYDOMAINNAME:27165 and I also see that there is nobody playing on it.



15 minutes ago, Zee-Unraid said:

It feels like some sort of network mapping issue with the docker, but it could also be my network.

You have to use the QueryPort: 27165 and that translates over to the game port.



15 minutes ago, Zee-Unraid said:

could any of the below errors from my log have anything to do with it

No, because the read lines are saying that certain assets are missing but that is just usual stuff for a dedicated server because they don't need all assets (doesn't have to render the world).



15 minutes ago, Zee-Unraid said:

If you are happy, for testing purposes, I am also fine to try and connect to your squad docker via your public IP, you can PM me if I can help you further, just let me know.

Will write a PM to you shortly.

hi @ich777,



I think I have solved it... See below...



There is a discrepancy between what is required on the docker installation for port mapping, and actual port mapping:

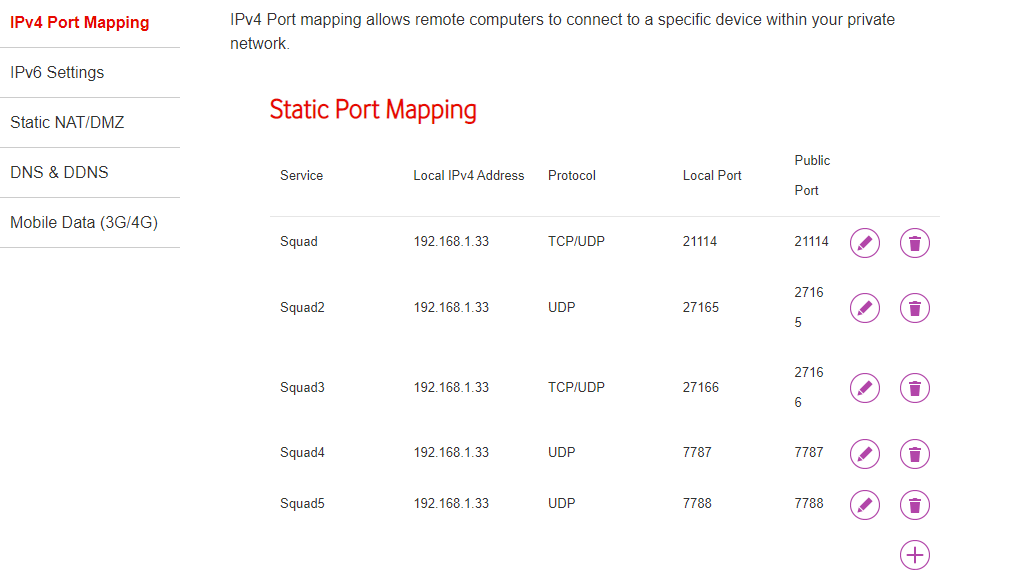

The docker says to map these ports:

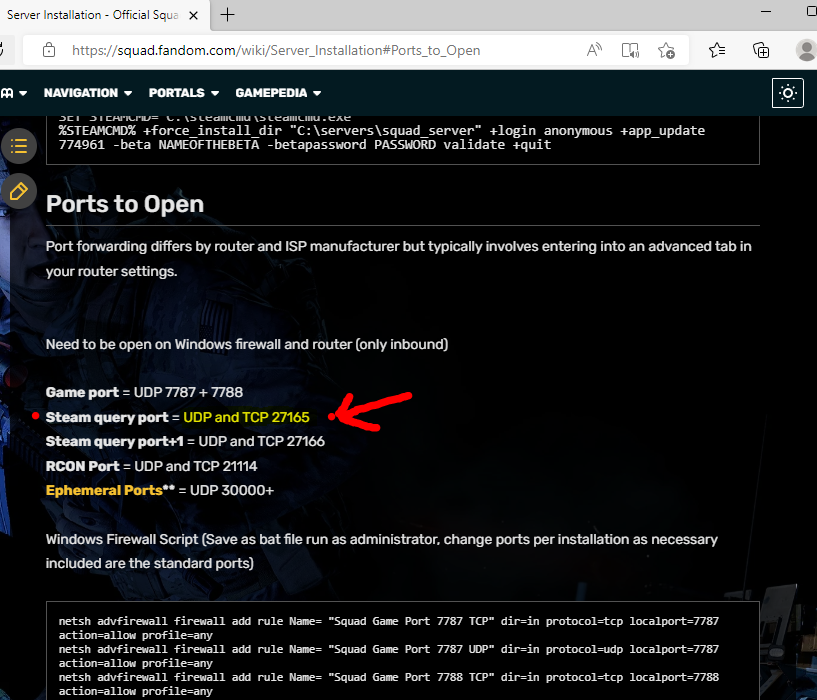

So I double checked the Squad support page on the ports... 27165 is required for both TCP and UDP, not just UDP as listed on the docker mappings. Are you able to update this docker so it lists it correctly please?

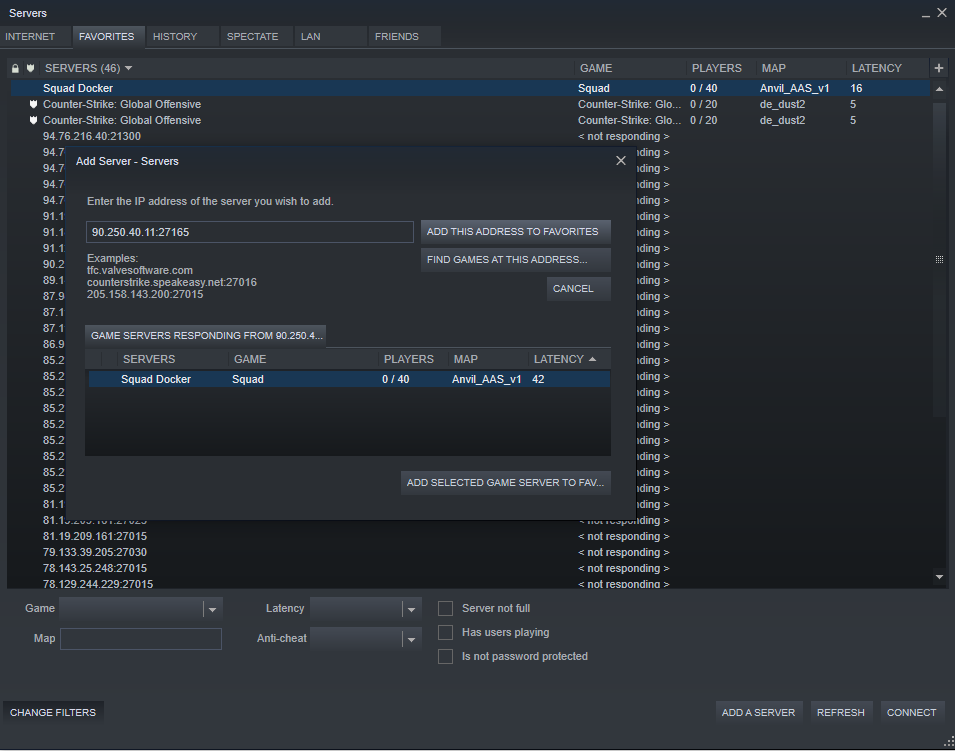

Once I corrected it in my router mappings it worked okay!





Thank you for your help! We saved the docker from getting deleted!



Zee

Edited October 11, 20224 yr by Zee-Unraid

3 minutes ago, Zee-Unraid said:

27165 is required for both TCP and UDP

I have to say that this is certainly wrong... Steam uses only UDP for Query Ports and never TCP.

Have you also added this port in the template?



Have you yet tried to connect to my container?

Why can I see my container with the public IP then without adding TCP?

Hello!
My CSMM docker is now bootlooping whenever i start it.. here's the error as its' trying to download another version



--CSMM successfully downloaded, please wait---
replace 7-days-to-die-server-manager-master/.dockerignore? [y]es, [n]o, [A]ll, [N]one, [r]ename:  NULL
(EOF or read error, treating as "[N]one" ...)
mv: cannot move '/csmm-7dtd/7-days-to-die-server-manager-master' to '/csmm-7dtd/CSMM/7-days-to-die-server-manager-master': File exists
npm WARN config only Use `--omit=dev` to omit dev dependencies from the install.
npm ERR! code ENOENT
npm ERR! syscall open
npm ERR! path /csmm-7dtd/CSMM/package.json
npm ERR! errno -2
npm ERR! enoent ENOENT: no such file or directory, open '/csmm-7dtd/CSMM/package.json'
npm ERR! enoent This is related to npm not being able to find a file.
npm ERR! enoent



Permissions problem maybe? Does it need to be updated? Thanks!

6 minutes ago, HellraiserOSU said:

My CSMM docker is now bootlooping whenever i start it.. here's the error as its' trying to download another version

I can't reproduce this on my server, are you sure that the permissions set correctly and that your appdata share is set to use Cache only?



The container only tries to download CSMM if it can't find the app.js file which is located in the main directory from CSMM.

Hi Ich777.

I love your work.



I have had the Rust Server Docker take a 100% cpu after it ran some time. it crashed the whole unraid server. I have tried a couple of times and it happened again, havent tried it for a couple of months now, but i dont want my other things to crash.



Did anyone experience something like that?



My system:

MB - Z97M-PLUS

CPU - I7 4790k

Ram - 32GB





Edited October 13, 20224 yr by Postman94

14 minutes ago, Postman94 said:

I have had the Rust Server Docker take a 100% cpu after it ran some time. it crashed the whole unraid server. I have tried a couple of times and it happened again, havent tried it for a couple of months now, but i dont want my other things to crash.

Can you share a bit more details please (Screenshot from the Docker template, what your Cache is set to in terms of use Cache).



It is very unlikely that a Docker container is crashing the whole server and this is the first report of such an issues, at least I don't remember such an report until now.



Do you use IPVLAN or MACVLAN in your Docker settings?

1 hour ago, ich777 said:

Can you share a bit more details please (Screenshot from the Docker template, what your Cache is set to in terms of use Cache).



It is very unlikely that a Docker container is crashing the whole server and this is the first report of such an issues, at least I don't remember such an report until now.



Do you use IPVLAN or MACVLAN in your Docker settings?



It might be a overstatement to say it crashed, but it did make all on the server unresponsive because it was at a 100% cpu load.

And i actually only have 16GB ram.

Not sure if this was what you were thínking of?











1 hour ago, Postman94 said:

It might be a overstatement to say it crashed, but it did make all on the server unresponsive because it was at a 100% cpu load.

Maybe watch out how much RAM that the container allocates but usually it crashes if no RAM is available anymore.

Usually non of my containers should crash the server, it is however possible that the server consumes a lot of CPU on start up.



One screenshot from the appdata share would be nice where it is visible to what setting it is set in terms of Use Cache.

On 10/12/2022 at 10:04 AM, ich777 said:

I can't reproduce this on my server, are you sure that the permissions set correctly and that your appdata share is set to use Cache only?



The container only tries to download CSMM if it can't find the app.js file which is located in the main directory from CSMM.

It is not going to appdata. i changed it a long time ago to put the files in a games share that I made.. been working for years.. maybe the Unraid 6.10 update fiddled with it?
