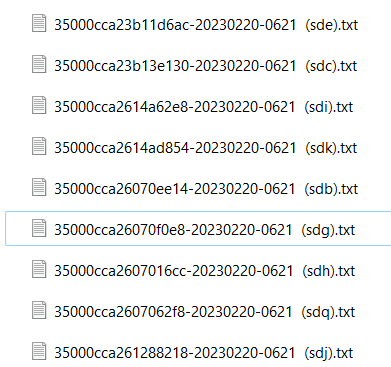

February 20, 20233 yr Author 18 minutes ago, mathomas3 said: as requested tower-diagnostics-20230220-0621.zip 190.79 kB · 0 downloads Hot plug events and device designations are changing after UD Preclear is installed, probably because a hot plug event is initiated by UD Preclear. Feb 20 03:46:15 Tower root: plugin: unassigned.devices.preclear.plg installed Feb 20 03:46:39 Tower emhttpd: error: hotplug_devices, 1730: No such file or directory (2): Error: tagged device HUH72808CLAR8000_VJGR8M7X_35000cca261288218 was (sdaf) is now (sdj) Feb 20 03:46:39 Tower emhttpd: error: hotplug_devices, 1730: No such file or directory (2): Error: tagged device HUH72808CLAR8000_VJHA50UX_35000cca2614ad854 was (sdd) is now (sdk) Feb 20 03:46:39 Tower emhttpd: device /dev/sdy problem getting id Feb 20 03:46:39 Tower emhttpd: error: hotplug_devices, 1730: No such file or directory (2): Error: tagged device HUH728080AL520_X_VLHZMZWY_35000cca2607016cc was (sdy) is now (sdh) Feb 20 03:46:39 Tower emhttpd: device /dev/sdaf problem getting id Feb 20 03:46:39 Tower emhttpd: device /dev/sdd problem getting id Feb 20 03:46:39 Tower emhttpd: device /dev/sdt problem getting id Feb 20 03:46:39 Tower emhttpd: device /dev/sdz problem getting id Feb 20 03:46:39 Tower emhttpd: error: hotplug_devices, 1730: No such file or directory (2): Error: tagged device HUH728080AL4200_2EG9U3ZR_35000cca23b11d6ac was (sdp) is now (sde) Feb 20 03:46:39 Tower emhttpd: device /dev/sdu problem getting id Feb 20 03:46:39 Tower emhttpd: error: hotplug_devices, 1730: No such file or directory (2): Error: tagged device HUH728080AL520_X_VLJ03AAY_35000cca26070ee14 was (sdt) is now (sdb) Feb 20 03:46:39 Tower emhttpd: device /dev/sdf problem getting id Feb 20 03:46:39 Tower emhttpd: error: hotplug_devices, 1730: No such file or directory (2): Error: tagged device HUH728080AL4200_2EGAXXRR_35000cca23b13e130 was (sdn) is now (sdc) Feb 20 03:46:39 Tower emhttpd: device /dev/sdn problem getting id Feb 20 03:46:39 Tower emhttpd: error: hotplug_devices, 1730: No such file or directory (2): Error: tagged device HUH72808CLAR8000_VJH9X6DX_35000cca2614a62e8 was (sdz) is now (sdi) Feb 20 03:46:39 Tower emhttpd: device /dev/sdp problem getting id Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdh Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdj Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdk Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdb Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdi Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdg Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdq Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sdc Feb 20 03:46:39 Tower emhttpd: read SMART /dev/sde Feb 20 03:46:39 Tower kernel: emhttpd[2720]: segfault at 674 ip 000055d29292a9d4 sp 00007ffcc4755040 error 4 in emhttpd[55d292918000+21000] Feb 20 03:46:39 Tower kernel: Code: 8e 27 01 00 48 89 45 f8 48 8d 05 72 27 01 00 48 89 45 f0 e9 79 01 00 00 8b 45 ec 89 c7 e8 89 b1 ff ff 48 89 45 d8 48 8b 45 d8 <8b> 80 74 06 00 00 85 c0 0f 94 c0 0f b6 c0 89 45 d4 48 8b 45 e0 48 Feb 20 03:46:42 Tower kernel: sd 2:0:5:0: Mode parameters changed Feb 20 03:46:44 Tower kernel: sd 2:0:16:0: Mode parameters changed Unraid is having trouble with the hot plug devices and the device designations are changing. How are these devices connected?
February 20, 20233 yr I recently built the server chassis into what it currently is... the relevant hardware is listed below but basically it's a 1u server with a SAS card which is then connected to a DAS with two controller cards in the DAS(should one fail) Dell R430 chassis LSI SAS2308 SAS controller HP DAS
February 20, 20233 yr Author 4 minutes ago, mathomas3 said: I recently built the server chassis into what it currently is... the relevant hardware is listed below but basically it's a 1u server with a SAS card which is then connected to a DAS with two controller cards in the DAS(should one fail) Dell R430 chassis LSI SAS2308 SAS controller HP DAS It looks like the presentation of the device serial numbers are confusing Unraid and/or UD. If you look at those serial numbers, the endings are all the same.
February 20, 20233 yr 19 minutes ago, dlandon said: Feb 20 03:46:39 Tower emhttpd: device /dev/sdaf problem getting id Feb 20 03:46:39 Tower emhttpd: device /dev/sdd problem getting id Feb 20 03:46:39 Tower emhttpd: device /dev/sdt problem getting id Feb 20 03:46:39 Tower emhttpd: device /dev/sdz problem getting id This means Unraid is seeing the same devices twice, you likely have the HBA connected to dual controllers (or dual expander) on the enclosure, Unraid does not support SAS multipath, connect a single cable from the HBA to the enclosure and reboot.
February 20, 20233 yr 24 minutes ago, JorgeB said: This means Unraid is seeing the same devices twice, you likely have the HBA connected to dual controllers (or dual expander) on the enclosure, Unraid does not support SAS multipath, connect a single cable from the HBA to the enclosure and reboot. I did as suggested and the drive name/IDs have returned to what I would call normal and no longer have 4 digit names... I reinstalled the plugin and it now only shows the two drives and they properly ID the drives... dlandon, Should I still be able to see the two drives on the UD page? they are currently missing after installing the plugin again
February 20, 20233 yr 28 minutes ago, JorgeB said: This means Unraid is seeing the same devices twice, you likely have the HBA connected to dual controllers (or dual expander) on the enclosure, Unraid does not support SAS multipath, connect a single cable from the HBA to the enclosure and reboot. Thank you for that tip... been running it this way for a while and I have never come across this before... it's these little bits of knowledge that make you a god among us mortals
February 20, 20233 yr Author 3 minutes ago, mathomas3 said: I did as suggested and the drive name/IDs have returned to what I would call normal and no longer have 4 digit names... I reinstalled the plugin and it now only shows the two drives and they properly ID the drives... dlandon, Should I still be able to see the two drives on the UD page? they are currently missing after installing the plugin again Yes. Post diagnostics and a complete screen shot of the UD page.
February 20, 20233 yr I was looking around a little bit more and noticed that on the Dashboard I have 2 unassigned disks... but the Main page still shows them as MIA... hmmm
February 20, 20233 yr Author 7 minutes ago, mathomas3 said: I was looking around a little bit more and noticed that on the Dashboard I have 2 unassigned disks... but the Main page still shows them as MIA... hmmm Turn on the "Disks" switch on the UD page in the upper right corner.
February 20, 20233 yr 1 minute ago, dlandon said: Turn on the "Disks" switch on the UD page in the upper right corner. The plugin changes how the Main page displays the Unassigned page... My Dummy Hat was earned today... Thank you dlandon
February 27, 20233 yr Do I need to preclear an old drive, which I used in the unraid system, and then removed when upgrading the drive to a larger one, or just format it?
February 27, 20233 yr If you don't preclear it it'll be cleared when added to the array, so same-same. Preclear is not necessary, it's usually used more as a reliability test before adding to array. If the drive has to fail it's always better if it does so before being added.
February 27, 20233 yr mmh preclear doesnt see the drive, either mounted or unmounted in unassigned devices
February 27, 20233 yr Author 1 minute ago, gnollo said: mmh preclear doesnt see the drive, either mounted or unmounted in unassigned devices Preclear will only present the drive to be a preclear candidate if it is clear of all partitions.
February 28, 20233 yr It is filled with data so I guess it has a partition? Can I delete the partition and preclear?
February 28, 20233 yr Author 3 hours ago, gnollo said: It is filled with data so I guess it has a partition? Can I delete the partition and preclear? Yes. Go to UD and click the clear disk (red 'X') next to the serial number.
March 1, 20233 yr No red X for me under Unassigned Devices. Stopped the array and added the drive, Disk-Clear started now.
March 2, 20233 yr Mar 01 17:12:27 preclear_disk_W300DV27_15534: Zeroing: dd output: 128636+0 records out Mar 01 17:12:27 preclear_disk_W300DV27_15534: Zeroing: dd output: 269769244672 bytes (270 GB, 251 GiB) copied, 1638.25 s, 165 MB/s Mar 01 17:12:27 preclear_disk_W300DV27_15534: Zeroing: dd output: 128637+0 records in Mar 01 17:12:27 preclear_disk_W300DV27_15534: Zeroing: dd output: 128637+0 records out Mar 01 17:12:27 preclear_disk_W300DV27_15534: Zeroing: dd output: 269771341824 bytes (270 GB, 251 GiB) copied, 1744.74 s, 155 MB/s Mar 01 17:12:27 preclear_disk_W300DV27_15534: dd process hung at 269769244672, killing ... Mar 01 17:12:27 preclear_disk_W300DV27_15534: Zeroing: zeroing the disk started 2 of 5 retries... Mar 01 17:12:27 preclear_disk_W300DV27_15534: Continuing disk write on byte 269767147520 Mar 01 17:16:56 preclear_disk_W300DV27_15534: Zeroing: dd output: Mar 01 17:16:56 preclear_disk_W300DV27_15534: dd process hung at 0, killing ... Mar 01 17:16:56 preclear_disk_W300DV27_15534: Zeroing: zeroing the disk started 3 of 5 retries... Mar 01 17:16:56 preclear_disk_W300DV27_15534: Zeroing: emptying the MBR. Here's the end of my preclear log. As you can see, the process does seem to work, until it tries to zero the data. For some reason the dd ouput hangs on 0, and it is timed out and killed by the drive. I'm doing the whole process, the pre-read was completed, I'm not sure what's going on here. Anything I can do to fix this? I'M kind of in a hurry to use this drive and I have been using it in a Linux box for years, I just thought this was a requirement so I did it. I just wanna get on with my file copying. Anyone?
March 9, 20233 yr On 3/1/2023 at 8:12 PM, couzin2000 said: Here's the end of my preclear log. As you can see, the process does seem to work, until it tries to zero the data. For some reason the dd ouput hangs on 0, and it is timed out and killed by the drive. I'm doing the whole process, the pre-read was completed, I'm not sure what's going on here. Anything I can do to fix this? I'M kind of in a hurry to use this drive and I have been using it in a Linux box for years, I just thought this was a requirement so I did it. I just wanna get on with my file copying. Anyone? I know this is a couple days later, but I would run SMART short self-test to see if it passes. But I think your drive may have died.
March 12, 20233 yr Just wanted to drop by and thank the dev. I had a power failure 10 hours into a 20tb preclear. Thanks to this plugin I was able to pause the preclear and let the unRAID server shutdown when my UPS batteries hit the low percentage mark. Upon power restoration I booted up and was able to resume the preclear. Thanks for saving me 10 hours of wasted time.
March 23, 20233 yr Trying to preclear a new drive, seems to be stuck on "Starting ...". I've noticed a couple others in this thread with the same symptom, but don't see the solution. I don't see anything in the logs at all - just that I started the preclear operation and then I eventually cancel it (I let it run all night - still didn't start). EDIT: I removed the preclear addon and then re-installed it and now it is working again. Edited March 23, 20233 yr by autumnwalker
April 22, 20233 yr Is it reasonable to use this plugin for disks that will not be used for Unraid? Like what if I wanted to preclear a few disks to be used for a TrueNAS VM on Unraid? There is a guide on the TrueNAS forum which I assume does something similar to this plugin: https://www.truenas.com/community/resources/hard-drive-burn-in-testing.92/ Would I be better off just followin those command line steps?
April 30, 20233 yr SO I am pre clearing a 6TB disk I had laying around, and the speeds are abysmal (2-3 MB/s). I notice a lot of these blocks within the log: Apr 30 11:40:31 Tower kernel: ata8.00: exception Emask 0x0 SAct 0x80e00000 SErr 0x0 action 0x0 Apr 30 11:40:31 Tower kernel: ata8.00: irq_stat 0x40000008 Apr 30 11:40:31 Tower kernel: ata8.00: failed command: READ FPDMA QUEUED Apr 30 11:40:31 Tower kernel: ata8.00: cmd 60/40:a8:00:94:73/05:00:00:00:00/40 tag 21 ncq dma 688128 in Apr 30 11:40:31 Tower kernel: res 41/40:00:00:94:73/00:00:00:00:00/00 Emask 0x409 (media error) <F> Apr 30 11:40:31 Tower kernel: ata8.00: status: { DRDY ERR } Apr 30 11:40:31 Tower kernel: ata8.00: error: { UNC } Apr 30 11:40:31 Tower kernel: ata8.00: configured for UDMA/133 Apr 30 11:40:31 Tower kernel: sd 9:0:0:0: [sdo] tag#21 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=DRIVER_OK cmd_age=11s Apr 30 11:40:31 Tower kernel: sd 9:0:0:0: [sdo] tag#21 Sense Key : 0x3 [current] Apr 30 11:40:31 Tower kernel: sd 9:0:0:0: [sdo] tag#21 ASC=0x11 ASCQ=0x4 Apr 30 11:40:31 Tower kernel: sd 9:0:0:0: [sdo] tag#21 CDB: opcode=0x88 88 00 00 00 00 00 00 73 94 00 00 00 05 40 00 00 Apr 30 11:40:31 Tower kernel: I/O error, dev sdo, sector 7574528 op 0x0:(READ) flags 0x84700 phys_seg 168 prio class 0 Apr 30 11:40:31 Tower kernel: ata8: EH complete Is this due to a failing drive, and does it also explain the speeds being in the toilet?
April 30, 20233 yr Author 2 hours ago, ratmice said: Is this due to a failing drive, and does it also explain the speeds being in the toilet? Possibly, but you should check your cable.
