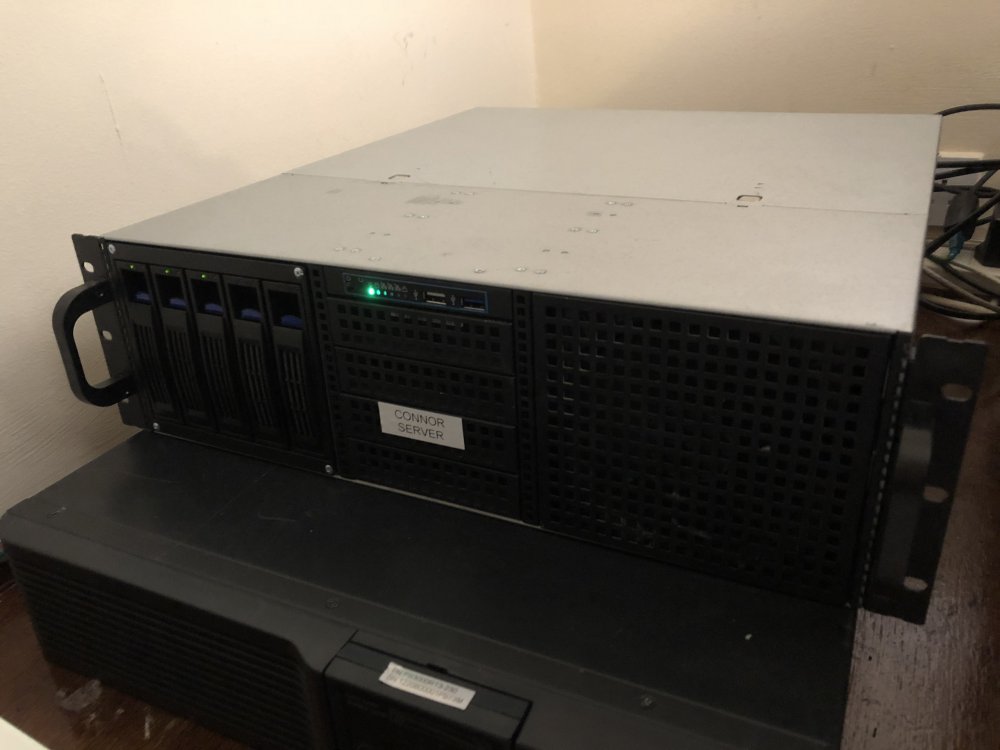

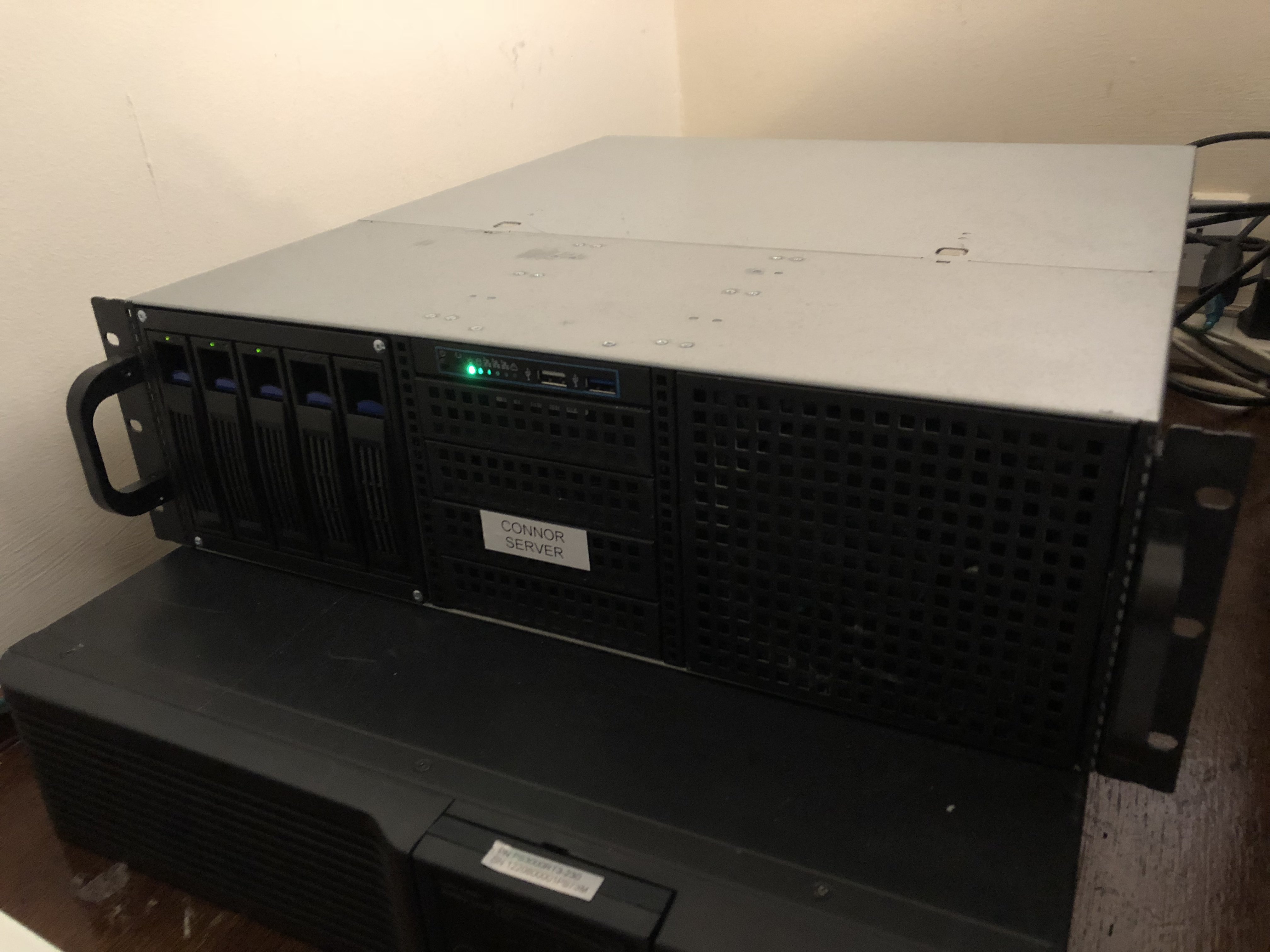

Here is my server, still early days:



I plan to have the same hot swap bays on the right as it does on the left.


It can hold a total of 14 drives :D 10 HotSwap and 4 internal.


Currently have:

1 x WD Red 3TB Internal (Parity)

2 x SanDisk 480GB SSDs Internal (Cache Pool)

4 x WD Red 3TB HotSwap


It's running of an Intel i7 4770 and 32GB of RAM.

Edited by Conmyster
Updated drives used
Link to comment
  • 2 weeks later...

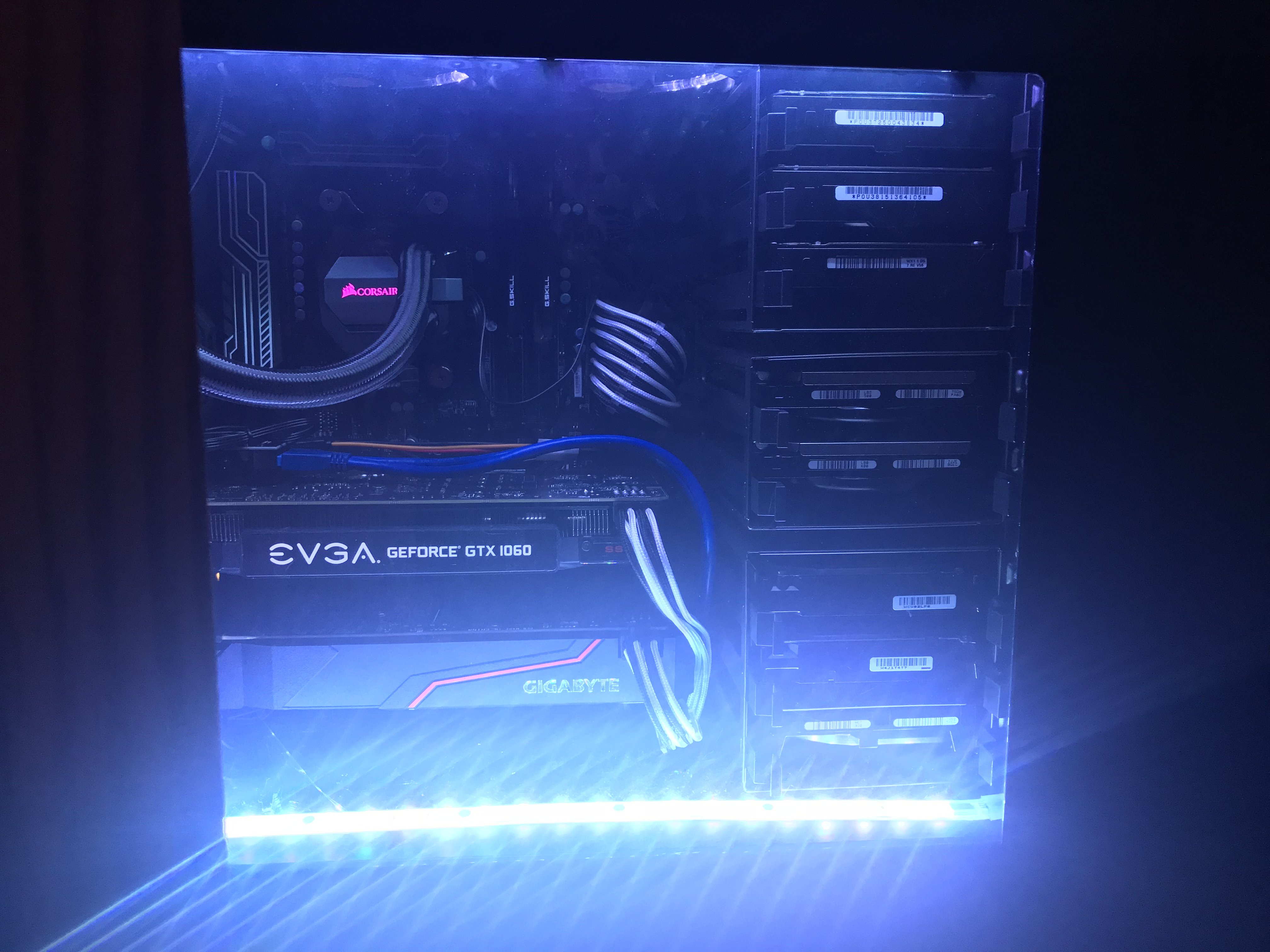

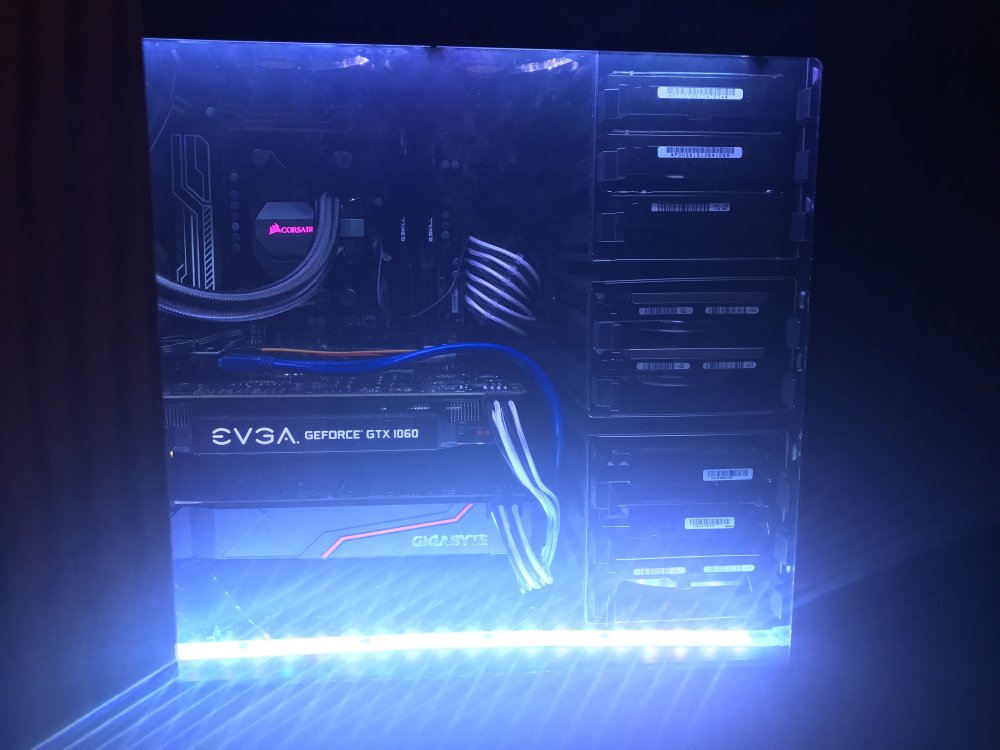

Here’s my AIO rig. 34TB Array, 2 480GB cache and a 512 NVME running my vm Win 10 in unassigned devices doing IOMMU passthrough.  I know, I have to reroute the USB front header cable or move to the last 1x PCI-E. SpaceInvaderOne inspired me with the videos.

This is in a cooler master mastercase maker 5. Still have space for 2 more under the shroud by PSU.61E845CD-A189-4294-85D7-5CBE2A35DEA9.thumb.jpeg.83216be41d3fb6053dfa5fcf87fd0c7f.jpeg



Edited by phbigred
  • Like 1
Link to comment
On 9/28/2018 at 2:18 PM, MrPotter said:

@tmoran000 out of curiosity, what rails did you use for the Rosewill Chasis? It looks like it sits about a quarter to half inch off of the standard "U"

I used these"

Rosewill Server Rack Rails/Server Slide Rails/Server Rails, 26" Three Section Ball-Bearing Sliding Server Rail Kit (RSV-R27LX)" , This is the chasis "Rosewill 4U Server Chassis/Server Case/Rackmount Case, Metal Rack Mount Computer Case support with 15 bays & 7 Fans Pre-Installed (RSV-L4500)" .  all parts ordered on Amazon including rack.   Ya its sitting a half U out because I originally intended to run cables out the gap but decided not to and the server is so heavy to lift my self. Just havent gotten any help to correct the gap yet. :)

Edited by tmoran000
Link to comment
  • 5 weeks later...
  • 1 month later...

Never enough hard drive space.

Working in replacing the older 2TB drives with 6TB He drives. Certainly doesn't help having the symmetric 1Gb fiber connection.


System Overview

unRAID system: unRAID server Pro, version 6.6.5

Motherboard: Supermicro - X9DR3-F

Processor: Intel® Xeon® CPU E5-2665 0 @ 2.40GHz X 2

Memory: 128 GB

Parity: Dual HGST_HUH728080ALE604 8TB

Data: Various 2TB, 3TB, 5TB, 6TB HDD - HGST and WDC

Cache Pool: Samsung_SSD_860_EVO_500GB and Samsung_SSD_850_EVO_250GB

Flash: Cruzer_Fit - 16 GB


Rosewill 25U Server Rack (RSR-4P25U001)

TP-Link Archer C2600

D-Link 24-Port EasySmart Gigabit Ethernet Switch (DGS-1100-24)

Tripp Lite 24-Port 1U Rackmount Cat6 110 Patch Panel (N252-024)
Rosewill 4U Server Chassis(RSV-L4500) w/ LSI SAS9201-16E SAS Controller

NORCO DS-12D 2U Enclosure connected with 3 x SFF-8088 cables

APC SUA2200R2X180 Smart-UPS 2200VA 1980W 120V


  • Like 2
  • Upvote 1
Link to comment
  • 2 weeks later...
  • 3 weeks later...

Work in progress, mobile all in one gaming/entertainment center.

Main 4k gaming station with 3 28" surround monitors all wired Logitech gear, and full surround sound.

Secondary 4k gaming rig with 1 4k monitor, and mirrored image to 4k living room and bedroom TVs. all wireless Logitech gear.

Expandable NAS with unRAID PRO using 8tb WD drives with parity protection.


Motherboard has onboard wifi with external antenna, able to cast 4k movies through walls over long distances.

unRAID array has USB backup drives disconnected from the network.


Still building and working out compatibility issues here is a pcparts list:




Link to comment
  • 2 weeks later...
  • 1 month later...

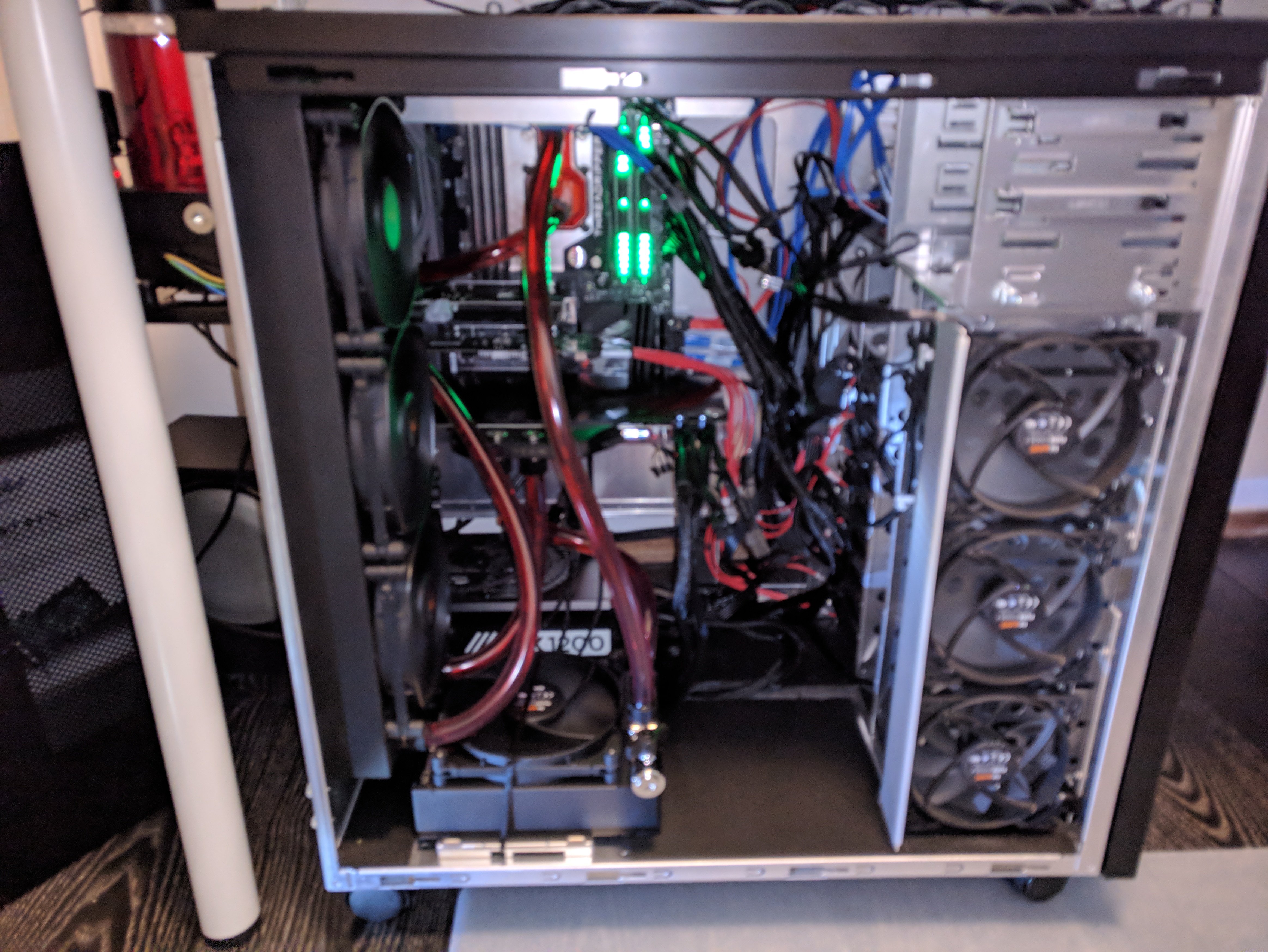

This is mine server/desktop.

its water cooled so it is a bit less noisier, especially the Asus strix vega64 is with the stock cooler a bit too noisiest....

i am using it as een server best it also host my daily VM and a second VM for Win10 Gaming, but with the know reset bug from the vega i currently use the daily VM (bold share the same cores en Vega64)


slowly upgrading the hdd's, its 71% full, but i think that i first swap the sas/sata card out from a Non-marvel controller card. (its works fine now)



Threadripper 1950X

Gigabyte Aorus X399 Gaming 7

Corsair Vengeance LPX CMK32GX4M2B3200C16

Corsair Vengeance RGB CMR32GX4M2C3200C16

Asus strix vega64

MSI GeForce GT 710 1GD3H LP (is in use for Unraid Gui)

Lian Li PC-D8000B

Icy Dock ExpressCage MB326SP-B

Supermicro AOC-SAS2LP-MV8 (its a Marvel card)

Corsair HX1200 V2

EnerGenie UPS 1500 VA

2x Crucial BX100 250GB

1x Crucial MX500 2,5" 1TB

1x Samsung 830 series SSD 128GB

1x Samsung 850 EVO 250GB

1x Samsung 850 EVO 500GB

6x 4TB hdd

1x 3TB hdd

1x 2TB hdd

2x 1TB hdd

watercool setup is fully EKWB



on the pic it has just 2 RAM sticks, its now upgraded to 4 RAM stick so it has 64Gb.


Link to comment
9 hours ago, fr0stbyt3 said:

Norco 4224 case

9x 6TB

6x 4TB

2x 500GB SSD

1x 1TB SSD

Intel® Core™ i7-5820K


32 GB DDR4

Nvidia P2000

3x LSI 9211-8i


This has been updated a little since these pictures were taken. I'll update here when I take new pictures.





What rack is this?


Edited by hawihoney
  • Like 1
Link to comment

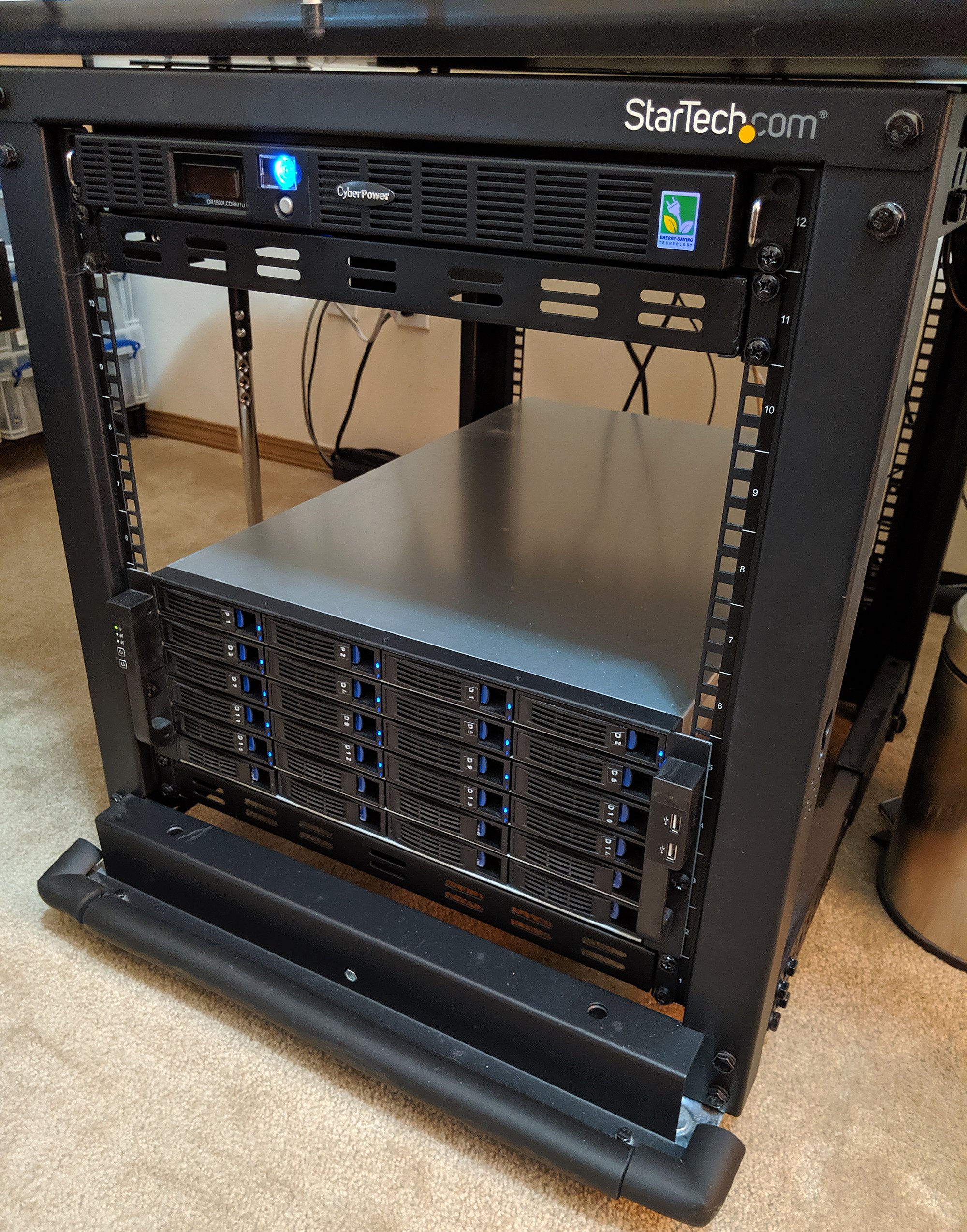

  • 1 month later... 12U Adjustable Depth Open Frame 4 Post Server Rack with Casters/Levelers and Cable Management Hooks 4POSTRACK12U Black
2x 1U Adjustable Mounting Depth Vented Rack Mount Shelf
CyberPower OR1500LCDRM1U 1U Rackmount UPS System
NORCO 4U Rack Mount 24 x Hot-Swappable SATA/SAS 6G Drive Bays Server Rack mount RPC-4224
EVGA Supernova 850 G3, 80 Plus Gold 850W Modular Power Supply 220-G3-0850-X1
ASRock EP2C612 WS Motherboard
2x Intel Xeon E5-2620 v3 Six-Core Haswell Processor 2.4GHz LGA 2011-3 CPU

2x Intel Xeon E5-2690 v3 12-Core Haswell Processor 2.6GHz LGA-2011-3 CPU (11/2019)
2x Intel LGA 2011-3 Cooling Fan/Heatsink
8x Crucial 8GB Single DDR4 2133 MT/s (PC4-2133) CL15 SR x4 ECC Registered DIMM CT8G4RFS4213 (64GB)
4x Samsung 970 EVO 1TB - NVMe PCIe M.2 2280 SSD (MZ-V7E1T0BW)
4x QNINE M.2 NVME SSD to PCIe adapter
LSI Logic LSI00244 SAS 9201-16i 16Port 6Gb/s SAS/SATA Controller Card

1x NORCO Computer Parallel (reverse breakout) Cable (C-SFF8087-4S)
4x 10Gtek Internal Mini SAS SFF-8087 Cable, 0.5 Meter
2x Gigabit network adapters bonding to single interface
Unraid OS Pro 6.x
4x 1TB RAID1 @2TB Cache Pool
2x 8TB parity
15x 8TB array @120TB


Edited by interwebtech
update array size. upgraded CPUs. increased to 4 SSD in cache pool
Link to comment

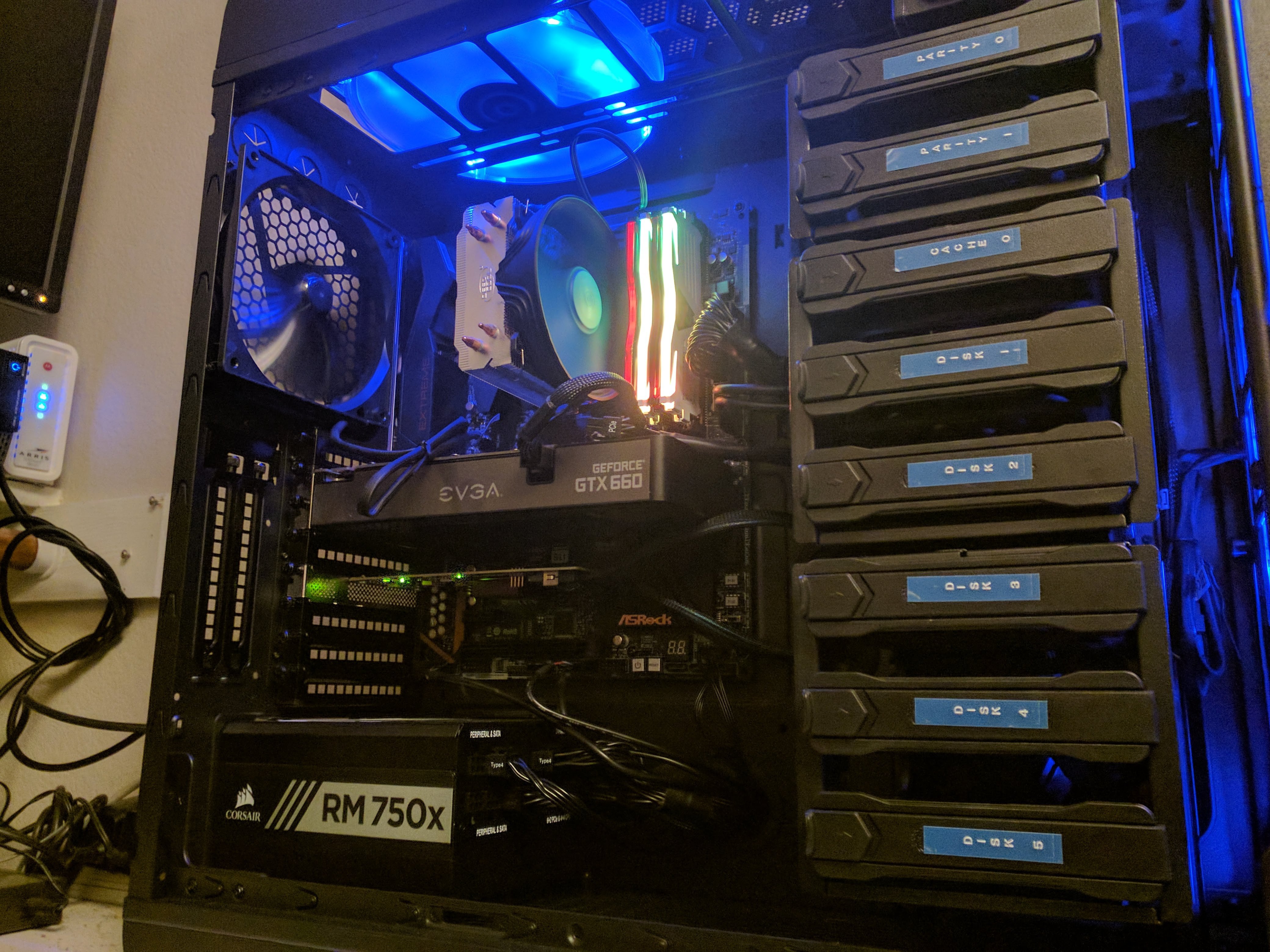

On 12/29/2018 at 4:36 AM, repomanz said:

Committed to the plus license a couple days ago.


i7 6700k

32 gb memory

Nvidia GEforce 660
LSI 9211 SAS

Intel 4 port NIC
Corsair 750 powersupply

thermaltake v71 case



Somebody else who labels the drives, except I use the serial number, that way in unraid I can be absolutely sure I pull the right drive in the vent of a failure,

Link to comment
