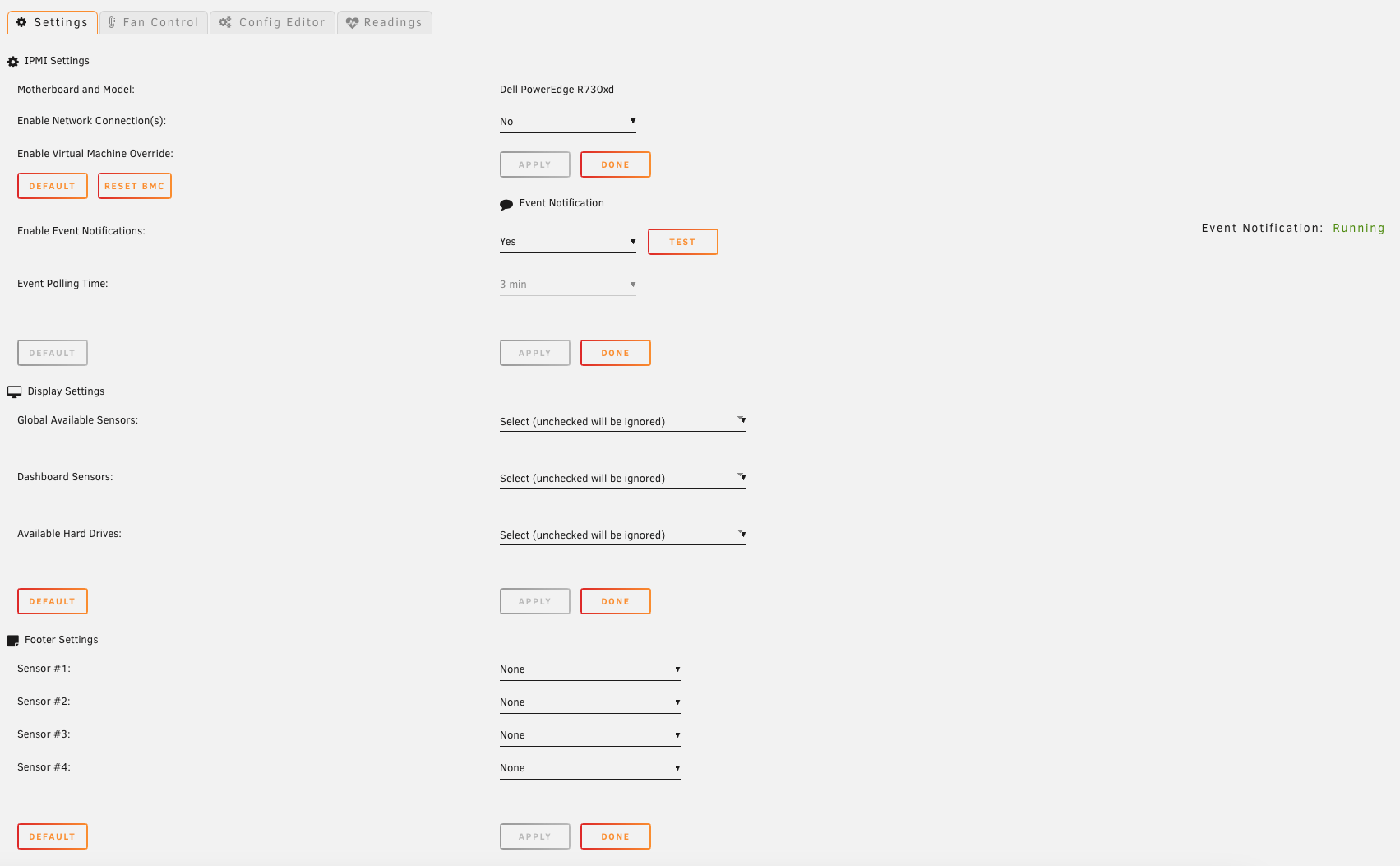

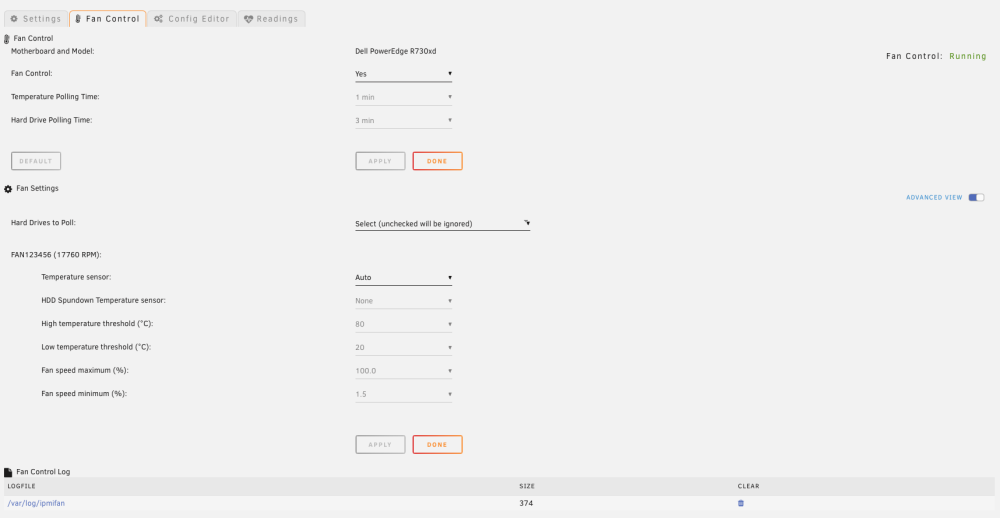

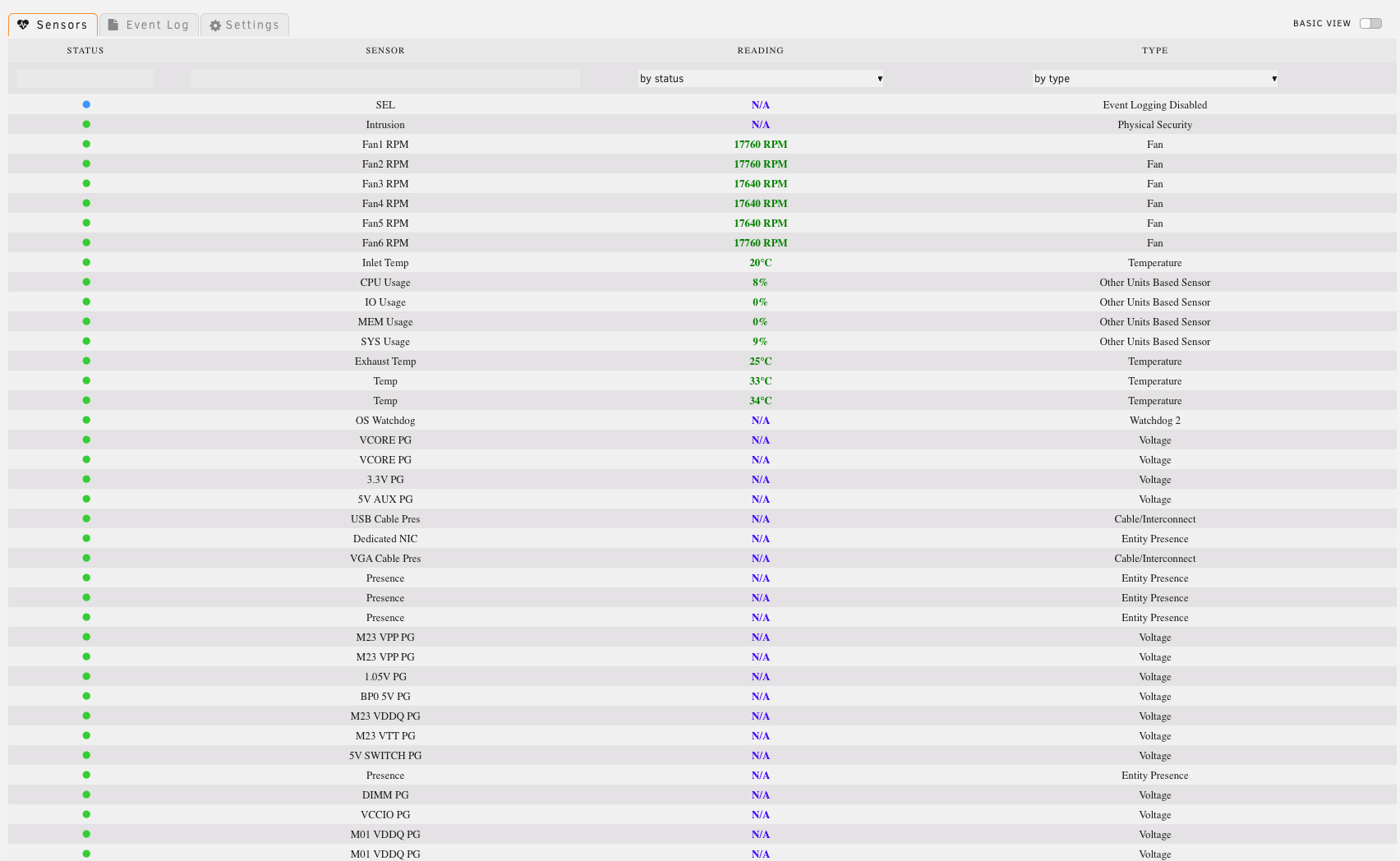

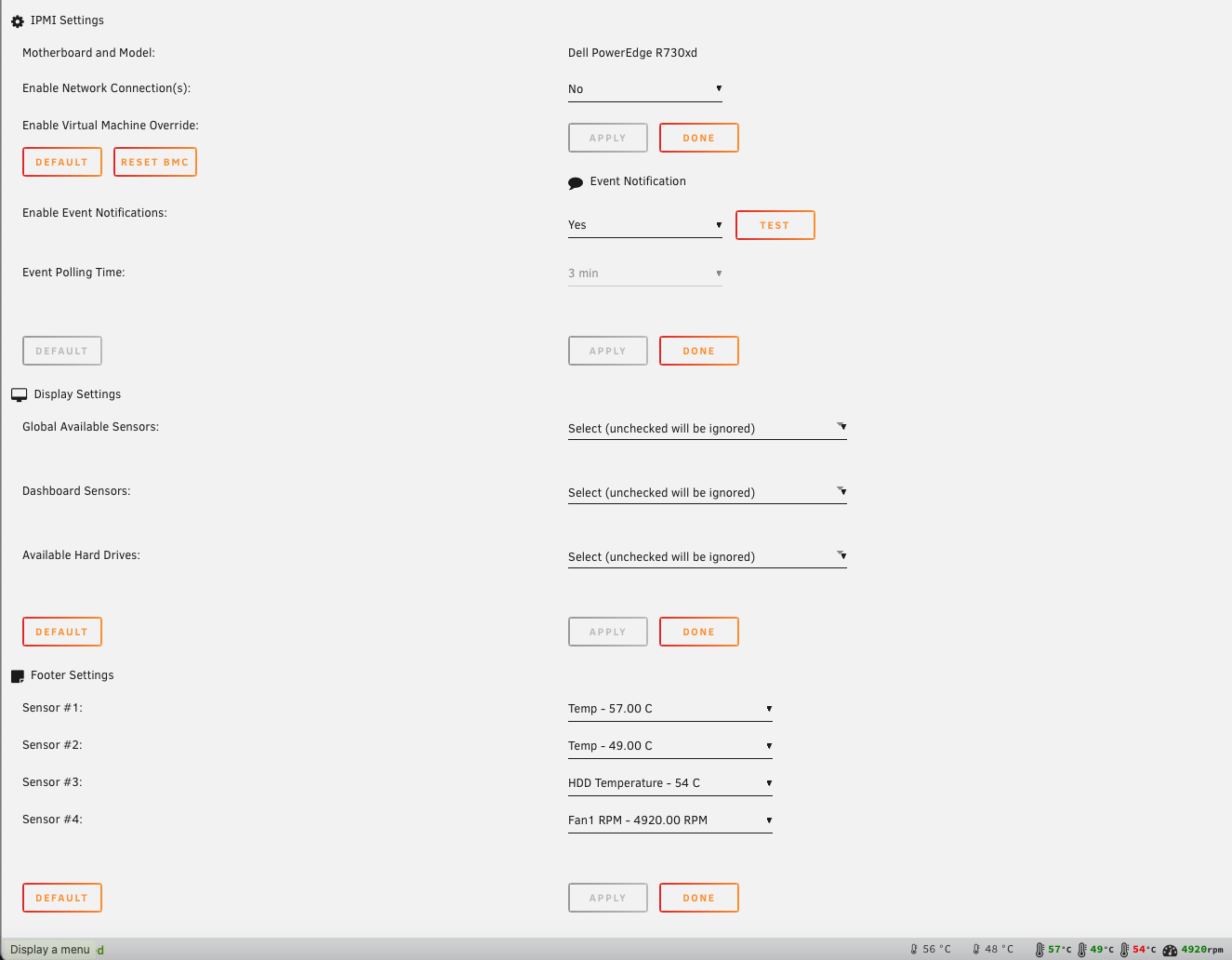

The Transplant Posted January 27 Share Posted January 27 On 1/22/2024 at 2:09 AM, SimonF said: You need to run this on a command line. To make it run each reboot, edit /boot/config/go and add the same line. Then set network connect to no. Thanks, I tried that but the fans are still spinning at 17760 RPM. Is there something else I should be doing? Thanks Quote Link to comment
spl147 Posted January 27 Share Posted January 27 2 minutes ago, The Transplant said: Thanks, I tried that but the fans are still spinning at 17760 RPM. Is there something else I should be doing? Thanks you have not configured the fans at all! here is mine: Quote Link to comment
The Transplant Posted January 27 Share Posted January 27 2 hours ago, spl147 said: you have not configured the fans at all! here is mine: Thanks - got it setup. Appreciate the help. What's the best way to setup warnings if things get too hot? Thanks. Quote Link to comment
Arubial Posted January 31 Share Posted January 31 I just discovered this plug-in this morning after migrating to a Supermicro X10DRU-i+ a couple months ago. I think I have everything configured properly, but only 2 of the fans are spinning down. I have 4 fans total, the stock ones from SuperMicro. My sensors report the last two fans are on FAN7 and FAN8, which is what I selected, but I cannot get them to spin down at all. Quote Link to comment

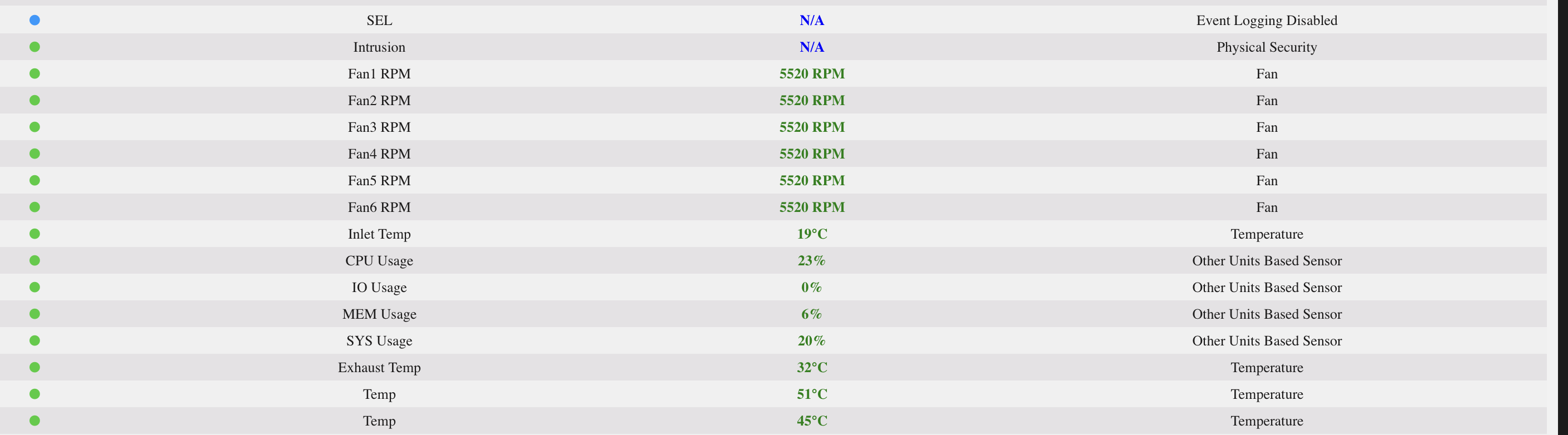

The Transplant Posted February 1 Share Posted February 1 I set my fan minimum % to 1.3 and yet the lowest I ever see the fans go is 5250. Since I am not sure what the ratio between temp and fan speed is, I am curious if this is the lowest they will go? Thanks. Quote Link to comment
spl147 Posted February 1 Share Posted February 1 (edited) 11 hours ago, The Transplant said: I set my fan minimum % to 1.3 and yet the lowest I ever see the fans go is 5250. Since I am not sure what the ratio between temp and fan speed is, I am curious if this is the lowest they will go? Thanks. what are your fan settings set to? post the impifan log (link is at the bottom of the fan control page) Edited February 1 by spl147 Quote Link to comment
spl147 Posted February 1 Share Posted February 1 21 hours ago, Arubial said: I just discovered this plug-in this morning after migrating to a Supermicro X10DRU-i+ a couple months ago. I think I have everything configured properly, but only 2 of the fans are spinning down. I have 4 fans total, the stock ones from SuperMicro. My sensors report the last two fans are on FAN7 and FAN8, which is what I selected, but I cannot get them to spin down at all. Thats just for display in the footer Supermicro boards i believe only use the 1st 4 headers 20c is way to low for the low threshold. your hdds will never get that cold, so fans will always be spinning closer to max i would use 30-35c Quote Link to comment
The Transplant Posted February 1 Share Posted February 1 3 hours ago, spl147 said: what are your fan settings set to? post the impifan log (link is at the bottom of the fan control page) I think I am getting the hang of this. I did make some adjustments and I do see the HHD temp going up slightly but the fans are running slower. I guess the question is what is acceptable in terms of temps for the drives? Thanks. 2024-01-31 14:57:31 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 15:03:32 Fan:Temp, FAN123456(27%):HDD Temp(50C) 2024-01-31 15:24:38 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 15:30:40 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 16:00:49 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 16:06:51 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 16:27:57 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 16:33:59 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 17:04:07 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 17:10:09 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 17:40:18 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 17:46:20 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 18:13:27 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 18:16:28 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 19:01:42 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 19:07:44 Fan:Temp, FAN123456(27%):HDD Temp(50C) 2024-01-31 20:32:49 fan control config file updated, reloading settings 2024-02-01 00:00:52 Fan:Temp, FAN123456(29%):HDD Temp(54C) 2024-02-01 00:03:52 Fan:Temp, FAN123456(27%):HDD Temp(52C) 2024-02-01 10:28:45 fan control config file updated, reloading settings 2024-02-01 10:28:45 Fan:Temp, FAN123456(10%):HDD Temp(51C) 2024-02-01 10:37:48 Fan:Temp, FAN123456(17%):HDD Temp(56C) 2024-02-01 10:46:50 Fan:Temp, FAN123456(14%):HDD Temp(54C) 2024-02-01 10:49:51 Fan:Temp, FAN123456(17%):HDD Temp(56C) 2024-02-01 10:53:12 fan control config file updated, reloading settings 2024-02-01 11:04:56 fan control config file updated, reloading settings 2024-02-01 11:04:56 Fan:Temp, FAN123456(14%):HDD Temp(54C) 2024-02-01 11:08:57 Fan:Temp, FAN123456(17%):HDD Temp(56C) 2024-02-01 11:18:00 Fan:Temp, FAN123456(14%):HDD Temp(54C) 2024-02-01 11:21:00 Fan:Temp, FAN123456(17%):HDD Temp(56C) Quote Link to comment
spl147 Posted February 1 Share Posted February 1 I think I am getting the hang of this. I did make some adjustments and I do see the HHD temp going up slightly but the fans are running slower. I guess the question is what is acceptable in terms of temps for the drives? Thanks. 2024-01-31 14:57:31 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 15:03:32 Fan:Temp, FAN123456(27%):HDD Temp(50C) 2024-01-31 15:24:38 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 15:30:40 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 16:00:49 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 16:06:51 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 16:27:57 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 16:33:59 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 17:04:07 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 17:10:09 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 17:40:18 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 17:46:20 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 18:13:27 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 18:16:28 Fan:Temp, FAN123456(27%):HDD Temp(51C) 2024-01-31 19:01:42 Fan:Temp, FAN123456(28%):HDD Temp(52C) 2024-01-31 19:07:44 Fan:Temp, FAN123456(27%):HDD Temp(50C) 2024-01-31 20:32:49 fan control config file updated, reloading settings 2024-02-01 00:00:52 Fan:Temp, FAN123456(29%):HDD Temp(54C) 2024-02-01 00:03:52 Fan:Temp, FAN123456(27%):HDD Temp(52C) 2024-02-01 10:28:45 fan control config file updated, reloading settings 2024-02-01 10:28:45 Fan:Temp, FAN123456(10%):HDD Temp(51C) 2024-02-01 10:37:48 Fan:Temp, FAN123456(17%):HDD Temp(56C) 2024-02-01 10:46:50 Fan:Temp, FAN123456(14%):HDD Temp(54C) 2024-02-01 10:49:51 Fan:Temp, FAN123456(17%):HDD Temp(56C) 2024-02-01 10:53:12 fan control config file updated, reloading settings 2024-02-01 11:04:56 fan control config file updated, reloading settings 2024-02-01 11:04:56 Fan:Temp, FAN123456(14%):HDD Temp(54C) 2024-02-01 11:08:57 Fan:Temp, FAN123456(17%):HDD Temp(56C) 2024-02-01 11:18:00 Fan:Temp, FAN123456(14%):HDD Temp(54C) 2024-02-01 11:21:00 Fan:Temp, FAN123456(17%):HDD Temp(56C) http://upload.forums.unraid.net/live/monthly_2024_02/image.thumb.png.0d4ead56d580d0fddb673f778ff2b99a.png54c is really high! Post a pic of the fan setting page Quote Link to comment

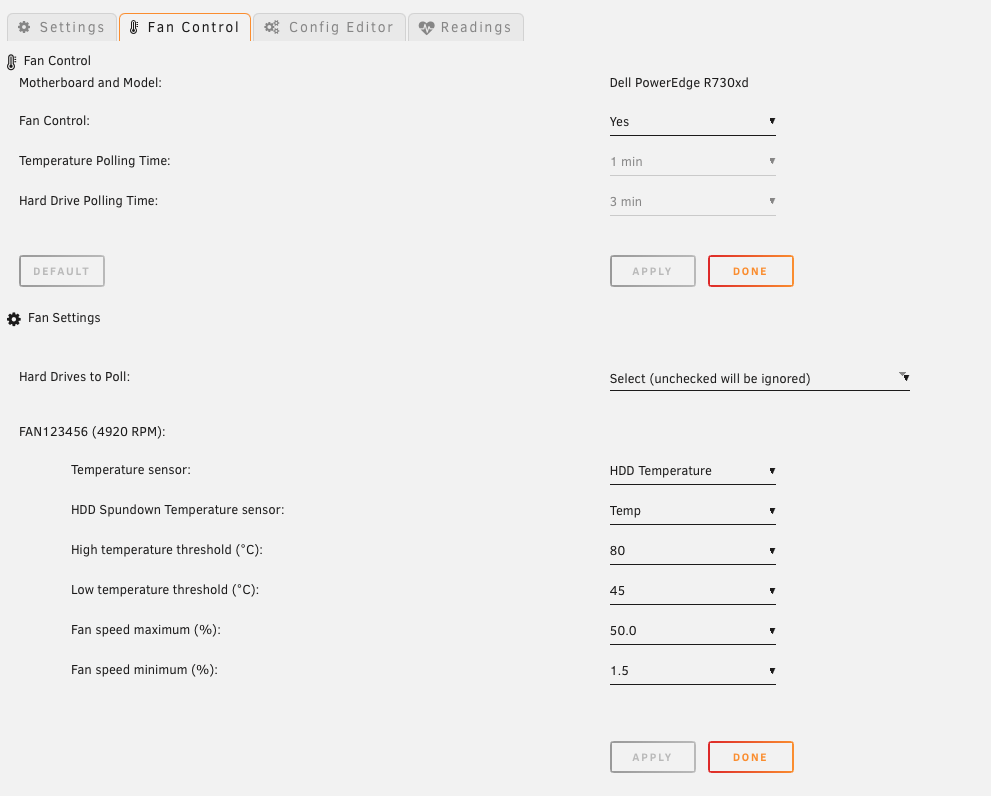

The Transplant Posted February 1 Share Posted February 1 2 minutes ago, spl147 said: 54c is really high! Post a pic of the fan setting page Here you go: Quote Link to comment
spl147 Posted February 1 Share Posted February 1 59 minutes ago, The Transplant said: Here you go: 80c for high? are you crazy? look up the specs for your drives. most are 55-60c MAX! i use 30c for low and 55c for high then once your drives come back down to normal temps, play with max fan speed to keep drives around 40-42c 1 Quote Link to comment
Arubial Posted February 1 Share Posted February 1 9 hours ago, spl147 said: Thats just for display in the footer Supermicro boards i believe only use the 1st 4 headers 20c is way to low for the low threshold. your hdds will never get that cold, so fans will always be spinning closer to max i would use 30-35c So do I need to move the other two fans to sensor 3 and 4? I don’t think the fan wires are long enough. I changed the threshold settings based on your reply but the last two fans stay at full speed. Quote Link to comment
Arubial Posted February 1 Share Posted February 1 Ok I was able to find some 4 pin extensions, and I moved the other fans to headers 3 and 4, and all four fans are spinning down correctly. Thank you! Quote Link to comment

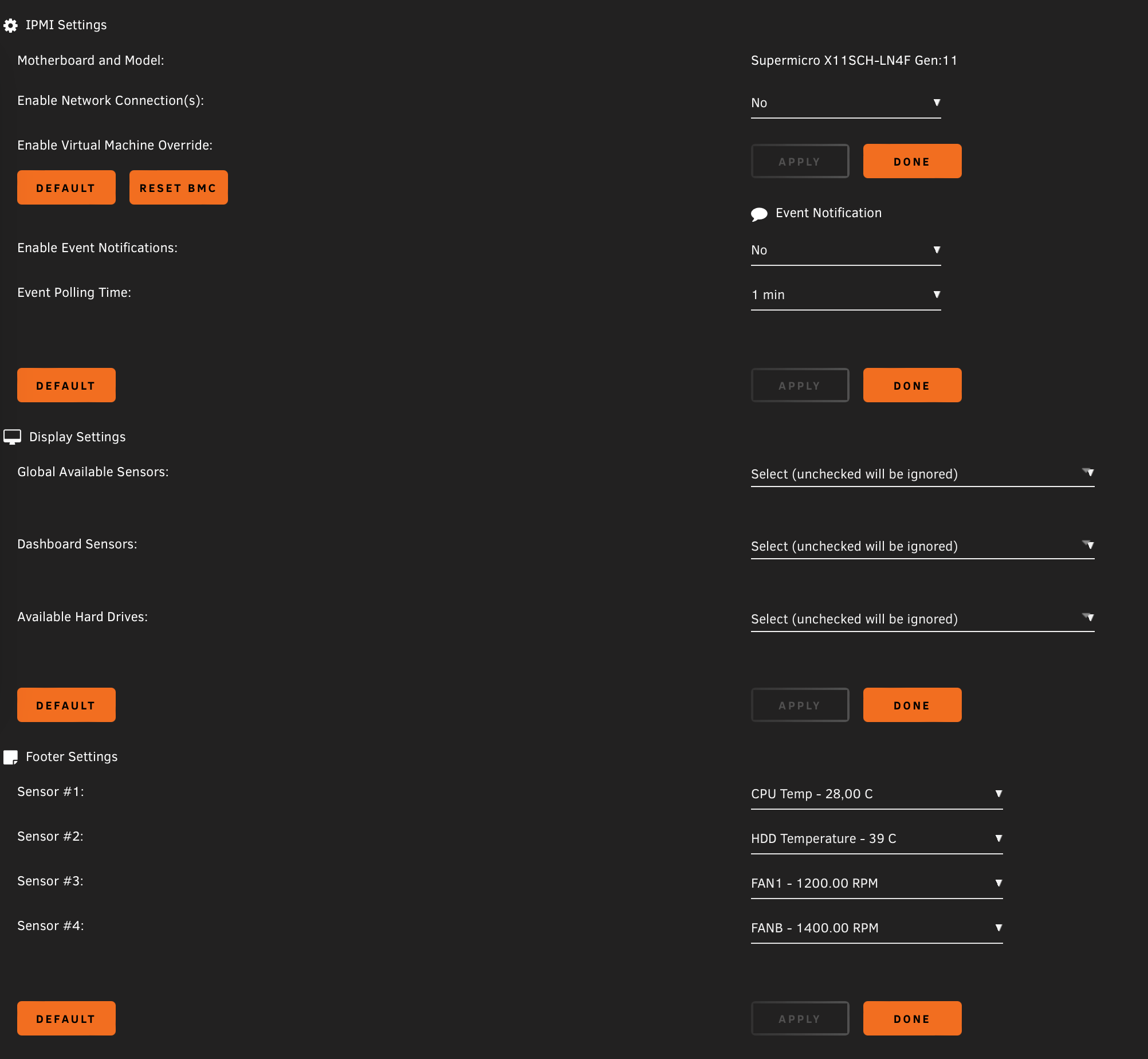

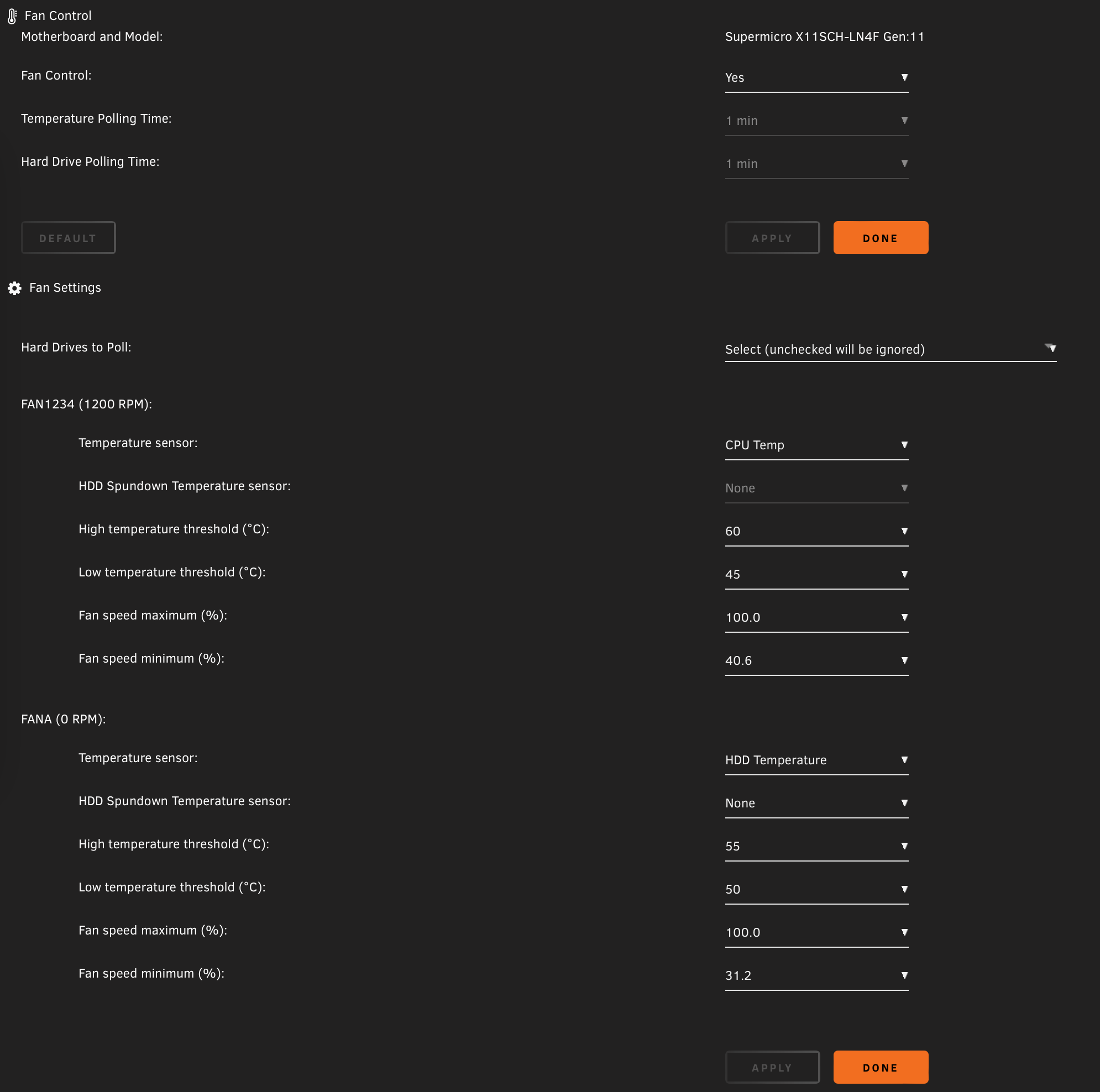

kennymc.c Posted February 3 Share Posted February 3 (edited) Edit: Solved by resetting the BMC and then restarting fan control I am also having problems with all my fans running at full speed after upgrading the BIOS and BMC firmware of my Supermicro board today. I already tried stoping and starting fan control, adjusted the minimum fan speed and also did a system reboot. Fan thresholds have been adjusted to match the low rpm of my Noctua fans. This is the fan log: 2024-02-03 18:37:39 Starting Fan Control 2024-02-03 18:37:39 Board: Supermicro Board Model: X11SCH-LN4F 2024-02-03 18:37:39 SM Board selection: 11 2024-02-03 18:37:39 Setting fans to full speed 2024-02-03 18:37:49 Fan:Temp, FAN1234(33%):CPU Temp(30C), FANA(28%):HDD Temp(Spundown) 2024-02-03 18:41:50 fan control config file updated, reloading settings 2024-02-03 18:41:50 Fan:Temp, FAN1234(41%):CPU Temp(29C), FANA(31%):HDD Temp(31C) 2024-02-03 18:41:51 Stopping Fan Control 2024-02-03 18:41:51 Setting fans to auto 2024-02-03 18:41:56 Starting Fan Control 2024-02-03 18:41:56 Board: Supermicro Board Model: X11SCH-LN4F 2024-02-03 18:41:56 SM Board selection: 11 2024-02-03 18:41:56 Setting fans to full speed 2024-02-03 18:42:06 Fan:Temp, FAN1234(41%):CPU Temp(28C), FANA(31%):HDD Temp(31C) And these are my settings: Edited February 3 by kennymc.c Quote Link to comment
spl147 Posted February 3 Share Posted February 3 Edit: Solved by resetting the BMC and then restarting fan control I am also having problems with all my fans running at full speed after upgrading the BIOS and BMC firmware of my Supermicro board today. I already tried stoping and starting fan control, adjusted the minimum fan speed and also did a system reboot. Fan thresholds have been adjusted to match the low rpm of my Noctua fans. This is the fan log: 2024-02-03 18:37:39 Starting Fan Control2024-02-03 18:37:39 Board: Supermicro Board Model: X11SCH-LN4F2024-02-03 18:37:39 SM Board selection: 112024-02-03 18:37:39 Setting fans to full speed2024-02-03 18:37:49 Fan:Temp, FAN1234(33%):CPU Temp(30C), FANA(28%):HDD Temp(Spundown)2024-02-03 18:41:50 fan control config file updated, reloading settings2024-02-03 18:41:50 Fan:Temp, FAN1234(41%):CPU Temp(29C), FANA(31%):HDD Temp(31C)2024-02-03 18:41:51 Stopping Fan Control2024-02-03 18:41:51 Setting fans to auto2024-02-03 18:41:56 Starting Fan Control2024-02-03 18:41:56 Board: Supermicro Board Model: X11SCH-LN4F2024-02-03 18:41:56 SM Board selection: 112024-02-03 18:41:56 Setting fans to full speed2024-02-03 18:42:06 Fan:Temp, FAN1234(41%):CPU Temp(28C), FANA(31%):HDD Temp(31C) And these are my settings: http://upload.forums.unraid.net/live/monthly_2024_02/345731802_Bildschirmfoto2024-02-03um18_49_55.thumb.png.e5989b6ca4cfadf2eadc12a9b4687086.png http://upload.forums.unraid.net/live/monthly_2024_02/355274572_Bildschirmfoto2024-02-03um18_46_59.thumb.png.1a112952a198e54ab551c0de80da47d0.pngCpu fan should not be controlled by this plugin, and your hdd fan shows 0, i think your config is wrong, check your physical fan header labels Quote Link to comment
kennymc.c Posted February 3 Share Posted February 3 3 minutes ago, spl147 said: Cpu fan should not be controlled by this plugin, and your hdd fan shows 0, i think your config is wrong, check your physical fan header labels I already solved the problem. See my comment at the top of the post. Where does it show 0 rpm? If I let IPMI control all or some of the fans they will always run at full speed. Even with fan thresholds adjusted my Noctua fans will sometimes report a false rpm to trigger the IPMI fan failure control that lets all fans run at full speed. With this plugin I can set a minimum speed to not trigger this behaviour. With 30% minimum speed they still run at 300 rpm. Seems to be a know problem with this brand. Quote Link to comment

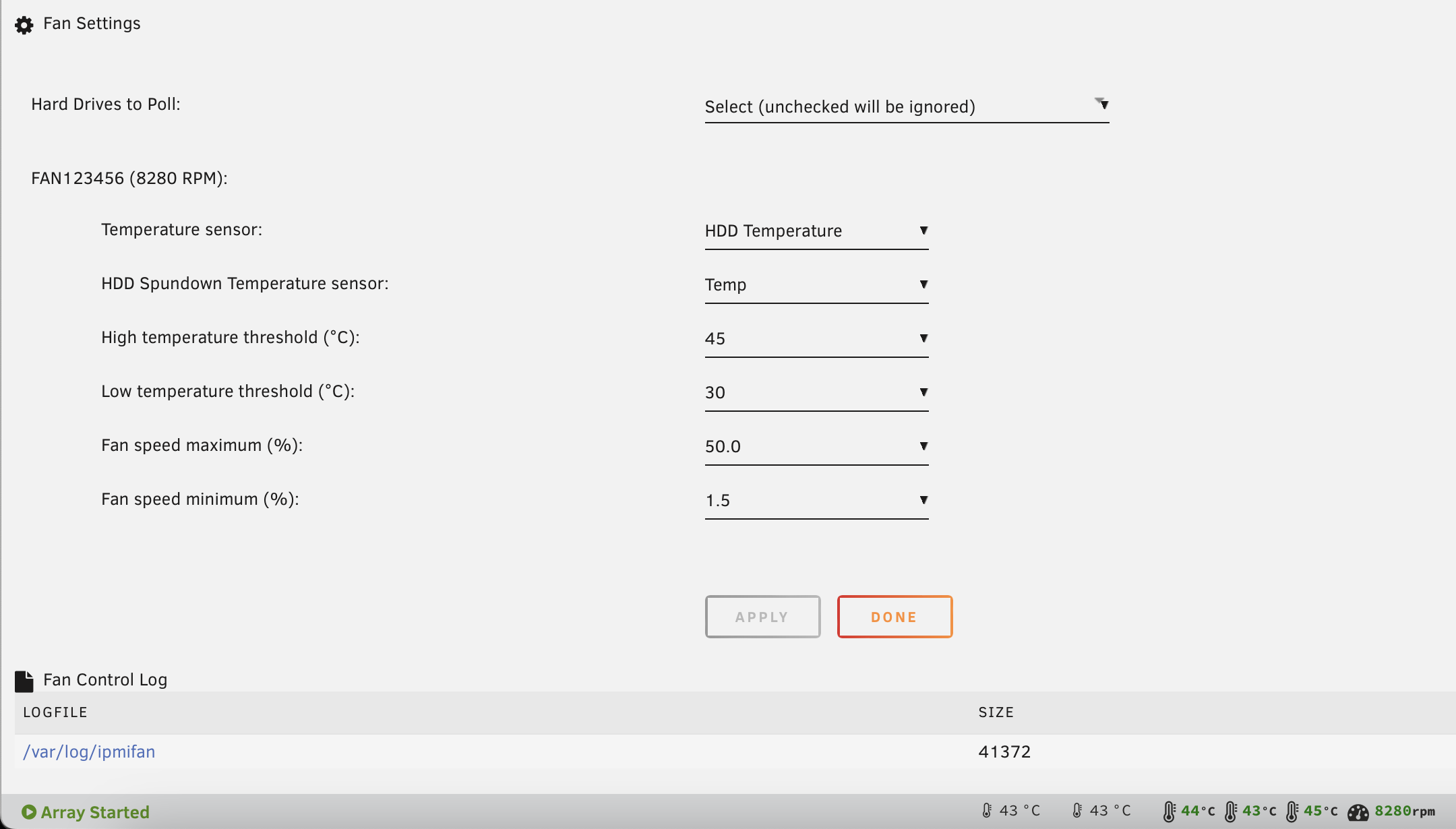

The Transplant Posted February 5 Share Posted February 5 On 2/1/2024 at 4:27 PM, spl147 said: 80c for high? are you crazy? look up the specs for your drives. most are 55-60c MAX! i use 30c for low and 55c for high then once your drives come back down to normal temps, play with max fan speed to keep drives around 40-42c I got the hard drive temp into the green. I am going to try tweaking it a little to see if I can get fan noise down a bit. It is sitting in the back of my office. I don't know actually what the operating temps of my drives are - have to open up the box and check the model numbers - will do that but for now just going with an average range. One question - I have 6 mechanical drives and 2 SSD. If I reduced the number of mechanical drives by using less bigger drives would that have much impact on heat? Thanks. 2024-02-04 19:28:18 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 19:31:19 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 19:58:27 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 20:01:28 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 20:16:32 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 20:19:33 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 20:40:40 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 20:43:41 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 22:44:17 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 22:47:18 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 23:26:29 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 23:29:30 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 00:17:43 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 00:20:44 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 00:32:48 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 00:35:49 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 00:50:53 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 00:53:54 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:05:57 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:08:58 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:21:02 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:24:02 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:48:09 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:51:10 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:54:11 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:57:12 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:06:15 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:09:15 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:27:21 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:30:22 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:33:22 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:36:23 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:45:26 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:48:27 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:00:30 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:03:31 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:12:34 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:15:34 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:18:35 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:21:36 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:24:37 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:30:39 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:36:41 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:42:43 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:51:46 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:54:47 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:57:48 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:03:50 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:09:52 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:12:53 Fan:Temp, FAN123456(50%):HDD Temp(47C) 2024-02-05 04:15:54 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:24:57 Fan:Temp, FAN123456(50%):HDD Temp(47C) 2024-02-05 04:30:59 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:37:01 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:40:01 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:43:02 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:49:04 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:52:05 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:55:06 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:58:07 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:01:08 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:07:10 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:13:11 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:16:12 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:19:13 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:22:14 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:25:15 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:28:15 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:31:16 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:37:19 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:43:20 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:46:21 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:49:22 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:55:24 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:58:25 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:04:27 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:10:28 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:13:29 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:19:31 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:25:33 Fan:Temp, FAN123456(50%):HDD Temp(47C) 2024-02-05 06:37:36 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:40:37 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:46:39 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:49:40 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:58:42 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 07:01:43 Fan:Temp, FAN123456(50%):HDD Temp(45C) Quote Link to comment
spl147 Posted February 5 Share Posted February 5 1 hour ago, The Transplant said: I got the hard drive temp into the green. I am going to try tweaking it a little to see if I can get fan noise down a bit. It is sitting in the back of my office. I don't know actually what the operating temps of my drives are - have to open up the box and check the model numbers - will do that but for now just going with an average range. One question - I have 6 mechanical drives and 2 SSD. If I reduced the number of mechanical drives by using less bigger drives would that have much impact on heat? Thanks. 2024-02-04 19:28:18 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 19:31:19 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 19:58:27 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 20:01:28 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 20:16:32 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 20:19:33 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 20:40:40 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 20:43:41 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 22:44:17 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 22:47:18 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-04 23:26:29 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-04 23:29:30 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 00:17:43 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 00:20:44 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 00:32:48 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 00:35:49 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 00:50:53 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 00:53:54 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:05:57 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:08:58 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:21:02 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:24:02 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:48:09 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:51:10 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 01:54:11 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 01:57:12 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:06:15 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:09:15 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:27:21 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:30:22 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:33:22 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:36:23 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 02:45:26 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 02:48:27 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:00:30 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:03:31 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:12:34 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:15:34 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:18:35 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:21:36 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:24:37 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:30:39 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:36:41 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:42:43 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:51:46 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 03:54:47 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 03:57:48 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:03:50 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:09:52 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:12:53 Fan:Temp, FAN123456(50%):HDD Temp(47C) 2024-02-05 04:15:54 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:24:57 Fan:Temp, FAN123456(50%):HDD Temp(47C) 2024-02-05 04:30:59 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:37:01 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:40:01 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:43:02 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:49:04 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:52:05 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 04:55:06 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 04:58:07 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:01:08 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:07:10 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:13:11 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:16:12 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:19:13 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:22:14 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:25:15 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:28:15 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:31:16 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:37:19 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:43:20 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:46:21 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:49:22 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 05:55:24 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 05:58:25 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:04:27 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:10:28 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:13:29 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:19:31 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:25:33 Fan:Temp, FAN123456(50%):HDD Temp(47C) 2024-02-05 06:37:36 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:40:37 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:46:39 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 06:49:40 Fan:Temp, FAN123456(50%):HDD Temp(45C) 2024-02-05 06:58:42 Fan:Temp, FAN123456(47%):HDD Temp(44C) 2024-02-05 07:01:43 Fan:Temp, FAN123456(50%):HDD Temp(45C) model numbers are in the UI: Quote Link to comment

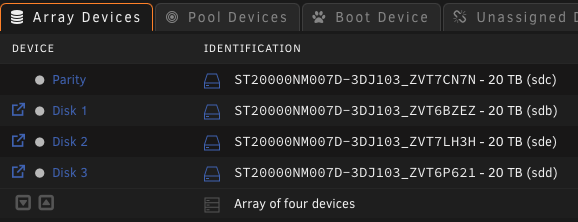

The Transplant Posted February 5 Share Posted February 5 3 hours ago, spl147 said: model numbers are in the UI: That helps. Thanks. Quote Link to comment
icepic0 Posted February 11 Share Posted February 11 I've been using your great IPMI plugin for years on a Supermicro SuperStorage (5018A-AR12L with a Super A1SA7-2750F motherboard) server with a Aspeed AST 2400 BMC (gen X7). Yesterday after a full power down to move the server the plugin is no longer reporting any sensors and seems to not be able to access IPMI. I'm running Unraid 6.12.6 and did not update just before this happened. The fans do run based on the simple configuration in the IPMI settings ( The IPMI web interface still works, and shows sensors and values. I have reset the IPMI unit from the web interface, and also done a factory reset of it. I have cleared the CMOS while replacing the battery. It seems that the ipmi tools cannot access the IPMI system. Trying tools I get ipmi-detect: Cannot connect to server ipmi-sensors Caching SDR repository information: /root/.freeipmi/sdr-cache/sdr-cache-unraid1.localhost cipmi_sdr_cache_create: internal IPMI error and all the commands other than ipmi-detect seem to time out I've noticed two other odd issues, that seem to have started at the same time, but do not know if they are related. The only red reading is VBAT showing "Lower Non-recoverable", even after replacing the CMOS battery. And the iKVM input (keyboard and mouse) are not working, even using the virtual keyboard. Any other things I should check or do? Has anyone seen this behavior before? Thank you very much. My system does seem to be recognized by the plug in as it says Motherboard and Model: Supermicro A1SA7 Gen:1 Here's some screen shots of my IPMI details and what I'm seeing in the plugin Quote Link to comment
Elmojo Posted February 12 Share Posted February 12 (edited) I'm having a similar issue as @icepic0, except that I can't connect at all. I can open the settings for the plugin, but it won't connect, and I see no sensor data. I've changed nothing, except for standard plugin and docker updates. Edited February 12 by Elmojo 1 Quote Link to comment
icepic0 Posted February 14 Share Posted February 14 On 2/11/2024 at 6:15 PM, icepic0 said: Seems my problem was more extensive than just the iPMI. Yesterday the system crashed and won't even boot to post anymore. I think it's a motherboard problem as even swapping memory and unplugging everything it will not get to POST and will reset after a few minutes. Quote Link to comment
sauerm Posted February 16 Share Posted February 16 I get connection to and data from IPMI but now the "fan control" tab is gone Cant find a setting to bring it back. Isnt the board supported? Quote Link to comment
SimonF Posted February 17 Author Share Posted February 17 19 hours ago, sauerm said: I get connection to and data from IPMI but now the "fan control" tab is gone Cant find a setting to bring it back. Isnt the board supported? It is because it is not showing as Supermicro. Have a look at this tread. Quote Link to comment
Denisy Posted February 21 Share Posted February 21 (edited) On 2/11/2024 at 6:15 PM, icepic0 said: I've been using your great IPMI plugin for years on a Supermicro SuperStorage (5018A-AR12L with a Super A1SA7-2750F motherboard) server with a Aspeed AST 2400 BMC (gen X7). Yesterday after a full power down to move the server the plugin is no longer reporting any sensors and seems to not be able to access IPMI. I'm running Unraid 6.12.6 and did not update just before this happened. The fans do run based on the simple configuration in the IPMI settings ( The IPMI web interface still works, and shows sensors and values. I have reset the IPMI unit from the web interface, and also done a factory reset of it. I have cleared the CMOS while replacing the battery. It seems that the ipmi tools cannot access the IPMI system. Trying tools I get ipmi-detect: Cannot connect to server ipmi-sensors Caching SDR repository information: /root/.freeipmi/sdr-cache/sdr-cache-unraid1.localhost cipmi_sdr_cache_create: internal IPMI error and all the commands other than ipmi-detect seem to time out I've noticed two other odd issues, that seem to have started at the same time, but do not know if they are related. The only red reading is VBAT showing "Lower Non-recoverable", even after replacing the CMOS battery. And the iKVM input (keyboard and mouse) are not working, even using the virtual keyboard. Any other things I should check or do? Has anyone seen this behavior before? Thank you very much. My system does seem to be recognized by the plug in as it says Motherboard and Model: Supermicro A1SA7 Gen:1 Hi All, I`m having exactly same issue as reported above on my Supermicro A1SRi-2758F. The plugin worked perfectly for over 2 year before this has happened recently. I tried to install the previous version by dmacias, but it`s too old and isn`t loading correctly (I'm using unRAID 6.12.8) and dmidecode returns correct information (same as before) Edited February 21 by Denisy Quote Link to comment
