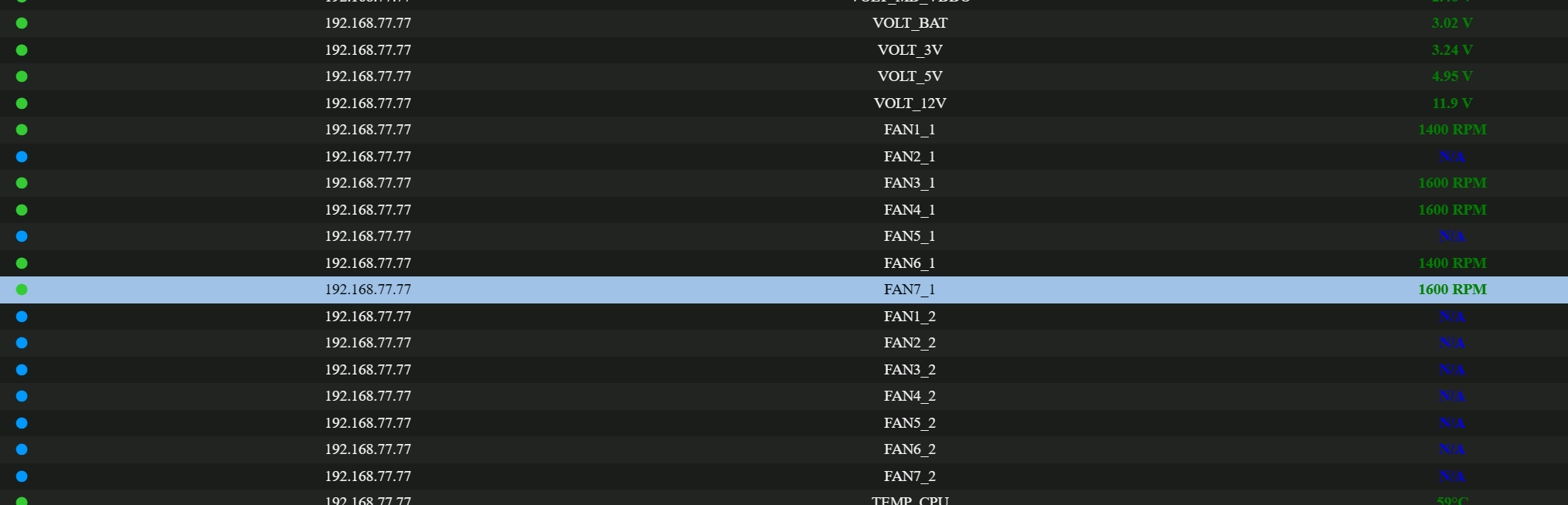

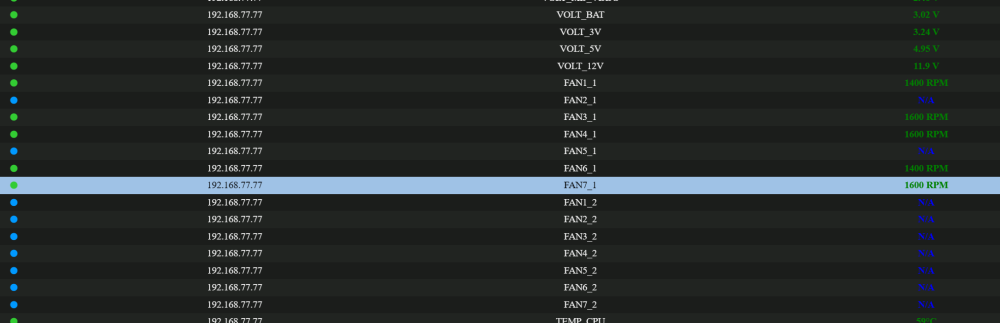

SimonF Posted February 21 Author Share Posted February 21 3 hours ago, Denisy said: Hi All, I`m having exactly same issue as reported above on my Supermicro A1SRi-2758F. The plugin worked perfectly for over 2 year before this has happened recently. I tried to install the previous version by dmacias, but it`s too old and isn`t loading correctly (I'm using unRAID 6.12.8) and dmidecode returns correct information (same as before) Does this produce any output? Do you use a network connection? If so may need to add additional details. /usr/sbin/ipmi-sensors --output-sensor-thresholds --comma-separated-output '. "--output-sensor-state --no-header-output --interpret-oem-data Additional parts for network --always-prefix -h 'ipaddr' -u 'user) -p 'password' --session-timeout=5000 --retransmission-timeout=1000 Screen print of settings may be useful. Quote Link to comment

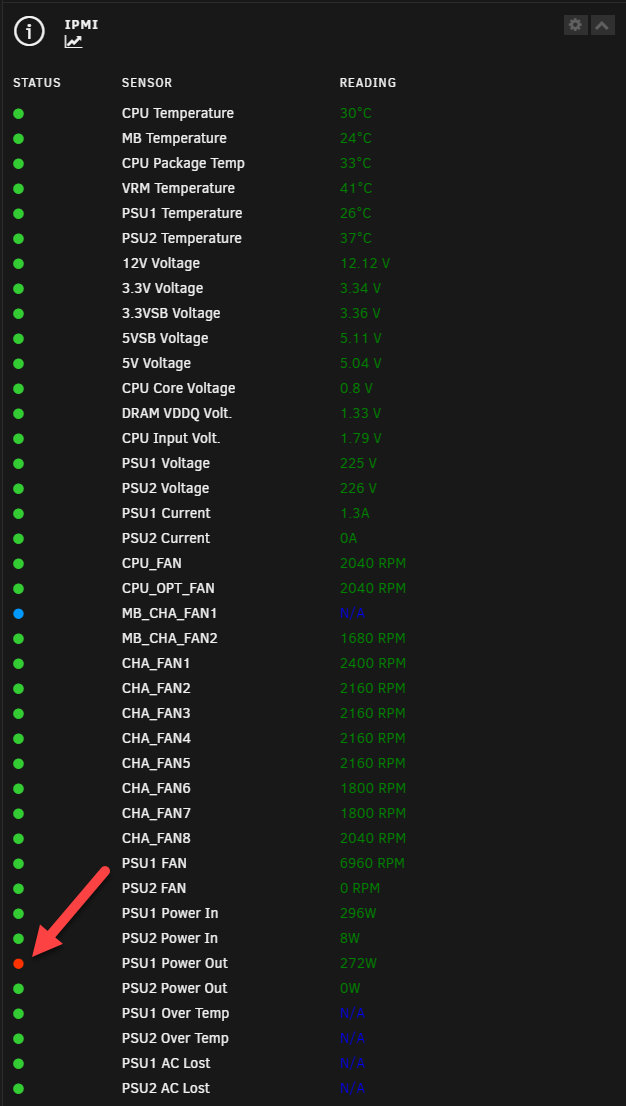

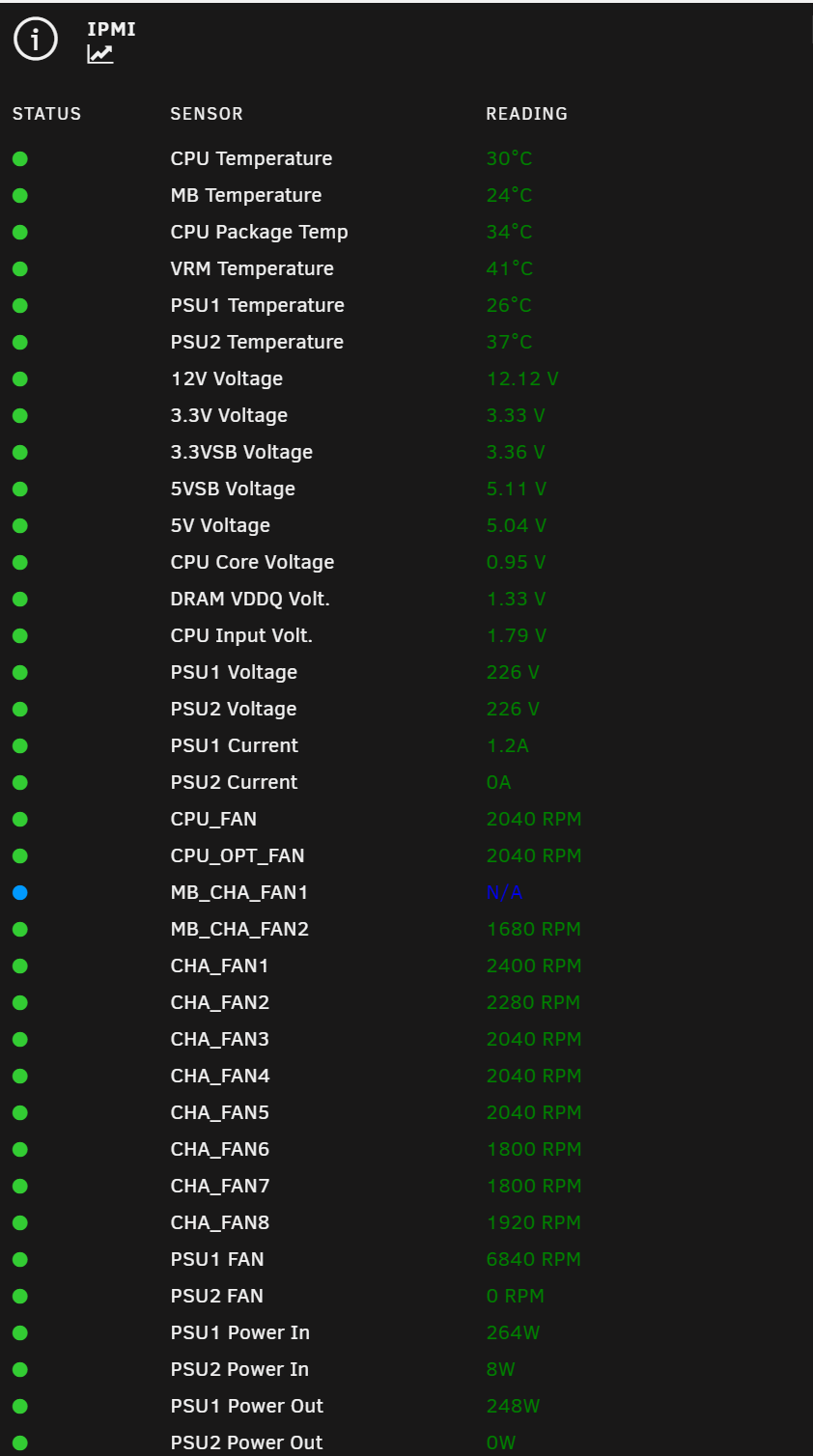

casperse Posted February 23 Share Posted February 23 First what a GREAT plugin! - I just installed it and everything works out of the box! I just have one question or two (Might be stupid ones, sorry) I have a red icon on PSU1 Power Out is this a warning? (Haven't seen anything in the IPMI configuration. IPMI interface: And does all the N/A mean that I can remove them, or that they could get a value if for example the PSU2 would take over? Also I could never get the IPMI e-mail notification service working, would enabling notification use the Unraid e-mail notification instead? Thanks again your work is much appreciated. Quote Link to comment
SimonF Posted February 23 Author Share Posted February 23 13 minutes ago, casperse said: First what a GREAT plugin! - I just installed it and everything works out of the box! I just have one question or two (Might be stupid ones, sorry) I have a red icon on PSU1 Power Out is this a warning? (Haven't seen anything in the IPMI configuration. IPMI interface: And does all the N/A mean that I can remove them, or that they could get a value if for example the PSU2 would take over? Also I could never get the IPMI e-mail notification service working, would enabling notification use the Unraid e-mail notification instead? Thanks again your work is much appreciated. Would you be able to send the raw sensor data /usr/sbin/ipmi-sensors --output-sensor-thresholds --comma-separated-output --output-sensor-state --no-header-output --interpret-oem-data Quote Link to comment
SimonF Posted February 23 Author Share Posted February 23 19 minutes ago, casperse said: Also I could never get the IPMI e-mail notification service working, would enabling notification use the Unraid e-mail notification instead? Where are you setting this? Quote Link to comment
casperse Posted February 23 Share Posted February 23 (edited) 3 hours ago, SimonF said: Would you be able to send the raw sensor data /usr/sbin/ipmi-sensors --output-sensor-thresholds --comma-separated-output --output-sensor-state --no-header-output --interpret-oem-data Yes of course: # /usr/sbin/ipmi-sensors --output-sensor-thresholds --comma-separated-output --output-sensor-state --no-header-output --interpret-oem-data 3,CPU Temperature,Temperature,Nominal,31.00,C,N/A,N/A,N/A,98.00,99.00,100.00,'OK' 5,MB Temperature,Temperature,Nominal,24.00,C,N/A,N/A,N/A,60.00,70.00,95.00,'OK' 6,TR1 Temperature,Temperature,N/A,N/A,C,N/A,N/A,N/A,100.00,100.00,100.00,N/A 7,TR2 Temperature,Temperature,N/A,N/A,C,N/A,N/A,N/A,100.00,100.00,100.00,N/A 8,TR3 Temperature,Temperature,N/A,N/A,C,N/A,N/A,N/A,100.00,100.00,100.00,N/A 9,CPU Package Temp,Temperature,Nominal,35.00,C,N/A,N/A,N/A,95.00,100.00,105.00,'OK' 10,VRM Temperature,Temperature,Nominal,41.00,C,N/A,N/A,N/A,110.00,110.00,110.00,'OK' 11,PSU1 Temperature,Temperature,Nominal,26.00,C,N/A,N/A,N/A,50.00,63.00,63.00,'OK' 12,PSU2 Temperature,Temperature,Nominal,37.00,C,N/A,N/A,N/A,50.00,63.00,63.00,'OK' 15,12V Voltage,Voltage,Nominal,12.12,V,9.60,10.20,10.80,13.20,13.80,14.40,'OK' 16,3.3V Voltage,Voltage,Nominal,3.34,V,2.64,2.80,2.98,3.63,3.79,3.97,'OK' 17,3.3VSB Voltage,Voltage,Nominal,3.36,V,2.64,2.80,2.98,3.63,3.79,3.97,'OK' 18,5VSB Voltage,Voltage,Nominal,5.11,V,4.01,4.25,4.51,5.50,5.76,6.00,'OK' 19,5V Voltage,Voltage,Nominal,5.04,V,4.01,4.25,4.51,5.50,5.76,6.00,'OK' 20,CPU Core Voltage,Voltage,Nominal,1.00,V,0.00,0.00,0.00,2.11,2.21,2.30,'OK' 21,DRAM VDDQ Volt.,Voltage,Nominal,1.33,V,0.80,0.85,0.90,2.20,2.30,2.40,'OK' 23,CPU Input Volt.,Voltage,Nominal,1.79,V,1.20,1.26,1.34,2.32,2.42,2.53,'OK' 24,PSU1 Voltage,Voltage,Nominal,227.00,V,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 25,PSU2 Voltage,Voltage,Nominal,227.00,V,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 28,PSU1 Current,Current,Nominal,1.20,A,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 29,PSU2 Current,Current,Nominal,0.00,A,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 32,CPU_FAN,Fan,Nominal,2040.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 33,CPU_OPT_FAN,Fan,Nominal,2040.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 34,MB_CHA_FAN1,Fan,N/A,N/A,RPM,0.00,360.00,360.00,N/A,N/A,N/A,N/A 35,MB_CHA_FAN2,Fan,Nominal,1800.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 36,MB_CHA_FAN3,Fan,N/A,N/A,RPM,0.00,360.00,360.00,N/A,N/A,N/A,N/A 37,MB_CHA_FAN4,Fan,N/A,N/A,RPM,0.00,360.00,360.00,N/A,N/A,N/A,N/A 38,MB_CHA_FAN5,Fan,N/A,N/A,RPM,0.00,360.00,360.00,N/A,N/A,N/A,N/A 43,MB_AIO_PUMP,Fan,N/A,N/A,RPM,0.00,360.00,360.00,N/A,N/A,N/A,N/A 44,CHA_FAN1,Fan,Nominal,2400.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 45,CHA_FAN2,Fan,Nominal,2160.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 46,CHA_FAN3,Fan,Nominal,2040.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 47,CHA_FAN4,Fan,Nominal,1920.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 48,CHA_FAN5,Fan,Nominal,1920.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 49,CHA_FAN6,Fan,Nominal,1680.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 50,CHA_FAN7,Fan,Nominal,1680.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 51,CHA_FAN8,Fan,Nominal,1920.00,RPM,0.00,360.00,360.00,N/A,N/A,N/A,'OK' 52,PSU1 FAN,Fan,Nominal,6840.00,RPM,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 53,PSU2 FAN,Fan,Nominal,0.00,RPM,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 56,PSU1 Power In,Power Supply,Nominal,264.00,W,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 57,PSU2 Power In,Power Supply,Nominal,8.00,W,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 60,PSU1 Power Out,Power Supply,Nominal,240.00,W,N/A,N/A,N/A,1896.00,2000.00,2000.00,'OK' 61,PSU2 Power Out,Power Supply,Nominal,0.00,W,N/A,N/A,N/A,1896.00,2000.00,48.00,'OK' 64,PSU1 Over Temp,Temperature,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'transition to OK' 65,PSU2 Over Temp,Temperature,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'transition to OK' 68,PSU1 AC Lost,Power Supply,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'Presence detected' 69,PSU2 AC Lost,Power Supply,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'Presence detected' 72,PSU1 Slow FAN1,Fan,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'transition to OK' 73,PSU2 Slow FAN1,Fan,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'transition to OK' 76,PSU1 PWR Detect,Power Supply,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'Presence detected' 77,PSU2 PWR Detect,Power Supply,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'Presence detected' 80,PSU1 Over Curr,Current,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'transition to OK' 81,PSU2 Over Curr,Current,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'transition to OK' 85,VERSION_ERR,Version Change,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'OK' 87,Watchdog2,Watchdog 2,Nominal,N/A,N/A,N/A,N/A,N/A,N/A,N/A,N/A,'OK' The email notification in the IPMI would require me to have my own e-mail server (Google have to many special steps for the IPMI to work) Sorry I thought there was a integration between this IPMI and the Unraid Notification Settings. I can see that its a event notification (My mistake) UPDATE: After running the command I now have it Green? Edited February 23 by casperse Quote Link to comment
Denisy Posted February 24 Share Posted February 24 (edited) On 2/21/2024 at 2:14 AM, SimonF said: Does this produce any output? Do you use a network connection? If so may need to add additional details. /usr/sbin/ipmi-sensors --output-sensor-thresholds --comma-separated-output '. "--output-sensor-state --no-header-output --interpret-oem-data Additional parts for network --always-prefix -h 'ipaddr' -u 'user) -p 'password' --session-timeout=5000 --retransmission-timeout=1000 Screen print of settings may be useful. Hi thank you for your attention! No I don`t use network connection. The ipmi web-interface that is built-in with bios is accessible and is working fine. But it doesn`t work via plugin any more. I cant even access the settings via the plugin interface: just getting a blank page as on screenshot attached. dmidecode: andle 0x0001, DMI type 1, 27 bytes System Information Manufacturer: Supermicro Product Name: A1SAi Version: 123456789 Serial Number: removed UUID: Not Settable Wake-up Type: Power Switch SKU Number: 081315D9 Family: SMC X10 Edited February 24 by Denisy Quote Link to comment
SimonF Posted February 24 Author Share Posted February 24 1 hour ago, Denisy said: Hi thank you for your attention! No I don`t use network connection. The ipmi web-interface that is built-in with bios is accessible and is working fine. But it doesn`t work via plugin any more. I cant even access the settings via the plugin interface: just getting a blank page as on screenshot attached. dmidecode: andle 0x0001, DMI type 1, 27 bytes System Information Manufacturer: Supermicro Product Name: A1SAi Version: 123456789 Serial Number: removed UUID: Not Settable Wake-up Type: Power Switch SKU Number: 081315D9 Family: SMC X10 Are you using my version of the plugin? Or the original authors one. Quote Link to comment
AgentXXL Posted February 26 Share Posted February 26 Hi Simon, I'm working through an issue with the Open Files plugin made by dlandon. It has stopped working on one of my unRAID systems and times out trying to get the list of open files and processes. I enabled logging at Tools --> PHP Settings and it's reporting this error: [26-Feb-2024 14:04:42 America/Denver] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [26-Feb-2024 14:04:42 America/Denver] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [26-Feb-2024 14:04:57 America/Denver] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [26-Feb-2024 14:04:57 America/Denver] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 The 2 lines repeat ad-nauseum every 5 - 15 seconds. I've removed the IPMI plugin to see if that would fix the Open Files issue, but dlandon suggested I mention this to you. Alas removing it didn't fix my Open Files issue. Let me know if you need any further details. Thanks! Quote Link to comment
SimonF Posted February 26 Author Share Posted February 26 28 minutes ago, AgentXXL said: PHP Settings and it's reporting this error: Thanks for reporting will look in to it Quote Link to comment
forg0t Posted March 5 Share Posted March 5 On 11/26/2023 at 2:24 PM, mja00 said: Yep found their fork for the other X570 board and simply adding an or check for the board I have made it pick up and start working. Thanks! Grab the ipmi2json and ipmifan from this post then throw them into a text editor to do the edits below. - ipmi2json, line 166: $com = ($board_model == "X570D4I-2T" || $board_model == "X570D4U") ? 'd6' : '01'; - ipmi2json, line 171: if ($board_model == "X570D4I-2T" || $board_model == "X570D4U") { - ipmifan, line 413: if ($board_model == "X570D4I-2T" || $board_model == "X570D4U") { Basically, just adding on the board to each check. This ensures the custom script changes that arstropica made also apply to the X570D4U boards. This most likely also works for the x570d4u-2l2t, you just need to use that as the model name, though you can confirm the model name using dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}' I'm still not able to detect my fans on my X570D4U board after downloading those two and making the changes you suggested. Is there anything else I'm missing? Quote Link to comment

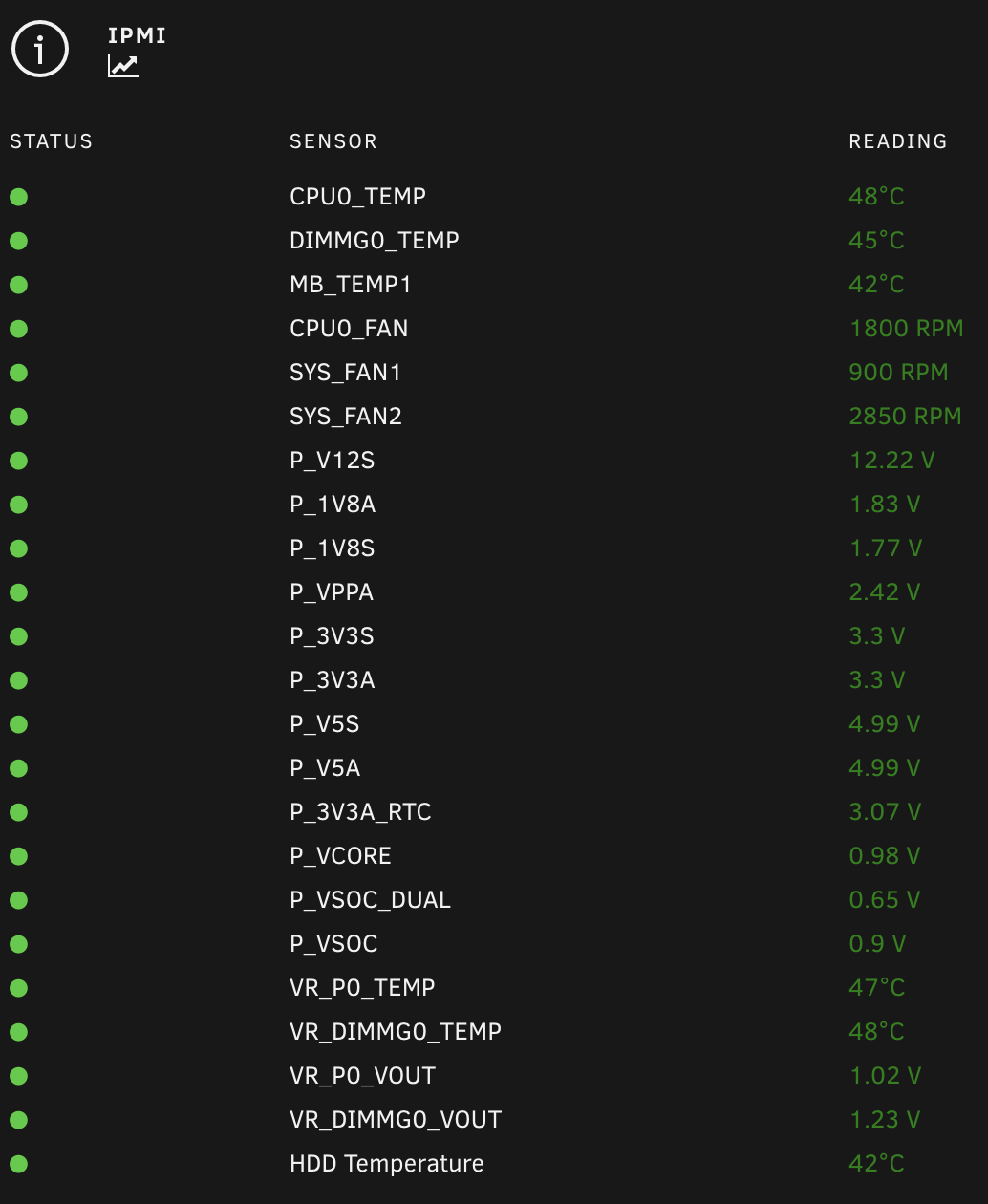

whc Posted March 6 Share Posted March 6 (edited) Is i possible to get this plugin working to control fans according to HDD temperature on GIGABYTE MJ11-EC1-OT, running BMC and not IPMI. I can see all statistics, including HDD temp, but in the setting of this plugins I can not control the fans at all, only monitor RPM and HDD temps. Edited March 6 by whc Quote Link to comment
Gunny Posted March 7 Share Posted March 7 18 hours ago, whc said: Is i possible to get this plugin working to control fans according to HDD temperature on GIGABYTE MJ11-EC1-OT, running BMC and not IPMI. I can see all statistics, including HDD temp, but in the setting of this plugins I can not control the fans at all, only monitor RPM and HDD temps. You'll have to reach out to Gigabyte support and ask them for the IPMI commands to control the fans on the system and what their values are if that is not already documented in their manual. Once you get that, then yeah you can get this plugin to work. Quote Link to comment
spl147 Posted March 7 Share Posted March 7 23 hours ago, whc said: Is i possible to get this plugin working to control fans according to HDD temperature on GIGABYTE MJ11-EC1-OT, running BMC and not IPMI. I can see all statistics, including HDD temp, but in the setting of this plugins I can not control the fans at all, only monitor RPM and HDD temps. a little googling forund this: For fan settings we have below information: Below IPMI command format for fan control. Set Fan Control 0x3c 0x16 Byte1: 0x02 Byte2: FAN_NO Byte3: Duty1 Byte4: Duty2 Byte5: Duty3 Byte6: Temp1 Byte7: Temp2 Byte8: Temp3 Get Fan Control 0x3c 0x16 Byte1: 0x03 Byte2: FAN_NO Ex. Get fan 1 status $ Ipmitool -I lanplus -H 192.168.50.43 -U admin -P admin raw 0x3c 0x16 0x03 0x01 – 01 0a 32 64 14 50 5f Ex. Set fan 1 $ipmitool -I lanplus -H 192.168,50.43 -U admin -P admin raw 0x3c 0x16 0x02 0x01 0x14 0x32 0x64 0x14 0x50 0x5f - 01 14 32 64 14 50 5f Quote Link to comment
whc Posted March 8 Share Posted March 8 (edited) 13 hours ago, spl147 said: a little googling forund this: For fan settings we have below information: Below IPMI command format for fan control. Set Fan Control 0x3c 0x16 Byte1: 0x02 Byte2: FAN_NO Byte3: Duty1 Byte4: Duty2 Byte5: Duty3 Byte6: Temp1 Byte7: Temp2 Byte8: Temp3 Get Fan Control 0x3c 0x16 Byte1: 0x03 Byte2: FAN_NO Ex. Get fan 1 status $ Ipmitool -I lanplus -H 192.168.50.43 -U admin -P admin raw 0x3c 0x16 0x03 0x01 – 01 0a 32 64 14 50 5f Ex. Set fan 1 $ipmitool -I lanplus -H 192.168,50.43 -U admin -P admin raw 0x3c 0x16 0x02 0x01 0x14 0x32 0x64 0x14 0x50 0x5f - 01 14 32 64 14 50 5f Nice find sir, how to implement it to the IPMI plugin? Edited March 8 by whc Quote Link to comment
spl147 Posted March 8 Share Posted March 8 Nice find sir, how to implement it to the IPMI plugin?First step would be to try them from the command line to see if they actually work! Quote Link to comment
Gee1 Posted March 9 Share Posted March 9 (edited) SM H11SSL here.. FAN Controll dosnt work. Temperature and RPMs are shown correct. CPU FAN is on FANA but spinns allways at max. Dont know what the user / password for my BMC is UPDATE: ok figured out it only works with PWM Fans. § Pin FANs dosnt work Edited March 9 by Gee1 Quote Link to comment
spl147 Posted March 10 Share Posted March 10 SM H11SSL here.. FAN Controll dosnt work. Temperature and RPMs are shown correct. CPU FAN is on FANA but spinns allways at max. Dont know what the user / password for my BMC is UPDATE: ok figured out it only works with PWM Fans. § Pin FANs dosnt workOh my…. Quote Link to comment
Gee1 Posted March 10 Share Posted March 10 can u create more FAN profiles? EG instead FAN1234 do FAN1 FAN2 FAN3 FAN4 Quote Link to comment
whc Posted March 11 Share Posted March 11 On 3/8/2024 at 2:52 PM, spl147 said: First step would be to try them from the command line to see if they actually work! How do one go about and do that? Quote Link to comment
spl147 Posted March 11 Share Posted March 11 15 hours ago, Gee1 said: can u create more FAN profiles? EG instead FAN1234 do FAN1 FAN2 FAN3 FAN4 Nope Quote Link to comment
spl147 Posted March 11 Share Posted March 11 7 hours ago, whc said: How do one go about and do that? Google my friend, google Quote Link to comment

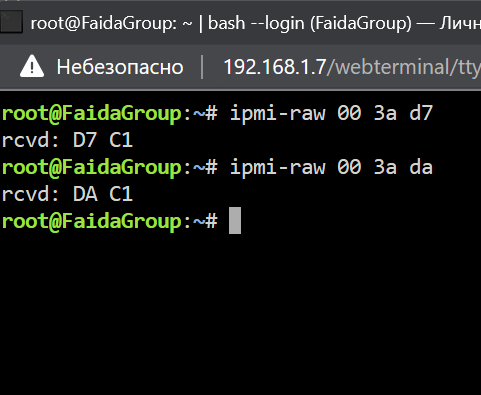

Gunny Posted March 24 Share Posted March 24 (edited) On 3/10/2024 at 6:04 PM, Gee1 said: can u create more FAN profiles? EG instead FAN1234 do FAN1 FAN2 FAN3 FAN4 If you're able to control each fan individually via the IPMI-RAW commands, then yes you can create a separate profile for each. Reading this comment by me might help you get it working by building a custom config out On 3/11/2024 at 2:15 AM, whc said: How do one go about and do that? with the plugin installed, the executable ipmi-raw should be on your path and so you should be able to send raw ipmi commands from your terminal Edited March 24 by Gunny Quote Link to comment

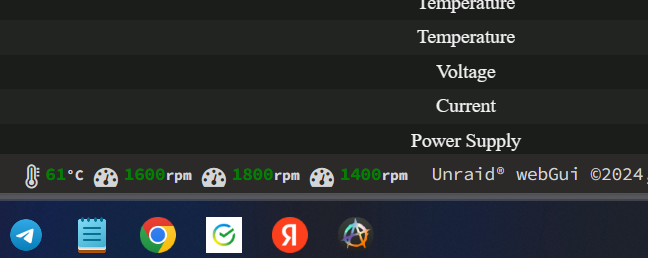

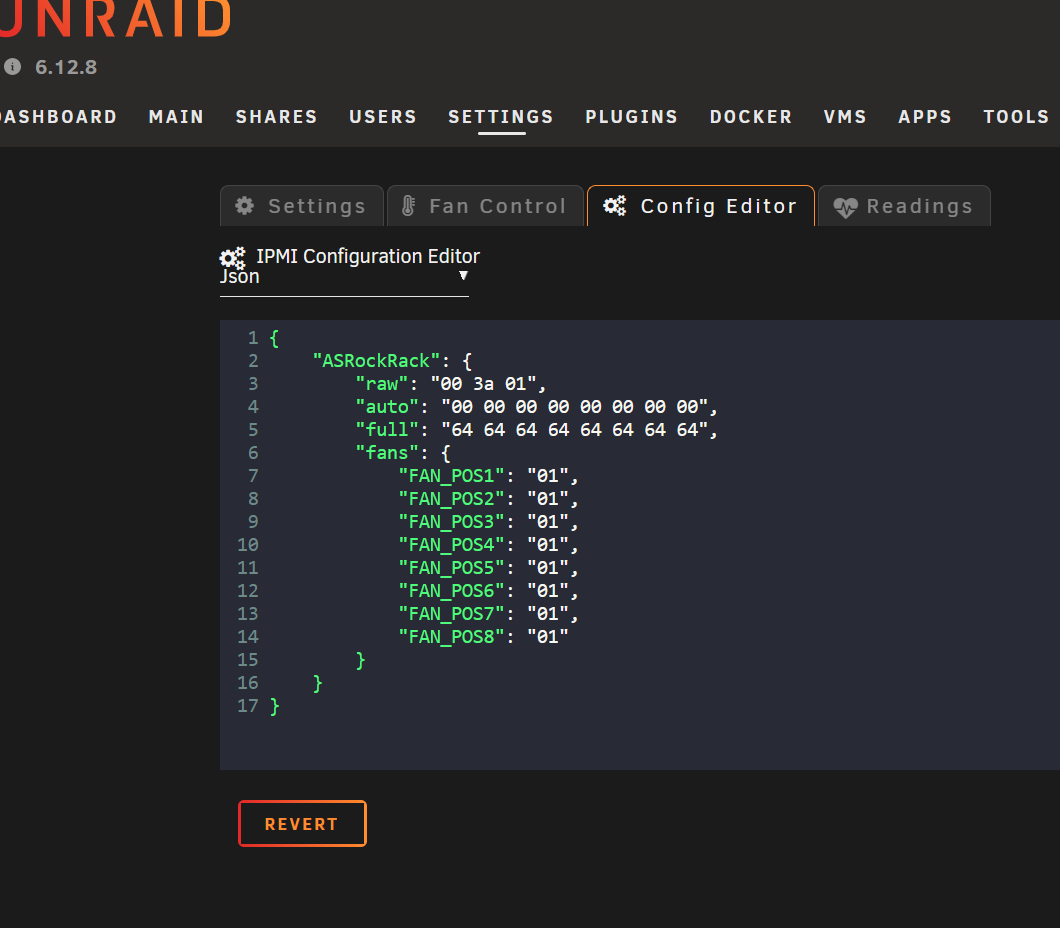

muwahhid Posted March 25 Share Posted March 25 (edited) Asrock rack b650d4u-2l2t/bcm not work fan control Spoiler Spoiler Can you tell me what needs to be done to make the fan control work? Indicators work, management doesn’t. Spoiler Spoiler Spoiler Edited March 25 by muwahhid Quote Link to comment
gutenmorgenuhu Posted March 25 Share Posted March 25 My fans are only spinning down for maybe half a second then they go back to full speed. (I only rebooted because I changed my PSU). Before the reboot, everything was working perfectly. I somehow seems that something overwrites the settings, that the plugin makes and sets the fans back to 100%. The Log says, that the plugin sets my fans to 2% speed. But the RPM stays at the absolute max: Quote Link to comment

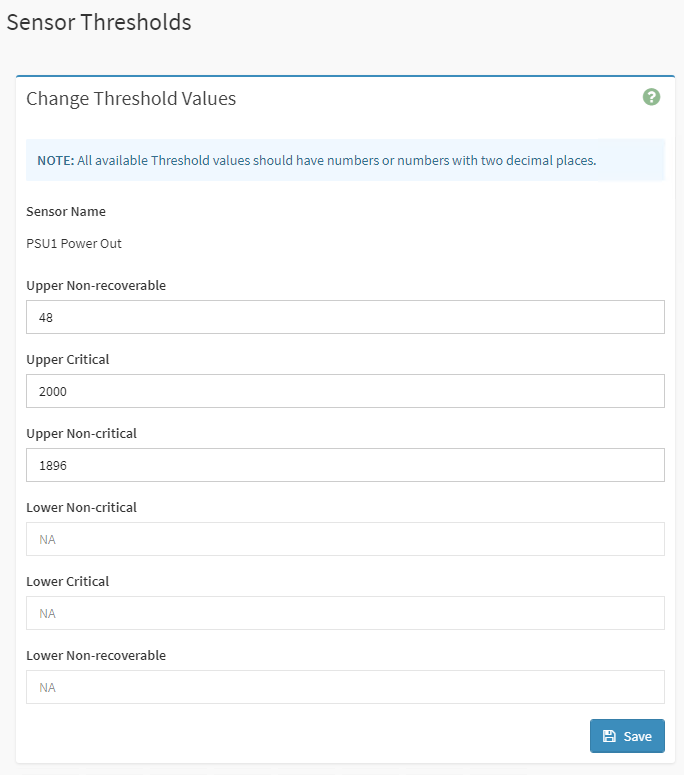

gutenmorgenuhu Posted March 25 Share Posted March 25 (edited) BTW: It does not make a difference, when I set the critical threshholds higher: Edited March 25 by gutenmorgenuhu Quote Link to comment
