Randomly, no. But at a moment of our choosing...

I am posting this to continue my contribution to this thread. As you all know I am a big supporter of these drives for the typical unRAID use case. My bi-directional transfer speeds are rock solid and

Hi All,   From around November 2014 I was thinking of building a new system suite because my requirements outstripped the system I had. For detailed reference please go here: http://lime-technology

Posted Images

9 hours ago, BRiT said:



You should check out this thread on how Google Drives and Rclone can provide unlimited storage for around $12 a month. They don't actually require 5 users and they don't limit storage to 1TB when less than 5 users. Some users have well over 200 TBs.



I was using BackBlaze via a fleet of external USB3 drives and a Windows 10 client with SyncFolders. Needless to say, it was a bit much ha ha. I've been looking for something quick, secure and native to UNRAID for a LONG time. I just setup GSuite tonight and have my ENTIRE server syncing to the cloud and uploading at a staggering 250Mbit/s (Peaks at 35 Megabytes/s!). I have fiber with 1Gig Up though... One note, in order to setup GSuite, YOU WILL NEED A DOMAIN. That was a bit surprising, but I already had one so just hooked it up through GoDaddy authentication pass-through (GSuite prompts for this).



Thanks for the suggestion. Instead of using RClone, I ended up using the Duplicati docker with encryption. So far, so good!

Link to post
7 hours ago, falconexe said:

I just setup GSuite tonight and have my ENTIRE server syncing to the cloud and uploading at a staggering 250Mbit/s (Peaks at 35 Megabytes/s!). I have fiber with 1Gig Up though...So far, so good!

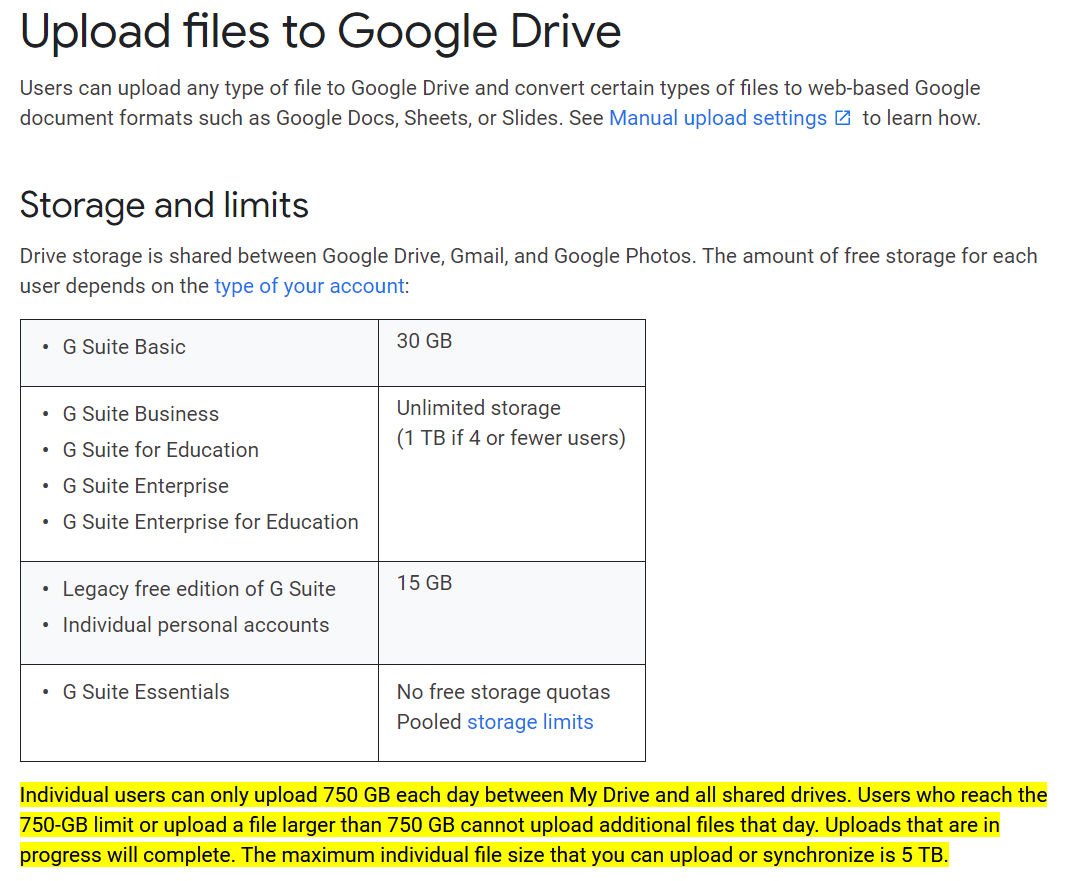

Welp, there are drawbacks from having fiber internet. I already hit the limit of GSuite (Google Drive) in just a few hours at those sustained upload speeds. So apparently, you can only upload 750GB in a single 24 hour time-frame (shared across all GSuite products).



I hit exactly 725.4GB before Duplicati started throwing server side errors. I have since throttled my uploads to 8 MB/s to keep it under this ceiling. (Math works out to 691.2 GB/Day [8MB * 86,400 Sec / 1000MB = 691.2GB/Day]. 9 MB/s puts it over, and the parameter has to be a whole number). This should keep Duplicati happy and support uninterrupted backups during my initial upload set. This would never be a problem once all files are initially backed up, but it is an interesting facet of the this solution's workflow.






Link to post
11 minutes ago, falconexe said:



Welp, there are drawbacks from having fiber internet. I already hit the limit of GSuite (Google Drive) in just a few hours at those sustained upload speeds. So apparently, you can only upload 750GB in a single 24 hour time-frame (shared across all GSuite products).



I hit exactly 725.4GB before Duplicati started throwing server side errors. I have since throttled my uploads to 8 MB/s to keep it under this ceiling. (Math works out to 691.2 GB/Day [8MB * 86,400 Sec / 1000MB = 691.2GB/Day]. 9 MB/s puts it over, and the parameter has to be a whole number). This should keep Duplicati happy and support uninterrupted backups during my initial upload set. This would never be a problem once all files are initially backed up, but it is an interesting facet of the this solution's workflow.








Thats why they suggest using Service Accounts in the rclone thread. They have the means to automatically cycle through them to remove these limits when using rclone.

Link to post
8 minutes ago, BRiT said:



Thats why they suggest using Service Accounts in the rclone thread. They have the means to automatically cycle through them to remove these limits when using rclone.

Good to know. Is there anything like that for use with Duplicati? I saw that with RClone, you can get an API ID.

Link to post
  • 3 months later...

I have the 6TB WD60EFAX that WD never said what type it was until the spring 2020, well these are SMR.



Model numbers of the drives and SMR or CMR:

2TB    WD20EFAX    SMR
2TB    WD20EFRX    CMR
3TB    WD30EFAX    SMR
3TB    WD30EFRX    CMR
4TB    WD40EFAX    SMR
4TB    WD40EFRX    CMR
6TB    WD60EFAX    SMR
6TB    WD60EFRX    CMR



I contacted WD and they are doing an advanced RMA without giving them my credit card number.  They are sending me a WD60EFRX 1st.  Then once I have done all the preclear, swap, rebuild, wipe old drive it should be a few days I guess.



I already have:

WD60EFRX parity

WD30EFRX

WD30EFRX

WD60EFAX the drive i will be exchanging

WD50EFRX not added to array yet



When do increase the size of the array I usually buy a bigger parity drive and the old parity drive replaces a smaller drive.  Limited to 4 drives at the moment, and 2 cache.



WD has a weird naming convention because the have a WD80EFAX that is CMR.



Edited by Paul_Ber
Link to post
8 minutes ago, Paul_Ber said:

WD has a weird naming convention because the have a WD80EFAX that is CMR

I think all models 8TB and above are CMR only so they don't worry about model number distinctions as much, but, it's still confusing given the naming conventions on the lower capacity models.

Link to post
  • 4 months later...
On 12/1/2018 at 8:47 PM, John_M said:

Five pre-clear passes though! That's 5 x 3 x 8 = 120 TB of reads/writes, which is more than twice the annual workload in less than 10 days. That's my main objection to these Barracuda Compute drives - they have a very low annual workload rating (55 TB/year) which, on drives of such capacity, you'll exceed just doing a monthly parity check. However, in their favour, they do have an unrecoverable read error rating of one per 10^15 bits read, which is an order of magnitude better than a WD Red.

Am I being wrong to conclude that Seagate 8TB shingled drives work perfectly fine in the typical Unraid environment (write once/read many)?

Link to post
1 hour ago, Lolight said:

Am I being wrong to conclude that Seagate 8TB shingled drives work perfectly fine in the typical Unraid environment (write once/read many)?

Most of them yes, old Archive drives work great, some newer models like the ST8000DM004 appear to be more hit and miss, at least some of them.

Link to post
Posted (edited)
4 hours ago, JorgeB said:

Most of them yes, old Archive drives work great, some newer models like the ST8000DM004 appear to be more hit and miss, at least some of them.

Over the last few years I have acquired 4 Seagate 8TB drives, which are still in their USB enclosures.

All drives are full.

I consider transferring all their data to my brand new Unraid machine and then adding them to the array.

Here's the list:



ST8000AS0002 - green SMART

ST8000DM004 - green SMART

ST8000DM004 - green SMART

ST8000DM004 - yellow SMART:

C5 Current Pending Sector Count - 8

C6 Uncorrectable Sector Count - 8



How serious is the SMART reporting result in the last one?

I assume I shouldn't even consider adding that one to the array?

Thanks!

Edited by Lolight
Link to post
49 minutes ago, Lolight said:

How serious is the SMART reporting result in the last one?

It's serious unless they are false positives, you can confirm by running an extended SMART test.

Link to post
47 minutes ago, Lolight said:

ST8000DM004 - yellow SMART:

C5 Current Pending Sector Count - 8

C6 Uncorrectable Sector Count - 8



How serious is the SMART reporting result in the last one?

I assume I shouldn't even consider adding that one to the array?



You have to consider that the Parity protection is dependent of the parity drives and all drives in the Array. If a drive is not reliable, you are putting your data at risk.

Link to post
Posted (edited)
On 5/6/2021 at 7:39 PM, JorgeB said:

It's serious unless they are false positives, you can confirm by running an extended SMART test.

Scanned the drive with StableBit scanner.

Upon completion it has warned me of problematic 8 sectors (as in the prior to the scan SMART report) and then offered me to recover damaged files.

I agreed.

StableBit seemed to have no problem reading those 8 presumably damaged sectors and recovered the file.

And now SMART shows green.

Reallocated Sectors, Current pending sector and Uncorrectable sector counts all show 0.



1) Does it mean that the initial SMART was false positive?

2) What could be possible reasons for SMART throwing false positives?



Thanks.

Edited by Lolight
Link to post

I'm late to the party on this one :)



I have one ST8000DM004 that I bought because it was cheap.  It failed in february with a bunch of udmacrc errors that were not affected by swapping out the cable - last count was 1491 and that was generated after a preclear when i tried to put it into my array and write to it - unraid wrote a few GB and then hundreds of crc errors popped and i had to rebuild my array with the disk it was replacing.



I was able to RMA that drive and i now have a refurbished ST8000DM004 with another year of warranty.  I really would like to use it in my array, and from reading here it sounds like I can get the life out of it by rebuilding my smaller disk onto it, then moving data from other disks onto the DM0004 so that no more writes occur to it, and just let it sit and serve data.  IIRC i used the original DM004 that failed as my parity disk for a while.



Does anyone like or dislike my strategy?  I hate to throw away $250 replacing what should be a perfectly serviceable drive.  I'd like to minimize my risk with it.



I am running dual parity, so not that worried about a failed drive if that's what happens.



Thanks for your suggestions on this.

Link to post
1 hour ago, PeteAron said:

moving data from other disks onto the DM0004 so that no more writes occur to it, and just let it sit and serve data

I did that with mine. But in your case, I'd copy (not move) files onto it and then do a binary/crc compare on the files to ensure they're identical. Beyond Compare by Scooter Software can help with this. Then once a match is verified, remove the source.

Link to post

Thanks jb.  I think you are implying to then remove the old drive and use the new config to rebuild parity after swapping the disks?  Probably a bit less work too.



thanks!

Link to post
2 hours ago, PeteAron said:

Thanks jb.  I think you are implying to then remove the old drive and use the new config to rebuild parity after swapping the disks?  Probably a bit less work too.



thanks!

I think I follow what you're saying. The parity rebuild should function the same as forcing a write on each sector and then verifying that write - but you'll be at a greater risk of a party rebuild failing since all sectors must report OK.

Link to post
Posted (edited)

I have a questions related to one of my spare 4TB Seagate USB drives (by Samsung) that I have uncovered in a closet.

It's in a third party USB enclosure.

A complete surface scan with Stablebit hasn't found any errors.

Except for a very strange one: the drive doesn't output any SMART info other than the basic attributes: model number, serial number, buffer size, speed and drive letter (checked with a couple of tools).

Tried another USB enclosure - no difference.

I've searched and couldn't find anything on what could be a problem.





Edited by Lolight
Link to post

It is a common problem with many USB enclosures. Do other hard drives return more information in the same enclosure?

What software did you try?  CrystalDiskInfo for example returns SMART data when HDTune does not. (yes, HDTune is old, just an example)

Link to post
17 hours ago, xerces8 said:

It is a common problem with many USB enclosures. Do other hard drives return more information in the same enclosure?

What software did you try?  CrystalDiskInfo for example returns SMART data when HDTune does not. (yes, HDTune is old, just an example)

I've tried a different enclosure with the same result - no SMART output.

I've tried CrystalDiskInfo and Stablebit - no output from that drive.

All my other external drives report SMART as expected.

Link to post
