12 hours ago, SimonF said:

For Dell users it looks lke support has been removed from iDrac > 3.30.30.30. for controlling fans.



Anyone know of a way to get firmware level of iDrac?

Manual setting doesn't seem to work for me, but fan offset can be set (e.g. +20% fan speed).

I'm on idrac 2.83.83.83



I think snmp is the only way to get firmware level, this doc covers idrac 7+8
https://dl.dell.com/topicspdf/dell-opnmang-sw-v8.1_connectivity-guide_en-us.pdf

[SimonF]

15 hours ago, tjb_altf4 said:

Manual setting doesn't seem to work for me, but fan offset can be set (e.g. +20% fan speed).

I'm on idrac 2.83.83.83



I think snmp is the only way to get firmware level, this doc covers idrac 7+8
https://dl.dell.com/topicspdf/dell-opnmang-sw-v8.1_connectivity-guide_en-us.pdf

Thanks,



So this works to set speed offset?



To set value to Low FAN speed offset run command:

ipmitool -I lanplus -H <IPADDRESS> -U <USERNAME> -P <PASSWORD> raw 0x30 0xCE 0x00 0x09 0x07 0x00 0x00 0x00 0x07 0x00 0x02 0x02 0x02 0x00 0x00



To set value to high FAN speed offset run command:

ipmitool -I lanplus -H <IPADDRESS> -U <USERNAME> -P <PASSWORD> raw 0x30 0xCE 0x00 0x09 0x07 0x00 0x00 0x00 0x07 0x00 0x02 0x02 0x02 0x01 0x00

[Elmojo]

22 hours ago, SimonF said:

Are you able try commands from spxlabs to see if it changes?

https://www.spxlabs.com/blog/2019/3/16/silence-your-dell-poweredge-server

That page is what I used to get me where I am now, which is working fairly well.
I use those IPMI commands to set a manual fan value, based on the time of year and how hot it's likely to be in my server room at the time.

What I haven't done is try the stuff where they talk about chron tasks and scripts.  They kinda lost me there....

[boxer74]

Will this be updated to support Unraid 6.12? I tried the new rc2 and this plugin isn't working and may be causing the dashboard to be blank.

[JorgeB]

12 minutes ago, boxer74 said:

Will this be updated to support Unraid 6.12?

Update to the plugin maintained by SimonF

[Akshunhiro]

Hi all, just wanted to register my interest in adding support for Dell servers.



I've got an R520 and had been using a crude script to get me by.



This plugin is installed but I have no idea how to setup a JSON for fan control. Reading is working fine though.



For whatever reason, my script has randomly stopped working twice now. Logs say it's ran, and it outputs/prints the temps but that's it.



No errors seen in iDRAC, no change if I reboot the iDRAC or even uninstall ipmitool, the plugin or a combination of all.



I ended up installing PowerEdge-shutup but struggling to fine-tune is as it seems pretty aggressive.

PowerEdge-shutup with log output.sh Original with log output

[Akshunhiro]

Alright, nevermind...

[kennymc.c]

On 2/7/2021 at 1:20 PM, Saeros said:

Hi, i have a little problem with the plugin, any help appreciated.

I have noctua fans in the ports FAN1-4 and FANB

In the plugin settings in Unraid i can only configure FAN1234 (one config for all of them) but FANB does not show up there....

I have a Supermicro X11SCH-LN4F (same as X11SCH-F only with more LAN ports).



Would be great if i can find a solution to configure FANB and in the best case it would be great to control FANS 1-4 individually....



any help appreciated!



I have the exact same board with Noctua fans as well and noticed the same problem today. I am pretty shure there were 2 separate fan control channel for FAN1234 and FANAB before. I am not shure when the controls for FANAB have disappeared in the plugin. According the the readings FANB is still running but was hitting the lower limit 2 times in the last 2 hours. But this seems to be normal at least for Noctua fans and I usually then adjust the minimum fan speed. But it is the first time I am not able to do this for Chanel FANAB.

[mergleh]

Hello,

I recently purchased a Supermicro X11SCA-F from eBay and noticed that I've lost the fan config tab in IPMI Tools.  Doing some digging through this thread, it seems that this may be because the plugin is not detecting a supported manufacturer when it initializes.  Running one of the commands I found on this thread, I'm seeing the following:



dmidecode -t 2 | grep 'Manufacturer' | awk -F 'r:' '{print $2}' | awk '{print $1}'
Enginetech



I'm not sure why this is returning Enginetech (EG320W-G20) instead of Supermicro (X11SCA-F)... I think the likely reason is that this board was refurbished in some way and it was changed as a part of that process.  I'm wondering if there's any way to work around this to be able to configure the fans using the IPMI plugin.



Thanks!



Edited September 9, 2023 by mergleh

[mergleh]

10 hours ago, mergleh said:

Hello,

I recently purchased a Supermicro X11SCA-F from eBay and noticed that I've lost the fan config tab in IPMI Tools.  Doing some digging through this thread, it seems that this may be because the plugin is not detecting a supported manufacturer when it initializes.  Running one of the commands I found on this thread, I'm seeing the following:



dmidecode -t 2 | grep 'Manufacturer' | awk -F 'r:' '{print $2}' | awk '{print $1}'
Enginetech



I'm not sure why this is returning Enginetech (EG320W-G20) instead of Supermicro (X11SCA-F)... I think the likely reason is that this board was refurbished in some way and it was changed as a part of that process.  I'm wondering if there's any way to work around this to be able to configure the fans using the IPMI plugin.



Thanks!





For anyone that may run into this, I was able to resolve this by using the SUM tool to update the DMI information.



Download SUM here https://www.supermicro.com/en/solutions/management-software/supermicro-update-manager

Execute

1) ./sum -i <IPMI_IP> -u <admin_username> -p <admin_password> -c GetDmiInfo --file dmi.txt

     a) This downloads the DMI info to a text file.

2) Open dmi.txt and update the information here - in my case, there were 3 examples of the problematic manufacturer name... I'm not sure which of the 3 was the right one so I just updated them all.

3) ./sum -i <IPMI_IP> -u <admin_username> -p <admin_password> -c ChangeDmiInfo --file dmi.txt --reboot

     b) This will write the changes you made to the txt file to DMI and trigger a reboot of the BMC.  Obviously, you should make sure Unraid isn't running in the background.



I don't think updating FRU info is necessary as I did that first with no luck (makes sense given that the plugin is using dmidecode).

Edited September 9, 2023 by mergleh

[OcifferAction]

Just wanted to confirm with everyone that it's true that the automatic fan control portion of this plugin does not work will Dell servers utilizing iDRAC? I receive the error message regarding the JSON fan control file missing, but there is not configure button. I'm running a Dell XC730xd-12 (Nuantix version of R730XD) server utilizing iDRAC 8.



In the meantime I've been utilizing a Docker image to control the fans, but it isn't ideal. If Docker or the array crashes then I lose automatic fan control. Luckily the last manual fan configuration kicks in if that happens. I set the fans to 50% during array start via a user script.



Here is the GitHub page for the Docker image I've been referencing. It's already set up on CA in Unraid.

https://github.com/tigerblue77/Dell_iDRAC_fan_controller_Docker

[SimonF]

3 hours ago, OcifferAction said:

Just wanted to confirm with everyone that it's true that the automatic fan control portion of this plugin does not work will Dell servers utilizing iDRAC? I receive the error message regarding the JSON fan control file missing, but there is not configure button. I'm running a Dell XC730xd-12 (Nuantix version of R730XD) server utilizing iDRAC 8.



In the meantime I've been utilizing a Docker image to control the fans, but it isn't ideal. If Docker or the array crashes then I lose automatic fan control. Luckily the last manual fan configuration kicks in if that happens. I set the fans to 50% during array start via a user script.



Here is the GitHub page for the Docker image I've been referencing. It's already set up on CA in Unraid.

https://github.com/tigerblue77/Dell_iDRAC_fan_controller_Docker

Yes that is correct, have a look at this thread



[SimonF]

On 11/29/2023 at 2:12 PM, OcifferAction said:

Just wanted to confirm with everyone that it's true that the automatic fan control portion of this plugin does not work will Dell servers utilizing iDRAC? I receive the error message regarding the JSON fan control file missing, but there is not configure button. I'm running a Dell XC730xd-12 (Nuantix version of R730XD) server utilizing iDRAC 8.



In the meantime I've been utilizing a Docker image to control the fans, but it isn't ideal. If Docker or the array crashes then I lose automatic fan control. Luckily the last manual fan configuration kicks in if that happens. I set the fans to 50% during array start via a user script.



Here is the GitHub page for the Docker image I've been referencing. It's already set up on CA in Unraid.

https://github.com/tigerblue77/Dell_iDRAC_fan_controller_Docker

I have added support in 2023.12.02

[TBT]

My mainboard: Supermicro H12SSL-NT Gen:12

with fans 1,2,3,4 and A,B

After the update from a few days ago, I get the error:

FANA (3640 RPM): (fan is not configured!)



3640RPM is full speed and very loud



Fans 1-4 work as they should and can be controlled, but no setting I try with FANA has any consequence.



The plugin version before did not have this problem. What could be done?

[TBT]

Fixed with 2023.12.05 Update. Thanks!

[SimonF]

On 11/14/2020 at 6:42 AM, trott said:

check your bios setup,  I believe the fan control setting in bios should be smartfan, I using the same board and plugin works without issue

Do you still use this board, if so could you support the board.json file?

[SimonF]

On 10/15/2020 at 11:09 PM, cakes044 said:

FWIW, I was being facetious when I said "hacked" around, was meaning that I dug into the code and figured out a way to do it just not clean yet.



This is the result of that command by the way:



root@tower:~# dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}'
 X570D4U



So, I made the ipmi2json script generate the correct json object and then modified the ipmifan tool as well to run with the correct commands.

There are some caveats and changes to the way this board needs to run.



1. Fan needs to be put in "manual" mode before the values will actually work. So thats an extra step that needs to take place. In the below I just put ALL the fans in manual mode.

$manual_cmd = "ipmi-raw 00 3a d8 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 2>&1 >/dev/null;";

2. It uses different hex codes for setting manual and auto commands.

$auto_cmd = "ipmi-raw 00 3a d8 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2>&1 >/dev/null;";

3. The minimum value for all fan values are now 20% which equals 14 in the hex code, for instance, if I were to only want to change the fan value of the first fan to full speed, it would look like this, even if you aren't using the fans they must be set like this:

ipmi-raw 00 3a d6 64 14 14 14 14 14 14 14 14 14 14 14 14 14 14 14



So my "hack" was just shoving them in the code to see it all work. Obviously that wouldn't fly with the current ASRock boards and would actually break the implementation of the existing boards. I'm thinking we might need an extra key in the array to indicate some of this stuff, not sure. I'd look to you for what you reckon? First time looking at PHP in like 10 years, so I'm sure you'd do a better job than me. But hopefully thats enough to go on



Let me know if you need anything else.



Some extra commands you might care about too.



Get the fan duty for all fans while in manual mode:

$ ipmi-raw 00 3a d7
 24 32 32 14 14 14 14 14 14 14 14 14 14 14 14 14

Get the fan control mode:

$ ipmi-raw 00 3a db
 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01 01

Clean all fans (reset to defaults):

ipmi-raw 00 3a dc



P.S. In bash a semicolon or an ampersand are command terminators, so some of the commands where you do this is gonna give a syntax error:

$cmd   .= "ipmi-raw $raw $full $fanopts 2>&1 >/dev/null &; ";

Just remove the semi-colon after the ampersands and you're good to go 👍

I will look to add your changes to my repo, do you still use the board?



Could you supply board.json?

[spl147]

@SimonF Did you ever look into adding seperate hi and low temps for when cpu is used when hdd's are spun down?

[SimonF]

21 hours ago, spl147 said:

@SimonF Did you ever look into adding seperate hi and low temps for when cpu is used when hdd's are spun down?

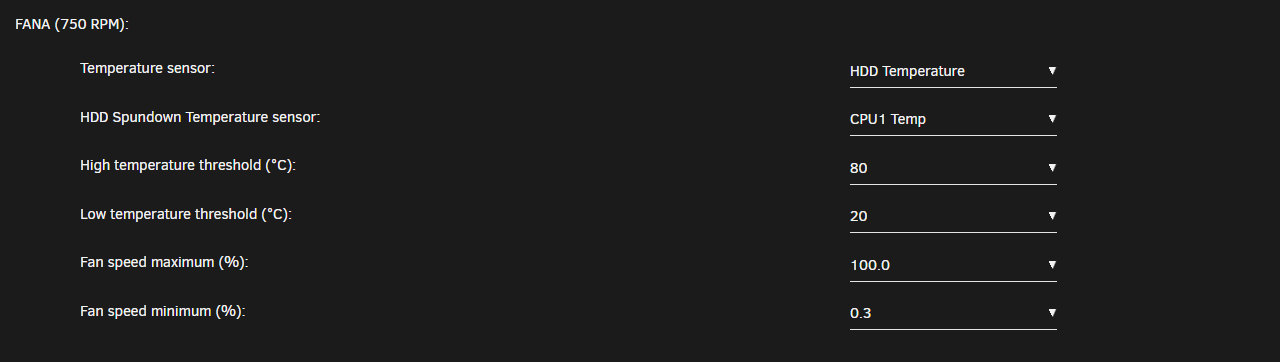

Do you mean adding an options for HDD spundown sensor as well as the primary in this view?

[spl147]

2 hours ago, SimonF said:

Do you mean adding an options for HDD spundown sensor as well as the primary in this view?

no, i mean when cpu temp sensor is selected for hdd spundown, have seperate/additional values for high and low CPU temp thresholds.



right now when my hdds spindown my fans actually spin up. my HDD's idle @ 31c and my CPU's idle @ 38c



FAN123456(13%):HDD Temp(88F)

FAN123456(23%):HDD Spundown using Temp(100F)

[Gunny]

The problem @spl147 is running into is that a reasonable High temperature threshold for a HDD is very different than for a CPU. CPUs can run well into the 90C range and be fine, but HDDs really shouldn't go above 50C or so, so trying to use the same threshold for both sensors is a compromise in one way or the other.



@SimonF I think I see what you were going with for the secondary HDD Spundown Temperature sensor, but I think what @spl147 needs and would be more flexible, would be to allow 2 sensors to be active at the same time, both with separate thresholds (they can probably share the same min/max speed setting), then the plugin does the fan speed calculation for both sensors and picks whatever value is higher.  You could in theory make it N sensors, but that would probably require a re-write of the frontend design to support such a thing, I think being able to configure 2 sensors and unique thresholds for each is sufficient for basically anyone.

[spl147]

29 minutes ago, Gunny said:

The problem @spl147 is running into is that a reasonable High temperature threshold for a HDD is very different than for a CPU. CPUs can run well into the 90C range and be fine, but HDDs really shouldn't go above 50C or so, so trying to use the same threshold for both sensors is a compromise in one way or the other.



@SimonF I think I see what you were going with for the secondary HDD Spundown Temperature sensor, but I think what @spl147 needs and would be more flexible, would be to allow 2 sensors to be active at the same time, both with separate thresholds (they can probably share the same min/max speed setting), then the plugin does the fan speed calculation for both sensors and picks whatever value is higher.  You could in theory make it N sensors, but that would probably require a re-write of the frontend design to support such a thing, I think being able to configure 2 sensors and unique thresholds for each is sufficient for basically anyone.

the first paragraph to spot on!



the second i partial, i think sharing the same min/max fan speeds would be fine yes, but averaging both sensors at the same time is gonna spin fans faster anyway. so i think HDD sensor should be active only when fans are spun up and CPU sensor should only be active when HDD's are spun down. but seperate threshold for HDD's and CPU's is a MUST.

[Gunny]

5 hours ago, spl147 said:

the first paragraph to spot on!



the second i partial, i think sharing the same min/max fan speeds would be fine yes, but averaging both sensors at the same time is gonna spin fans faster anyway. so i think HDD sensor should be active only when fans are spun up and CPU sensor should only be active when HDD's are spun down. but seperate threshold for HDD's and CPU's is a MUST.

I get your intent, but from a different perspective, why would the state of the HDD spin up/down matter when looking at temperature? If the CPU is running hot, we want the fans to increase; if the HDDs are hot, we want the fans to increase; if they both are hot we want the one that is higher up on its temperature curve to be controlling the speed.  And if both are cool, we still want the one higher up on its fan curve to be the one controlling the fan speed.



By giving both sensors their own threshold, you get rid of your issue where the CPU temp is causing fans to increase regardless of whether or not the hdds are spun up or down.  And by doing so, you make it more flexible all around, keeping the state of the HDD spin in the mix with separate thresholds just makes it a worse feature for no real reason.

Edited April 22 by Gunny
