December 23, 20241 yr Author 33 minutes ago, pras1011 said: The Dynamix System Autofan that I use hasnt been updated for well over a year. Maybe that's the colprit but I'm not sure about that, it's really hard for me to diagnose because I don't have any QNAP hardware. As said, I assume that the QNAP-EC plugin is working properly since the fans now spin up or at least spin differently. Isn't there another fan controll plugin out there?
January 1, 20251 yr Hi, First of all best wishes for 2025 : ) I struggle with getting my iGPU to work. The system-board doesn't have a video-port but as seen in this video (https://youtu.be/EpAS7ly8p4A) around 12:00. We guy said the iGPU is working in Windows, But on Reddit someone else said that it won't work because "no power lines for the iGPU" So mayby you guy's can get something clear. Thanks in advance. My Hardware setup like this: Board: MSI MEG Z690 UNIFY (MS-7D28) CPU: 13th Gen Intel® Core™ i7-13700K Memory: 32 GiB DDR5 GPU: Nvidia Quadro P4000 For Cache: 2x NVMe 1TB PCIe: Broadcom / LSI SAS3008 HDD DISK's: 7* When is use command intel_gpu_top: root@Tower:~# intel_gpu_top No device filter specified and no discrete/integrated i915 devices found When is use command nano /boot/config/go GNU nano 7.2 /boot/config/go #!/bin/bash # Start the Management Utility /usr/local/sbin/emhttp & modprobe i915 chmod -R 777 /dev/dri When is use command LSPCI -K: root@Tower:~# lspci -k 00:00.0 Host bridge: Intel Corporation Raptor Lake-S Host Bridge/DRAM Controller (rev 01) DeviceName: Onboard - Other Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 00:01.0 PCI bridge: Intel Corporation Raptor Lake PCI Express 5.0 Graphics Port (PEG010) (rev 01) Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: pcieport 00:01.1 PCI bridge: Intel Corporation Device a72d (rev 01) Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: pcieport 00:06.0 PCI bridge: Intel Corporation Raptor Lake PCIe 4.0 Graphics Port (rev 01) Kernel driver in use: pcieport 00:08.0 System peripheral: Intel Corporation GNA Scoring Accelerator module (rev 01) DeviceName: Onboard - Other Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 00:0a.0 Signal processing controller: Intel Corporation Raptor Lake Crashlog and Telemetry (rev 01) DeviceName: Onboard - Other 00:14.0 USB controller: Intel Corporation Alder Lake-S PCH USB 3.2 Gen 2x2 XHCI Controller (rev 11) DeviceName: Onboard - Other Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: xhci_hcd 00:14.2 RAM memory: Intel Corporation Alder Lake-S PCH Shared SRAM (rev 11) DeviceName: Onboard - Other 00:14.3 Network controller: Intel Corporation Alder Lake-S PCH CNVi WiFi (rev 11) DeviceName: Onboard - Ethernet Subsystem: Intel Corporation Wi-Fi 6 AX201 160MHz 00:16.0 Communication controller: Intel Corporation Alder Lake-S PCH HECI Controller #1 (rev 11) DeviceName: Onboard - Other Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: mei_me Kernel modules: mei_me 00:17.0 SATA controller: Intel Corporation Alder Lake-S PCH SATA Controller [AHCI Mode] (rev 11) DeviceName: Onboard - SATA Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: ahci Kernel modules: ahci 00:1c.0 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #1 (rev 11) Kernel driver in use: pcieport 00:1c.1 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #2 (rev 11) Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: pcieport 00:1c.2 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #3 (rev 11) Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: pcieport 00:1c.3 PCI bridge: Intel Corporation Device 7abb (rev 11) Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: pcieport 00:1c.4 PCI bridge: Intel Corporation Alder Lake-S PCH PCI Express Root Port #5 (rev 11) Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: pcieport 00:1f.0 ISA bridge: Intel Corporation Z690 Chipset LPC/eSPI Controller (rev 11) DeviceName: Onboard - Other Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 00:1f.3 Audio device: Intel Corporation Alder Lake-S HD Audio Controller (rev 11) DeviceName: Onboard - Sound Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 00:1f.4 SMBus: Intel Corporation Alder Lake-S PCH SMBus Controller (rev 11) DeviceName: Onboard - Other Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 Kernel driver in use: i801_smbus Kernel modules: i2c_i801 00:1f.5 Serial bus controller: Intel Corporation Alder Lake-S PCH SPI Controller (rev 11) DeviceName: Onboard - Other Subsystem: Micro-Star International Co., Ltd. [MSI] Device 7d28 01:00.0 Serial Attached SCSI controller: Broadcom / LSI SAS3008 PCI-Express Fusion-MPT SAS-3 (rev 02) Subsystem: Dell HBA330 Adapter Kernel driver in use: mpt3sas Kernel modules: mpt3sas 02:00.0 VGA compatible controller: NVIDIA Corporation GP104GL [Quadro P4000] (rev a1) Subsystem: Hewlett-Packard Company GP104GL [Quadro P4000] Kernel driver in use: nvidia Kernel modules: nvidia_drm, nvidia 02:00.1 Audio device: NVIDIA Corporation GP104 High Definition Audio Controller (rev a1) Subsystem: Hewlett-Packard Company GP104 High Definition Audio Controller 03:00.0 Non-Volatile memory controller: ADATA Technology Co., Ltd. ATOM 50, LEGEND 840 NVMe SSD (DRAM-less) (rev 01) Subsystem: INNOGRIT Corporation Device 5220 Kernel driver in use: nvme Kernel modules: nvme 05:00.0 Ethernet controller: Intel Corporation Ethernet Controller I225-V (rev 03) Subsystem: Micro-Star International Co., Ltd. [MSI] Ethernet Controller I225-V Kernel driver in use: igc Kernel modules: igc 06:00.0 Ethernet controller: Intel Corporation Ethernet Controller I225-V (rev 03) Subsystem: Micro-Star International Co., Ltd. [MSI] Ethernet Controller I225-V Kernel driver in use: igc Kernel modules: igc 07:00.0 SATA controller: ASMedia Technology Inc. ASM1061/ASM1062 Serial ATA Controller (rev 02) Subsystem: ASMedia Technology Inc. ASM1062 Serial ATA Controller Kernel driver in use: ahci Kernel modules: ahci 08:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. RTL8111/8168/8211/8411 PCI Express Gigabit Ethernet Controller (rev 06) Subsystem: TP-LINK Technologies Co., Ltd. TG-3468 Gigabit PCI Express Network Adapter Kernel driver in use: r8168 Kernel modules: r8169, r8168 tower-diagnostics-20241216-1857.zip
January 2, 20251 yr Author 22 hours ago, DuckWaze said: I struggle with getting my iGPU to work. First of all you also have a Nvidia dGPU installed, therefore you have to make sure to enable MultiMonitor support in your BIOS, what this does is that it simply let's the iGPU enabled if a dGPU is found. Usually if a dGPU is found the iGPU get's disabled by the BIOS, by enabling MultiMonito support in your BIOS you circumvent that. BTW, I would strongly recommend for maximum compatibility that you upgrade to Unraid 7.0.0-rc.2 or at least to 6.12.14 You have pretty new hardware and therefore I would recommend you use the RC to make sure everything is working as expected (the RC is as stable as the Stable release, I have it installed on my server since day one).
January 5, 20251 yr On 1/2/2025 at 10:34 AM, ich777 said: First of all you also have a Nvidia dGPU installed, therefore you have to make sure to enable MultiMonitor support in your BIOS, what this does is that it simply let's the iGPU enabled if a dGPU is found. Usually if a dGPU is found the iGPU get's disabled by the BIOS, by enabling MultiMonito support in your BIOS you circumvent that. BTW, I would strongly recommend for maximum compatibility that you upgrade to Unraid 7.0.0-rc.2 or at least to 6.12.14 You have pretty new hardware and therefore I would recommend you use the RC to make sure everything is working as expected (the RC is as stable as the Stable release, I have it installed on my server since day one). Hi, Thanks for your reply. This weekend i did some changes to the server and upgraded it to 7.0.0-rc.2 and to the newest BIOS version. But there is no change, Then i changed the setting as in the image "VGA Detection" to IGNORE. In my opinion should would this setting the bios ignore if there is a DGPU or IGPU and just skip the check. But this didn't change for me the fact that it ain't working. Do you have some other advice? Thanks
January 5, 20251 yr Author 52 minutes ago, DuckWaze said: Then i changed the setting as in the image "VGA Detection" to IGNORE. I don't think that this is the correct option... You should have some setting that is called Multi Monitor Support but I'm not too familiar with MSI BIOS.
January 5, 20251 yr 2 hours ago, DuckWaze said: Hi, Thanks for your reply. This weekend i did some changes to the server and upgraded it to 7.0.0-rc.2 and to the newest BIOS version. But there is no change, Then i changed the setting as in the image "VGA Detection" to IGNORE. In my opinion should would this setting the bios ignore if there is a DGPU or IGPU and just skip the check. But this didn't change for me the fact that it ain't working. Do you have some other advice? Thanks Need to switch from PEG to IGD>
January 6, 20251 yr Hi @ich777! Thank you so much for your work! I saw that you have a new plugin extending NUT. Would it be possible for you to support apcupsd as well? I have an APC UPS, and from what I see regarding this topic everywhere is that NUT doesn't come close to offering the same support for APC devices that apcupsd does, so I do not want to needlessly switch services. But I would love for the ability to turn off certain VMs and containers based on the UPS status. If support for apcupsd isn't possible, I will try using NUT instead.
January 6, 20251 yr Author 12 hours ago, SvbZ3r0 said: I have an APC UPS, and from what I see regarding this topic everywhere is that NUT doesn't come close to offering the same support for APC devices that apcupsd does Sorry but I don't have a APC UPS and really don't know how this thing even works. Without any actual hardware on hand it is really hard for me to test and look into that, for the time being only NUT is supported and I only can tell you for me the shutdown and start from the containers is working flawlessly. I have to admit that I didn't have any power outages lately, but from my testing it is working just fine. A few users gave me feedback that everything was working as expected for them, please note that you have to define which containers you don't want to stop, by default the plugin will stop everything, except for the Array (but the plugin will also try to spin down all devices if a power outage occurs). BTW I'm not sure if NUT lacks any features that you would really need. Hope that helps.
January 10, 20251 yr On 1/2/2025 at 3:34 AM, ich777 said: First of all you also have a Nvidia dGPU installed, therefore you have to make sure to enable MultiMonitor support in your BIOS, what this does is that it simply let's the iGPU enabled if a dGPU is found. Usually if a dGPU is found the iGPU get's disabled by the BIOS, by enabling MultiMonito support in your BIOS you circumvent that. BTW, I would strongly recommend for maximum compatibility that you upgrade to Unraid 7.0.0-rc.2 or at least to 6.12.14 You have pretty new hardware and therefore I would recommend you use the RC to make sure everything is working as expected (the RC is as stable as the Stable release, I have it installed on my server since day one). On 1/5/2025 at 11:51 AM, SimonF said: Need to switch from PEG to IGD> Do you need it set to IGD to use your gpu in unraid. I have a problematic intel arc card that i cant seem to get to function.
January 10, 20251 yr okay so reading through the comments here stil ahve some questions i have 2 intel arc 770 if i understand correctly the real power management and igpu abilities to use them all and have better power controls will be in linux kernel 6.8? or am i missing something if I am missing something the reason for my question is that my two intel gpus show as 0 watts but clearly isn't the case when i have my cpu limited power wise to under 100 watts. so the gpus are using something but i want to get their idle lower Maybe it isn't possible yet though
January 10, 20251 yr Author 4 hours ago, Unknowndemon said: Do you need it set to IGD to use your gpu in unraid. I have a problematic intel arc card that i cant seem to get to function. On what Unraid version are you? Can you please update your Diagnostics. You have to be at least on Unraid 7.0.0 so that the card will even work, on older Unraid versions it will not work.
January 10, 20251 yr Author 3 hours ago, ceverson said: if i understand correctly the real power management and igpu abilities to use them all and have better power controls will be in linux kernel 6.8? or am i missing something Kernel 6.8 is not available yet in Unraid. Unraid 7.0.0 stable is on Kernel 6.6.x however a new beta build should follow up soon with a newer Kernel. 3 hours ago, ceverson said: Maybe it isn't possible yet though Exactly, you have to wait for the new beta with a newer Kernel (will be possibly Kernel 6.12.x since Unraid is now tied to the ZFS development and this is the highest version that ZFS currently supports now)
January 12, 20251 yr On 1/9/2025 at 11:26 PM, ich777 said: On what Unraid version are you? Can you please update your Diagnostics. You have to be at least on Unraid 7.0.0 so that the card will even work, on older Unraid versions it will not worrk. I am currently on Unraid 7.0. I have attached my diagnostics. Not to sure what the issue is. I just switched things back to my intel chip for transcoding for the time being. ark-diagnostics-20250111-2207.zip

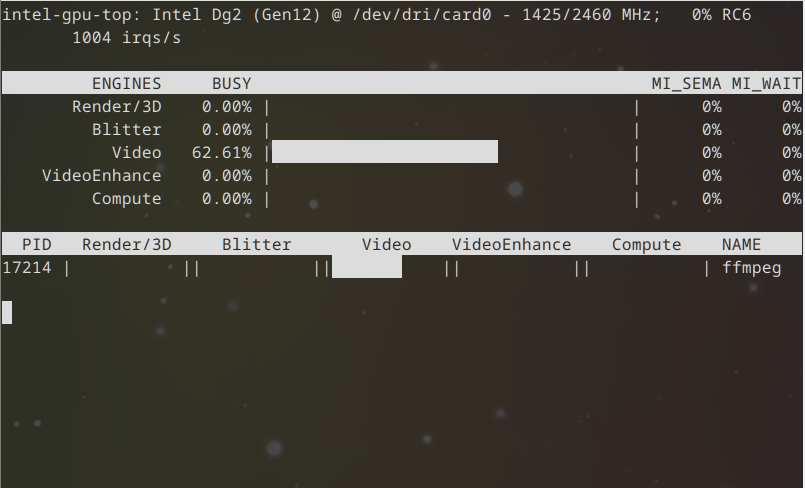

January 12, 20251 yr Author 2 hours ago, Unknowndemon said: I am currently on Unraid 7.0. I have attached my diagnostics. Not to sure what the issue is. I just switched things back to my intel chip for transcoding for the time being. I don't see anything suspicious from your logs, from what I can tell the dGPU should work, both the driver for your iGPU and dGPU are loaded fine. I just tried it on Unraid 7.0.0 and everything is working on my Arc A580:
January 12, 20251 yr 11 hours ago, ich777 said: I don't see anything suspicious from your logs, from what I can tell the dGPU should work, both the driver for your iGPU and dGPU are loaded fine. I just tried it on Unraid 7.0.0 and everything is working on my Arc A580: Maybe i got a bummed card? it seems pretty straight forward to get working. I haven't tried the card in another pc.
January 12, 20251 yr Author 1 hour ago, Unknowndemon said: Maybe i got a bummed card? it seems pretty straight forward to get working. I haven't tried the card in another pc. Maybe, you could try to reseat the card in the PCIe slot and check the power cables if they are all the way plugged in.
January 13, 20251 yr 8 hours ago, ich777 said: Maybe, you could try to reseat the card in the PCIe slot and check the power cables if they are all the way plugged in. Tried it. Same result unfortunately. Its weird its outputting video to a monitor so it is working in that sense.
January 13, 20251 yr I have a 12th Gen Intel® Core™ i5-12500 @ 3000 MHz on a Supermicro X13SAE-F. Today I started emby and used the transcoding feature. I noticed high CPU use. intel_gpu_top -L shows: root@Tower:~# intel_gpu_top -L card0 1a03:2000 pci:vendor=1A03,device=2000,card=0 It seems that it is not longer working. Is it correct that it will not longer work on the current kernel?
January 14, 20251 yr Good Afternoon, After upgrading to 7.0 stable my Intel Quicksync no longer works on my i5-12600k. I have tried plugging a monitor in and multiple reboots but no luck. It was working fine before the update. Edit. I was able to resolve this by going into the bios and changing the chipset settings from auto to integrated graphics. Not sure why it worked fine for over a year on auto prior to 7.0 but it's working now. hermes-diagnostics-20250113_1712.zip Edited January 14, 20251 yr by teufelhunden
January 14, 20251 yr Author 7 hours ago, shire said: It seems that it is not longer working. Is it correct that it will not longer work on the current kernel? It sure does, please post your Diagnostics. What container are you using (repository)?
January 14, 20251 yr Author 3 hours ago, teufelhunden said: Edit. I was able to resolve this by going into the bios and changing the chipset settings from auto to integrated graphics. Not sure why it worked fine for over a year on auto prior to 7.0 but it's working now. I've took a look at your Diagnostics... It also wasn't working on 6.12.14 from what I can see since the driver was not loaded in syslog-previous.txt so I assume it wasn't working for a bit. Did you maybe upgrade your BIOS at some point and maybe forgot to set the iGPU to the primary output and didn't enable Multi Monitor output?
January 14, 20251 yr 4 hours ago, ich777 said: It sure does, please post your Diagnostics. What container are you using (repository)? Installed is embyserver (not the beta one). dri is added in the settings with /dev/dri. Edited January 14, 20251 yr by shire
January 14, 20251 yr Author 16 minutes ago, shire said: dri is added in the settings with /dev/dri. It seems like the iGPU is not activated since I even don't see it in the output from lspci, only the ASPEED one is visible. Please go into the BIOS and make sure to set the iGPU to the primary display and make sure Multi Monitor Support is enabled. After that it should hopefully show up in your system devices and be usable again.
January 14, 20251 yr 2 hours ago, ich777 said: It seems like the iGPU is not activated since I even don't see it in the output from lspci, only the ASPEED one is visible. Please go into the BIOS and make sure to set the iGPU to the primary display and make sure Multi Monitor Support is enabled. After that it should hopefully show up in your system devices and be usable again. Ah...you might be right. I changed the mainboard (RMA). Maybe I haven't switched it on after I changed it. I will check....thanks.
January 14, 20251 yr On 1/5/2025 at 6:51 PM, SimonF said: Need to switch from PEG to IGD> Thank for your reply i checked the systemboard but cant find the setting,,, I added some screenshots of the setting. @SimonF*The systemboard in the video is btw from a other type
