sonic6 Posted September 4, 2023 Share Posted September 4, 2023 hi, today i tried mounting an HDD via temrinal with: /usr/local/sbin/rc.unassigned mount /dev/disk/by-id/ata-WDC_WD40EFRX-68N32N0_WD-WCC7K0VZ4TVK sleep 30s but the drive wan't moutable: Sep 4 06:43:13 Unraid-1 emhttpd: cmd: /usr/local/emhttp/plugins/user.scripts/startScript.sh /tmp/user.scripts/tmpScripts/Backup-to-UD/script Sep 4 06:43:14 Unraid-1 unassigned.devices: Mounting partition 'sdd1' at mountpoint '/mnt/disks/WD-WCC7K0VZ4TVK'... Sep 4 06:43:14 Unraid-1 unassigned.devices: Mount cmd: /sbin/mount -t 'xfs' -o rw,noatime,nodiratime '/dev/sdd1' '/mnt/disks/WD-WCC7K0VZ4TVK' Sep 4 06:43:21 Unraid-1 kernel: XFS (sdd1): Mounting V5 Filesystem Sep 4 06:43:21 Unraid-1 kernel: XFS (sdd1): log mount failed Sep 4 06:43:21 Unraid-1 emhttpd: read SMART /dev/sdd late i tried mounting with the GUI Button and that worked well. i unmounted the drive and tried again the terminal and that also worked now. i report this just for the case. diag is attached. unraid-1-diagnostics-20230904-0719.zip Quote Link to comment
Mave Posted September 10, 2023 Share Posted September 10, 2023 (edited) Hello, Last week I put together my first build. i was advised to pre-clear all my disks. And so I started the pre-clear on all my 5 disks. So far one has failed. What do I do with the one disk? Is it bad for sure? Or should I attempt another pre-clear? Edited September 11, 2023 by Mave Quote Link to comment
Mave Posted September 11, 2023 Share Posted September 11, 2023 17 hours ago, Mave said: Hello, Last week I put together my first build. i was advised to pre-clear all my disks. And so I started the pre-clear on all my 5 disks. So far one has failed. What do I do with the one disk? Is it bad for sure? Or should I attempt another pre-clear? My biggest question is: Is there such a thing as false positives or not? I want to take no risks. If there is such a thing as a false positive, and a second pre-clear will confirm or deny, then I'll run it again. If there is no such thing as a false positive, I'll toss the disk now. Quote Link to comment
JorgeB Posted September 11, 2023 Share Posted September 11, 2023 17 hours ago, Mave said: Is it bad for sure? Disk shows a pending sector, which is a bad sign, you can run an extended SMART test to confirm if it's failed. Quote Link to comment
Mave Posted September 12, 2023 Share Posted September 12, 2023 (edited) 20 hours ago, JorgeB said: Disk shows a pending sector, which is a bad sign, you can run an extended SMART test to confirm if it's failed. Thank you for answering. A second pre-clear finished without problems... The pending sector count went back to 0. Would you use the drive now? Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: ATTRIBUTE INITIAL NOW STATUS Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: Reallocated_Sector_Ct 0 0 - Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: Power_On_Hours 23038 23063 Up 25 Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: Temperature_Celsius 38 39 Up 1 Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: Reallocated_Event_Count 0 0 - Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: Current_Pending_Sector 1 0 Down 1 Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: Offline_Uncorrectable 0 0 - Sep 12 06:57:43 preclear_disk_WD-WX61DC8HFS00_22733: S.M.A.R.T.: UDMA_CRC_Error_Count 0 0 - Thanks in advance! Also: another disk keeps failing the zeroing process. I guess this is also quite alarming? Sep 12 02:12:52 preclear_disk_ZCT0FKZ4_6301: Zeroing: dd output: 3815383+0 records in Sep 12 02:12:52 preclear_disk_ZCT0FKZ4_6301: Zeroing: dd output: 3815383+0 records out Sep 12 02:12:52 preclear_disk_ZCT0FKZ4_6301: Zeroing: dd output: 8001438089216 bytes (8.0 TB, 7.3 TiB) copied, 166339 s, 48.1 MB/s Sep 12 02:12:52 preclear_disk_ZCT0FKZ4_6301: dd process hung at 8001440186368, killing ... Sep 12 02:12:52 preclear_disk_ZCT0FKZ4_6301: Zeroing: zeroing the disk started 2 of 5 retries... Sep 12 02:12:52 preclear_disk_ZCT0FKZ4_6301: Continuing disk write on byte 8001438089216 Sep 12 02:20:52 preclear_disk_ZCT0FKZ4_6301: Zeroing: dd output: Sep 12 02:20:52 preclear_disk_ZCT0FKZ4_6301: dd process hung at 0, killing ... Sep 12 02:20:52 preclear_disk_ZCT0FKZ4_6301: Zeroing: zeroing the disk started 3 of 5 retries... Sep 12 02:20:52 preclear_disk_ZCT0FKZ4_6301: Zeroing: emptying the MBR. Edited September 12, 2023 by Mave Quote Link to comment
TrojanHorsePower Posted September 13, 2023 Share Posted September 13, 2023 so pre clearing a new disk and this happened: Sep 13 17:58:12 preclear_disk_22C0T8RD0A001FE2H_9502: Zeroing: zeroing the disk started 1 of 5 retries... Sep 13 17:58:12 preclear_disk_22C0T8RD0A001FE2H_9502: Zeroing: emptying the MBR. Sep 13 19:29:11 preclear_disk_22C0T8RD0A001FE2H_9502: Sep 13 19:29:11 preclear_disk_22C0T8RD0A001FE2H_9502: malloc: jobs.c:1435: assertion botched Sep 13 19:29:11 preclear_disk_22C0T8RD0A001FE2H_9502: free: underflow detected; magic8 corrupted Sep 13 19:29:12 preclear_disk_22C0T8RD0A001FE2H_9502: Aborting.../usr/local/emhttp/plugins/unassigned.devices.preclear/scripts/preclear_disk.sh: line 534: 1694626152 - : syntax error: operand expected (error token is "- ") Sep 13 19:29:12 preclear_disk_22C0T8RD0A001FE2H_9502: /usr/local/emhttp/plugins/unassigned.devices.preclear/scripts/preclear_disk.sh: line 535: -1694620692 + : syntax error: operand expected (error token is "+ ") Is the drive bad or did the preclear plugin just mess up? Quote Link to comment
dlandon Posted September 13, 2023 Author Share Posted September 13, 2023 2 hours ago, TrojanHorsePower said: so pre clearing a new disk and this happened: Sep 13 17:58:12 preclear_disk_22C0T8RD0A001FE2H_9502: Zeroing: zeroing the disk started 1 of 5 retries... Sep 13 17:58:12 preclear_disk_22C0T8RD0A001FE2H_9502: Zeroing: emptying the MBR. Sep 13 19:29:11 preclear_disk_22C0T8RD0A001FE2H_9502: Sep 13 19:29:11 preclear_disk_22C0T8RD0A001FE2H_9502: malloc: jobs.c:1435: assertion botched Sep 13 19:29:11 preclear_disk_22C0T8RD0A001FE2H_9502: free: underflow detected; magic8 corrupted Sep 13 19:29:12 preclear_disk_22C0T8RD0A001FE2H_9502: Aborting.../usr/local/emhttp/plugins/unassigned.devices.preclear/scripts/preclear_disk.sh: line 534: 1694626152 - : syntax error: operand expected (error token is "- ") Sep 13 19:29:12 preclear_disk_22C0T8RD0A001FE2H_9502: /usr/local/emhttp/plugins/unassigned.devices.preclear/scripts/preclear_disk.sh: line 535: -1694620692 + : syntax error: operand expected (error token is "+ ") Is the drive bad or did the preclear plugin just mess up? That looks like a script issue. I'll have to spend some time on it. Can you post your diagnostics. I want to look and see if I can figure out where the 'magic8 corrupted' comes from. Quote Link to comment
TrojanHorsePower Posted September 15, 2023 Share Posted September 15, 2023 On 9/13/2023 at 10:56 PM, dlandon said: That looks like a script issue. I'll have to spend some time on it. Can you post your diagnostics. I want to look and see if I can figure out where the 'magic8 corrupted' comes from. My apologies, did not get a notification about your reply. My diagnostics will probably be useless now, since the script eventually crashed and had to reboot the OS. Have not had a chance to start the pre-clear again and would probably take around more than 24 hours to reach the step I was at unless I skip pre-read. I have asked around and someone thought it is a memory issue. Quote Link to comment

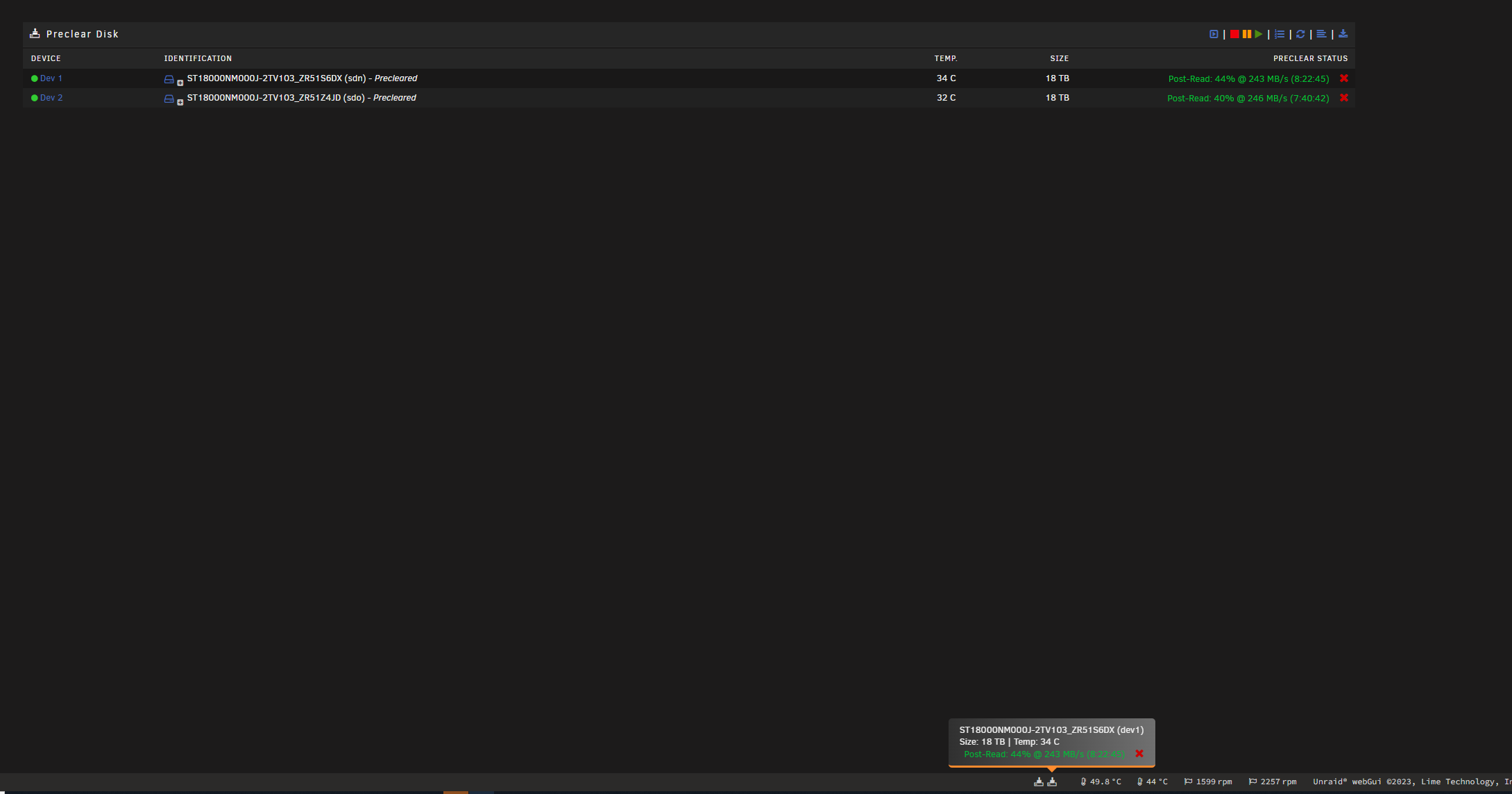

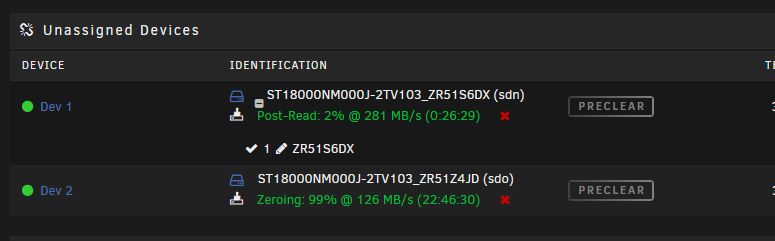

i1mran92 Posted September 21, 2023 Share Posted September 21, 2023 hi. been preclearing for the pass 2 days and so far everything seems smooth. just waiting it to finish 1 question, i was able to see detail stats before by pressing the eye icon beside the timer. its gone now. is becayse its in that stage and u cant see the stats? or there's some bug Quote Link to comment
dlandon Posted September 21, 2023 Author Share Posted September 21, 2023 5 hours ago, i1mran92 said: 1 question, i was able to see detail stats before by pressing the eye icon beside the timer. its gone now. is becayse its in that stage and u cant see the stats? or there's some bug The 'eye' status icon should always display. It's probably a Browser issue. Try clearing the cache or try another Browser. You can go to the UD preclear page at Tools->Preclear Disk or the icon at the bottom of the Unraid webpage to see the status. Quote Link to comment
i1mran92 Posted September 21, 2023 Share Posted September 21, 2023 2 hours ago, dlandon said: The 'eye' status icon should always display. It's probably a Browser issue. Try clearing the cache or try another Browser. You can go to the UD preclear page at Tools->Preclear Disk or the icon at the bottom of the Unraid webpage to see the status. hmm its still doesnt show 'eye' icon. clear cached. tried multiple browser, edge and chrome. even in the preclear settings page Quote Link to comment
dlandon Posted September 21, 2023 Author Share Posted September 21, 2023 2 hours ago, i1mran92 said: hmm its still doesnt show 'eye' icon. clear cached. tried multiple browser, edge and chrome. even in the preclear settings page What version of Unraid? It's also possible that a plugin is interferring with UD Preclear. Quote Link to comment
i1mran92 Posted September 22, 2023 Share Posted September 22, 2023 17 hours ago, dlandon said: What version of Unraid? It's also possible that a plugin is interferring with UD Preclear. Unraid Version 6.12.4 2023-08-31 how do i determine if a plugin is interfering with it? Quote Link to comment
dlandon Posted September 22, 2023 Author Share Posted September 22, 2023 28 minutes ago, i1mran92 said: Unraid Version 6.12.4 2023-08-31 how do i determine if a plugin is interfering with it? It will probably clear up with a reboot. To find something interferring with the preclear icons, you'd have to boot in safe mode and add plugins back one at a time to see if one is causing a problem. Quote Link to comment
i1mran92 Posted September 22, 2023 Share Posted September 22, 2023 2 hours ago, dlandon said: It will probably clear up with a reboot. To find something interferring with the preclear icons, you'd have to boot in safe mode and add plugins back one at a time to see if one is causing a problem. i let everything finish then i rebooted. i then verify signature via the preclear plugin and the eye icon came back. both the 18th hdd successfully precleared. not sure why. but seems ok now. thank you! Quote Link to comment
dlandon Posted September 22, 2023 Author Share Posted September 22, 2023 41 minutes ago, i1mran92 said: not sure why. but seems ok now. I've seen these kinds of issues with the Unraid GUI that are cleared up by a reboot. Must be Gremlins hiding out somewhere. Quote Link to comment

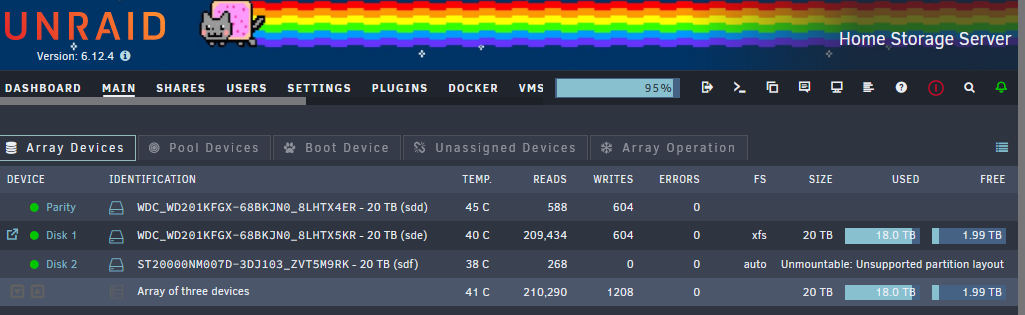

DevanteWeary Posted October 5, 2023 Share Posted October 5, 2023 (edited) Guys, I'm just supremely confused here. I just finished using UD Preclear and everything finished with no errors. So I stopped the array, added the drive, and started the array. I get the "Unmountable: Unsupoorted partition layout" message next to the drive and my storage has no increased. The instructions say no need to format, and several posts here give conflicting information. If I click the red X next to the drive, it tells me it'll remove the pre-clear signature and Unraid will start the lengthy preclear all over again. I've tried rebooting as well. I thought it was as simple as Preclear > Add to Array but seems I'm missing a step. What am I missing guys? Thank you! Edited October 5, 2023 by DevanteWeary Quote Link to comment
Kilrah Posted October 5, 2023 Share Posted October 5, 2023 2 minutes ago, DevanteWeary said: I thought it was as simple as Preclear > Add to Array but seems I'm missing a step. What am I missing guys? That you need to format the drive after adding to array, you should have the format button available at the bottom with the disk you added in the list on the left. Quote Link to comment
DevanteWeary Posted October 5, 2023 Share Posted October 5, 2023 (edited) 15 minutes ago, Kilrah said: That you need to format the drive after adding to array, you should have the format button available at the bottom with the disk you added in the list on the left. Hmmm I don't have any buttons at the bottom of Unraid > Main > Array Devices I do have a button under Unraid > Main > Array Operation called Format that says "will create a file system in all Unmountable disks" and when I click it, gives me the following warning: Format Unmountable disks Create an empty file system on the disks shown as Unmountable discarding all data currently on the disks and update parity to reflect this. This is typically done when a new disk is added to the array to get it ready for files to be written to it. **WARNING** A format is NEVER part of a data recovery or disk rebuild process and if done in such circumstances will normally lead to loss of all data on the disks being formatted. Think I should go ahead and do that one? Sorry, just trying to avoid another 4 day clearing. Edited October 5, 2023 by DevanteWeary Quote Link to comment
Kilrah Posted October 5, 2023 Share Posted October 5, 2023 (edited) 11 minutes ago, DevanteWeary said: I do have a button under Unraid > Main > Array Operation called Format That is the one, and yes as long as you've checked on the left of that button that the only unmountable drive listed is the one you just added to the array you go ahead. Edited October 5, 2023 by Kilrah Quote Link to comment
DevanteWeary Posted October 5, 2023 Share Posted October 5, 2023 22 minutes ago, Kilrah said: That is the one, and yes as long as you've checked on the left of that button that the only unmountable drive listed is the one you just added to the array you go ahead. Worked like a charm. You're the best. 😆 Just throwing the steps here for anyone looking for a definitive order: Use UD Preclear on drive. (could take days) Stop Array Increase drive number by one. Select new drive to fill new slot. Start Array. Format drive through Array Operations > Format Done! 1 Quote Link to comment
jimeez Posted October 26, 2023 Share Posted October 26, 2023 I have never been able to get Preclear to work. It fails every time regardless of the disc. I have never bothered to seek help and finally decided to as I am in the process of replacing my parity drives. Would like to preclear them first. This is the second drive I tried today. Error as follows. Any help would be much appreciated. Unraid Version: 6.12.4 many thanks in advance. Oct 26 16:26:57 preclear_disk_70015084_17575: Preclear Disk Version: 1.0.29 Oct 26 16:26:57 preclear_disk_70015084_17575: Disk size: 8001563222016 Oct 26 16:26:57 preclear_disk_70015084_17575: Disk blocks: 1953506646 Oct 26 16:26:57 preclear_disk_70015084_17575: Blocks (512 bytes): 15628053168 Oct 26 16:26:57 preclear_disk_70015084_17575: Block size: 4096 Oct 26 16:26:57 preclear_disk_70015084_17575: Start sector: 0 Oct 26 16:27:00 preclear_disk_70015084_17575: Pre-read: pre-read verification started 1 of 5 retries... Oct 26 16:27:04 preclear_disk_70015084_17575: size: 0, available: 0, free: 0% Oct 26 16:27:04 preclear_disk_70015084_17575: Filesystem 1K-blocks Used Available Use% Mounted on Oct 26 16:27:04 preclear_disk_70015084_17575: tmpfs 32768 408 32360 2% /run Oct 26 16:27:04 preclear_disk_70015084_17575: /dev/sda1 30028448 1238544 28789904 5% /boot Oct 26 16:27:04 preclear_disk_70015084_17575: devtmpfs 8192 0 8192 0% /dev Oct 26 16:27:04 preclear_disk_70015084_17575: tmpfs 16392372 0 16392372 0% /dev/shm Oct 26 16:27:04 preclear_disk_70015084_17575: tmpfs 131072 9764 121308 8% /var/log Oct 26 16:27:04 preclear_disk_70015084_17575: tmpfs 1024 0 1024 0% /mnt/disks Oct 26 16:27:04 preclear_disk_70015084_17575: tmpfs 1024 0 1024 0% /mnt/remotes Oct 26 16:27:04 preclear_disk_70015084_17575: tmpfs 1024 0 1024 0% /mnt/addons Oct 26 16:27:04 preclear_disk_70015084_17575: tmpfs 1024 0 1024 0% /mnt/rootshare Oct 26 16:27:04 preclear_disk_70015084_17575: Low memory detected, aborting ... Oct 26 16:27:04 preclear_disk_70015084_17575: Pre-read: pre-read verification failed! Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Error: Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: ATTRIBUTE INITIAL NOW STATUS Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Reallocated_Sector_Ct 0 0 - Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Power_On_Hours 1 1 - Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Reported_Uncorrect 0 0 - Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Airflow_Temperature_Cel 38 38 - Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Current_Pending_Sector 0 0 - Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Offline_Uncorrectable 0 0 - Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: UDMA_CRC_Error_Count 0 0 - Oct 26 16:27:07 preclear_disk_70015084_17575: S.M.A.R.T.: Oct 26 16:27:07 preclear_disk_70015084_17575: error encountered, exiting ... Quote Link to comment
dlandon Posted October 26, 2023 Author Share Posted October 26, 2023 32 minutes ago, jimeez said: I have never been able to get Preclear to work. It fails every time regardless of the disc. I have never bothered to seek help and finally decided to as I am in the process of replacing my parity drives. Would like to preclear them first. Post diagnostics. Quote Link to comment
jimeez Posted October 26, 2023 Share Posted October 26, 2023 33 minutes ago, dlandon said: Post diagnostics. Apologies. Forgot to do that. diagnostics-20231026-1730.zip Quote Link to comment
dlandon Posted October 26, 2023 Author Share Posted October 26, 2023 1 hour ago, jimeez said: Apologies. Forgot to do that. diagnostics-20231026-1730.zip 155.67 kB · 1 download Start by going to the cache_dirs settings and only inculding shares that need to be cached. Normally any share on an SSD pool device doesn't need to be cached by cache_dirs. Shares like 'isos' don't need to be cached. Cache_dirs by default will cache everything it finds. It can be a real memory hog. Quote Link to comment
