15 minutes ago, itimpi said:

Are you saying that pressing the Shutdown command in the GUI does not work?   All I do is use the User Scripts plugin to issue the same command that is issued when you press the Shutdown command in the GUI.



The button in the GUI is working, but i dont have a script to do this automaticly...

Link to comment
3 minutes ago, Zonediver said:



The button in the GUI is working, but i dont have a script to do this automaticly...

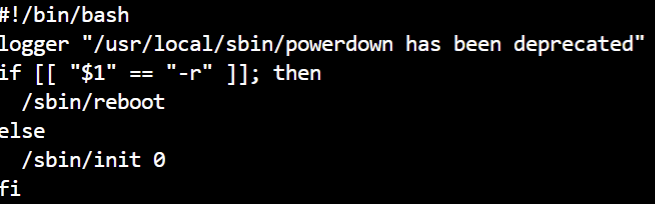

The script I use is:

#!/bin/bash
#noParity=true
logger "overnight powerdown"
powerdown

In User Scripts.  The #noparity line stops the shutdown happening if a parity check is running.



I then use a custom schedule of:

15 0 * * 1-6

to shutdown at 15 minutes after midnight except on Sundays (as I have a special task running then that needs the server active).



I have set the server BIOS to automatically start up the server again at 9:00 AM and that means it is ready for me about 5 minutes later which about the time I am first likely to want to access it.   Powering off for about 9 hours per day I estimate saves over £100 per year on my electricity bill (may be more now with recent price rises in the UK).    I could also have used WOL as an alternative to a specific time to wake up the server which would be something I could issue dynamically from my iPhone/iPad if I wanted more flexibility on the startup time.

Link to comment
12 minutes ago, itimpi said:

The script I use is:

#!/bin/bash
#noParity=true
logger "overnight powerdown"
powerdown

In User Scripts.  The #noparity line stops the shutdown happening if a parity check is running.



I then use a custom schedule of:

15 0 * * 1-6

to shutdown at 15 minutes after midnight except on Sundays (as I have a special task running then that needs the server active).



Thats not what i need...



My "need" looks like this:

If all disks are spun down, send the server to sleep or shutdown.



A specific time is not helpful because a lot of family-members outside are watching Plex - so i cant shutdown at a specific time...

And THAT is my problem! With the sleep plugin and v6.9.2 all is working fine, with 6.10.1, nothing works anymore...

Edited by Zonediver
Link to comment

If you cannot select a time then you are going to have more difficulty.   I simply chose a time I knew was late enough to be very unlikely to impact anybody.



I have thought of upgrading the script to check if drives are all spun down before attempting the power down which would be easy enough to do.   That might well allow me to shutdown the server earlier,  but I have not bothered to do that so far.    Checking things like LAN traffic I found to be more problematic.

Link to comment

I discovered a typo bug a few weeks ago but forgot to mention it.. when you have the System Temps plugin running, and it's setup to show the cpu temp at the bottom of the Unraid screens; hovering the mouse over the temp says "Procesor" and not "Processor" (with 2 S's).

Link to comment

hi,

i find that after restarting my server there seems to be some (? run-away ?) sh process linked to folder caching. it easts cpu cycles in regular peaks and does not ever stop. i have folder caching enabled (but not for /mnt/user, because that eats even more power). killing the process gets the cpu usage down to 'normal' idle levels. it reappears after reboot though. any tips on what i am seeing here?

Link to comment

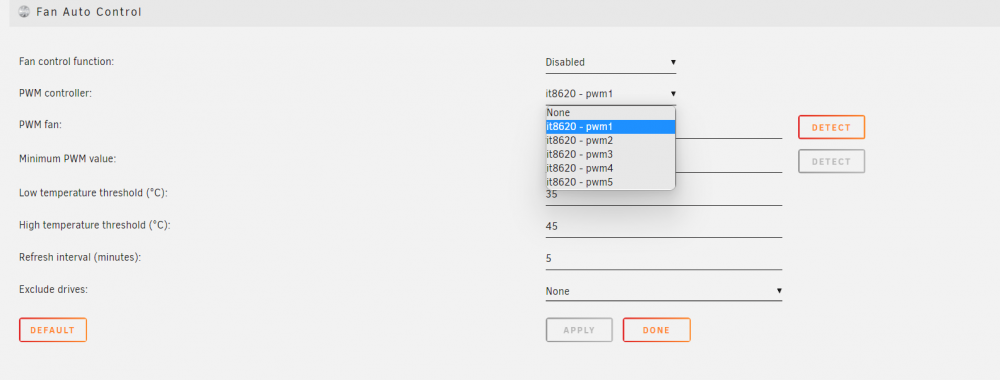

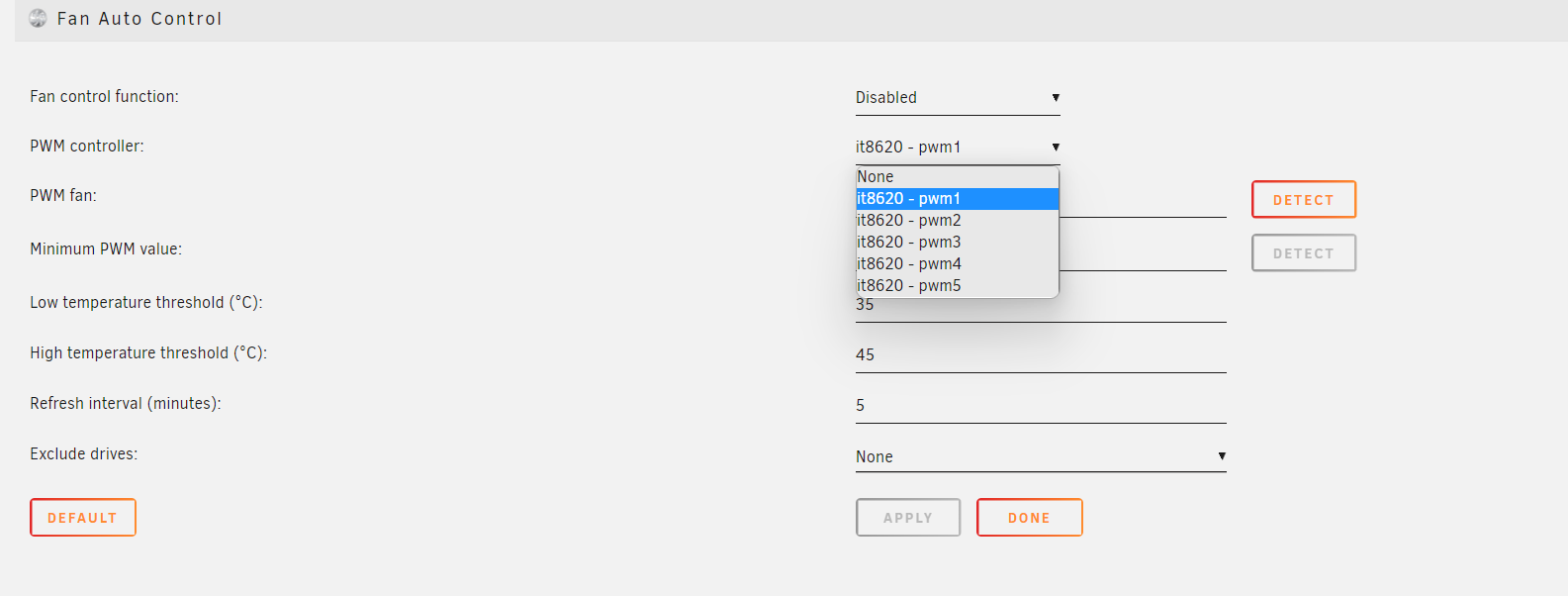

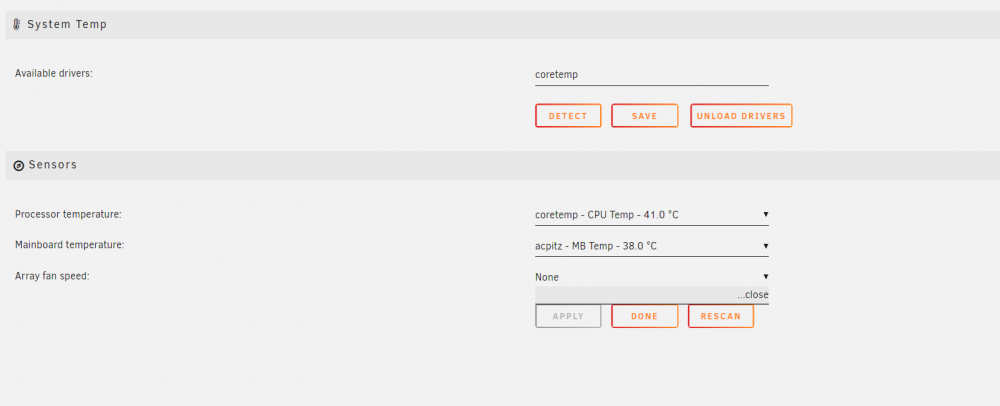

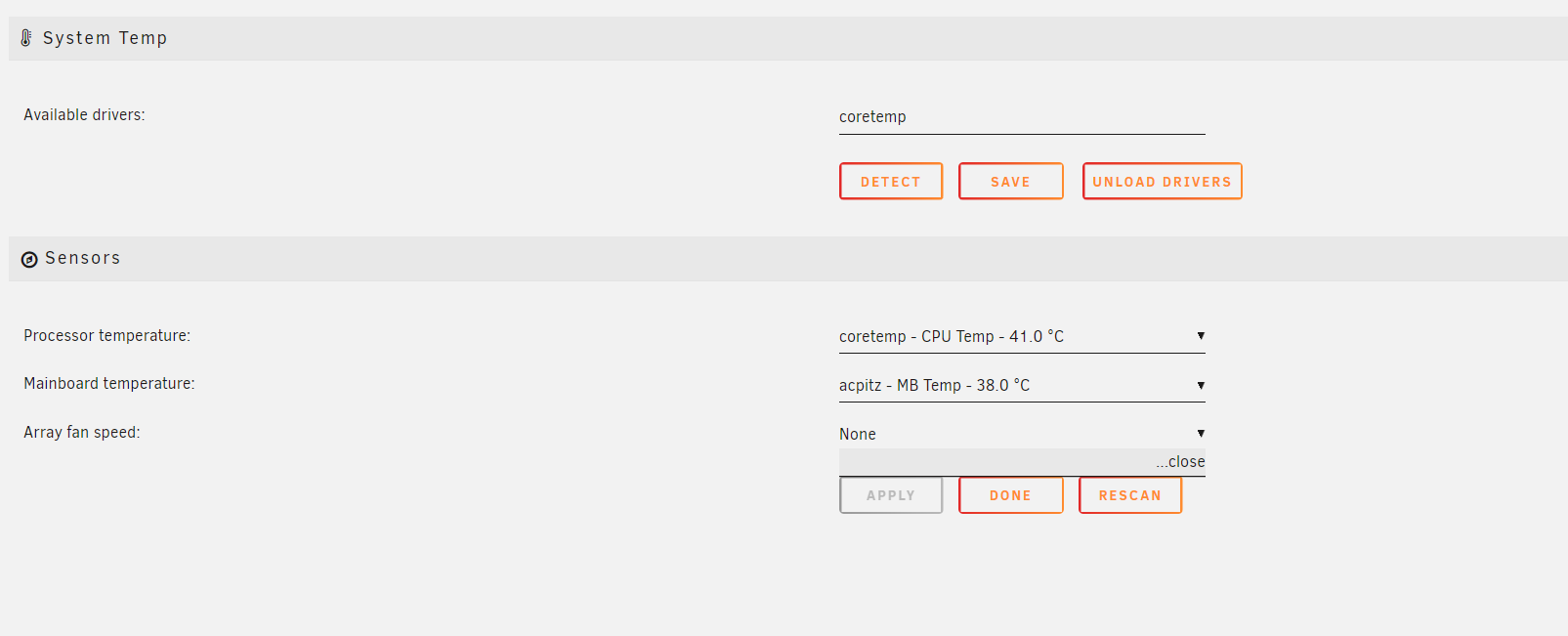

hi any ideas how to run fan control on Terramaster F5-221?



already done \boot\config\go:

# sensors

modprobe it87 force_id=0x8620



but did not see the fan arrays.

clicking on fan detect there is nothing happen.



i have replaced the original fans with noctuas, but them still to loud on 2000 pwm...



[email protected]:~# sensors
it8620-isa-0a20
Adapter: ISA adapter
in0:           1.08 V  (min =  +0.59 V, max =  +0.61 V)
in1:           1.50 V  (min =  +1.97 V, max =  +0.50 V)
in2:           2.14 V  (min =  +0.58 V, max =  +1.88 V)
+5V:           4.27 V  (min =  +1.18 V, max =  +3.50 V)
in4:           2.18 V  (min =  +0.96 V, max =  +1.24 V)
in5:           2.26 V  (min =  +0.18 V, max =  +1.60 V)
in6:         420.00 mV (min =  +0.40 V, max =  +1.62 V)
3VSB:        480.00 mV (min =  +0.60 V, max =  +0.48 V)
Vbat:          3.19 V
temp1:        +33.0°C  (low  = +52.0°C, high = -52.0°C)  sensor = thermal diode
temp2:        +31.0°C  (low  = -113.0°C, high = -54.0°C)  sensor = thermal diode
temp3:        +31.0°C  (low  = -12.0°C, high = -90.0°C)  sensor = disabled
temp4:        +31.0°C
temp5:        +31.0°C
temp6:        +31.0°C
intrusion0:  ALARM

acpitz-acpi-0
Adapter: ACPI interface
MB Temp:      +38.0°C  (crit = +100.0°C)

coretemp-isa-0000
Adapter: ISA adapter
CPU Temp:     +39.0°C  (high = +105.0°C, crit = +105.0°C)
Core 0:       +38.0°C  (high = +105.0°C, crit = +105.0°C)
Core 2:       +39.0°C  (high = +105.0°C, crit = +105.0°C)







[email protected]:~# sensors-detect
# sensors-detect version 3.6.0
# System: retsamarret 000-F5221-FBA002-0001 [Default string]
# Board: retsamarret Default string
# Kernel: 5.15.43-Unraid x86_64
# Processor: Intel(R) Celeron(R) CPU J3355 @ 2.00GHz (6/92/9)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): yes
Silicon Integrated Systems SIS5595...                       No
VIA VT82C686 Integrated Sensors...                          No
VIA VT8231 Integrated Sensors...                            No
AMD K8 thermal sensors...                                   No
AMD Family 10h thermal sensors...                           No
AMD Family 11h thermal sensors...                           No
AMD Family 12h and 14h thermal sensors...                   No
AMD Family 15h thermal sensors...                           No
AMD Family 16h thermal sensors...                           No
AMD Family 17h thermal sensors...                           No
AMD Family 15h power sensors...                             No
AMD Family 16h power sensors...                             No
Hygon Family 18h thermal sensors...                         No
Intel digital thermal sensor...                             Success!
    (driver `coretemp')
Intel AMB FB-DIMM thermal sensor...                         No
Intel 5500/5520/X58 thermal sensor...                       No
VIA C7 thermal sensor...                                    No
VIA Nano thermal sensor...                                  No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): yes
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      Yes
Found `ITE IT8613E Super IO Sensors'                        Success!
    (address 0xa20, driver `to-be-written')
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No

Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no): yes
Probing for `IPMI BMC KCS' at 0xca0...                      No
Probing for `IPMI BMC SMIC' at 0xca8...                     No

Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (yes/NO): yes
Probing for `National Semiconductor LM78' at 0x290...       No
Probing for `National Semiconductor LM79' at 0x290...       No
Probing for `Winbond W83781D' at 0x290...                   No
Probing for `Winbond W83782D' at 0x290...                   No

Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no): yes
Using driver `i2c-i801' for device 0000:00:1f.1: Broxton (SOC)
Module i2c-dev loaded successfully.

Next adapter: SMBus I801 adapter at f040 (i2c-0)
Do you want to scan it? (yes/NO/selectively): yes
Client found at address 0x52
Probing for `Analog Devices ADM1033'...                     No
Probing for `Analog Devices ADM1034'...                     No
Probing for `SPD EEPROM'...                                 Yes
    (confidence 8, not a hardware monitoring chip)

Next adapter: i915 gmbus dpb (i2c-1)
Do you want to scan it? (yes/NO/selectively): yes
Client found at address 0x49
Probing for `National Semiconductor LM75'...                No
Probing for `National Semiconductor LM75A'...               No
Probing for `Dallas Semiconductor DS75'...                  No
Probing for `National Semiconductor LM77'...                No
Probing for `Analog Devices ADT7410/ADT7420'...             No
Probing for `Maxim MAX6642'...                              No
Probing for `Texas Instruments TMP435'...                   No
Probing for `National Semiconductor LM73'...                No
Probing for `National Semiconductor LM92'...                No
Probing for `National Semiconductor LM76'...                No
Probing for `Maxim MAX6633/MAX6634/MAX6635'...              No
Probing for `NXP/Philips SA56004'...                        No
Probing for `SMSC EMC1023'...                               No
Probing for `SMSC EMC1043'...                               No
Probing for `SMSC EMC1053'...                               No
Probing for `SMSC EMC1063'...                               No

Next adapter: i915 gmbus dpc (i2c-2)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: i915 gmbus misc (i2c-3)
Do you want to scan it? (yes/NO/selectively): yes


Now follows a summary of the probes I have just done.
Just press ENTER to continue:

Driver `coretemp':
  * Chip `Intel digital thermal sensor' (confidence: 9)

Driver `to-be-written':
  * ISA bus, address 0xa20
    Chip `ITE IT8613E Super IO Sensors' (confidence: 9)

Note: there is no driver for ITE IT8613E Super IO Sensors yet.
Check https://hwmon.wiki.kernel.org/device_support_status for updates.

Do you want to generate /etc/sysconfig/lm_sensors? (yes/NO): yes
Copy prog/init/lm_sensors.init to /etc/init.d/lm_sensors
for initialization at boot time.
You should now start the lm_sensors service to load the required
kernel modules.

Unloading i2c-dev... OK

[email protected]:~#









Link to comment
6 hours ago, x0fflin3 said:

hi any ideas how to run fan control on Terramaster F5-221?



already done \boot\config\go:

# sensors

modprobe it87 force_id=0x8620



but did not see the fan arrays.

clicking on fan detect there is nothing happen.



i have replaced the original fans with noctuas, but them still to loud on 2000 pwm...



[email protected]:~# sensors
it8620-isa-0a20
Adapter: ISA adapter
in0:           1.08 V  (min =  +0.59 V, max =  +0.61 V)
in1:           1.50 V  (min =  +1.97 V, max =  +0.50 V)
in2:           2.14 V  (min =  +0.58 V, max =  +1.88 V)
+5V:           4.27 V  (min =  +1.18 V, max =  +3.50 V)
in4:           2.18 V  (min =  +0.96 V, max =  +1.24 V)
in5:           2.26 V  (min =  +0.18 V, max =  +1.60 V)
in6:         420.00 mV (min =  +0.40 V, max =  +1.62 V)
3VSB:        480.00 mV (min =  +0.60 V, max =  +0.48 V)
Vbat:          3.19 V
temp1:        +33.0°C  (low  = +52.0°C, high = -52.0°C)  sensor = thermal diode
temp2:        +31.0°C  (low  = -113.0°C, high = -54.0°C)  sensor = thermal diode
temp3:        +31.0°C  (low  = -12.0°C, high = -90.0°C)  sensor = disabled
temp4:        +31.0°C
temp5:        +31.0°C
temp6:        +31.0°C
intrusion0:  ALARM

acpitz-acpi-0
Adapter: ACPI interface
MB Temp:      +38.0°C  (crit = +100.0°C)

coretemp-isa-0000
Adapter: ISA adapter
CPU Temp:     +39.0°C  (high = +105.0°C, crit = +105.0°C)
Core 0:       +38.0°C  (high = +105.0°C, crit = +105.0°C)
Core 2:       +39.0°C  (high = +105.0°C, crit = +105.0°C)







[email protected]:~# sensors-detect
# sensors-detect version 3.6.0
# System: retsamarret 000-F5221-FBA002-0001 [Default string]
# Board: retsamarret Default string
# Kernel: 5.15.43-Unraid x86_64
# Processor: Intel(R) Celeron(R) CPU J3355 @ 2.00GHz (6/92/9)

This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.

Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no): yes
Silicon Integrated Systems SIS5595...                       No
VIA VT82C686 Integrated Sensors...                          No
VIA VT8231 Integrated Sensors...                            No
AMD K8 thermal sensors...                                   No
AMD Family 10h thermal sensors...                           No
AMD Family 11h thermal sensors...                           No
AMD Family 12h and 14h thermal sensors...                   No
AMD Family 15h thermal sensors...                           No
AMD Family 16h thermal sensors...                           No
AMD Family 17h thermal sensors...                           No
AMD Family 15h power sensors...                             No
AMD Family 16h power sensors...                             No
Hygon Family 18h thermal sensors...                         No
Intel digital thermal sensor...                             Success!
    (driver `coretemp')
Intel AMB FB-DIMM thermal sensor...                         No
Intel 5500/5520/X58 thermal sensor...                       No
VIA C7 thermal sensor...                                    No
VIA Nano thermal sensor...                                  No

Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no): yes
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      Yes
Found `ITE IT8613E Super IO Sensors'                        Success!
    (address 0xa20, driver `to-be-written')
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'...               No
Trying family `SMSC'...                                     No
Trying family `VIA/Winbond/Nuvoton/Fintek'...               No
Trying family `ITE'...                                      No

Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no): yes
Probing for `IPMI BMC KCS' at 0xca0...                      No
Probing for `IPMI BMC SMIC' at 0xca8...                     No

Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (yes/NO): yes
Probing for `National Semiconductor LM78' at 0x290...       No
Probing for `National Semiconductor LM79' at 0x290...       No
Probing for `Winbond W83781D' at 0x290...                   No
Probing for `Winbond W83782D' at 0x290...                   No

Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no): yes
Using driver `i2c-i801' for device 0000:00:1f.1: Broxton (SOC)
Module i2c-dev loaded successfully.

Next adapter: SMBus I801 adapter at f040 (i2c-0)
Do you want to scan it? (yes/NO/selectively): yes
Client found at address 0x52
Probing for `Analog Devices ADM1033'...                     No
Probing for `Analog Devices ADM1034'...                     No
Probing for `SPD EEPROM'...                                 Yes
    (confidence 8, not a hardware monitoring chip)

Next adapter: i915 gmbus dpb (i2c-1)
Do you want to scan it? (yes/NO/selectively): yes
Client found at address 0x49
Probing for `National Semiconductor LM75'...                No
Probing for `National Semiconductor LM75A'...               No
Probing for `Dallas Semiconductor DS75'...                  No
Probing for `National Semiconductor LM77'...                No
Probing for `Analog Devices ADT7410/ADT7420'...             No
Probing for `Maxim MAX6642'...                              No
Probing for `Texas Instruments TMP435'...                   No
Probing for `National Semiconductor LM73'...                No
Probing for `National Semiconductor LM92'...                No
Probing for `National Semiconductor LM76'...                No
Probing for `Maxim MAX6633/MAX6634/MAX6635'...              No
Probing for `NXP/Philips SA56004'...                        No
Probing for `SMSC EMC1023'...                               No
Probing for `SMSC EMC1043'...                               No
Probing for `SMSC EMC1053'...                               No
Probing for `SMSC EMC1063'...                               No

Next adapter: i915 gmbus dpc (i2c-2)
Do you want to scan it? (yes/NO/selectively): yes

Next adapter: i915 gmbus misc (i2c-3)
Do you want to scan it? (yes/NO/selectively): yes


Now follows a summary of the probes I have just done.
Just press ENTER to continue:

Driver `coretemp':
  * Chip `Intel digital thermal sensor' (confidence: 9)

Driver `to-be-written':
  * ISA bus, address 0xa20
    Chip `ITE IT8613E Super IO Sensors' (confidence: 9)

Note: there is no driver for ITE IT8613E Super IO Sensors yet.
Check https://hwmon.wiki.kernel.org/device_support_status for updates.

Do you want to generate /etc/sysconfig/lm_sensors? (yes/NO): yes
Copy prog/init/lm_sensors.init to /etc/init.d/lm_sensors
for initialization at boot time.
You should now start the lm_sensors service to load the required
kernel modules.

Unloading i2c-dev... OK

[email protected]:~#









ok, so this is the second time i have replied to this question! there is no driver for the fan controller on your board!!!!! NO DRIVER NO CONTROL!



Driver `to-be-written': * ISA bus, address 0xa20 Chip

`ITE IT8613E Super IO Sensors' (confidence: 9)



Note: there is no driver for ITE IT8613E Super IO Sensors yet.

Check https://hwmon.wiki.kernel.org/device_support_status for updates.

Link to comment

I have a S3 Sleep question, why do I need to manually disable write cache on my disks?



Because if the drives are spun down, and the plugin executes this

mem >/sys/power/state

Unraid will send a cache flush and the drives spin up again for no reason (or just to write cache, which would be strange if it is delayed by 15 minutes)

I use this post sleep command to remove write cache

printf /dev/sd%s\\n {b..e} | xargs -n 1 hdparm -W0


Would it make sense to add this to the sleep plugin configuration, or is my unraid wrongly configured? I didn't find this setting on the GUI. And I don't notice any performance issues on write. But the additional spin up was just unnecessary.

Link to comment
On 5/24/2022 at 6:01 PM, itimpi said:

The script I use is:

#!/bin/bash
#noParity=true
logger "overnight powerdown"
powerdown

In User Scripts.  The #noparity line stops the shutdown happening if a parity check is running.



I then use a custom schedule of:

15 0 * * 1-6

to shutdown at 15 minutes after midnight except on Sundays (as I have a special task running then that needs the server active).



Why not using sleep plugin ?

is any problem with it ?

also after   cat powerdown






is it deprecated ?



im trying to setup my server to shutdown and up like from 8:00 - 1:00 or 0:00 and having parity check on 1th every month at 0:00

so i need eather to check if parity or diable shutdown on 1th ...



Having MSI H87M-G43 in bios setup entered 8:30 for boot up and pcie enabled for wol but its not working from bios ,also having date from 1-31 but what date i need to enter for every day ?

The wol working from wol app in smartphone but need ethtool -s eth0 wol g , ethtool -s eth1 wol g run commands in terminal befor shutdown ...

So i dont know what is better to use sleep plugin or just script for shutdown ...







Link to comment

Hi! like another users, im having unclean shutdowns and parity check with the s3 plugin. Has this issue been adressed yet?



  • no dockers/vm at the moment
  • triggers are array unactivity with counters only, because status trigger detects activity every minute and never sleeps (XXXXXX s3_sleep: Disk activity on going:). Even tried the spin down button, no luck.
  • domain,isos, appdata and system set to cache prefer.



Thank you!

Edited by kalidus
Link to comment
On 6/4/2022 at 2:25 PM, Masterwishx said:

and how to start up automatic from shutdown if i dont have DD-WRT on TP-Link routher but having oracle free cloud server so one option to wol from this ...

You need some kind of low powered device in your network which is always on to forward the WOL. I use an old rasperyPi which uses ~1W

And because I'm lazy and don't want to implement WOL on any device, I use https://github.com/nikp123/wake-on-arp



@kalidus

There is no known issue so far, we only know about unsupported combinations of features.

Write your logs to flash and check which thing is stopping unraid from powering down.



If you don't use shutdown at all, because you only work with sleep, then you may be effected by this:

https://github.com/bergware/dynamix/issues/59



Link to comment

Does anyone know if the TRIM SSD plugin, by default, trims all SSD's regardless if their file system is XFS or BTRFS?



Or, does it only trim XFS SSD's since I've read that performing TRIM on a BTRFS SSD can be bad?



There is no way to exclude BTRFS in the settings of this plugin.

  • Like 1
Link to comment
34 minutes ago, Falcosc said:

@kalidus

There is no known issue so far, we only know about unsupported combinations of features.

Write your logs to flash and check which thing is stopping unraid from powering down.



If you don't use shutdown at all, because you only work with sleep, then you may be effected by this:

https://github.com/bergware/dynamix/issues/59



Thanks for your answer, but unfortunately is not my case. In fact, the only log i get is repetead again and again...:

Jun 7 18:02:20 XXX s3_sleep: Disk activity on going: sdd

Jun 7 18:02:20 XXX s3_sleep: Disk activity detected. Reset timers.



i have no pre or post scripts, no disk activity at all, no files being opened, no IO activity, no dockers, no vms...

Link to comment
1 hour ago, Falcosc said:

The reason for unclean shutdowns can be found in the log as well. For example, in my case it was failed to unmount, and then I found the process.

This is the only thing i get in the flash log:

19:17:32 XXXX s3_sleep: Disk activity on going: sdb

19:17:32 XXXX s3_sleep: Disk activity detected. Reset timers.

Edited by kalidus
Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
