[Plugin] NUT v2 - Network UPS Tools

Please install Network UPS Tools (NUT) by desertwitch from Community Applications. The older plugins (including the one in the first post of this topic) are deprecated/now unsupported.

Please read before installing NUT

Recommended by Rysz

Rysz

January 8, 20242 yr

If you are using "powertop", this is known to cause instabilities with some UPS (changing the auto-hibernation of USB devices). If not, continue reading... USB connectivity problems (data staleness, timeouts, ...) are incredibly hard if not impossible to diagnose remotely. They can stem from a multitude of factors because of the many parts involved in the equation (USB cable, port, bus, driver, implementation, ...). Common reasons have included broken USB cables (could attempt new US

USB connection instabilities, timeouts and staleness

Recommended by Rysz

Rysz

December 5, 20241 yr

That APC BX series is known to suffer from this (what we believe to be) firmware issue and we've put patches in place to suppress this unwanted behaviour on the UPS side. Here's how you can set it up: Go to NUT Settings. Set Network UPS Tools Backend Switch to preview (latest build). Apply settings and either reinstall NUT or reboot the machine. Confirm the Network UPS Tools Backend now has "master" in the name. Using the NUT Configuration Editor (in NUT Setti

APC BX series issues & solution

Recommended by Rysz

January 22, 20233 yr

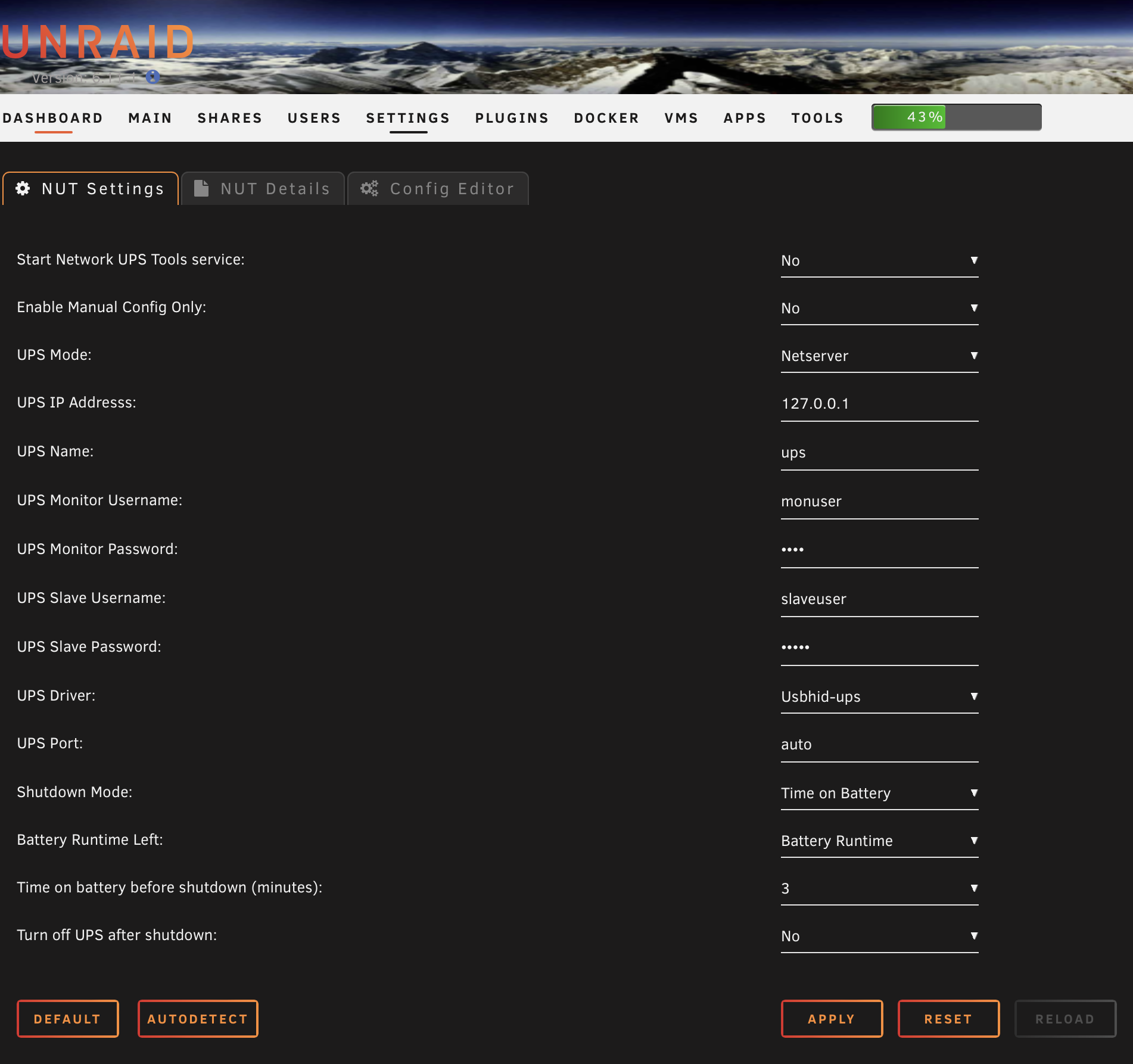

How do I setup my UnRaid as the NUT master. I change the UPS mode to net server but I can't change the IP from 127.0.0.1 to actually the IP of this UnRaid? I need this to be the master so I can have a client setup to this master.

Quote

Replies 2.1k
Views 457.5k
Created 8 yr8 yr
Last Reply 21 hr21 hr

Popular Days

Posted Images

January 22, 20233 yr

30 minutes ago, johnwhicker said:

How do I setup my UnRaid as the NUT master. I change the UPS mode to net server but I can't change the IP from 127.0.0.1 to actually the IP of this UnRaid? I need this to be the master so I can have a client setup to this master.

I use the manual config. but the IP address is not used for the master as far as I can remember. My two slaves have the master IP.

Quote

1 month later...

March 2, 20233 yr

Hi All this version has issues with 6.12 I have created a fork and added to CA if you click on info then actions you will have an option to update.

I may create a new support page for the new vers.

Quote

March 5, 20233 yr

On 9/5/2022 at 12:15 AM, cassiusdrow said:
I have 2.8.0 running on unraid 6.10.3. I am using an APC SMT1000RM2U with a AP9630 network management card. It uses the snmp-ups driver and it was failing with this error:
/usr/libexec/nut/snmp-ups: error while loading shared libraries: libnetsnmp.so.35: cannot open shared object file: No such file or directory
Driver failed to start (exit status=127)
This post suggested installing net-snmp v5.8, but the file no longer exists. Instead I decided to try to get nut 2.8.0 to run. I downloaded these package files to the flash drive:

https://ftp.sotirov-bg.net/pub/contrib/slackware/packages/slackware64-15.0/nut-2.8.0-x86_64-1gds.txz

https://slackware.uk/slackware/slackware64-15.0/patches/packages/net-snmp-5.9.3-x86_64-1_slack15.0.txz

Then added commands to the go script to install the packages and modify the NUT plugin to work with them:

...

I had problems with the plugin as well and ended up doing the above. I might start over and see if I can get away without this, but right now I'm also stuck on getting

Quote

UPS [email protected] is unavailable

messages repeatedly. I can use snmpwalk to talk to the UPS, which is a CyberPower PR2000RTXL2U. I'm trying to run in standalone mode. I'm not having any luck searching online for what's happening with this, even though it seems like it should be a straightforward configuration issue to sort out.

Does anyone know what's happening here?

Quote

March 5, 20233 yr

2 minutes ago, Roland Roberts said:
I had problems with the plugin as well and ended up doing the above. I might start over and see if I can get away without this, but right now I'm also stuck on getting
UPS [email protected] is unavailable
messages repeatedly. I can use snmpwalk to talk to the UPS, which is a CyberPower PR2000RTXL2U. I'm trying to run in standalone mode. I'm not having any luck searching online for what's happening with this, even though it seems like it should be a straightforward configuration issue to sort out.

Does anyone know what's happening here?

Actually, I wonder if the issue is this

1479 root> upsc [email protected] ups.mfr
CYBERPOWER
1479 root> upsc [email protected] ups.status

1479 root>

Note that ups.status isn't returning the 0L message I was expecting.

Quote

2 weeks later...

March 17, 20233 yr

Does anyone know if this plugin can be used to monitor 2 different UPSs? I'd like to have this monitor both UPS's and then provide that data to Home Assistant.

Quote

March 17, 20233 yr

4 hours ago, wraith1385 said:

Does anyone know if this plugin can be used to monitor 2 different UPSs? I'd like to have this monitor both UPS's and then provide that data to Home Assistant.

No it only supports one UPS. How are you UPS devices connected both into the unraid host?

Quote

March 17, 20233 yr

1 hour ago, SimonF said:

No it only supports one UPS. How are you UPS devices connected both into the unraid host?

They're both connected via USB

Quote

March 19, 20233 yr

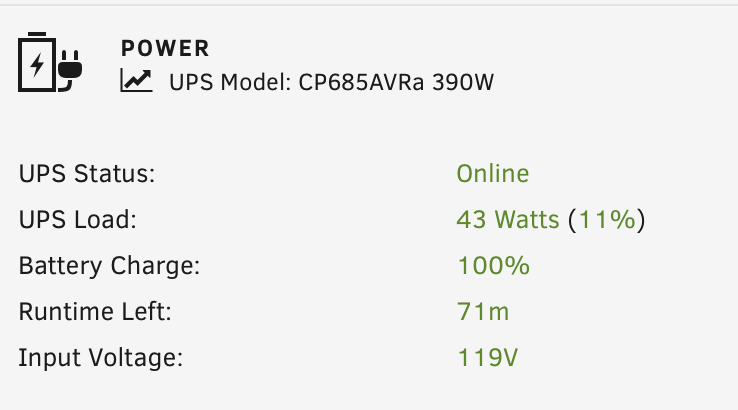

For anyone interested I did a quick-and-dirty tweak to match the display formatting to 6.12's default:


Requires changing two files, presented below in diff format.

nut_status.php:

Spoiler

44,45c48,49
<       $runtime   = gmdate("H:i:s", $val);
<       $status[2] = strtok($val/60,' ')<=5 && !in_array('ups.status: OL', $rows) ? "<td $red>$runtime</td>" : "<td $green>$runtime</td>";
---
>       $runtime   = strtok($val/60,' ');
>       $status[2] = strtok($val/60,' ')<=5 && !in_array('ups.status: OL', $rows) ? "<td $red>".intval($runtime)."m</td>" : "<td $green>".intval($runtime)."m</td>";
49a54,56
>     case 'input.voltage':
>       $voltage   = intval(strtok($val,' '));
>       break;
53a61,63
>     case 'ups.model':
>       $model     = $val;
>       break;
64c74
<   $status[3] = $power==0 ? "<td $red>{$power}w</td>" : "<td $green>{$power}w</td>";
---
>   $status[3] = $voltage<114 ? "<td $orange>${voltage}V</td>" : "<td $green>${voltage}V</td>";
66a77
>   $status[6] = "${model} ${power}W";

nutFooter.page:

Spoiler

32c32
< <tbody id="tblUPSNUTDash" title="_(UPS(NUT))_">
---
> <tbody id="tblUPSNUTDash" title="_(POWER)_">
34c34
< <div class='section'>_(UPS(NUT))_<br><span><i class='ups fa fa-line-chart'></i><span id='load'>Load: <span class='nut_loadpct' id='nut_loadpct'></span></span>
---
> <div class='section'>_(POWER)_<br><span><i class='ups fa fa-line-chart'></i><span id='model'>UPS Model: <span class='nut_model' id='nut_model'></span></span>
158,162c158,163
<         "<tr class='updated'><td><span class='w36 ups'>UPS status:</span><span class='nut_status'>"+data[0]+"</span></td></tr>" +
<         "<tr class='updated'><td><span class='w36 ups'>Battery charge:</span><span class='nut_bcharge'>"+data[1]+"</span></td></tr>" +
<         "<tr class='updated'><td><span class='w36 ups'>Runtime left:</span><span class='nut_timeleft'>"+data[2]+"</span></td></tr>" +
<         "<tr class='updated'><td><span class='w36 ups'>Nominal power:</span>"+data[3]+"</td></tr>");
<     $("#tblUPSNUTDash").find('.nut_loadpct').html(data[5]+' - '+data[4]);
---
>         "<tr class='updated'><td><span class='w36 ups'>UPS Status:</span><span class='nut_status'>"+data[0]+"</span></td></tr>" +
>         "<tr class='updated'><td><span class='w36 ups'>UPS Load:</span><span class='nut_loadpct'>"+data[4]+" ("+data[5]+")</span></td></tr>" +
>         "<tr class='updated'><td><span class='w36 ups'>Battery Charge:</span><span class='nut_bcharge'>"+data[1]+"</span></td></tr>" +
> "<tr class='updated'><td><span class='w36 ups'>Runtime Left:</span><span class='nut_timeleft'>"+data[2]+"</span></td></tr>" +
>         "<tr class='updated'><td><span class='w36 ups'>Input Voltage:</span><span class='nut_voltage'>"+data[3]+"</span></td></tr>");
>       $("#tblUPSNUTDash").find('.nut_model').html(data[6]);
184c185
<       $("#db-box1").find('.nut_nompower').html(data[3]);
---
>       $("#db-box1").find('.nut_voltage').html(data[3]);

Quote

March 19, 20233 yr

1 hour ago, CS01-HS said:

For anyone interested I did a quick-and-dirty tweak to match the display formatting to 6.12's default:

Requires changing two files, presented below in diff format.

nut_status.php:

Reveal hidden contents

44,45c48,49
<       $runtime   = gmdate("H:i:s", $val);
<       $status[2] = strtok($val/60,' ')<=5 && !in_array('ups.status: OL', $rows) ? "<td $red>$runtime</td>" : "<td $green>$runtime</td>";
---
>       $runtime   = strtok($val/60,' ');
>       $status[2] = strtok($val/60,' ')<=5 && !in_array('ups.status: OL', $rows) ? "<td $red>".intval($runtime)."m</td>" : "<td $green>".intval($runtime)."m</td>";
49a54,56
>     case 'input.voltage':
>       $voltage   = intval(strtok($val,' '));
>       break;
53a61,63
>     case 'ups.model':
>       $model     = $val;
>       break;
64c74
<   $status[3] = $power==0 ? "<td $red>{$power}w</td>" : "<td $green>{$power}w</td>";
---
>   $status[3] = $voltage<114 ? "<td $orange>${voltage}V</td>" : "<td $green>${voltage}V</td>";
66a77
>   $status[6] = "${model} ${power}W";

nutFooter.page:

Reveal hidden contents

32c32
< <tbody id="tblUPSNUTDash" title="_(UPS(NUT))_">
---
> <tbody id="tblUPSNUTDash" title="_(POWER)_">
34c34
< <div class='section'>_(UPS(NUT))_<br><span><i class='ups fa fa-line-chart'></i><span id='load'>Load: <span class='nut_loadpct' id='nut_loadpct'></span></span>
---
> <div class='section'>_(POWER)_<br><span><i class='ups fa fa-line-chart'></i><span id='model'>UPS Model: <span class='nut_model' id='nut_model'></span></span>
158,162c158,163
<         "<tr class='updated'><td><span class='w36 ups'>UPS status:</span><span class='nut_status'>"+data[0]+"</span></td></tr>" +
<         "<tr class='updated'><td><span class='w36 ups'>Battery charge:</span><span class='nut_bcharge'>"+data[1]+"</span></td></tr>" +
<         "<tr class='updated'><td><span class='w36 ups'>Runtime left:</span><span class='nut_timeleft'>"+data[2]+"</span></td></tr>" +
<         "<tr class='updated'><td><span class='w36 ups'>Nominal power:</span>"+data[3]+"</td></tr>");
<     $("#tblUPSNUTDash").find('.nut_loadpct').html(data[5]+' - '+data[4]);
---
>         "<tr class='updated'><td><span class='w36 ups'>UPS Status:</span><span class='nut_status'>"+data[0]+"</span></td></tr>" +
>         "<tr class='updated'><td><span class='w36 ups'>UPS Load:</span><span class='nut_loadpct'>"+data[4]+" ("+data[5]+")</span></td></tr>" +
>         "<tr class='updated'><td><span class='w36 ups'>Battery Charge:</span><span class='nut_bcharge'>"+data[1]+"</span></td></tr>" +
> "<tr class='updated'><td><span class='w36 ups'>Runtime Left:</span><span class='nut_timeleft'>"+data[2]+"</span></td></tr>" +
>         "<tr class='updated'><td><span class='w36 ups'>Input Voltage:</span><span class='nut_voltage'>"+data[3]+"</span></td></tr>");
>       $("#tblUPSNUTDash").find('.nut_model').html(data[6]);
184c185
<       $("#db-box1").find('.nut_nompower').html(data[3]);
---
>       $("#db-box1").find('.nut_voltage').html(data[3]);

You just need to update to my version of NUT in CA for 6.12

Quote

March 19, 20233 yr

Unraid 6.12 introduces an API for adding elements (tiles) to the dashboard.

Besides the new layout, plugins need to be updated to use the API, the old way of hacking in to the dashboard does not work anymore.

Quote

March 20, 20233 yr

20 hours ago, SimonF said:

You just need to update to my version of NUT in CA for 6.12

Right these tweaks are to your plugin (thanks by the way, works beautifully.)

Did I post in the wrong thread?

Quote

March 20, 20233 yr

19 minutes ago, CS01-HS said:

Right these tweaks are to your plugin (thanks by the way, works beautifully.)

Did I post in the wrong thread?

Ah so your changes are to make it match the APC stock dashboard. May look to have as an option so people can choose.

Thanks for the Diffs I will review.

I thought the changes you posted where to fix old plugin version on Dashboard, hadn't looked at the code.

Quote

March 20, 20233 yr

5 hours ago, CS01-HS said:

Right these tweaks are to your plugin (thanks by the way, works beautifully.)

Did I post in the wrong thread?

Looking at your changes, With nut I think some of the devices will not report model mine doesnt as it will be dependant on the Vendor

Quote

March 20, 20233 yr

Ah. I only have the one UPS so I can't test what's particular vs generic.

Something else that might affect it:

I have unRAID set up as client to a NUT server on an RPi.

While I have you (in case it's helpful) here are additional state codes I gathered:

>   'OL CHRG'        => 'Online: charging',
>   'OL CHRG LB'     => 'Online: charging',
>   'OL DISCHRG'     => 'Online: discharging',
>   'OL DISCHRG LB'  => 'Online: discharging',
>   'OL BOOST'       => 'Online: low voltage',
>   'OB DISCHRG'     => 'Offline: On battery',

Edited March 21, 20233 yr by CS01-HS

Quote

March 21, 20233 yr

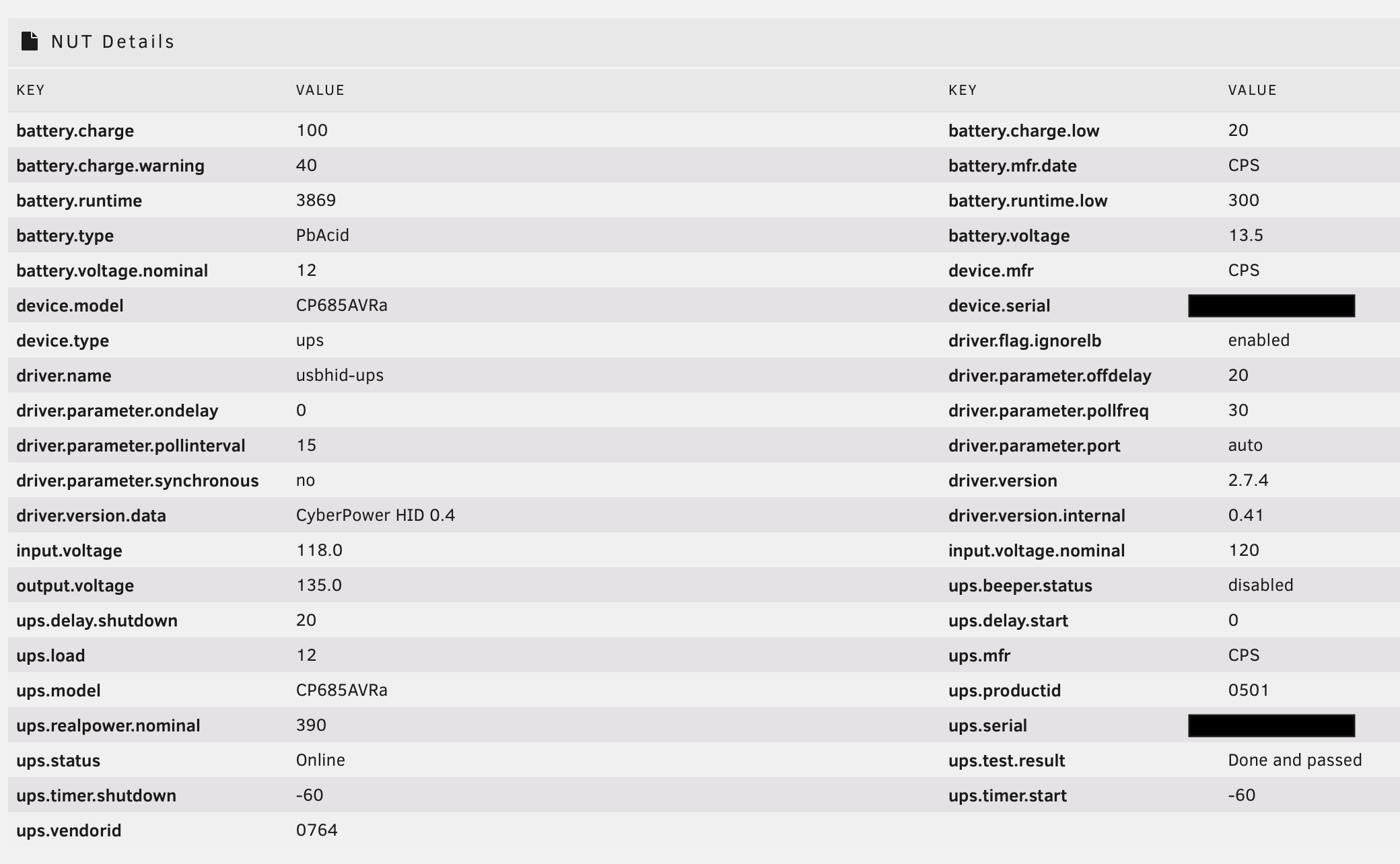

Here's my details page for reference:

Quote

March 21, 20233 yr

Will this be updated to work with Unraid 6.12?

Quote

March 21, 20233 yr

11 minutes ago, boxer74 said:

Will this be updated to work with Unraid 6.12?

Update to the plugin maintained by SimonF

Quote

March 21, 20233 yr

Just now, boxer74 said:

Will this be updated to work with Unraid 6.12?

My version on CA is ok for 6.12 same for IPMI

Quote

March 21, 20233 yr

Great, thanks!

Quote

March 23, 20233 yr

I had to uninstall and reinstalling the Nut plugin for it to work on 6.12.0-rc2

Edited March 23, 20233 yr by AB3DC

Quote

March 23, 20233 yr

reinstalling the same/the plugin from this thread does not work for 6.12RC2.

You need to uninstall this plugin and then install the one/version from @SimonF, as stated right above: https://forums.unraid.net/topic/60217-plugin-nut-v2-network-ups-tools/?do=findComment&comment=1242601

...sorry for being a prick, sometime 🙂

Quote

March 23, 20233 yr

On 3/21/2023 at 1:25 PM, SimonF said:

My version on CA is ok for 6.12 same for IPMI

Out of curiosity, does your patched versions work on older 6.10.3 systems? I am wondering if I can switch over before hand, so when I do opt to move to 6.12 it eill be a couple less steps to do at that time.

Thanks for the updates.

Quote

March 23, 20233 yr

4 minutes ago, BRiT said:

Out of curiosity, does your patched versions work on older 6.10.3 systems? I am wondering if I can switch over before hand, so when I do opt to move to 6.12 it eill be a couple less steps to do at that time.

Thanks for the updates.

Yes my main box is on 6.10.3 running my vers

Quote

March 26, 20233 yr

@SimonF I really appreciate that you are taking over maintenance of the NUT plugin. Would you be willing to update your plugin to use NUT 2.8? I am using dmacias's plugin with an APC SMT1000RM2U with a AP9630 network management card. It uses the snmp-ups driver but the net-snmp package included dmacias's plugin does not work on Unraid 6.11.5. I use some commands in my go script that alter dmacias's plugin scripts to use NUT 2.8 and net-snmp 5.9.3 as explained in this post:

Quote
