I can recommend only Samsung 980 Pro, sorry 🙂 (C10 package)

Have you checked out my thread about Asus Pro H610T D4-CSM ? (<5 W idle with i3-13100). But it's miminalistic ITX board without PCI Express slot. What are your requirements for power consumption and how many drives (HDD/SSD) do you want to use?

you need one m.2 slot for M.2 to 6x SATA adapter (something like that: https://www.amazon.com/Express-Converter-Downstream-Thunderbolt-Expansion/dp/B0B7CNL4QD) - ASM1166 chip - this is one of the best, most efficient and supported with good price - driver needs to be upgraded most probably, according to this thread: https://forums.unraid.net/topic/102010-recommended-controllers-for-unraid/?do=findComment&comment=1185707

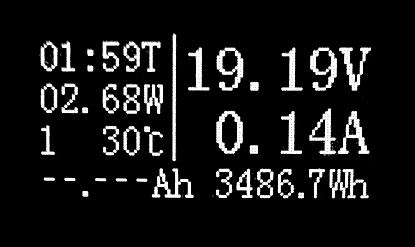

My Unraid NAS is minimalistic, fanless, SSD only Odroid H3: HW: Odroid H3 (Intel N5105, Turbo disabled) RAM: 1x 16GB DDR4 Crucial 3200 SSD (cache): 1x 2TB m.2 Samsung 980 Pro SSD (pool): 2x 4TB Samsung 860 EVO USB (boot): 16GB Transcend JetFlash 180I (SLC-mode, ECC, industrial-grade) USB (array): 64GB USB2 ADATA Flash Drive (dummy array, only to bypass unraid requirements) - running 2-4 dockers and idle power consumption is now: ⚡️ 2.5 — 6 W - ️on the DC side ~ 4 Wh is average on the AC side (measured by Shelly 1PM) update: after upgrade to unraid 6.12.8: - with running couple of dockers: root@unr:~# /etc/rc.d/rc.docker status status of dockerd: running running containers: immich_redis immich immich_postgres14 Gladys-Assistant scrutiny PortainerCI

Does Unraid following SemVer rules? ( https://semver.org )

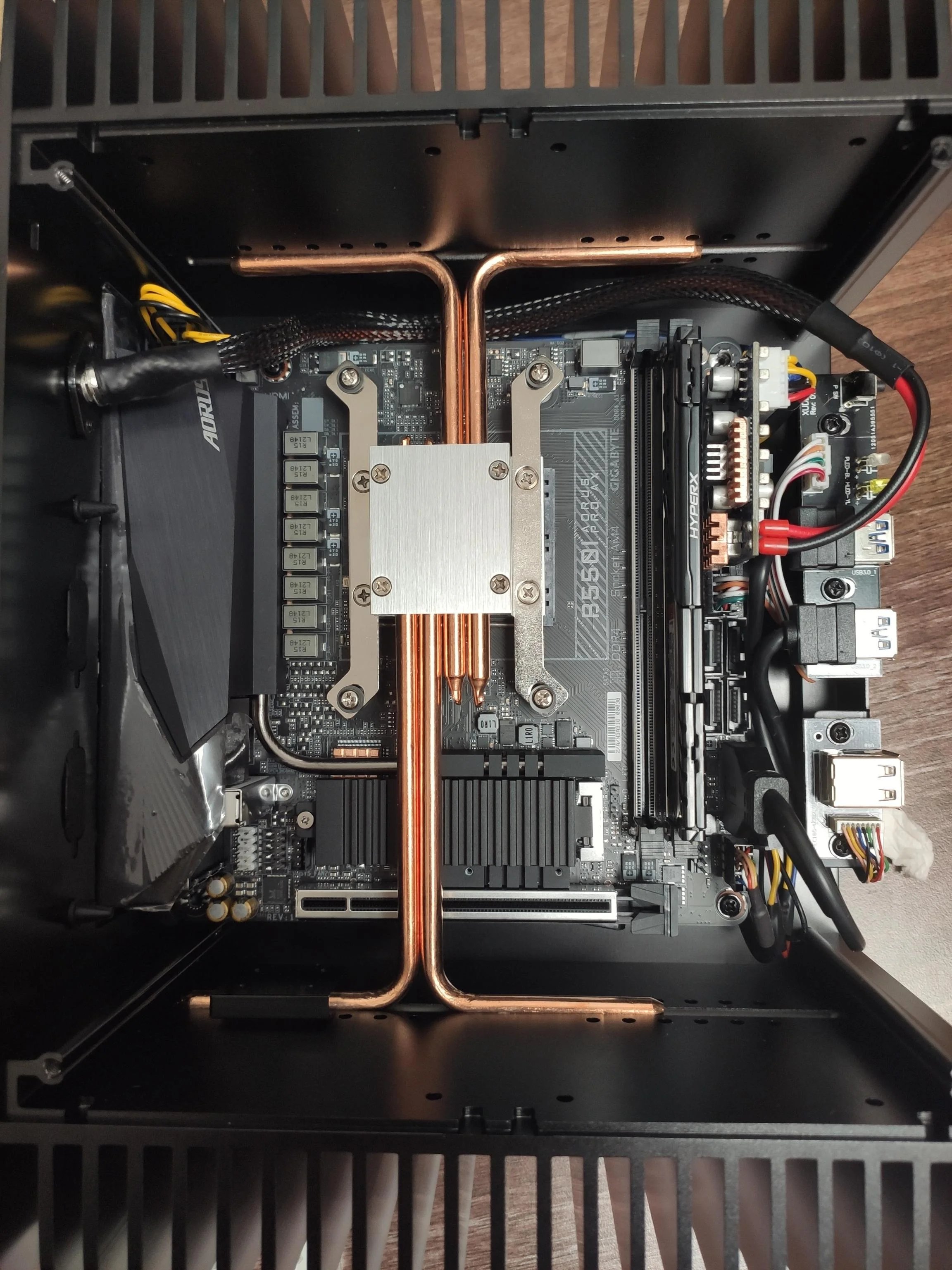

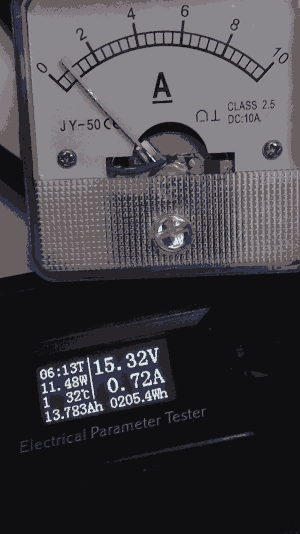

I have similar PC with lighter CPU Couple of months ago I built my first fanless desktop PC: - AMD Ryzen 5600G (6 cores, 12 threads, 65W TDP) - Gigabyte B550i AORUS PRO AX (rev 1.3 with Wi-Fi 6E) - 1x 16GB RAM DDR4 Kingston - 1x m.2 SSD 2TB Samsung 980 Pro - 1x SATA 2TB Crucial MX500 - PSU: Akasa 150W 12V (AK-PD150-02KEU) + PicoPSU InterTech 160W - Everything is in cool new fanless case from AKASA - Maxwell Pro. 👆 idle power consumption in Win10 (with enabled power saving settings in power management: Start , and select Settings > System > Power & sleep > Additional power settings) Also in BIOS I enabled everything related to power save and I started with light undervolting (CPU VCORE: -0,030V, Dynamic VCORE SOC: -0.030V, DRAM: 1.15V) Power consumption In Windows 10 (with connected 2K HDMI LCD, USB keyboard, USB mouse): ⚡️12-15W idle ⚡️⚡️80-100W full load (~60W CPU only load) I haven't tried Unraid or Linux on it (It should have better idle power consumption as a linux headless server). Photos:

My 2.5G switch is this one: https://www.aliexpress.com/item/1005005992916169.html - HORACO 2.5GbE Ethernet Switch 4 Port - from HORACO Official Store and my router is Mikrotik RB750Gr3 (or Mikrotik hEX) https://mikrotik.com/product/RB750Gr3

My 2.5G switch (4 port, with 2 unused SFP+ ports) uses 2-3 W with 3 ports used. My 5 port router Mikrotik (1Gbit) uses 2.5W. i recommend to watch/read STH (Serve The Home) for reviews, most of them includes also power consumption measurements

I’m using: - 16GB Transcend JetFlash 180Ihttps://us.transcend-info.com/embedded/product/embedded-flash-solutions/jetflash-180i (industrial grade, it works with 3D NAND flash in SLC mode) ... ±16 EUR - up to 1,146 TBW - Operating Temperature -40°C (-40°F) ~ 85°C (185°F) - Built-in ECC (Error Correction Code) functionality - Wear-Leveling looks good on paper, i hope it will be better than average

I am unable to make a decision either. Can you please provide an evaluation of the advantages and disadvantages of these different approaches? Thank you. I'm familiar with Portainer (on my mini home-lab on Raspberry Pi 5 with DietPi)

probably I can live with that errors… what's left for me?

@DrizzleV do you have newest BIOS? Did you try another SSD? Because some SSDs (mainly older ones) can cause that system is not able to reach lower C-states.

Firefox, Safari (on iPad)

Immich doesn't support Coral? Immich is very powerful Google photo alternative

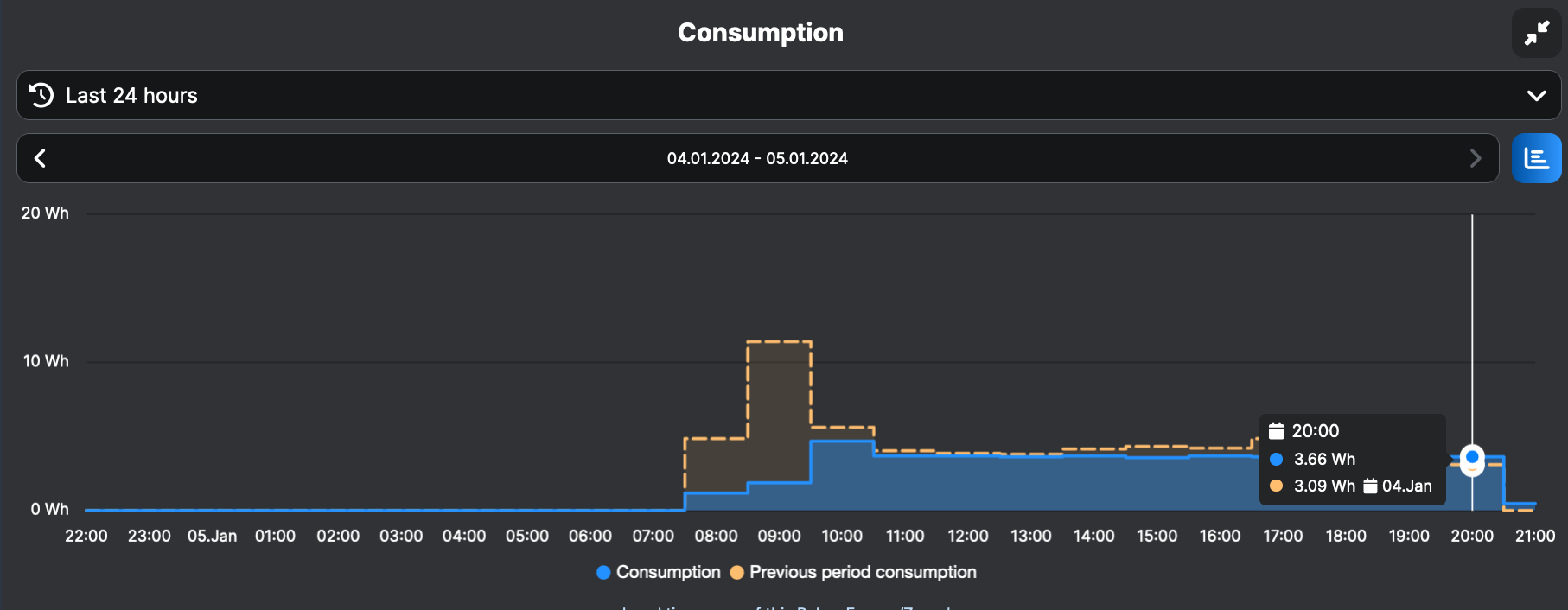

Update: - added 2x SATA SSDs (Samsung 860 Evo 4TB) - added 1x USB2 Flash drive (to make dummy Array) - running 2 dockers and idle power consumption is now: ⚡️on the DC side: ⚡️ 2.5 — 6 W on the DC side and average 4Wh on the AC side (measured by Shelly 1PM) Unraid NAS (12V / 4Wh) ┌─────────────────────────────────────────────────────┐ │ Odroid H3 │ │ │ │ Intel N5105 Unraid 6.12.6 │ │ 1x 16GB DDR4 │ │ │ │ 2.5G 2.5G │ │ SATA SATA LAN LAN#2 USB2 USB2│ │M.2 #1 #2 #1 unused #1 #2 │ └─┬────┬────┬──────┬──────────────────────────┬─────┬─┘ │ │ │ │ │ │ │ │ │ └──► switch 2.5G └──┐ │ │ │ │ │ │ │ │ │ │ │ │ │ │ pool RAID1 (btrfs) │ │ │ │ │ (SSD) ┌─────────────────────┐ │ │ │ │ └─────────►│ Samsung 860 EVO 4TB │ │ │ │ │ (SSD) │ │ │ │ │ └──────────────►│ Samsung 860 EVO 4TB │ │ │ │ └─────────────────────┘ │ │ │ │ │ │ pool "Cache" (xfs) │ │ │ (SSD) ┌─────────────────────┐ │ │ └───────────────────►│ Samsung 980 Pro 2TB │ │ │ └─────────────────────┘ │ │ │ │ │ │ (boot) 16GB Transcend JetFlash 180I ◄─────┘ │ industrial-grade flash with ECC, SLC mode │ │ │ (dummy) 64GB USB2 ADATA Flash Drive ◄────────┘ array for storing backups of bootUSB update: power consumption in Wh per hour (from Shelly 1 PM) with running 5 dockers: root@unr:~# /etc/rc.d/rc.docker status status of dockerd: running running containers: immich_redis immich immich_postgres14 scrutiny PortainerCI 19/02/2024 12:00 4.33 19/02/2024 13:00 4.6 19/02/2024 14:00 4.63 19/02/2024 15:00 5.1 19/02/2024 16:00 4.82 19/02/2024 17:00 4.42

Hello, I just installed it to see CPU temperature, but: no temperature also no temperature after restart. however output of sensors is ok: unr-diagnostics-20240202-1210.zip

I just found another interesting USB flash drive: Apacer UH110-UFD1 (~35 EUR for 32GB) - https://www.apacer.com/en/product/industrial-product/detail/industrial_ssd/uv110-ufd1 search for UH110-UFD1 in https://www.apacer.com/en/download/industrial-downloads/index/edm for datasheet: I see first time USB Flash drive with S.M.A.R.T. 😮

I'm getting that errors (first time for me, array is not started): Message from syslogd@unr at Feb 1 18:18:41 ... nginx: 2024/02/01 18:18:41 [emerg] 5421#5421: bind() to 127.0.0.1:80 failed (98: Address already in use) Message from syslogd@unr at Feb 1 18:18:41 ... nginx: 2024/02/01 18:18:41 [emerg] 5421#5421: bind() to 192.168.88.8:80 failed (98: Address already in use) Message from syslogd@unr at Feb 1 18:18:41 ... nginx: 2024/02/01 18:18:41 [emerg] 5421#5421: bind() to 127.0.0.1:80 failed (98: Address already in use) ... unr-diagnostics-20240201-1822.zip Unraid: Version 6.12.6 2023-12-01 root@unr:~# netstat -tulpen | grep :80 tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 0 15254 5421/nginx: master root@unr:~# installed plugins: syslog.txt

Should I choose ZFS? in pool 2x 4TB SSD (860 Evo). I tried now BTRFS (with RAID 1 mirroring). Are there any other considerations to keep in mind regarding SSDs, similar to Trim functionality?

What are currently the best / most reasonable options for configuration for SSD only NAS? In my case: 3x SSD: 2x 4TB SATA (Samsung 860 Evo) + 1x m.2 NVMe 2TB (Samsung 980 Pro). I'm still new here. I'm not sure if it is still useful to have SSD cache in my case with SSDs only. I'm limited to 1x m.2 and 2x SATA ports. Plan is to run some docker containers (16GB RAM).

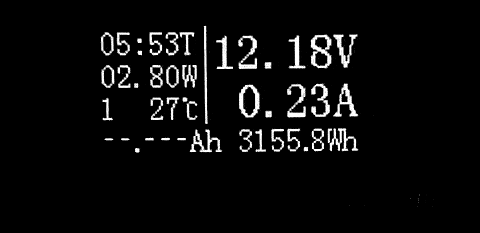

With better SSD a bit better power consumption. I swapped Samsung 970 Evo to Samsung 980 Pro 2TB and idle power consumption (mostly in C10) is: ⚡️on the DC side: ⚡️on the AC side: ~2,8 Wh (from Shelly 1PM) is average consumption for last 2 hours. It's known that Pro models from Samsung SSDs have better power management and they are more efficient. Supported Power States St Op Max Active Idle RL RT WL WT Ent_Lat Ex_Lat 0 + 8.49W - - 0 0 0 0 0 0 1 + 4.48W - - 1 1 1 1 0 200 2 + 3.18W - - 2 2 2 2 0 1000 3 - 0.0400W - - 3 3 3 3 2000 1200 4 - 0.0050W - - 4 4 4 4 500 9500 command: sudo smartctl --all /dev/disk/by-partlabel/root - where Samsung 970 EVO Plus 500GB has higher numbers: Supported Power States St Op Max Active Idle RL RT WL WT Ent_Lat Ex_Lat 0 + 7.80W - - 0 0 0 0 0 0 1 + 6.00W - - 1 1 1 1 0 0 2 + 3.40W - - 2 2 2 2 0 0 3 - 0.0700W - - 3 3 3 3 210 1200 4 - 0.0100W - - 4 4 4 4 2000 8000 Note that I also changed USB from old Patriot 16GB to new 16GB Transcend JetFlash 180I (industrial-grade USB flash drive with SLC mode https://us.transcend-info.com/embedded/product/embedded-flash-solutions/jetflash-180i ).

My trial expired, I need to buy license now. So far no problems with Odroid H3. It's great and efficient system. Only 3-4 W idle (with SSD only and 12V power). Here are more details about power usage:

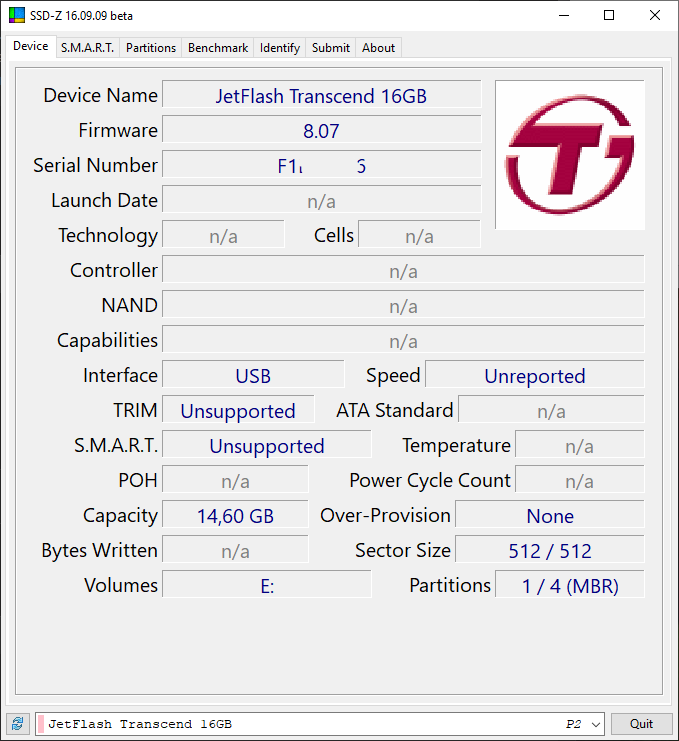

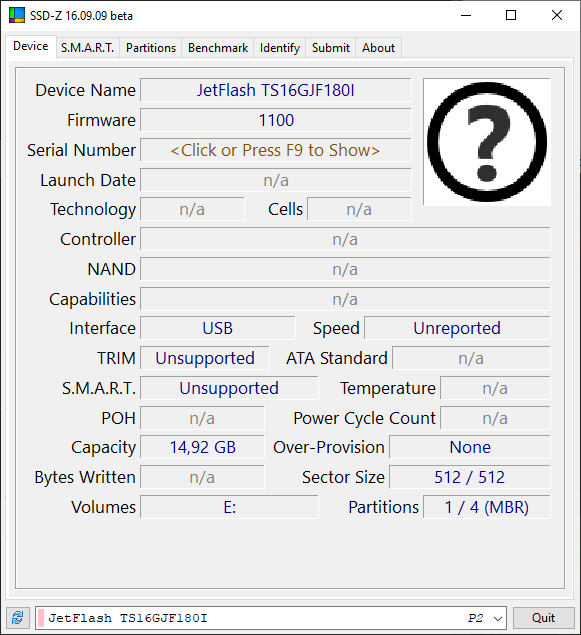

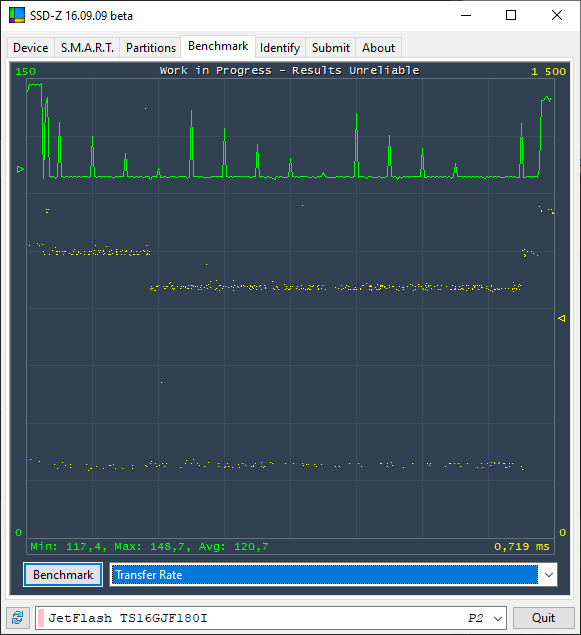

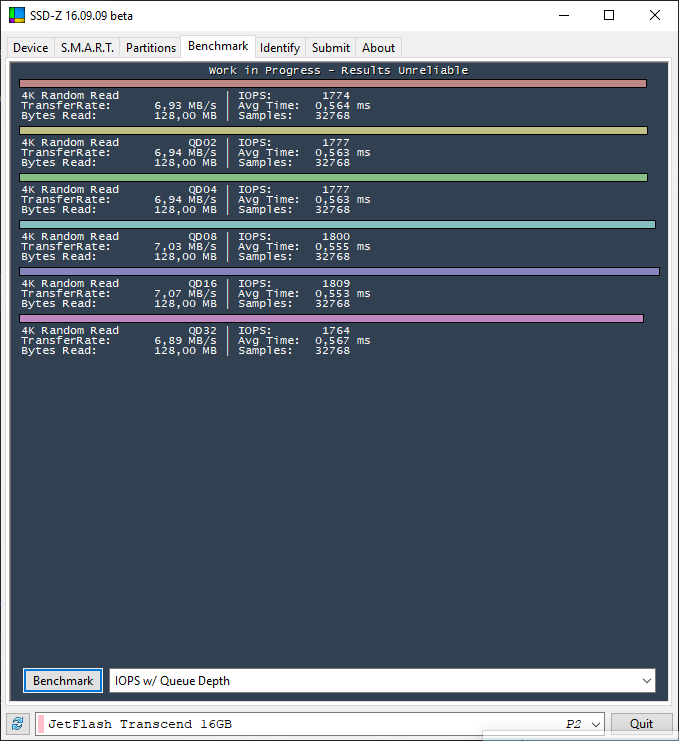

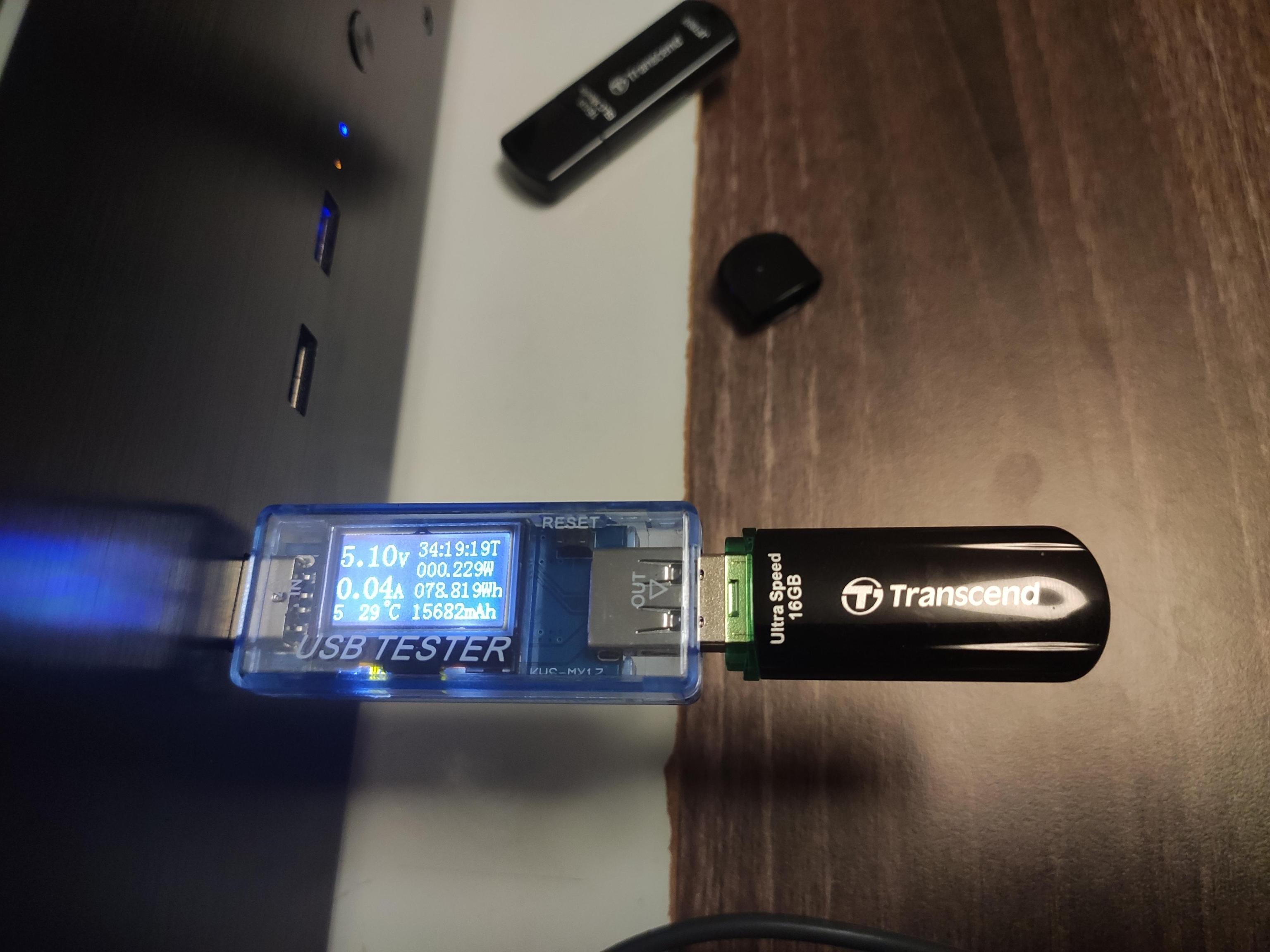

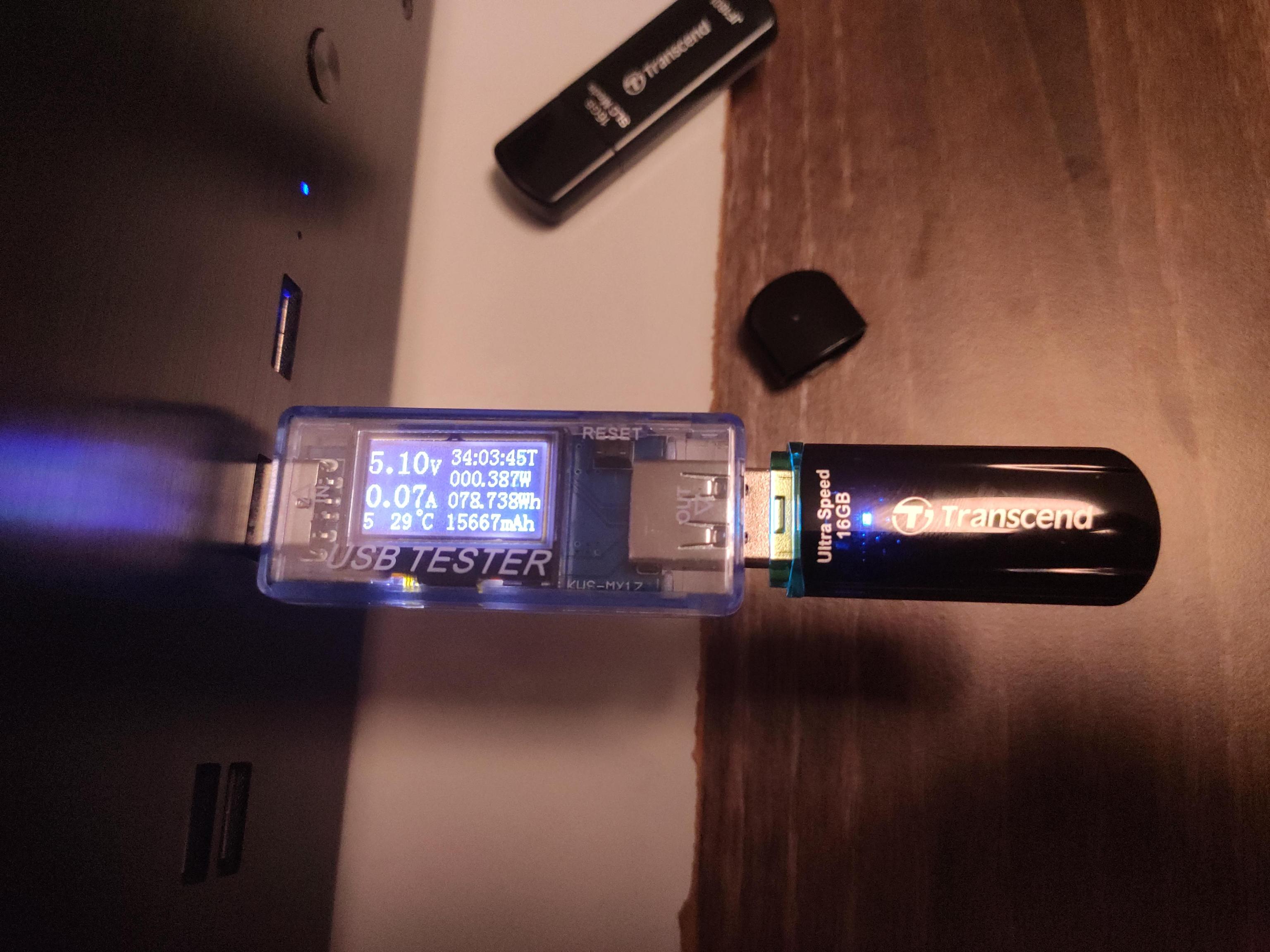

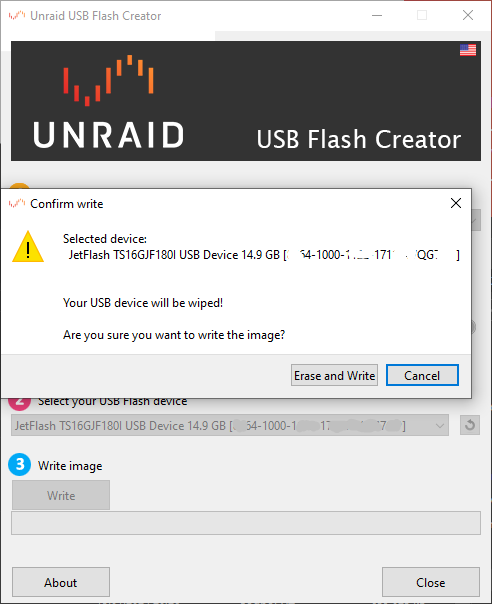

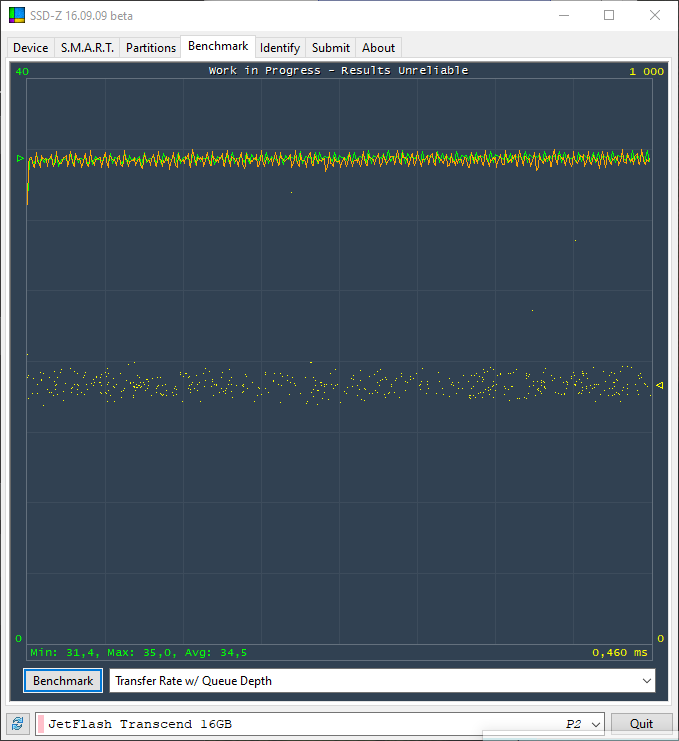

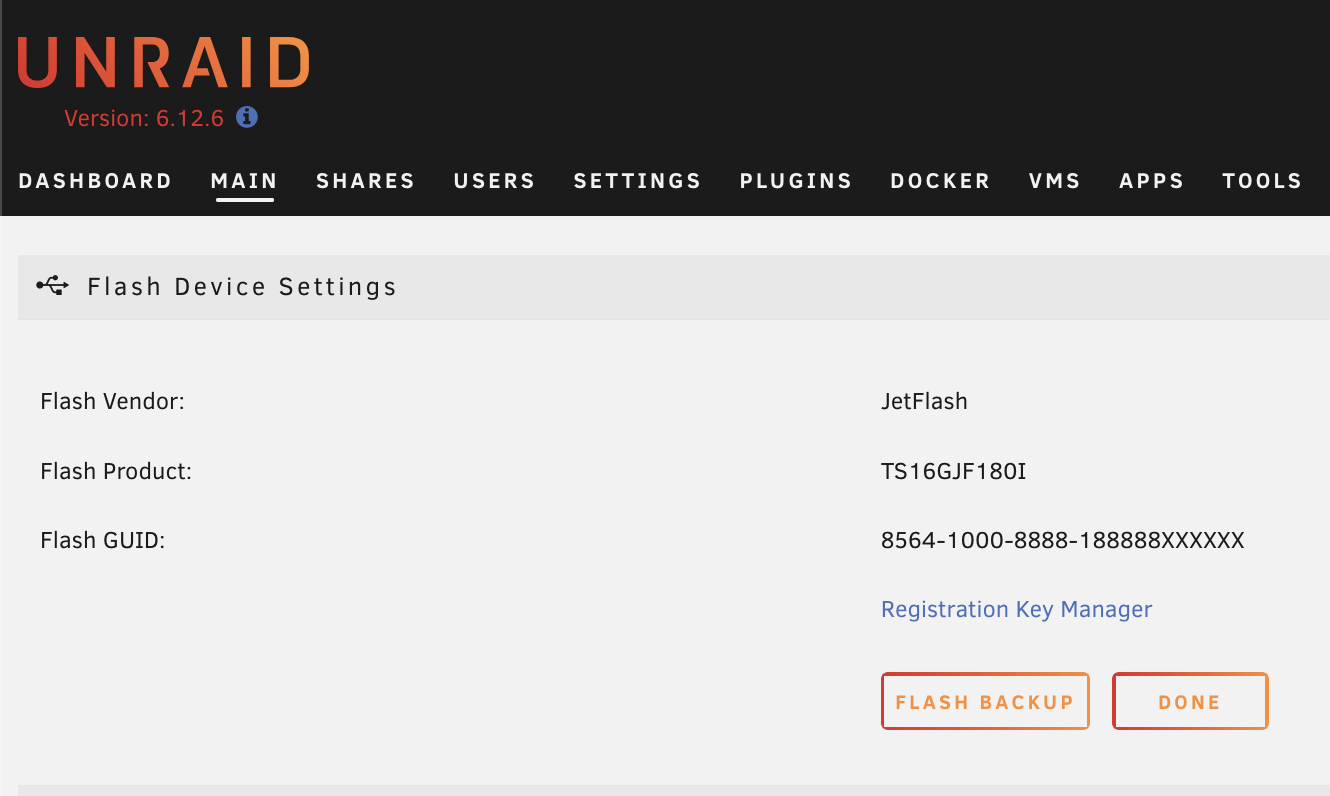

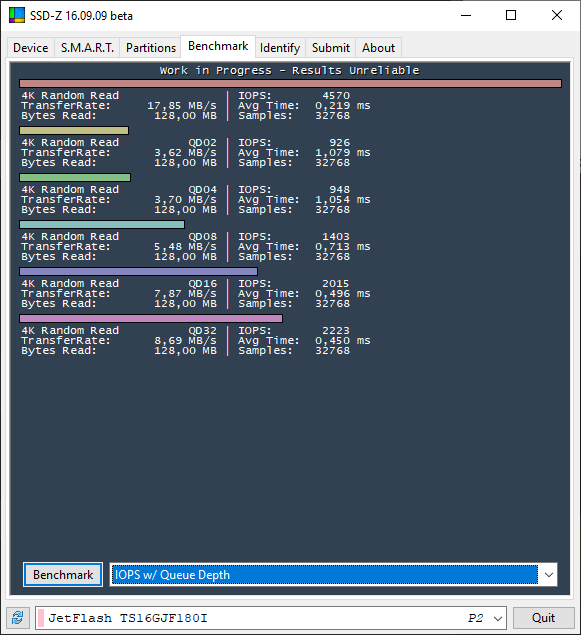

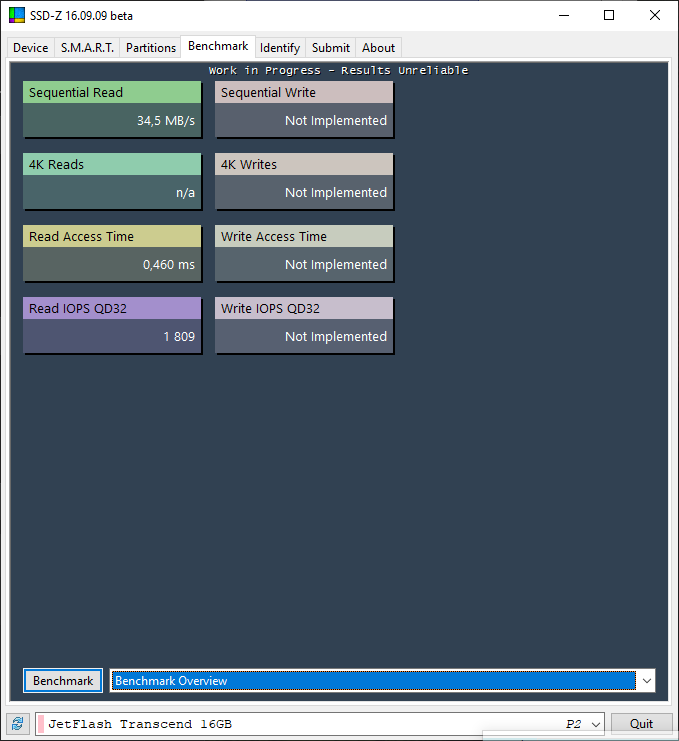

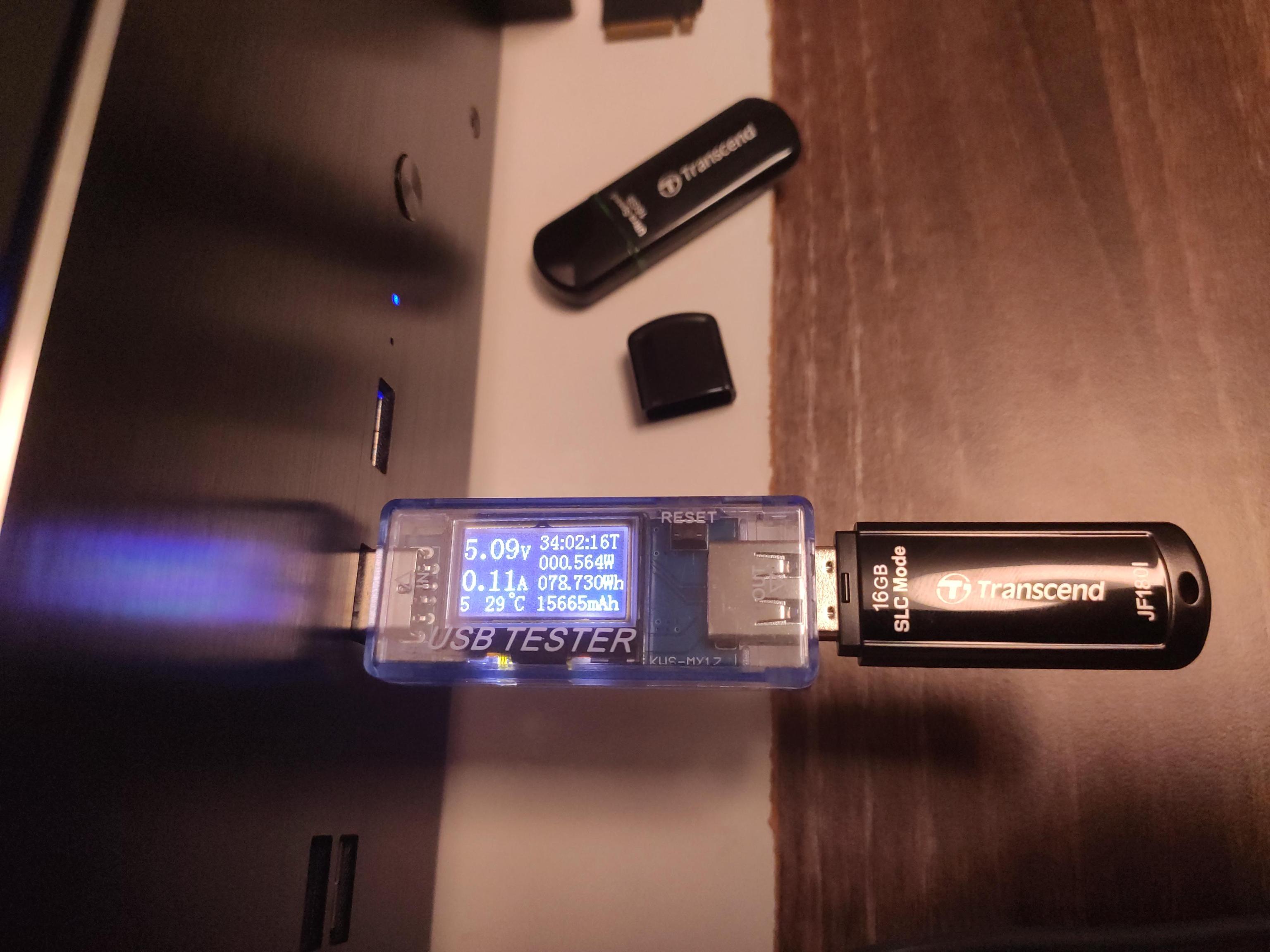

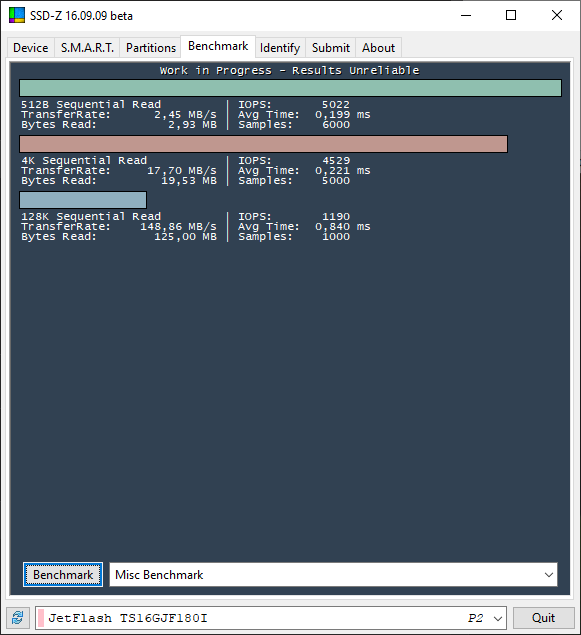

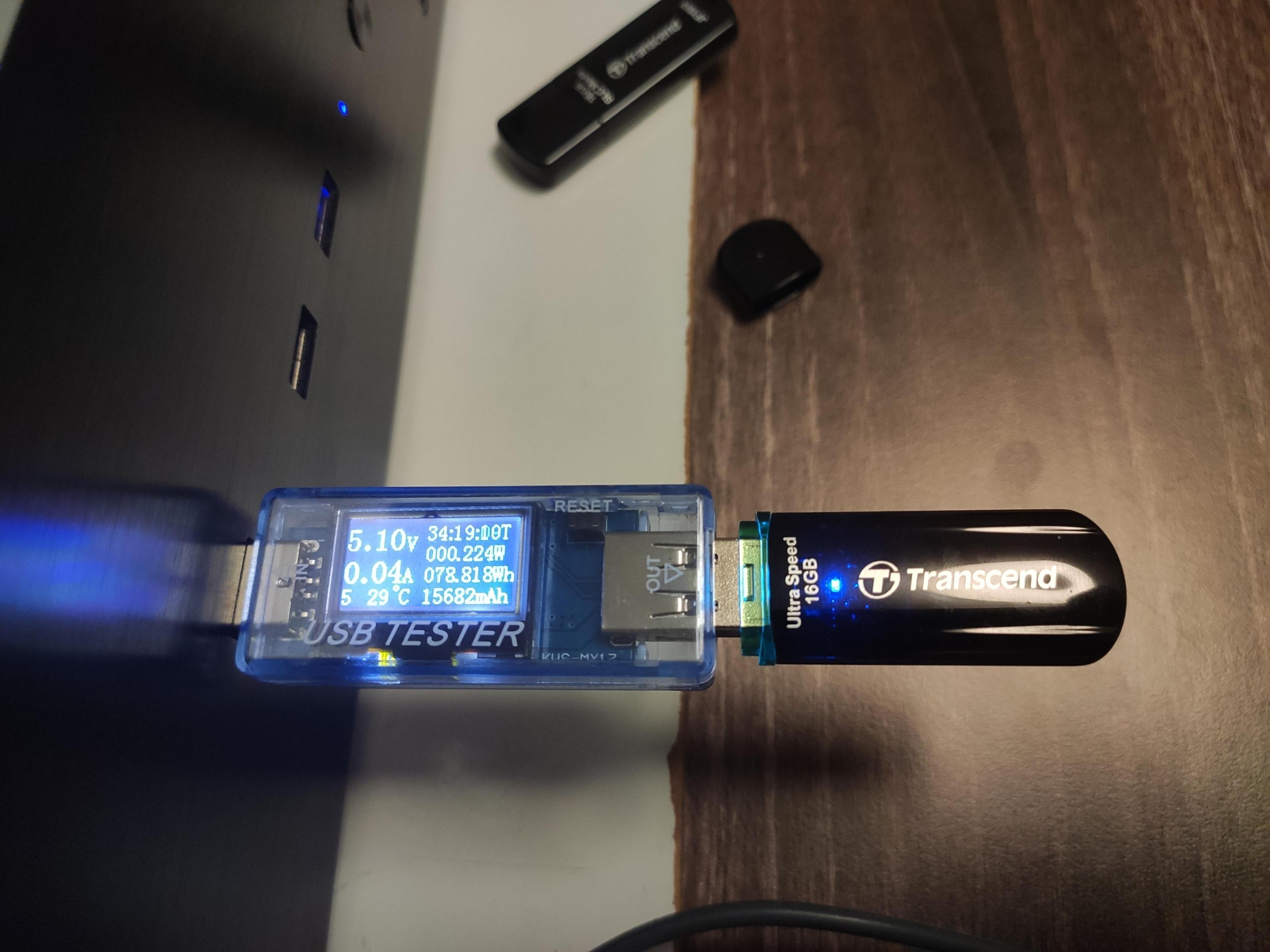

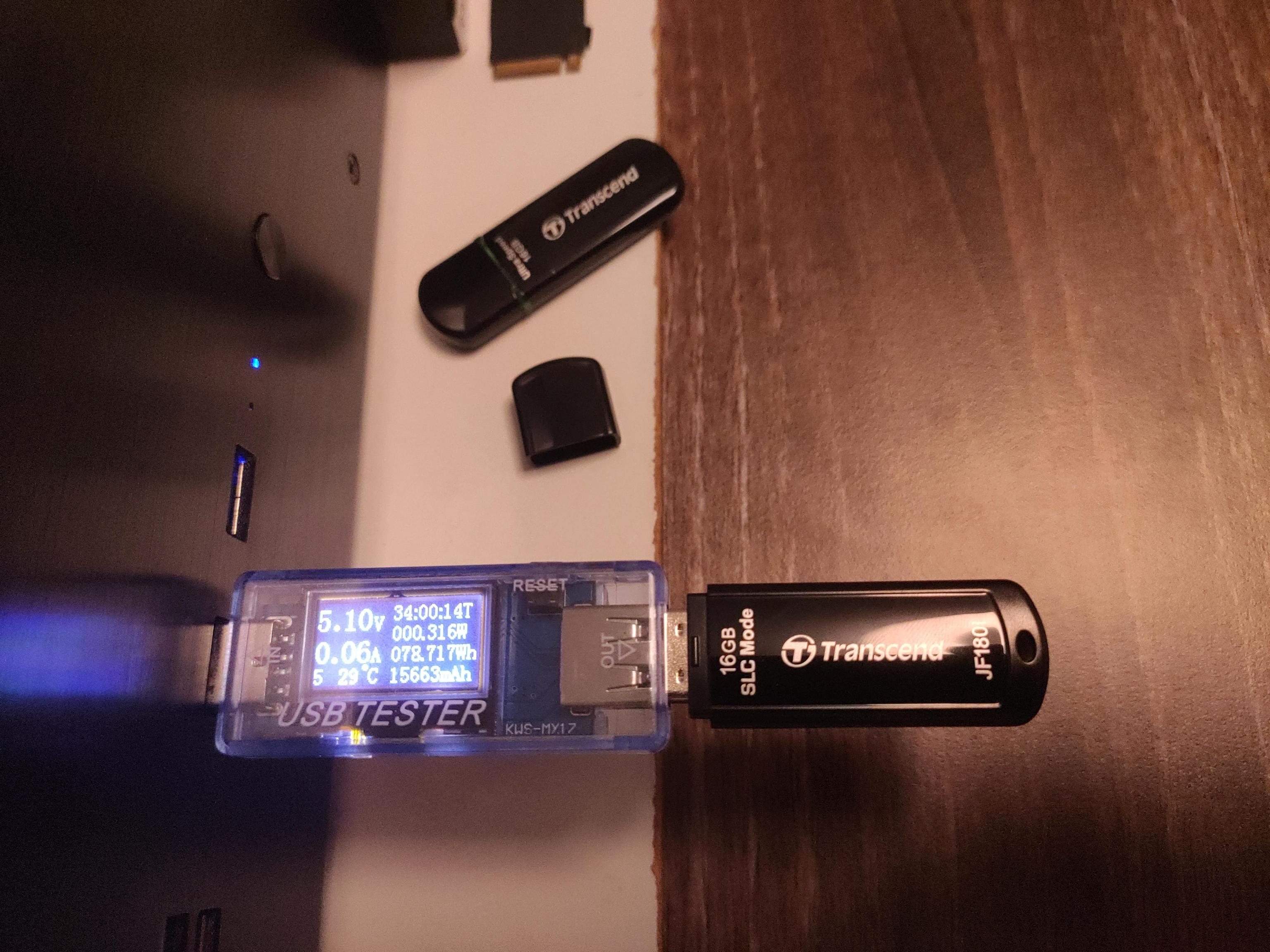

I will test following USB today/tomorrow: update: - 16GB Transcend JetFlash 180I https://us.transcend-info.com/embedded/product/embedded-flash-solutions/jetflash-180i (mentioned in previous post, USB 3, it works with 3D NAND flash in SLC mode) ... ±16 EUR - up to 1,146 TBW - Operating Temperature -40°C (-40°F) ~ 85°C (185°F) - Built-in ECC (Error Correction Code) functionality - Wear-Leveling - 16GB Transcend JetFlash®600 (USB 2.0) https://www.transcend-info.com/product/usb-flash-drive/jetflash-600 ... ±9 EUR 16GB Transcend JetFlash 180I screenshots: ... idle & load power consumption (in USB 3 port): ---------------------------- 16GB Transcend JetFlash®600 (USB 2.0) screenshots: idle & load power consumption (in USB 2 port): load in USB3 port:

I just found this USB drive: 16GB Transcend JetFlash 180I https://us.transcend-info.com/embedded/product/embedded-flash-solutions/jetflash-180i Is that Flash drive a good option? It looks good on the paper... so we will see... Price ~15 EUR for 16GB is acceptable.

@Johnny159 https://github.com/Mechitworks/Linuxscripts/blob/main/H610-ASPM.bash please read it carefully and you need to set correct values for variables: ROOT_COMPLEX= ENDPOINT=
