It will void the warranty for sure.



It also stands to reason that if WD has this limit in place, then excessive use of the drive will cause it to fail quicker. Seeing as I am still using drives from 15 years ago, how long the drive lasts is really important to me. I don't have the money to replace drives willy nilly every few years.

Link to comment
9 minutes ago, TexasUnraid said:

I don't have the money to replace drives willy nilly every few years.

sure, but until there are no real user experience with this, it looks like more marketing thing - if your drive is beyond this limit, then please purchase new one..

Link to comment

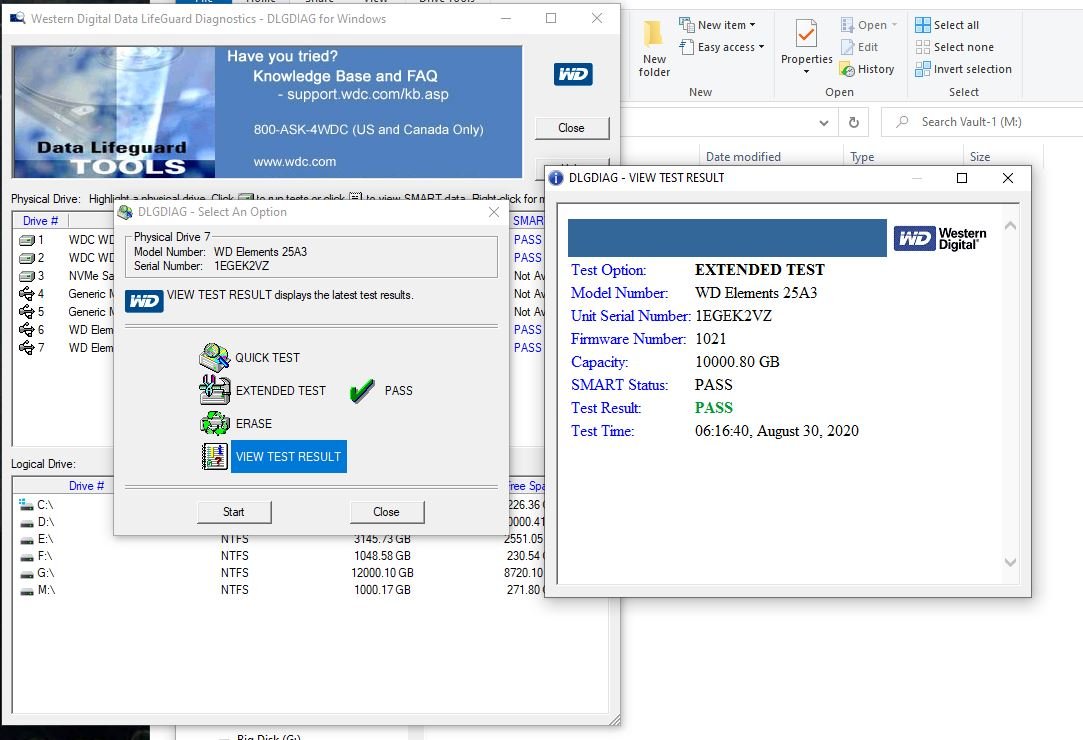

Shucked a 10 TB WD100EMAZ from a WD Easystore from Best Buy.  I tried to run pre-clear and it failed 50% in.  I put the drive back into the case attached it to my PC and ran the WD Lifeguard extended diagnostics test (13 hours) and it passed.  So I tried again and this time pre-read failed at 30% in.  The log shows that the dd command failed to open the drive. (log attached).

I used pre-clear on an identical disk 6 months ago and it worked fine.  Can someone tell me if this disk is bad or is my system starting to get flaky?  It has been rock solid for over 9 years (with new disks and Unraid updates).

Thanks.





WD test.JPG

preclear_log.txt

Link to comment
  • 2 weeks later...

Hi all,



I've run into my first issue with preclearing a disk and I was wondering if anyone had any pointers for how to resolve it.



A couple weeks ago I successfully precleared a new Seagate 10TB external drive before shucking it. I've got a second identical one that I was hoping to do the same with (ST10000DM0004) but when I try to start preclear it just hangs and does nothing. It remains on the "Starting..." status. I've tried turning the enclosure power on and off as well as different USB ports, all to no effect.



No preclear log has been generated for this action, and the only stuff in the diskinfo log is this:



Quote

Fri Sep 11 10:06:05 MDT 2020: SMART parameters for drive [/dev/sdg] not found, probing...
Fri Sep 11 10:06:05 MDT 2020: Trying SMART parameter (-d auto) for disk [/dev/sdg]...
Fri Sep 11 10:06:05 MDT 2020: SMART parameter for disk [/dev/sdg] (-d auto) found.



Any troubleshooting tips?

Link to comment

Just noticed the plugin is no longer listed under Plugins, and when I navigate to Plugins -> 'Install PluginPlugin File Install Errors' tab, then following is listed:
/boot/config/plugins-error/preclear.disk.plg  ->  status ERROR



/boot/config/plugins-error/preclear.disk.plg contents are:

<?xml version="1.0" standalone="yes"?>
<!DOCTYPE PLUGIN [
<!ENTITY name "preclear.disk">
<!ENTITY repo "unRAID-plugins">
<!ENTITY author "gfjardim">
<!ENTITY version "2020.05.07">
<!ENTITY launch "Tools/Preclear">
<!ENTITY gitURL "https://raw.githubusercontent.com/&author;/&repo;/master">
<!ENTITY pluginURL "&gitURL;/plugins/&name;.plg">
]>
<PLUGIN name="&name;" author="&author;" launch="&launch;" version="&version;" pluginURL="&pluginURL;" icon="icon-preclear" support="http://lime-technology.com/forum/index.php?topic=39985.0">
  <CHANGES>
##&name;

###2020.05.07
- Fix: error showing in the logs for no reason
- Fix: update tmux to 3.1b
- Fix: better CSRF error handling

###2020.05.05a
- Add: dialog package
- Add: <preclear> command line utility to start/stop/watch preclear sessions

###2020.03.14a
- Fix: wrong CSRF token will open an alert instead of trying to update the token in the background

###2020.03.14
- Fix: fix timer name so Unraid can stop/restart webgui updates
- Fix: script - version 1.0.14
- Fix: script - pre-read will ignore read errors so bad sectors can be detected
- Fix: script - write resume info to flash drive timelapse increased from 60 to 120 seconds

###2020.03.06a
- Fix: change the use of system original tail_log to custom tail_log
- Fix: alert user if an action is necessary
- Fix: change the disposition of alert buttons
- Fix: script - version bump to 1.0.13
- Fix: script - change the way elapsed time is computed
- Fix: script - better pause/unpause event handling

###2020.03.02a
- Fix: apply the last fix to the original preclear script and bump version to 1.20

###2020.03.02
- Fix: drives > 2.2TiB and with protective MBR partition starting on sector 64 failing signature verification.

###2020.03.01
- Fix: update swal2 css

###2020.02.27a
- Fix: minor changes

###2020.02.26
- Fix: error while output smart upon script error
- Fix: migrate to SweetAlert v2
- Fix: include Joe L. script by default

###2020.02.17a
- Fix: better diskinfo update handling
- Fix: resume verification will always read the MBR

###2020.02.17
- Fix: reload UD page after Preclear operations

###2020.02.14
- Fix: Write/Erase ops hang if display_pid is reused by the system

###2020.02.13a
- Fix: minor bugfixes

###2020.02.13
- Fix: better queue handling
- Fix: css fixes to grey/azure/black themes

###2020.02.12
- Fix: Increase time lapse before kill a hunged dd process

###2020.01.17b
- Add: Fix Preclear button

###2020.01.17a
- Fix: division by zero on speed calculation

###2020.01.16a
- Fix: disable browser popup open on Start/Resume preclear

###2020.01.16
- Fix: plugin tries to gently stop the preclear script
- Fix: addBannerWarning retrocompatibility
- Add: sorting on Tools > Preclear for Preclear Queue
- Add: Pause/Stop/Resume all
- Fix: script: version 1.0.8
- Fix: script: resume not working while verifying the disk
- Fix: script: correctly compute current speed even if the session is paused/enqueued
- Fix: script: increase ui refresh rate
- Fix: script: better exit handling

###2020.01.14
- Fix: only mark as unsupported if tmux isn't work properly

###2020.01.13
- Fix: prevent mounted disks from appearing at "Start Multiple Sessions"
- Fix: prevent mounted or preclearing disks from being precleared by accident

###2020.01.12
- Fix: properly handle unsupported state

###2020.01.11b
- Fix: add Unraid 6.8.1 support

###2020.01.11
- Add: start multiple preclear sessions

###2020.01.10
- Fix: Unraid 6.8.0 package update

###2019.11.28
- Fix: script version 1.0.6
- Fix: proper debug messages
- Fix: proper exit handling

###2019.11.26
- Fix: increase verbosity in preclear script

###2019.11.22
- Fix: script version 1.0.5
- Fix: 4kn disk drives not formating
- Fix: exporting errors and messages to syslog
- Fix: starting all partitions at sector 64 (avoid partition missalignment)
- Fix: open reports at a new tab

###2019.04.23a
- Fix: Change image icon to font icon if possible

###019.04.23
- Fix: reinstallation failing;
- Fix: change between icon/image if needed.

###2019.04.22a
- Fix: set correct time interval for resume write to flash drive.

###2019.04.22
- Fix: remove ncurses dependency;
- Fix: save resume information to flash drive every 15 minutes to avoid NAND memory wear.

###2019.03.10
- Fix: diskinfo causing high cpu usage.
- Fix: start/stop queue on demand.
- Fix: remove leftover packages

###2019.02.12b
- Fix: queue persistent across reboots
- Fix: better enqueue handling (script 1.0.3)
- Fix: exiting on bad resume file

###2019.02.12
- Add: preclear queue
- Add: download log from each preclear session

###2019.02.11
- Add: preclear log icon to status
- Add: real-time syslog monitoring

###2019.02.10
- Fix: bad substitutionon line 590

###2019.02.06b
- Add: present serial number on notifications

###2019.02.06a
- Fix: footer not appearing

###2019.02.06
- Fix: add unRAID 6.7 support
- Fix: decrease backgroung information pooling
- Fix: script 1.0.1 - commit all resume information to flash drive prior to create the resume file

###2018.10.07
- Fix: remove glyphicon fount dependency
- Fix: vshift in title banners on 6.6.1
- Fix: install full ncurse package depending on stripped version installed (no GCC version dependant)
- Fix: bump preclear script to 1.0.0 (first main version)

###2018.09.20
- Fix: Unraid 6.6 - black theme dropdown ui displaying white-on-white text

###2018.09.17
- Add: resume preclear button

###2018.09.16
- Fix: changed unnamed pipes to named pipes in verify and erase operations (more control over dd process pid and exit status)
- Fix: pre-read now starts at the beggining of the disk
- Add: more verbosity to the log ( progress on write/read operations)
- Add: disk temperature to the page footer

###2018.08.27
- Fix: change 'direct' iflag option to 'nocache' - apparently some hdds don't like it
- Fix: only export initial smart status if not resuming

###2018.08.23
- Fix: not toggling between preclear scripts

###2018.08.22
- Fix: make sure blkid file is created before retrieving dd pid
- FIx: export syslog messages to preclear disk log

###2018.08.21c
- Add: SMART info to preclear log

###2018.08.21b
- Fix: remove fsync option from read/write disk

###2018.08.21a
- Fix: avoid custom version of Tooltipster to load if the official version is present
- Fix: detect wrong csrf_token and update it
- Add: disk log to Tools > Preclear Disk

###2018.08.21
- Fix: diskinfo PHP warnings
- Fix: revert direct I/O usage in dd invocation (reduced write performance)

###2018.08.20
- Fix: increase verbosity of script.

###2018.05.03
- Fix: script not completely zeroing the disk

###2018.04.27
- Fix: script deem failed small dd reads/writes

###018.04.24
- Fix: rc.diskinfo - PHP Warning: Missing argument 2 for force_reload()
- Fix: script not detecting array disks correctly
- Fix: correctly detect dd exit code - may fix link problems hanging preclear operation
- Fix: pause dd if s6-sync (part of s6-utils used by linuxserver) is invoked

###2018.03.29
- Fix: early unRAID 6.5 compatibility

###2017.11.14
- Fix: wrong TMUX being installed on v6.3.5

###2017.11.01
- Fix: remove strings dependency

###2017.09.27
- Fix: diskinfo not starting properly

###2017.09.25
- Fix: install/update not showing the Done button

###2017.09.23
- Fix: diskinfo - PHP Warning: strpos(): Empty needle in /etc/rc.d/rc.diskinfo on line 339

###2017.09.22a
- Fix: update TMUX and add support to 6.4-rc9f

###2017.09.22
- Fix: resume not working due to a bug introduced in 2017.09.20

###2017.09.20
- Fix: better time handling across resumes

###2017.09.19
- Fix: convert popups to Sweet Alert
- Fix: added more verbosity in the preclear script

###2017.09.17a
- Fix: resume not working properly with pre-read

###2017.09.17
- Fix: persistent elapsed time on resumed sessions

###2017.09.16
- Fix: detect dd hang and restart it
- Add: resume stopped preclear session

###2017.07.10
- Add Cron keepalive

###2017.07.08
- Fix: dismiss Statistics status saved at temporary dir;
- Fix: diskinfo 0.1.0 - better array disk detection;

###2017.07.05c
- Fix: diskinfo 0.0.9 - not showing SSD temperature

###2017.07.05b
- Fix: diskinfo 0.0.8 - not properly detect the absent of cached info

###2017.07.05
- Fix: add more files to preclear log download

###2017.07.04
- Fix: diskinfo 0.0.7 - minor bugfixes

###2017.06.30b
- Fix: NVME support?

###2017.06.30a
- Fix: README typo.

###2017.06.30
- Fix: diskinfo 0.0.6 - reload unRAID config every 30 secondsinstead of every 5 seconds;
- Fix: Non-static method should not be called statically (PHP 5.4 error)

###2017.06.27
- Fix: diskinfo 0.0.5 - add compatibility to future Unassigned Devices adoption

###2017.06.24
- Add: present preclear status on footer

###2017.06.23
- Add: diskinfo 0.0.4 -  refreshes disk info based on UDEV events
- Add: diskinfo 0.0.4 -  detect precleared disks
- Add: preclear_disk 0.8.8 - pause on hdparm/smartctl/sync processes running
- Add: packages to unRAID 6.4

###2017.06.21
- Fix: diskinfo 0.0.3 - suport restart
- Fix: diskinfo daemon restart after update

###2017.06.20
- Fix: tooltips not properly appearing;
- Fix: temperature not showing properly;
- Fix: diskinfo 0.0.2 - timeouts not properly working;
- Fix: script 0.8.7 - pause write every 2% to let SMART queries to complete;

###2017.06.15
- Fix: small bug in diskinfo daemon

###2017.06.14
- Fix: gather information in the background avoiding webgui to freeze
- Fix: script version 0.8.6 - add timeout to 'smartctl' commands
- Fix: Azure theme compatibility

###2017.03.23
- Fix: mismatch short serial numbers - bug introduced in the last version
- Fix: preclear not stopping on Windows browsers

###2017.03.21
- Fix: Plugin not working in older unRAID versions

###2017.02.16
- Fix: pause not working

###2017.02.15
- Fix: more serial fixes

###2017.02.14
- Fix: change identifier from device to serial number

###2017.02.05
- Add: Erase and Preclear function

###2017.02.01
- Add: tooltipster
- Fix: replace buttons to icons
- Fix: disk size wrongly reported
- Fix: log not being reported

###2017.01.27
- Fix: comply with unRAID's XSS and CSRF hardening

###2016.12.24
- Add: increase verbosity of script

###2016.12.23a
- Fix: zero/erase failing due to false exit code

###2016.12.23
- Fix: better log dd errors

###2016.12.21
- Add: Secure Erase disk

###2016.12.20a
- Fix: remove send statistics

###2016.12.20
- Fix: recompile TOR package, avoiding logrotate error
- Add: TOR SlackBuild sources to GitHub

###2016.12.19
- Add: send statistics;
- Add: tor package;
- Fix: removed array disk appearing as unavailable disk;
- Fix: install correct packages on unRAID 6.3
- Fix: script - better error reporting;

###2016.10.31
- Add: generate some debug info

###2016.10.29
- Fix: small bug in script display
- Fix: Array disks connected to Areca cards showing up
- Fix: Detect if script author is Joe L. or bjp999
- Add: script write errors to log file
- Add: Download log file from the webui

###2016.10.26
- Add: Copy to Clipboard button on Preview window
- Fix: unescaped quotes breaking read of "state.ini" file
- Fix: remove PHP "split" function due deprecation
- Fix: script - better SMART detection
- Fix: script - greatly improve speed and memory footprint in read operations
- Fix: script - faster display refresh

###2016.09.27
- Fix: better PHP exception handling.

###2016.09.26b
- Fix: not loading information if /boot/preclear_reports directory doesn't exist

###2016.09.26a
- Fix: prepare better Unassigned Devices integration

###2016.09.25
- Fix: utempter depencency not installed
- Add: "Answer Yes" button on Joe L. script if needed.
- Add: preclear command to show status on shell

###2016.09.23a
- Fix: script error appearing if SMART is not available

###2016.09.23
- Add: show reports of listed disks;
- Fix: page scrolling while updating;
- Fix: make link point to Tools;
- Fix: increase disk column width;
- Fix: better script report.

###2016.09.11
- Fix: better report formating

###016.09.10
- Fix: preclear report not being created due to filename invalid characters.

###2016.08.29
- Fix: slow read with custom settings

###2016.08.28
- Fix: create temp folder on plugin installation

###2016.08.26
- Fix: merge beta script
- Fix: high memory consumption

###2016.06.23
- Fix: install utempter

###2016.06.22
- Add: Notification capability
- Fix: Move Preclear icon to Tools
- Fix: Fix unknown terminal "screen" error
- Fix: Preclear script not reading the end of the disk
- Update: tmux (2.1), libevent (2.0.22) and ncurses (5.9-4)

###2016.03.24a
- Fix: better smartctl device testing

###2016.03.24
- Fix: displaying negative numbers

###2016.03.22
- Fix: Better S.M.A.R.T. report
- Add: Save a report in /boot/preclear_reports

###2016.03.21
- Add: pause any preclear operations while array start/stop
- Add: Initial SMART reporting

###2016.03.20
- Fix: disk detected as part of the array if cache slot was empty

###2016.03.11b
- Add: New Preclear script
- Forked: to beta

###2015.11.18
- Add: logging capabilities
- Fix: php error if disk.cfg file doesn't exist

###2015.09.28a
- Fix: DVD/BluRay drives being included
- Fix: some minor bugs

###2015.09.18
- Fix: Areca disks not appearing correctly.

###2015.09.17b
- Fix: black CSS conformity

###2015.09.17
- Release: maintenance release.

###2015.09.08
- Add: ncurses package, avoiding the use of the xterm hack.

###2015.09.07d
- Improvement: better integration with Unassigned Devices.
- Fix: unRAID 6.1.1 doesn't have a 'screen' terminal descriptor; xterm used instead.

###2015.08.12
- Fix: 6.1-rc3 compatibility

###2015.07.23
- Fix: better unRAID 6.1 compatibility
- Fix: clearer notification system

###2015.07.21
- Fix: unRAID 6.1-rc1 compatibility

###2015.06.16
- Fix: duplicate hdd entry due to udev's duplicate links

###2015.06.15
- Fix: minor bugfixes

###2015.06.13
- Fix: remove ^n markup from preclear status
- Fix: show a wait message while preclear is starting
- Fix: add MD5 verification to downloaded files
- Fix: remove the Start Preclear link if an tmux session is already open

###2015.05.20b
- Minor bugfixes

###2015.05.20a
- Add support to bjp999 version

###2015.05.20
- Remove preclear script from package. It must be manually added to /boot/config/plugins/preclear.disk/ directory.

###2015.05.18b
- Fix: empty cacheId variable crashing the code

###2015.05.18a
- Fix: plugin not appearing under Settings/Utilities

###2015.05.18
- Add: fast preclear option (bjp999 mod)

###2015.05.17a
- Improve: detection of SCSI disks

###2015.05.16a
- Add: other preclear operations

###2015.05.16
- Initial release.
</CHANGES>
  <!--
The 'plugin' package file.
-->
  <FILE Name="/boot/config/plugins/&name;/&name;-&version;.txz">
    <URL>&gitURL;/archive/&name;-&version;.txz</URL>
  </FILE>
  <!--
The 'plugin' package MD5 hash.
-->
  <FILE Name="/boot/config/plugins/&name;/&name;-&version;.md5">
    <URL>&gitURL;/archive/&name;-&version;.md5</URL>
  </FILE>
  <!--The 'readvz' executable.-->
  <FILE Name="/usr/local/sbin/readvz" Mode="755">
    <URL>&gitURL;/source/packages/readvz</URL>
  </FILE>
  <!--The 'dialog' install package.-->
  <FILE Name="/boot/config/plugins/&name;/dialog-1.3_20200327-x86_64-1.txz" Mode="666">
    <URL>&gitURL;/source/packages/dialog-1.3_20200327-x86_64-1.txz</URL>
    <MD5>f7de2c4a0984e8f0e32a2140845dc862</MD5>
  </FILE>
  <!--The 'preclear_disk_ori.sh' script.-->
  <FILE Name="/usr/local/sbin/preclear_disk_ori.sh" Mode="755">
    <URL>&gitURL;/source/packages/preclear_disk_20.sh</URL>
  </FILE>
  <!--
The 'packages-install' script.
-->
  <FILE Run="/bin/bash">
    <INLINE>
unsupported="/var/state/&name;/unsupported"

# Creating some directories
mkdir -p /tmp/.preclear/ /usr/local/bin/ /var/state/&name;/

download_install() {
  local dest="/boot/config/plugins/&name;/${2}"
  local src="&gitURL;/source/packages/${2}"
  local pkg=$(echo "${2}" | rev | cut -f 3- -d '-' | cut -d '-' -f2- | rev)
  local ver=$(echo "${2}" | rev | cut -f 3- -d '-' | cut -d '-' -f1 | rev)

  local md5=$1
  if [ ! -f "${dest}" ]; then
    curl --location --silent --fail "${src}" --output "${dest}"
  fi
  file_md5=$(/usr/bin/md5sum ${dest})
  if [ "${file_md5:0:32}" != "${md5:0:32}" ]; then
    echo "Wrong '${2}' package md5 hash."
    rm "${dest}"
    exit 1
  fi

  while read p; do
    local _pkg=$(echo "$p" | rev | cut -f 3- -d '-' | cut -d '-' -f2- | rev)
    if [ "$pkg" == "$_pkg" ]; then
      local ipkg=$_pkg
      local iver=$(echo "$p" | rev | cut -f 3- -d '-' | cut -d '-' -f1 | rev)
      break
    fi
  done < <(find /var/lib/pkgtools/packages/ -type f -printf '%P\n')

  if [ -n "$ipkg" ]; then
    if php -r "exit((version_compare('$ver','$iver', '>=') ) ? 0 : 1);"; then
      echo "$pkg version $ver is greater or equal than the installed version ($iver), installing..."
      /sbin/upgradepkg --install-new "$dest"
    else
      echo "$pkg version $ver is lower than the installed version ($iver), aborting..."
      echo "$pkg version $ver is lower than the installed version ($iver), aborting..." | logger -t "root: plugin: &name;.plg"
    fi
  else
    echo "installing package $pkg version $ver...."
    echo "installing package $pkg version $ver...." | logger -t "root: plugin: &name;.plg"
    /sbin/upgradepkg --install-new "$dest"
  fi
}

is_unraid_version() {
  if [ -f "/etc/unraid-version" ]; then
    . /etc/unraid-version
  else
    version="0.0"
  fi
  return $( php -r "echo ( version_compare('$version','$2', '$1') ) ? 0 : 1;" )
}

if [ -f "$unsupported" ]; then
  rm "$unsupported"
fi

if is_unraid_version '>=' '6.5.3' && is_unraid_version '<' '6.6.3'; then
#  download_install c04358fd7d7cb0b5ca67f215871f3692 ncurses-6.0-x86_64-3.txz
  download_install 9ba9d61dcd90d45719d27b9e7a111913 libevent-2.1.8-x86_64-1.txz
  download_install a48783401331620b7c7e5d7af58f53db tmux-2.5-x86_64-1.txz
  download_install aed1f39d4a5acddb225b542145e0eeaf utempter-1.1.6-x86_64-2.txz

elif is_unraid_version '>=' '6.6.3' && is_unraid_version '<' '6.7'; then
#  download_install 96ebaee8f6a62f220dbdf4723a81e535 ncurses-6.1_20180324-x86_64-1.txz
  download_install 9ba9d61dcd90d45719d27b9e7a111913 libevent-2.1.8-x86_64-1.txz
  download_install a4a7fdd5ff9910bee3477a2aa0e5fa25 tmux-2.7-x86_64-1.txz
  download_install aed1f39d4a5acddb225b542145e0eeaf utempter-1.1.6-x86_64-2.txz

elif is_unraid_version '>=' '6.7' && is_unraid_version '<' '6.8.0-rc1'; then
#  download_install 007c068e334c2358621d3d1ea959da80 ncurses-6.1_20190112-x86_64-1.txz
  download_install 4e76295aad8c9bf8c98301a9b7ec2e64 libevent-2.1.8-x86_64-3.txz
  download_install 00d6b305ad4f01504a9419dd959e8cce openssl10-solibs-1.0.2o-x86_64-1.txz
  download_install a40eef8aa01885ff6ea592a7e8e6b2da tmux-2.8-x86_64-1.txz
  download_install 1af347c4d9feff774320d9c1e7920ac3 utempter-1.1.6-x86_64-3.txz

elif is_unraid_version '>=' '6.8.0-b1' && is_unraid_version '<' '6.8.3'; then
  download_install 7dabee590ed5b5e47b17480dec367636  tmux-3.0a-x86_64-1.txz
  download_install a6e7015c850fcfc5a56f42b740c0a4ba  libevent-2.1.11-x86_64-1.txz
  download_install 1af347c4d9feff774320d9c1e7920ac3  utempter-1.1.6-x86_64-3.txz

elif is_unraid_version '>=' '6.8.3'; then
  download_install c8367090c89d26690be706c7fb3db5fc  tmux-3.1b-x86_64-1.txz
  download_install a6e7015c850fcfc5a56f42b740c0a4ba  libevent-2.1.11-x86_64-1.txz
  download_install 1af347c4d9feff774320d9c1e7920ac3  utempter-1.1.6-x86_64-3.txz

else
  echo "unRAID version ($version) not supported."
  echo "unRAID version ($version) not supported." | logger -t "root: plugin: &name;.plg"
  touch "$unsupported"
fi

# Fix tmux tmp directory if needed
if [ ! -d "/tmp/tmux-0" ]; then
  mkdir /tmp/tmux-0
fi
chmod 700 /tmp/tmux-0
chown -R root:root /tmp/tmux-0

# Verify if tmux is working correctly
/usr/bin/tmux new-session -d -x 140 -y 200 -s "install_test_session" &>/dev/null
sleep 0.5
/usr/bin/tmux kill-session -t "install_test_session" &>/dev/null
if [ $? -ne 0 ]; then
  echo "tmux is not working properly"
  echo "tmux is not working properly" | logger -t "root: plugin: &name;.plg"
  touch "$unsupported"
fi

# Verify and install plugin package
sum1=$(/usr/bin/md5sum /boot/config/plugins/&name;/&name;-&version;.txz)
sum2=$(/usr/bin/cat /boot/config/plugins/&name;/&name;-&version;.md5)
if [ "${sum1:0:32}" != "${sum2:0:32}" ]; then
  echo "Wrong 'plugin' package md5 hash."
  rm /boot/config/plugins/&name;/&name;-&version;.txz
  rm /boot/config/plugins/&name;/&name;-&version;.md5
  exit 1
else
  for old in $(find /var/lib/pkgtools/packages/ -iname "preclear.disk-*"); do
    removepkg "$old"
  done
  upgradepkg --install-new /boot/config/plugins/&name;/&name;-&version;.txz
fi

</INLINE>
  </FILE>
  <!--
The 'post-install' script.
-->
  <FILE Run="/bin/bash">
    <INLINE>
# Create a symlink to /root/mdcmd
if [[ ! -e /root/mdcmd ]]; then
  ln -sf /usr/local/sbin/mdcmd /root/mdcmd
fi

#dismissed="/boot/config/plugins/statistics.sender/dismissed"
#version_dismiss="/boot/config/plugins/&name;/statistics.sender.dismissed-&version;"
#if [ ! -f "$version_dismiss" ]; then
#  rm -f "$dismissed"
#  touch "$version_dismiss"
#fi

# Make sure log file exists
touch /var/log/preclear.disk.log

# Set correct terminal type for TMUX
echo "set -g default-terminal '$TERM'" > /root/.tmux.conf

# Update file access mode
chmod 644 $(awk '/\.(htm|php|js|page|css|png|plg|gif|cfg|md)$/ {print "/"$0}' /var/log/packages/&name;-&version;)
chmod -R 755 /usr/local/emhttp/plugins/&name;/script/
ln -sf /usr/local/emhttp/plugins/&name;/script/preclear.sh /usr/local/bin/preclear

# Install diskinfo service
cp /usr/local/emhttp/plugins/&name;/rc.diskinfo /etc/rc.d/rc.diskinfo
chmod +x /etc/rc.d/rc.diskinfo

# Add CRON entry to keep alive
cat <<'EOT' > /etc/cron.d/diskinfo
# Diskinfo daemon keepalive
*/1 * * * * /etc/rc.d/rc.diskinfo --daemon &> /dev/null
EOT
chmod 600 /etc/cron.d/diskinfo

# Add UDEV rule
mv /usr/local/emhttp/plugins/&name;/99_diskinfo.rules /etc/udev/rules.d/99_diskinfo.rules
chmod 644 /etc/udev/rules.d/99_diskinfo.rules
udevadm control --reload-rules

# Cleaning old source files
find /boot/config/plugins/&name;/ -type f -iname "&name;*.txz" ! -iname "*&version;*" -delete
find /boot/config/plugins/&name;/ -type f -iname "&name;*.md5" ! -iname "*&version;*" -delete
find /boot/config/plugins/&name;/ -type f -iname "tor-*.txz" -delete

# Start diskinfo
/etc/rc.d/rc.diskinfo --quit &>/dev/null
rm -f /var/local/emhttp/plugins/diskinfo/diskinfo.json &>/dev/null
echo "sleep 5 ; /etc/rc.d/rc.diskinfo --daemon &>/dev/null" | at now &>/dev/null

# Plugin version
echo "&version;" > /var/state/preclear.disk/version

echo ""
echo "-----------------------------------------------------------"
echo " &name; has been installed."
echo " Copyright 2015-2020, gfjardim"
echo " Version: &version;"
echo "-----------------------------------------------------------"
echo ""
</INLINE>
  </FILE>
  <!--
Change image icon to font icon if possible
-->
  <FILE Run="/usr/bin/at -M now 2>/dev/null ">
    <INLINE>
#!/bin/bash

# Change PNG icon to SVG icon if possible
font_file="/usr/local/emhttp/webGui/styles/font-unraid.svg"
if [ -f "$font_file" ]; then
  icon_exists=$(grep -c "preclear" "$font_file" 2>/dev/null)
  if [ "$icon_exists" -gt 0 ]; then
    sed -i -e 's/preclear.disk.png/icon-preclear/g' /usr/local/emhttp/plugins/&name;/Preclear.page
    sed -i -e '/^---/i Tag=\"icon-preclear\"' /usr/local/emhttp/plugins/&name;/Preclear.page
  elif [ "$icon_exists" -eq 0 ]; then
    sleep 5
    sed -i -e 's/icon=\"icon-preclear\"//g' /boot/config/plugins/&name;.plg
  fi
fi
</INLINE>
  </FILE>
  <!--
The 'remove' script.
-->
  <FILE Run="/bin/bash" Method="remove">
    <INLINE>

# kill all preclear sessions
/usr/local/emhttp/plugins/&name;/script/clear_preclear.sh

# Remove plugin
removepkg &name;-&version;

# Remove diskinfo
rm /etc/cron.d/diskinfo
sleep 1
/etc/rc.d/rc.diskinfo --quit
rm /var/local/emhttp/plugins/diskinfo/diskinfo.json \
   /etc/rc.d/rc.diskinfo \
   /etc/udev/rules.d/99_diskinfo.rules
udevadm control --reload-rules

# Remove plugin related files
rm -f /usr/local/bin/preclear \
      /var/run/preclear_queue.pid \
      /var/log/preclear.disk.log \
      /usr/local/sbin/preclear_disk_ori.sh \
      /usr/local/sbin/readvz

# Remove plugin related directories
rm -rf /boot/config/plugins/&name; \
       /usr/local/emhttp/plugins/&name; \
       /var/state/&name; \
       /boot/.preclear \
       /tmp/.preclear

echo ""
echo "-----------------------------------------------------------"
echo " &name; has been uninstalled."
echo " Please reboot your server to complete uninstall this plugin."
echo " Copyright 2015-2020, gfjardim"
echo " Version: &version;"
echo "-----------------------------------------------------------"
echo ""

exit 0
</INLINE>
  </FILE>
</PLUGIN>



Any idea what's the deal?





Edited by tuxbass
Link to comment
  • 2 weeks later...

Hi,



I'm running a 2 cycle preclear on a 16TB drive to check for any issues, prior to using outside of Unraid. I'm now thinking 1 cycle will be enough for my needs. Does the Preclear log show that the 1st cycle is successful? Can I cancel the Preclear process, after the 1st cycle is complete and the 2nd cycle pre-read is running?

Link to comment

Hey guys,



I've been away for some time now, but I'm getting back. The problem was at some time in May my server stopped working. Since me and my family were living in our farm because of the Covid pandemic, I had no time to fix it and release updates to te plugin. The internet cover was non existent, so it keeps me from actively support this plugin.



So no more excuses, let's start fixing things.



On 7/15/2020 at 1:29 AM, tmchow said:

In the first post, the FAQ says the "bjp999" script is included by default. However, I don't see that script and only see "gfjardim" and "JoeL".   Sorry if I'm missing something...



When you see Joe L., it is the Joe L. script modified by bjp999, with the fast read option.





On 7/25/2020 at 3:49 PM, amiskell said:

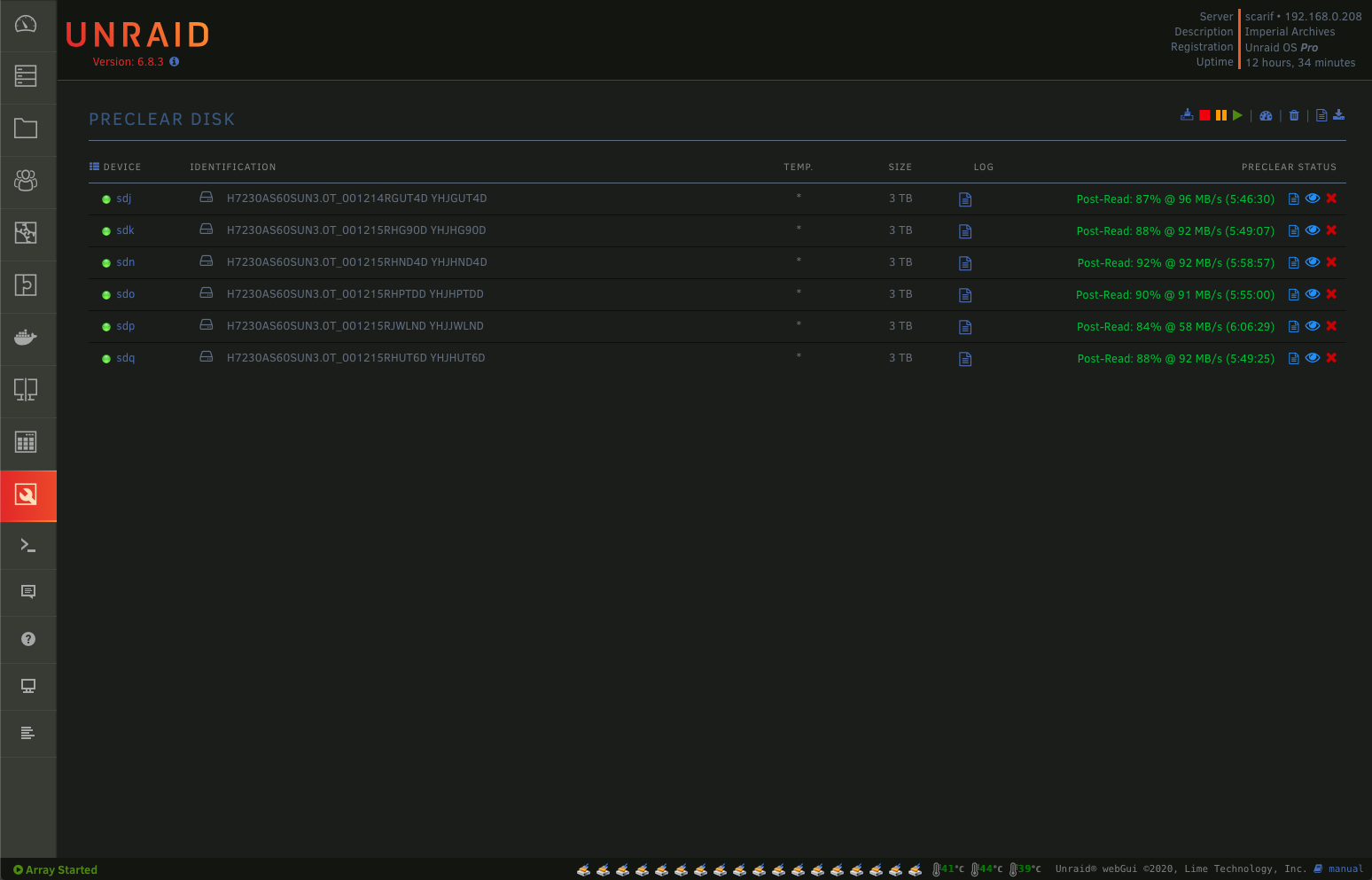

Is anyone seeing an issue with the preclear plugin were it repeatedly puts the preclear icons on the footer of the page?



Whenever I run a preclear on a drive, it just keeps adding the icons at the bottom of the footer over and over.



2037316661_ScreenShot2020-07-25at1_48_26PM.thumb.png.0bff612554dac4c422db13be17065770.png



Thanks for reporting, I'll investigate and submit a fix soon.







On 8/15/2020 at 12:14 AM, TheJavarian said:

Hello everyone.

New guy here. I just setting my Unraid unit. Got some used disks and new ones.



I used this Preclear plug-in for check up and one of my new disk came with strange output. I was hoping someone here could help me out to figure out whether I got a bad disk or there might be something wrong with Preclear.



At the end, Preclear says it was successful.

And here's some output. Please note that I got two pause and resume, due to Array Restart.

In Second attachment, Preclear Log, from line of "Aug 11 09:53:57" I started getting strange message, and eventually Preclear killed hung process.



[...]



I am currently running 2nd round, and the the result is very similar. I have another 20 hours to go. If anyone interested, I will include it here.



Thank you all in advance.













No errors there, sometimes dd do hang and the script can kill it and start it again from the point it stopped.





On 8/29/2020 at 5:40 AM, randallisation said:

Can plugins get automatically removed?



I used preclear on a 12TB drive just days ago to ready it for replacing my 6TB parity disk. Now that's swapped I was going to clear the old 6TB disk.



Preclear is gone. No icons under tools. Not listed under installed Apps anymore?



Yes, they can if the installation process fails. Since it doesn't check if you have a working internet connection, it can fail if no internet is available.





On 8/30/2020 at 10:04 PM, CaptainTivo said:

Shucked a 10 TB WD100EMAZ from a WD Easystore from Best Buy.  I tried to run pre-clear and it failed 50% in.  I put the drive back into the case attached it to my PC and ran the WD Lifeguard extended diagnostics test (13 hours) and it passed.  So I tried again and this time pre-read failed at 30% in.  The log shows that the dd command failed to open the drive. (log attached).

I used pre-clear on an identical disk 6 months ago and it worked fine.  Can someone tell me if this disk is bad or is my system starting to get flaky?  It has been rock solid for over 9 years (with new disks and Unraid updates).

Thanks.





WD test.JPG

preclear_log.txt 4.27 kB · 2 downloads



Your drive seems ok, there is a script error somewhere I need to patch.





On 9/11/2020 at 4:17 AM, JorgeB said:

It's likely checking for trim support, WD SMR drives report they do, if that's true plugin could check if the drive is non rotational instead.







Yep, that's it. It will check for the rotational status instead of discard availability in the next version.





On 9/22/2020 at 10:28 AM, tjb_altf4 said:

Ability to resume the preclear session was a greatly appreciated inclusion, as I discovred today.



Had a power outage, UPS allowed gracious shutdown, but was halfway though a 10TB preclear at the time.

Much to my surprise, when I went to start the preclear again on next bootup, it offered to resume... amazing, thank you @gfjardim



My script supports resume for some time now, at the expense of writing some data every 5 minutes on the flash drive. Glad it helped you.



16 hours ago, newoski said:

Hi,



I'm running a 2 cycle preclear on a 16TB drive to check for any issues, prior to using outside of Unraid. I'm now thinking 1 cycle will be enough for my needs. Does the Preclear log show that the 1st cycle is successful? Can I cancel the Preclear process, after the 1st cycle is complete and the 2nd cycle pre-read is running?



If it's running the second cycle, you can assume it passed the first one and stop it if you like.



Edited by gfjardim
Link to comment

Hello everyone,

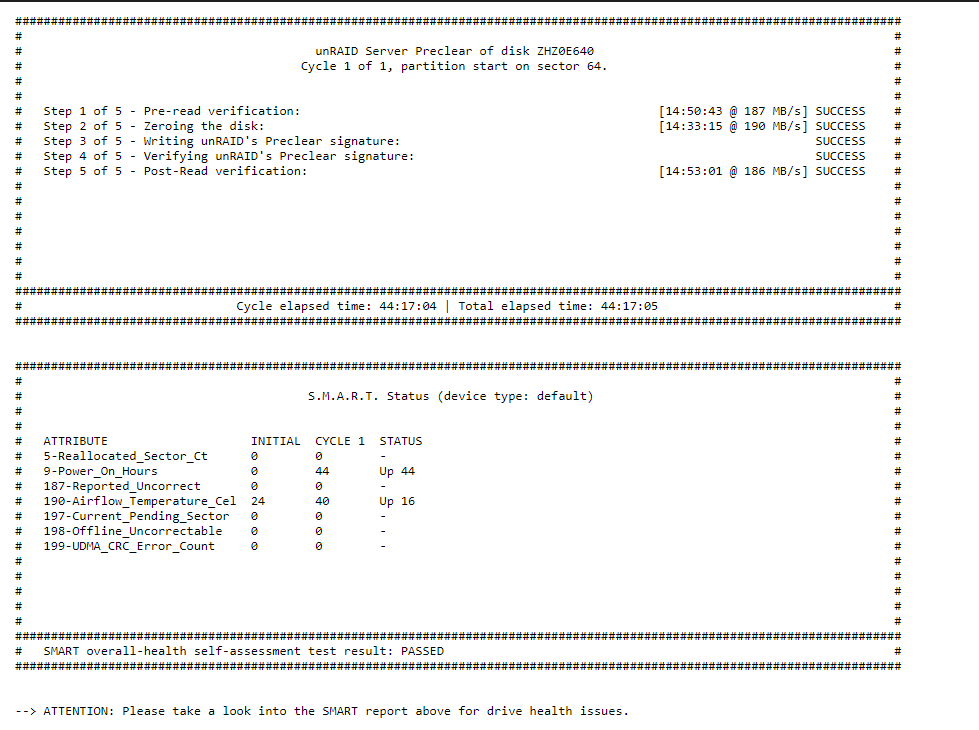

I just preclear one of my HDD ( Seagate IronWolf 10TB ST10000VN0008 ) and I got some errors:



Sep 28 18:05:26 Tower kernel: ata5: SATA max UDMA/133 abar m131072@0xfca80000 port 0xfca80300 irq 42
Sep 28 18:05:26 Tower kernel: ata5: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Sep 28 18:05:26 Tower kernel: ata5.00: ATA-11: ST10000VN0008-2JJ101, ZHZ0E640, SC60, max UDMA/133
Sep 28 18:05:26 Tower kernel: ata5.00: 19532873728 sectors, multi 16: LBA48 NCQ (depth 32), AA
Sep 28 18:05:26 Tower kernel: ata5.00: configured for UDMA/133
Sep 28 18:05:26 Tower kernel: sd 5:0:0:0: [sdd] 19532873728 512-byte logical blocks: (10.0 TB/9.10 TiB)
Sep 28 18:05:26 Tower kernel: sd 5:0:0:0: [sdd] 4096-byte physical blocks
Sep 28 18:05:26 Tower kernel: sd 5:0:0:0: [sdd] Write Protect is off
Sep 28 18:05:26 Tower kernel: sd 5:0:0:0: [sdd] Mode Sense: 00 3a 00 00
Sep 28 18:05:26 Tower kernel: sd 5:0:0:0: [sdd] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
Sep 28 18:05:26 Tower kernel: sd 5:0:0:0: [sdd] Attached SCSI disk
Sep 28 18:06:00 Tower emhttpd: ST10000VN0008-2JJ101_ZHZ0E640 (sdd) 512 19532873728
Sep 28 18:06:03 Tower root: /usr/sbin/wsdd
Sep 28 18:06:10 Tower root: /usr/sbin/wsdd
Sep 28 18:07:37 Tower preclear_disk_ZHZ0E640[19104]: Command: /usr/local/emhttp/plugins/preclear.disk/script/preclear_disk.sh --cycles 1 --no-prompt /dev/sdd
Sep 28 18:07:41 Tower preclear_disk_ZHZ0E640[19104]: Pre-Read: dd if=/dev/sdd of=/dev/null bs=2097152 skip=0 count=10000831348736 conv=notrunc,noerror iflag=nocache,count_bytes,skip_bytes
Sep 29 08:58:24 Tower preclear_disk_ZHZ0E640[19104]: Zeroing: dd if=/dev/zero of=/dev/sdd bs=2097152 seek=2097152 count=10000829251584 conv=notrunc iflag=count_bytes,nocache,fullblock oflag=seek_bytes
Sep 29 23:31:41 Tower preclear_disk_ZHZ0E640[19104]: Post-Read: cmp /tmp/.preclear/sdd/fifo /dev/zero
Sep 29 23:31:41 Tower preclear_disk_ZHZ0E640[19104]: Post-Read: dd if=/dev/sdd of=/tmp/.preclear/sdd/fifo count=2096640 skip=512 conv=notrunc iflag=nocache,count_bytes,skip_bytes
Sep 29 23:31:42 Tower preclear_disk_ZHZ0E640[19104]: Post-Read: cmp /tmp/.preclear/sdd/fifo /dev/zero
Sep 29 23:31:42 Tower preclear_disk_ZHZ0E640[19104]: Post-Read: dd if=/dev/sdd of=/tmp/.preclear/sdd/fifo bs=2097152 skip=2097152 count=10000829251584 conv=notrunc iflag=nocache,count_bytes,skip_bytes
Sep 30 02:22:27 Tower kernel: ata5.00: exception Emask 0x0 SAct 0x427842 SErr 0x0 action 0x6 frozen
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/00:08:00:e4:ac/06:00:15:01:00/40 tag 1 ncq dma 786432 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/01:30:00:00:00/00:00:00:00:00/40 tag 6 ncq dma 512 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/c0:58:00:ea:ac/06:00:15:01:00/40 tag 11 ncq dma 884736 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/40:60:c0:f0:ac/03:00:15:01:00/40 tag 12 ncq dma 425984 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/01:68:ff:ff:3f/00:00:8c:04:00/40 tag 13 ncq dma 512 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/01:70:bb:06:0a/00:00:b9:00:00/40 tag 14 ncq dma 512 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/01:88:ae:d6:d1/00:00:f3:00:00/40 tag 17 ncq dma 512 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5.00: failed command: READ FPDMA QUEUED
Sep 30 02:22:27 Tower kernel: ata5.00: cmd 60/01:b0:44:ac:b6/00:00:b2:00:00/40 tag 22 ncq dma 512 in
Sep 30 02:22:27 Tower kernel: ata5.00: status: { DRDY }
Sep 30 02:22:27 Tower kernel: ata5: hard resetting link
Sep 30 02:22:27 Tower kernel: ata5: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Sep 30 02:22:27 Tower kernel: ata5.00: configured for UDMA/133
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#1 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08 cmd_age=31s
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#1 Sense Key : 0x5 [current]
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#1 ASC=0x21 ASCQ=0x4
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#1 CDB: opcode=0x88 88 00 00 00 00 01 15 ac e4 00 00 00 06 00 00 00
Sep 30 02:22:27 Tower kernel: blk_update_request: I/O error, dev sdd, sector 4658619392 op 0x0:(READ) flags 0x80700 phys_seg 71 prio class 0
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#11 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08 cmd_age=31s
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#11 Sense Key : 0x5 [current]
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#11 ASC=0x21 ASCQ=0x4
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#11 CDB: opcode=0x88 88 00 00 00 00 01 15 ac ea 00 00 00 06 c0 00 00
Sep 30 02:22:27 Tower kernel: blk_update_request: I/O error, dev sdd, sector 4658620928 op 0x0:(READ) flags 0x84700 phys_seg 168 prio class 0
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#12 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08 cmd_age=31s
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#12 Sense Key : 0x5 [current]
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#12 ASC=0x21 ASCQ=0x4
Sep 30 02:22:27 Tower kernel: sd 5:0:0:0: [sdd] tag#12 CDB: opcode=0x88 88 00 00 00 00 01 15 ac f0 c0 00 00 03 40 00 00
Sep 30 02:22:27 Tower kernel: blk_update_request: I/O error, dev sdd, sector 4658622656 op 0x0:(READ) flags 0x80700 phys_seg 98 prio class 0
Sep 30 02:22:27 Tower kernel: ata5: EH complete



But the SMART is telling me that there are no errors:






This HDD is good or not ?



Link to comment
16 minutes ago, JorgeB said:

Looks more like a connection problem, but the full SMART report might give a better idea.

smartctl 7.1 2019-12-30 r5022 [x86_64-linux-5.7.8-Unraid] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Seagate IronWolf
Device Model:     ST10000VN0008-2JJ101
Serial Number:    ZHZ0E640
LU WWN Device Id: 5 000c50 0c4c9d6bb
Firmware Version: SC60
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-4 (minor revision not indicated)
SATA Version is:  SATA 3.3, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Wed Sep 30 15:05:32 2020 EEST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (  567) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   1) minutes.
Extended self-test routine
recommended polling time:        ( 976) minutes.
Conveyance self-test routine
recommended polling time:        (   2) minutes.
SCT capabilities:              (0x50bd) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000f   083   066   044    Pre-fail  Always       -       181010104
  3 Spin_Up_Time            0x0003   097   097   000    Pre-fail  Always       -       0
  4 Start_Stop_Count        0x0032   100   100   020    Old_age   Always       -       2
  5 Reallocated_Sector_Ct   0x0033   100   100   010    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000f   073   060   045    Pre-fail  Always       -       17920743
  9 Power_On_Hours          0x0032   100   100   000    Old_age   Always       -       45
 10 Spin_Retry_Count        0x0013   100   100   097    Pre-fail  Always       -       0
 12 Power_Cycle_Count       0x0032   100   100   020    Old_age   Always       -       2
 18 Unknown_Attribute       0x000b   100   100   050    Pre-fail  Always       -       0
187 Reported_Uncorrect      0x0032   100   100   000    Old_age   Always       -       0
188 Command_Timeout         0x0032   100   100   000    Old_age   Always       -       0
190 Airflow_Temperature_Cel 0x0022   067   049   040    Old_age   Always       -       33 (Min/Max 23/48)
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       1
193 Load_Cycle_Count        0x0032   100   100   000    Old_age   Always       -       8
194 Temperature_Celsius     0x0022   033   048   000    Old_age   Always       -       33 (0 23 0 0 0)
195 Hardware_ECC_Recovered  0x001a   083   066   000    Old_age   Always       -       181010104
197 Current_Pending_Sector  0x0012   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0010   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x003e   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0023   100   100   001    Pre-fail  Always       -       0
240 Head_Flying_Hours       0x0000   100   253   000    Old_age   Offline      -       44 (73 169 0)
241 Total_LBAs_Written      0x0000   100   253   000    Old_age   Offline      -       19532873744
242 Total_LBAs_Read         0x0000   100   253   000    Old_age   Offline      -       39066002256

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%        44         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

Link to comment
Thank you for your replies. At the moment I have a second HDD in preclearing, but after that I will change the cables and I post again if I have issues or not.
You don't need to wait, just stop the running preclean, change cables and resume the running instance.

Enviado de meu SM-N970F usando o Tapatalk

Link to comment

Hello, on the OP of the this thread it seems to say that no additional script needs to be added (has a line through it and such). BUT, in CA where you download the plugin, it says an additional script needs to be added and to check the support thread.



I just downloaded the plugin and just want to verify if I need to install a script or if it is now added to the plugin.



Thanks!

Link to comment
10 minutes ago, SPOautos said:

Hello, on the OP of the this thread it seems to say that no additional script needs to be added (has a line through it and such). BUT, in CA where you download the plugin, it says an additional script needs to be added and to check the support thread.



I just downloaded the plugin and just want to verify if I need to install a script or if it is now added to the plugin.



Thanks!

No other script needed, just install and run.

  • Thanks 1
Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
