Corsair RMi, HXi, AXi PSU Statistics - CyanLabs's fork

[MindRazorblade 2]

On 4/7/2020 at 8:09 AM, TeCH-Guruz said:

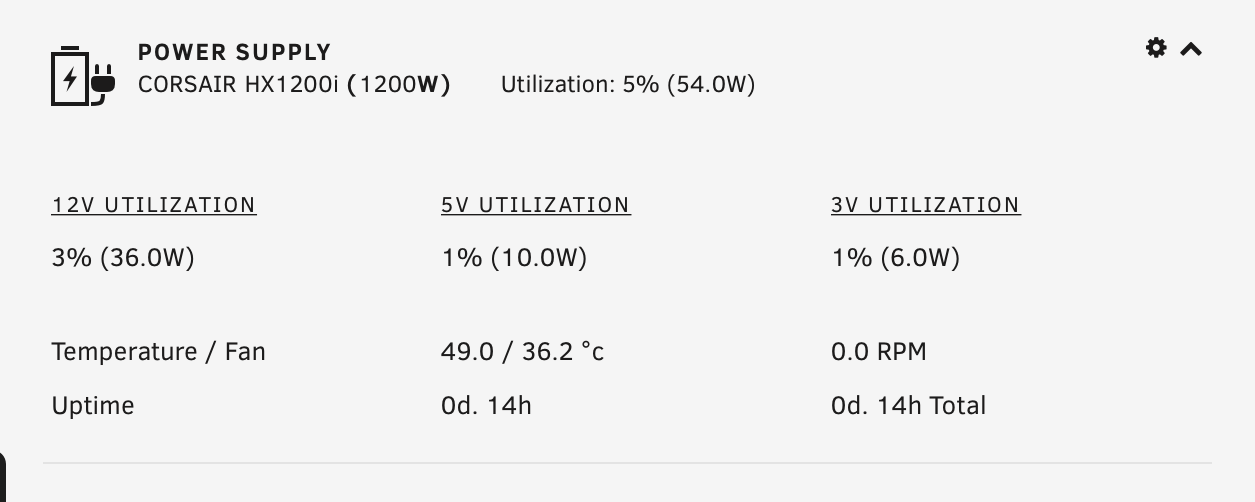

Love this plugin might have gone overkill on the psu though lol.

Did you have to do anything special to get this working? I have the same HX series and mine is blank.

[TeCH-Guruz 1]

2 hours ago, MindRazorblade said:

Did you have to do anything special to get this working? I have the same HX series and mine is blank.

Nothing special buddy just plug the corsair link cable into a usb2 header on the motherboard. Any chance you are passing your usb header through on a vm? I did notice if I pass it through to a windows vm it will be blank while the vm is active, as soon as I shut the vm down it comes back up though and I don't have any real reason to pass it through to windows anyway,

[Fma965 19]

8 hours ago, MindRazorblade said:

Did you have to do anything special to get this working? I have the same HX series and mine is blank.

make sure this is set to HX,



Also can you show what you mean by it being blank

[MindRazorblade 2]

Sorry, I'm mistaken. Mine is an HX only. I wasn't aware of the i model. I'll add that to the FOMO wishlist. Thanks!

[principino1984 0]

Awesome!





Thanks a lot!

[mintjberry 4]

Hi, is the AX860i supported? I'm looking at purchasing it. I don't know how to integrate 'cpsumoncli' with this plugin (if that's what I need to do)?

Thanks

[Snubbers 4]

Another happy user:





I just picked up the RM850i second hand and negotiated based on the fact I presumed the 'i' part would be useless on UNRAID so got a bit knocked off..

Imagine my surprise when I suddenly came across this in the app store and plugged in the USB cable internally and it just worked!



The only stat I was slightly intrigued about was the overall power draw, as I have 5 HDDs, 2 NVME Drives and 3 SSDs with a GTX1660 Super this is about what I'd expect when not doing too much.

Edited June 8, 2020 by Snubbers

[seredin 0]

On 3/2/2020 at 5:01 AM, Ahmed said:

Not 100% sure this is going to work properly and im sure there's prob a better way to do this.. i just wrote up a super amazing script to export the data into influxdb



[[stuff]]



***ok scratch that. it didnt seem to work...... seems like it wont input the results even though they appear to be clearly showing in the file.



Man, good effort. Has anyone managed to get this working? PSU stats exported to telegraf / influxDB would be amazing.

[chris_netsmart 14]

thanks for the great plugin,  works straight of the bat.

time to play around with it and get it into a nice graph.



[luixmod 0]

I have a corsair ax1500i i cant conect, some one have luck with this power suplly?

[RifleJock 1]

So, I've got a bit of a weird situation.

I do need assistance with setting this up as well. Not sure what I'm missing but I can't seem to figure out how to get the plugin to point to the correct device.

Also, I happen to be running 3 AXi power supplies, thankfully all different wattage capabilities or I fear that might make things more complicated.

Is there a way to setup multiple versions of this plugin to run at once so that I may monitor all three power supplies?

By process of elimination, I unplugged one by one the usb to these PSU's to determine the correct device id.

1b1c:0c04 Corsair Link Cooling Node
1b1c:1d00 Corsair (AX1200i)
1b1c:1b12 Corsair (AX860i)
1b1c:1c02 Corsair (AX1500i)

Here is the current output. Also, not sure why. but my Bus 003 Device 016: ID 1b1c:1c02 Corsair in this output keeps changing device numbers. 10 minutes ago, it was Device 014, then a few moments later 015. Nothing else seems to be "flapping" causing this counter to change. I believe this PSU is under roughly 98% load atm, and often blinks orange on the led. Also not sure what that means.



IOMMU group 39:[8086:8d31] 00:14.0 USB controller: Intel Corporation C610/X99 series chipset USB xHCI Host Controller (rev 05)

Bus 003 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub

Bus 003 Device 002: ID 0b05:180a ASUSTek Computer, Inc. Broadcom BCM20702 Single-Chip Bluetooth 4.0 + LE

Bus 003 Device 003: ID 05e3:0608 Genesys Logic, Inc. Hub

Bus 003 Device 004: ID 05e3:0608 Genesys Logic, Inc. Hub

Bus 003 Device 005: ID 1b1c:0c04 Corsair Link Cooling Node

Bus 003 Device 006: ID 174c:2074 ASMedia Technology Inc. ASM1074 High-Speed hub

Bus 003 Device 007: ID 1b1c:1d00 Corsair

Bus 003 Device 009: ID 13fe:4200 Kingston Technology Company Inc. USB DISK 2.0

Bus 003 Device 010: ID 05e3:0610 Genesys Logic, Inc. 4-port hub

Bus 003 Device 011: ID 248a:8367 Maxxter

Bus 003 Device 012: ID 0781:5571 SanDisk Corp. Cruzer Fit

Bus 003 Device 013: ID 1b1c:1b12 Corsair

Bus 003 Device 016: ID 1b1c:1c02 Corsair

Bus 004 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub

Bus 004 Device 002: ID 174c:3074 ASMedia Technology Inc. ASM1074 SuperSpeed hub



Any help would be greatly appreciated!



-Jockie

Edited September 12, 2020 by RifleJock
Spelling correction

[NOLA_DireWolff 11]

On 9/12/2020 at 7:57 AM, RifleJock said:

1b1c:1c02 Corsair (AX1500i)




I also have this device.  Did you get it working?

[RifleJock 1]

4 hours ago, NOLA_DireWolff said:



I also have this device.  Did you get it working?

Nope, never did get this working.

My USB ID's seem to be stable now however, and don't change at all. But the plugin still doesn't seem to ever detect any of the PSU's.



-Jockie

[MrxFantatsicx 0]

Bus 001 Device 003:ID 1b1c:1c00 Corsair Controller for Corsair Link

(CORSAIR AX860i (860W)

shows a AX760i as picture below shows need help.

[Ballantin 0]

Happy to report that it worked for me!

I may test it in my main system that have an AX1600i, but in my unRaid server with an AX1200i it works like a charm.



[turnipisum 12]

This is not refreshing the data on mine unless i reload dashboard page.

RM1000i

[Fma965 19]

1 hour ago, turnipisum said:

This is not refreshing the data on mine unless i reload dashboard page.

RM1000i

Same PSU as i have, something is wrong with your setup it works fine for me.

[turnipisum 12]

It works just doesn't auto update. What can i change there is no settings for the plugin.

What UR version are you on?

Edited December 5, 2020 by turnipisum

[turnipisum 12]

Just updated to rc-1 but still will only update if i refresh the page.

[Fma965 19]

1 minute ago, turnipisum said:

Just updated to rc-1 but still will only update if i refresh the page.

6.8.3 is what I'm using, you blocking javascript or something?

[Fma965 19]

On 12/5/2020 at 6:49 PM, turnipisum said:

there is no settings for the plugin.

There are settings just not settings to change what you need as it should just work

[turnipisum 12]

2 minutes ago, Fma965 said:

6.8.3 is what I'm using, you blocking javascript or something?

No java is on allow.

[Ixel 1]

I'm also having a similar problem where the data isn't automatically refreshing. No errors in the browser's console and I can see that it's no longer requesting new data about the PSU (only once and that's it). Seems to have happened since I went to 6.9 from I think 6.8.4.

Edited March 5 by Ixel

[Fma965 19]

Noted, way to busy to investigate this currently though

[b3rs3rk 46]

2 hours ago, Fma965 said:

Noted, way to busy to investigate this currently though



@Fma965

https://github.com/CyanLabs/corsairpsu-unraid/blob/224941e4e1f056decc07d1e422eb7c75c0019ae0/src/corsairpsu/usr/local/emhttp/plugins/corsairpsu/status.page#L97


That line is your problem.  You're looking for $update in PHP to be true but in 6.9.0 and up that variable is either not set (NULL) or set to false from the UnRAID code.  What I did for my plugin is allowed to the user to decide if they want it to automatically refresh while the dashboard is open or not and then checked that variable since I knew it would always be there.  But there are reasons (like log spam from a weird Nvidia issue) for doing that in my case that might not make sense in yours.  If you just want it to update regardless I would either get rid of that IF conditional or set $update in PHP to be true somewhere above that JavaScript portion of your page file.

https://github.com/b3rs3rk/gpustat-unraid/blob/f82c490d0d5f24d8777310aeaf9f7241d086a0dd/src/gpustat/usr/local/emhttp/plugins/gpustat/gpustatus.page#L234
