digiblur Posted June 4, 2018 Share Posted June 4, 2018 (edited) With my dive into the Home Automation scene my appetite for additional containers to use on the unRaid server has grown. All of the templates point to a docker container that I was able to import from the dockerhub and adjust the settings for the unRaid environment. I thought I would share these with everyone to save you a bit of work installing these. The list will grow as I have several others to add, but instead of waiting here are the current list: https://github.com/digiblur/unraid-docker-templates digiblur's unRaid-Docker-Templates Template files for various Docker Containers for use with Lime Technology, Inc. unRaid Server The docker containers referenced in this repo point to Docker Containers maintained by other individuals. These templates were created to make it easy for the average unRaid user to quickly install the containers without researching the various container variables and requirements. UNMS - Ubiquiti Network Management System https://unms.com/ Docker container maintained at - https://github.com/oznu/docker-unms Speedtest - Self hosted HTML5 Speedtest site Docker container maintained at - https://github.com/adolfintel/speedtest/tree/docker No Flash, No Java, No Websocket, No BS. This is a very lightweight Speedtest implemented in Javascript, using XMLHttpRequest and Web Workers. Great for troubleshooting bandwidth, ping and jitter issues through a reverse proxy with unRaid. TasmoAdmin TasmoAdmin (previously SonWEB) is an administrative Website for Home Automation Devices flashed with Sonoff-Tasmota. Video Tutorial: https://www.youtube.com/watch?v=vJUhRyi3-BQ Docker container maintained at - https://github.com/reloxx13/TasmoAdmin HA-Dockermon - HomeAssistant Docker Container Monitor A simple Node service which checks the status of a Docker Container and returns a RESTful response. It can also be used to issue start, stop, and restart commands. The primary purpose of this service is to interface with Home Assistant. Build automations/notifications for all of your docker containers and much more! Docker container maintained at - https://github.com/philhawthorne/ha-dockermon Custom HomeAssistant component to automatically add all the container "switches" to HA - https://github.com/HalfDecent/HA-Custom_components/tree/master/hadockermon SmartThings MQTT Bridge System to share and control SmartThings device states in MQTT. Setup is geared towards HomeAssistant but you can use any system that supports MQTT Docker container maintained at - https://github.com/stjohnjohnson/smartthings-mqtt-bridge Additional setup walk-through - https://community.home-assistant.io/t/anyone-integrated-smartthings-into-hassio-yet/25324 Edited June 27, 2018 by digiblur 4 Quote Link to comment
Keexrean Posted July 2, 2018 Share Posted July 2, 2018 Whenever SpeedTest is on, other dockers won't work properly. Deluge, Krusader, Resilio for example, start but will crash/resetloop if SpeedTest is already on. Quote Link to comment

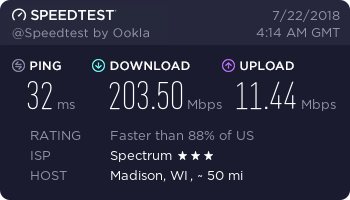

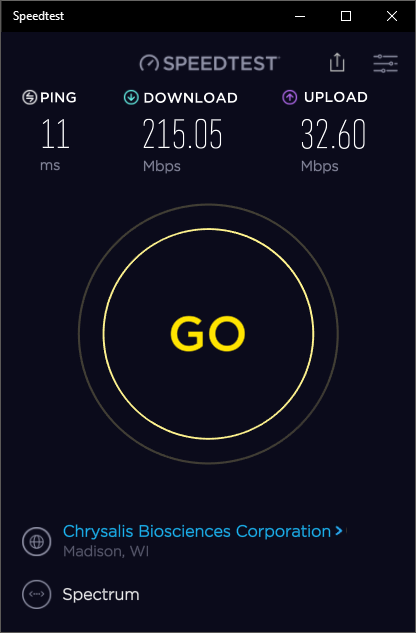

Warrentheo Posted July 22, 2018 Share Posted July 22, 2018 (edited) Regarding your Speedtest.net script, I love it, and it has already helped me to troubleshoot some issues with my ISP... This report doesn't really fall under the heading of "Bug Report", since the script appears to be working very well... I just wanted to let you know of a possible issue for some... The results generated by your script, or running SpeedTest.net in either Chrome or Edge all show similar results for my speed, so I suspect they are all running similar versions of the testing script... However when run in either Chrome or MS Edge it suggests that I download and install the Windows 10 UWP version of the SpeedTest App... Once installed and run from there, it consistently gets much higher results that are much closer to the speeds told to me by my ISP... Also for some reason the digiblur script is consistently reporting around 30ms-35ms ping instead of the 11ms ping everything else shows, when they all report they are connecting to the same server... Minor, just not able to explain it... Unfortunately my GoogleFu has come up short as to what exactly the difference is between them, and so I am not sure what if anything you can do to adjust the script to be more in line with the way the UWP app does it... All tests were from the same machine, with digiblur's Script running from the UnRaid Host, and all other results from a Windows 10 VM on the same host... It is mainly the Upload speed that changes in the app... I am available for questions or testing if needed ? Edited July 22, 2018 by Warrentheo Quote Link to comment
Pede Posted July 30, 2018 Share Posted July 30, 2018 I really like the Speedtest docker, but would it be possible to make the telemetry settings editable somehow? Or include a resultpage? Quote Link to comment
DieFalse Posted August 1, 2018 Share Posted August 1, 2018 So I am really liking this speedtest container. However I would love to see it use appdata or such so that we can edit telemetry and templates. I want to customize the page. Quote Link to comment

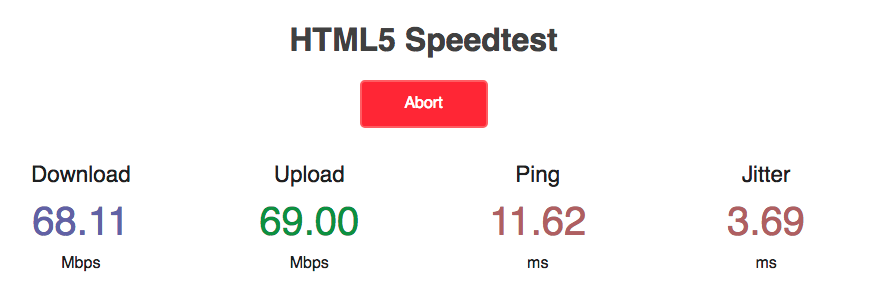

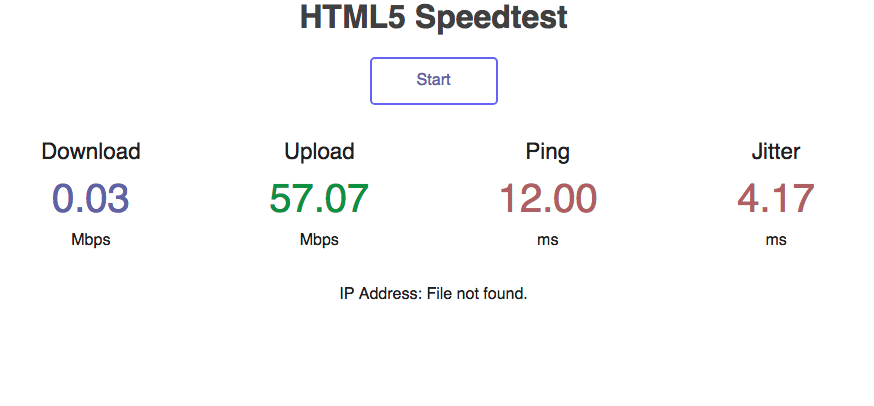

jsebright Posted August 17, 2018 Share Posted August 17, 2018 I think this is broken at the moment. Just tried uninstalling and reinstalling the container, but when running the test the speeds don't change and the IP Address is blank. In W10 on Edge, the speed counters and IP show "undefined". When I click "Start" there's definitely network traffic though. Quote Link to comment
PaDadof2 Posted August 18, 2018 Share Posted August 18, 2018 (edited) On 8/17/2018 at 6:18 AM, jsebright said: I think this is broken at the moment. Just tried uninstalling and reinstalling the container, but when running the test the speeds don't change and the IP Address is blank. In W10 on Edge, the speed counters and IP show "undefined". When I click "Start" there's definitely network traffic though. I'm getting the same thing. I know it was working, but something has broken it. Just curious, are you running PiHole? I thought it might have something to do with that. EDIT: PiHole didn't affect it at all. Edited August 20, 2018 by PaDadof2 Quote Link to comment
jsebright Posted August 20, 2018 Share Posted August 20, 2018 I'm not currently running PiHole, but I am running an adblocker on my router. Have just tried switching that off along with suspending adblock and ublock in the browser, but it makes no difference. Have tried a few browsers - the only one to show anything is Edge (and IE) on Windows which show "Undefined" so something is happening at the client end. If you look at "System Stats" you will see network activity (as long as you're not in a VM on the Unraid server!), so it's likely it's just the display widgets which are broken client side. Quote Link to comment
jsebright Posted August 22, 2018 Share Posted August 22, 2018 Latest update has fixed this. Many thanks. Quote Link to comment
benflux Posted November 7, 2018 Share Posted November 7, 2018 (edited) I've got everything looking like it's connected but discovery returns no devices, even though i've ticked a couple in the Smartthings App. How do I diagnose: "This integration has no devices." Edited November 7, 2018 by benflux Quote Link to comment
nickro8303 Posted November 16, 2018 Share Posted November 16, 2018 I don't know if any body else is having this issue but UNMS keeps growing the log size and filling up my Docker image. Is there any way to prevent this? I've gone through the app and removed the backups and downloaded firmware but it continues to keep growing. What is causing this? Quote Link to comment
Squid Posted November 16, 2018 Share Posted November 16, 2018 1 minute ago, nickro8303 said: growing the log size and filling up my Docker image. Is there any way to prevent this? Quote Link to comment

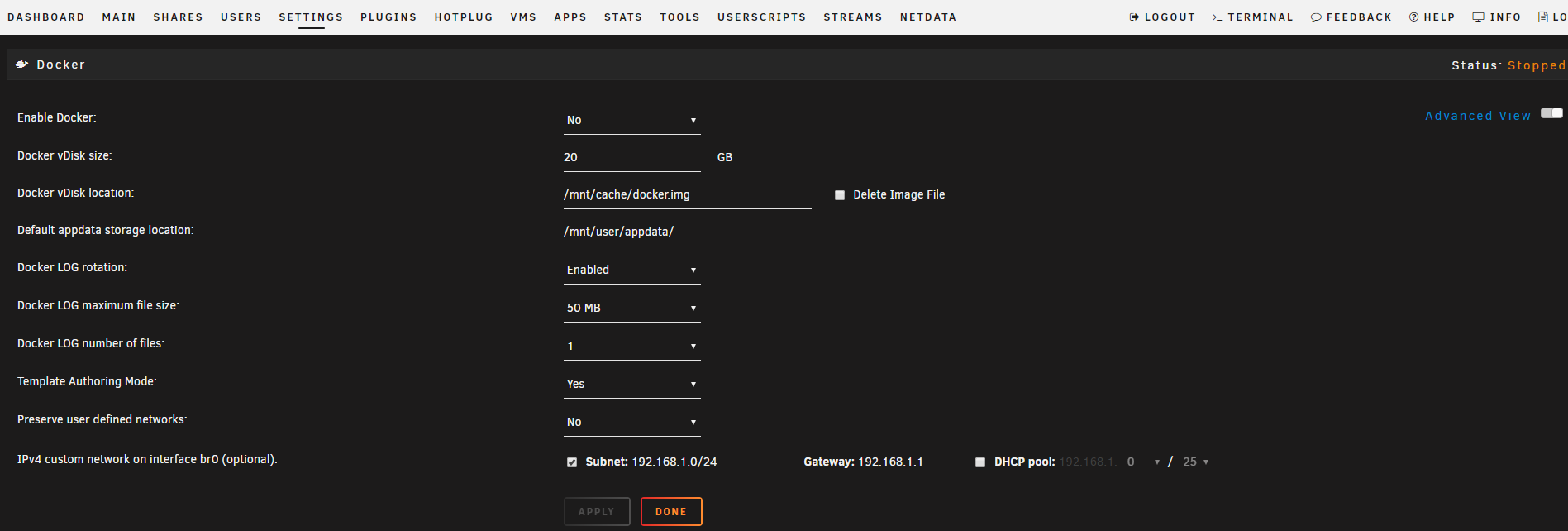

nickro8303 Posted November 16, 2018 Share Posted November 16, 2018 (edited) @Squid I checked those settings and everything is set correctly. Image is still at 77%. Edited November 16, 2018 by nickro8303 Quote Link to comment
ndaringer Posted November 24, 2018 Share Posted November 24, 2018 (edited) Anyone know how to feed the speedtest docker through the linuxserver/letsencrypt docker? I'd like to be able to have remote plex users run a speedtest to my server. here's my nginx config: location /speedtest { proxy_pass http://10.X.X.X:6580; proxy_set_header Host $http_host; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Scheme $scheme; } I'm getting "ERR_CONNECTION_REFUSED" in chrome with my puny attempt to pass it through. Edit: I was not connecting to my https port. DUrrr. It still doesn't work right. Through nginx: Screen Shot 2018-11-23 at 7.21.54 PM Directly to the docker (IP Address field works correctly, I just missed it in the screenshot) Screen Shot 2018-11-23 at 7.23.17 PM apologies if this is the wrong place to post. Edited November 24, 2018 by ndaringer Quote Link to comment
MandalorePatriot Posted December 22, 2018 Share Posted December 22, 2018 @ndaringer I too am interested in the nginx reverse-proxy settings for the docker. Quote Link to comment
Random.Name Posted January 12, 2019 Share Posted January 12, 2019 i have searched the web for information for the past hours, but i can't get the speedtest docker working behind the already mentioned revere Proxy. The problem seems to be, that the speedtest_worker.min.js file wants to run from https://PROXNAME/speedtest_worker.min.js instead of https//PROXNAME/REVERSE/speedtest_worker.min.js i have no idea how to use nginx rewrite rules to fix this, everything i tried resulted in more errors :( Quote Link to comment
Random.Name Posted January 13, 2019 Share Posted January 13, 2019 On 11/24/2018 at 1:12 AM, ndaringer said: Anyone know how to feed the speedtest docker through the linuxserver/letsencrypt docker? I'd like to be able to have remote plex users run a speedtest to my server. here's my nginx config: location /speedtest { proxy_pass http://10.X.X.X:6580; proxy_set_header Host $http_host; proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for; proxy_set_header X-Scheme $scheme; } I'm getting "ERR_CONNECTION_REFUSED" in chrome with my puny attempt to pass it through. Edit: I was not connecting to my https port. DUrrr. It still doesn't work right. Through nginx: Screen Shot 2018-11-23 at 7.21.54 PM Directly to the docker (IP Address field works correctly, I just missed it in the screenshot) Screen Shot 2018-11-23 at 7.23.17 PM apologies if this is the wrong place to post. On 12/22/2018 at 5:47 AM, MandalorePatriot said: @ndaringer I too am interested in the nginx reverse-proxy settings for the docker. Well i have found a sollution that works... but it is not that great first i setup my nginx config file like this: location /speedtest { include /config/nginx/proxy.conf; proxy_pass http://192.168.178.22:6580/; } that way, i can access the speedtest remotely. My Problem was, that the js worker was not called correctly The "sollution" was to log into the speedtest docker console install nano or any other file editor edit the index.html file search for else{ //test is not running, begin w=new Worker('BASEURL/speedtest_worker.min.js'); w.postMessage('start'); //Add optional parameters as a JSON object to this command and change it so that you set your BASEURL/ correctly. This seems to work, but its not an ideal solution since it will be overwritten as soon as the docker container gets updated. Also it won't work anymore if you try to access it via your local ip... more of a bandaid solution Quote Link to comment
plupien79 Posted February 22, 2019 Share Posted February 22, 2019 What are our options for making adjustments to the speedtest? I'd like to play with duration and MTU settings in this docker. Quote Link to comment
Duckbuster Posted March 7, 2019 Share Posted March 7, 2019 I tried UNMS (I own an EdgeRouter) The webgui runs, everything seems fine. But when try to connect to my EdgeRouter it fails, and I think I know why. I tries to connect back to UNMS but using port 443, not 6443. You can see this by looking into the EdgeRouter System config, there you see the UNMS url is pointed at port 443. I will try to look into this more tonight, maybe by changing the UNMS port in the software to 6443 and then changing the docker mapping to 6443 -> 6443 Or maybe I am just doing something wrong Quote Link to comment
dandiodati Posted March 25, 2019 Share Posted March 25, 2019 (edited) I tried out the UNMS but when I tried to start it up the web ui fails and gave a posgres error in the logs, did you have to make any changes or did it just startup fine ? Tried with the latest version after removing the container and image anyone else get it working recently ? ... /var/run/postgresql:5432 - no response Waiting for postgres to come up... Starting postgres... {"name":"netflow","hostname":"9668b2b4b120","pid":323,"level":50,"msg":"Failed to get DB schema version: connect ECONNREFUSED 127.0.0.1:5432","time":"2019-03-27T07:33:32.105Z","v":0} /var/run/postgresql:5432 - no response Waiting for postgres to come up... Starting postgres... /var/run/postgresql:5432 - no response ... Starting postgres... {"name":"netflow","hostname":"9668b2b4b120","pid":323,"level":50,"msg":"Failed to get DB schema version: connect ECONNREFUSED 127.0.0.1:5432","time":"2019-03-27T07:35:02.156Z","v":0} ... Edited March 27, 2019 by dandiodati Quote Link to comment
phil1c Posted March 30, 2019 Share Posted March 30, 2019 I, too, am having issues getting the UNMS docker to work, though mine are when I try and use an external domain and reverse proxy to reach UNMS: First, you can find some more information on my issue here (trying to crosspost as I'm not strictly sure of where the issue is arising from): link Short version is: I have the LSIO Let's Encrypt docker (tried it with the NGINX Proxy Manager one as well) running and working (serving other dockers externally). I also have the oznu/unms docker installed and running. I can add my ER4 to UNMS if I use tower.local:6443 (internal) as the UNMS server name in the host key but when I try to use unms.my.domain (external), UNMS connects and passes credentials to the ER4 but the ER4 never connects. Setup Note I have set the UNMS docker set up with PUBLIC_HTTPS_PORT and PUBLIC_WS_PORT set up to 6443 as that is the port assigned for SSL to the docker container. So, internally, I use tower.local:6443, and this is what NGINX routes to for unms.my.domain. However, if I remove the two PUBLIC assignments, none of the below troubleshooting results change. Also, unms.my.domain and unms.my.domain:443 both work to access the UNMS webUI externally but unms.my.domain:6443 fails to connect nor is it reachable by ping. New Troubleshooting: 1. In the unms.log on my er4, this is repeated over and over: 2019-03-29 21:23:00 ERROR connection error (unms.my.domain:443): HS: ws upgrade response not 101 - This is returned whether I use NGINX Proxy Manager with "Websockets Support" enabled or if done through LE. - When using tower.local, I receive the following and the er4 connects to UNMS fine: 2019-03-30 17:08:23 INFO unms: connecting to tower.local:6443 2019-03-30 17:08:23 INFO connection established 2019-03-30 17:08:25 INFO got unmsSetup 2. I found this page on support for the official UBNT UNMS docker and tried out the tests within the "Is it possible to ping UNMS from the device?" and "Does the connection upgrade to WebSocket?" sections. Results, from my er4, internal and external are as follows: Is it possible to ping UNMS from the device? Internal: "ping tower.local": completes, no error "traceroute tower.local" and "traceroute 192.168.1.30": completes, one hop "curl --insecure https://192.168.1.30:6443/v2.1/nms/version": version 0.13.3 is returned, which is accurate External "ping unms.my.domain": completes, no error "traceroute unms.my.domain": completes, one hop "curl --insecure https://unms.my.domain:443/v2.1/nms/version": I receive the html for a 404 error page. BUT, if I go to that URL in my browser, I receive a page that only contains '{"version":"0.13.3"}', same as when i run the command command on the local address. I have no idea why this is. Does the connection upgrade to WebSocket? Internal "curl --insecure --include --no-buffer --header "Connection: Upgrade" --header "Upgrade: websocket" --header "Host: example.com:80" --header "Origin: http://example.com:80" --header "Sec-WebSocket-Key: SGVsbG8sIHdvcmxkIQ==" --header "Sec-WebSocket-Version: 13" https://tower.local:6443/" Instead of the header that is supposed to happen as per the help page, I get the following 502 Bad Gateway header followed by the HTML of the "UNMS is starting" landing page: HTTP/1.1 502 Bad Gateway Server: nginx Date: Sat, 30 Mar 2019 17:37:03 GMT Content-Type: text/html Content-Length: 2325 ... Keep in mind, connecting locally WORKS with no issue. External "curl .... https://unms.my.domain:443" Now, I receive the following header, followed by the HTML of the UNMS login page. HTTP/1.1 200 OK X-Frame-Options: SAMEORIGIN X-Xss-Protection: 1; mode=block Content-Length: 8473 ... So, internal access gives me a bad gateway error when using the above curl command but the ER4 can connect, and external access at least passes me the login page with no error but does not perform the websocket upgrade and the er4 fails to connect (which at least explains the "ws upgrade response not 101" error from #1). Sadly, no additional help is provided on what to do next on the referenced UBNT support page. The Cry for Help Is there something that I am missing? Is there something additional that I need to set up in the UNMS docker? I'm continuing to search and learn but I have been smashing against this wall for a couple days now. Quote Link to comment
Duckbuster Posted April 2, 2019 Share Posted April 2, 2019 @phil1c What I did to fix my UNMS a while back was to not host it using the host ip bridge, but giving it a new private IP address (its somewhere under main docker settings, that you need to enable the private ip range, then you can assign ip's on the docker interface) Then just made it so it doesn't use the 6443 ports but the actual 443 ports in the docker port mappings. Didn't have any PostgreSQL errors as far as I can tell. Will check the logs when I get home. Quote Link to comment
VirtualL Posted April 9, 2019 Share Posted April 9, 2019 With UNMS Docker - I have the same problems as above. I can't change the ports port 80 or port 433 seems to be the one every time - the template not working. (its need to be 6443->443 and 6080---> 80 ) Quote Link to comment
dandiodati Posted May 2, 2019 Share Posted May 2, 2019 On 3/25/2019 at 4:20 PM, dandiodati said: I tried out the UNMS but when I tried to start it up the web ui fails and gave a posgres error in the logs, did you have to make any changes or did it just startup fine ? Tried with the latest version after removing the container and image anyone else get it working recently ? ... /var/run/postgresql:5432 - no response Waiting for postgres to come up... Starting postgres... {"name":"netflow","hostname":"9668b2b4b120","pid":323,"level":50,"msg":"Failed to get DB schema version: connect ECONNREFUSED 127.0.0.1:5432","time":"2019-03-27T07:33:32.105Z","v":0} /var/run/postgresql:5432 - no response Waiting for postgres to come up... Starting postgres... /var/run/postgresql:5432 - no response ... Starting postgres... {"name":"netflow","hostname":"9668b2b4b120","pid":323,"level":50,"msg":"Failed to get DB schema version: connect ECONNREFUSED 127.0.0.1:5432","time":"2019-03-27T07:35:02.156Z","v":0} ... It seems like the docker image is not able to create all the configuration files on start up. Under the /config directory its supposed to create a postgres directory with a bunch of configuration files but not able to do so when I point it to a /mnt/users/... volume on a unraid share. Thinking it could be a permission issue but tried changing permissions but still does not create the needed files. Anyone else seen this ? Quote Link to comment
gacpac Posted May 13, 2019 Share Posted May 13, 2019 I'm a little bit confused with the let's encrypt. I'm already using the container and I think I'm having problems by giving it mydomain.com Quote Link to comment
