This might have been asked before. In that case: sorry 😅



I'm running NPM on my unraid server. I'm also running a VM which is serving my access control to my house. This platform is web-based. Is there a way to point <sub.domain.ext> to a site that is not running on my custom docker network? It is http traffic on a fixed IP for the VM. Tried some stuff allready, pointing to IP or hostname, pushing buttons and sliding sliders but all I get is errors.

Edited by XisoP
Typo
Link to comment

@Linguafoeda

502 is a problem between NPM and the endpoint.


Usally you let NPM handle SSL

so:

internet -> SSL -> yourdomain -> non-SSL -> your-internal-service (like plex, apache, bitwarden, whatever)



Can you share some screenshots? I find it hard to understand exactly what your setup is.

Edited by mattie112
Link to comment
5 hours ago, XisoP said:

This might have been asked before. In that case: sorry 😅



I'm running NPM on my unraid server. I'm also running a VM which is serving my access control to my house. This platform is web-based. Is there a way to point <sub.domain.ext> to a site that is not running on my custom docker network? It is http traffic on a fixed IP for the VM. Tried some stuff allready, pointing to IP or hostname, pushing buttons and sliding sliders but all I get is errors.



Yes

Simpy forward to ip.of.your.vm:portofyourapp does not need to be on the same host

  • Like 1
Link to comment
5 hours ago, mattie112 said:



Yes

Simpy forward to ip.of.your.vm:portofyourapp does not need to be on the same host

Figured it out.



Turns out that a MAC adress changes on a VM somehow. Had everything configured to look for IP 24 which whas bound by MAC adress. When the MAC doesn't exist in my scope, the machine is assigned an adress from the DHCP pool 😩

Kicked in a static IP in my VM and all is working like a charm. Thanks for your reply :)

Link to comment
On 7/29/2021 at 9:51 AM, mattie112 said:

@Linguafoeda

502 is a problem between NPM and the endpoint.


Usally you let NPM handle SSL

so:

internet -> SSL -> yourdomain -> non-SSL -> your-internal-service (like plex, apache, bitwarden, whatever)



Can you share some screenshots? I find it hard to understand exactly what your setup is.



I see. I figured it out, had to use http scheme in Nginx Proxy host setup. Also setup wildcard SSL certificate with DNS challenge to get "tautulli.mydomain.duckdns.org" working

Link to comment
  • 2 weeks later...

Everything stopped working after a reboot. All I get in the logs are this:



[8/12/2021] [1:17:41 PM] [Migrate ] › ℹ info Current database version: none

[8/12/2021] [1:17:41 PM] [Setup ] › ℹ info Logrotate Timer initialized
[8/12/2021] [1:17:41 PM] [Setup ] › ℹ info Logrotate completed.
[8/12/2021] [1:17:41 PM] [IP Ranges] › ℹ info Fetching IP Ranges from online services...
[8/12/2021] [1:17:41 PM] [IP Ranges] › ℹ info Fetching https://ip-ranges.amazonaws.com/ip-ranges.json
[8/12/2021] [1:17:41 PM] [IP Ranges] › ℹ info Fetching https://www.cloudflare.com/ips-v4
[8/12/2021] [1:17:41 PM] [IP Ranges] › ℹ info Fetching https://www.cloudflare.com/ips-v6
[8/12/2021] [1:17:41 PM] [SSL ] › ℹ info Let's Encrypt Renewal Timer initialized
[8/12/2021] [1:17:41 PM] [SSL ] › ℹ info Renewing SSL certs close to expiry...
[8/12/2021] [1:17:41 PM] [IP Ranges] › ℹ info IP Ranges Renewal Timer initialized
[8/12/2021] [1:17:41 PM] [Global ] › ℹ info Backend PID 2679 listening on port 3000 ...
[8/12/2021] [1:17:43 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:17:43 PM] [SSL ] › ℹ info Renew Complete
`QueryBuilder#allowEager` method is deprecated. You should use `allowGraph` instead. `allowEager` method will be removed in 3.0
`QueryBuilder#eager` method is deprecated. You should use the `withGraphFetched` method instead. `eager` method will be removed in 3.0
QueryBuilder#omit is deprecated. This method will be removed in version 3.0

Duplicate relation "access_list" in a relation expression. You should use "a.[b, c]" instead of "[a.b, a.c]". This will cause an error in objection 2.0

[8/12/2021] [1:18:59 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:01 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:02 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:04 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:05 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:06 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:08 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:09 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:10 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:11 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:12 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:19:13 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:20:50 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:20:57 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:21:02 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:21:07 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:21:14 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:21:18 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:21:23 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:21:29 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:22:37 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:22:44 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:22:52 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:22:58 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:03 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:09 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:17 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:24 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:30 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:34 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:39 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:45 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:49 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:23:54 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:24:00 PM] [Nginx ] › ℹ info Reloading Nginx
[8/12/2021] [1:24:05 PM] [Nginx ] › ℹ info Reloading Nginx



Cloudfare says it's working but all of my sites are giving a host error.

Edited by plantsandbinary
Link to comment

Im having difficulty getting Cloudflare, NGINX and any Docker container working.


I have working Docker containers that I want to proxy. nextcloud being one.



I have the Cloudfare DNS docker container functioning and the appropriate A record for my domain name is showing on Cloudflare. I have created a CNAME for nextcloud targeted to my domain.



I have forwarded ports 80 and 443 in my router to NGINX's ports (1880 and 18443)



When I create and select a host in NGINX I am presented with an Error 522 page. According to the error Cloudflare say "The initial connection between Cloudflare's network and the origin web server timed out. As a result, the web page can not be displayed."



Anyone have an idea where I go about addressing the problem?

Edited by darrenyorston
Link to comment

Hi,



I'm new to Unraid, but already have some experience with nginx on my Synology NAS.

So I have a few questions about this docker container:



- Whats the difference between this docker container and the one from "jc21"?

- In your docker the network is set to bridge but in the "jc21" docker it's set to custom br0, what's the reason for this?

- I have my own wildcard certificate so I won't be using Letsencrypt, so I have no plans of using http, only https, will the docker work if I only forwared port 443 to this docker container?



Thx and keep up the good work 😀

Link to comment

difference between bridge (only port on host is mapped) or custom br0 as sample (own ip with all ports available) is up to you, both should just work fine, you can change this how you like it, when you are on bridge you have to look for used ports from host or other dockers on that bridge, custom:br0 not, some have issues while using macvlan (from custom br0) and there is a new option in 6.10 therefore using custom with ipvlan, just in case ...



6 hours ago, Kopernikus said:

so I won't be using Letsencrypt

in terms you dont need http validation for certs using only 443 for https is fine of course.

Link to comment
  • 3 weeks later...

Hey guys. I'm having trouble. I previously had NginxProxyManager up and running successfully, but I had to start over recently due to a mishap.

I use Unraid, and I set it up exactly how I had it before., but I'm not having much luck.

Currently, the only proxy host I have setup is for Overseerr (a tool to help request movies/tv shows). NPM says it's status is "Online" but when I try going to it it just gives me the generic "This site can't be reached".



I can access it with the local IP address just fine.



Here are a couple screenshots to help:





Does anyone have any guesses? I'm not seeing a whole lot in the logs either.

I have my password manager as well as NextCloud setup, so I (or my users) cannot access these services until NPM is back up and running successfully.



Any assistance would be appreciated!



EDIT:

Adding this screenshot:


Edited by jeremytodd1
Link to comment
58 minutes ago, mattie112 said:

Hm... what error are you getting exactly? If you can reach NPM (but NPM not overseer) you should get a 502 - gateway timeout. Can you confirm you can reach your NPM? Does your domian resolve correctly, is the 80/443 port forward in your router correct?



Yes, I can get to the NPM UI with no issue.



Sorry if my post wasn't clear. NPM itself I can get to. The only proxy host that I have setup currently is for Overseerr. I can't get to overseerr.mydomain.com. When I try I get the "This site can't be reached" page in Chrome.



80/443 is forwarded to the respective ports that I have setup for NPM:


Link to comment

If you get a "site cannot be reached" it probably not an issue with NPM but with your domain not resolving or your port not forwarded correctly. I assume you go to the NPM control panel through a local IP but your overseer domain resolves to an external IP.



So just for sanity:

Ping overseer.yourdomain

Confirm it matches "whatismyip.com"

Check your port forwards are they correct?



If it all checks out you can change your hosts file to add something like

"192.168.*.* overseer.domain.com" to force your PC to use a local ip. Just to verify NPM works that way.



Oh and also check the NPM logs for any errors of course :)

Link to comment
39 minutes ago, mattie112 said:

If you get a "site cannot be reached" it probably not an issue with NPM but with your domain not resolving or your port not forwarded correctly. I assume you go to the NPM control panel through a local IP but your overseer domain resolves to an external IP.



So just for sanity:

Ping overseer.yourdomain

Confirm it matches "whatismyip.com"

Check your port forwards are they correct?



If it all checks out you can change your hosts file to add something like

"192.168.*.* overseer.domain.com" to force your PC to use a local ip. Just to verify NPM works that way.



Oh and also check the NPM logs for any errors of course :)



Pinging overseerr.mydomain.com does return the correct external IP address, per whatismyip.com



The forwarded ports should be correct, as referencing these two screenshots:









And checking NPM logs, I'm seeing literally no errors. For example, the logs in "NginxProxyManager\logs" are all 0KBs in size even, besides for error.log which just has this in it:

2021/09/09 16:01:17 [notice] 904#904: signal process started



Edited by jeremytodd1
Link to comment

Allright, the reason why I am asking is if you can reach your NPM you shoud at least get somekind of error from NPM/nginx (like a gateway timeout). So that is why I am thinking that the problem lies before your NPM. (For example the port-forward in your router).



You could try to run https://hub.docker.com/r/hashicorp/http-echo/ on port 80 or 443 to see if you get that output in your browser. Just to eliminate NPM from the testing to make sure where the problem lies.

Link to comment

Hello Mattie,

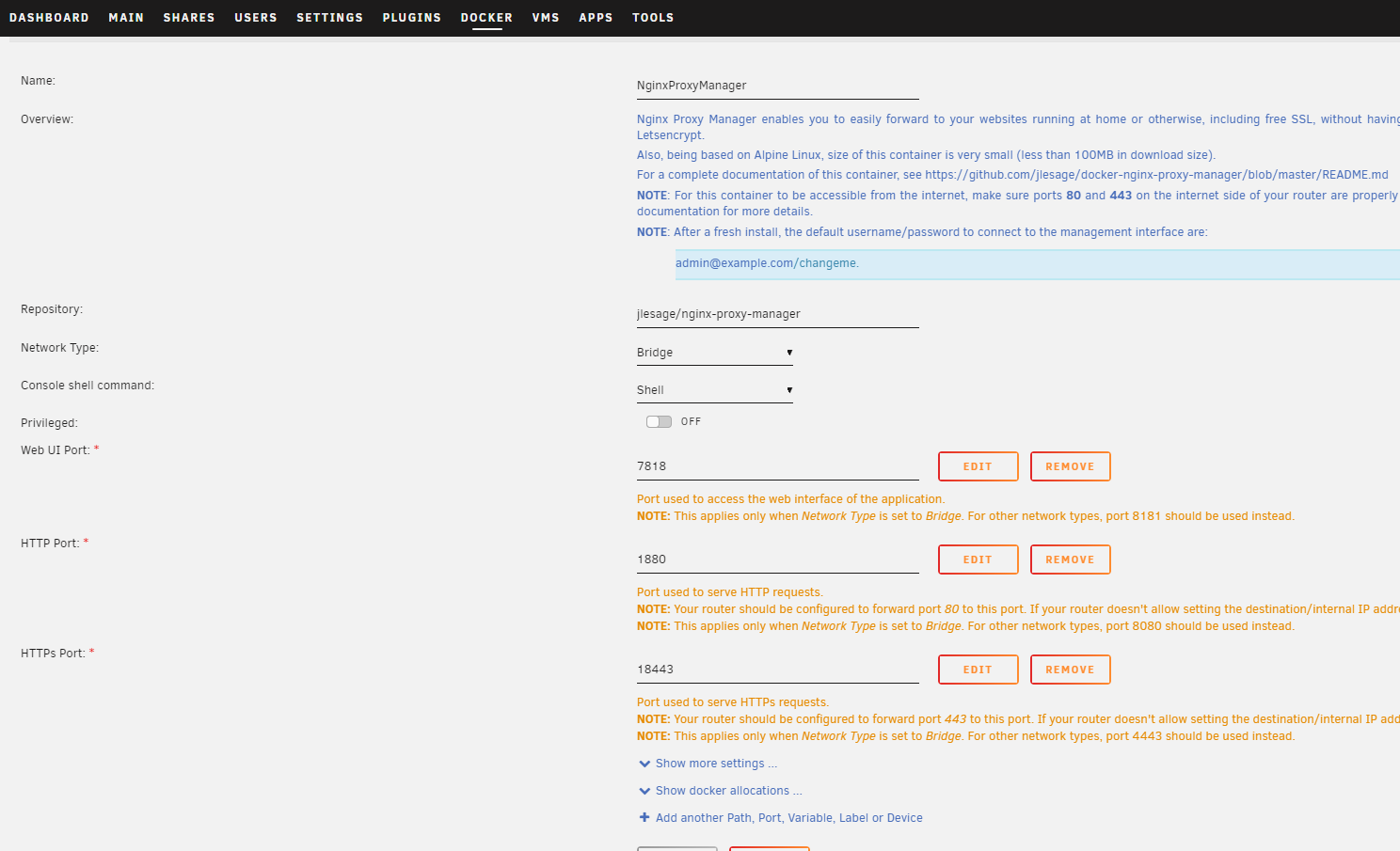

Thank you for your reply. I do not make changes to setting during install as shown in my attachment. and i wasn't able to find the ip_ranges.conf file in "  /etc/ngix/conf.d  " . i do not even have the "include" folder after conf.d.  Is there anything i have done wrong during the setup?




setting setup.png

Link to comment
