[Support] SpaceinvaderOne - Macinabox

frodr · October 29, 2019

Hi,

Great docker container and video. Everything worked fine until I changed cpu pinning and memory, then this black screen. Xml mods done.

Log:

2019-10-29 19:01:00.009+0000: Domain id=9 is tainted: high-privileges
2019-10-29 19:01:00.009+0000: Domain id=9 is tainted: custom-argv
2019-10-29 19:01:00.009+0000: Domain id=9 is tainted: host-cpu

<domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
<name>MacinaboxCatalina</name>
<uuid>18c0c596-a5fe-45f5-ae00-6a86497a4b3f</uuid>
<description>MacOS Catalina</description>
<metadata>
<vmtemplate xmlns="unraid" name="Windows 10" icon="catalina.png" os="Catalina"/>
</metadata>
<memory unit='KiB'>8388608</memory>
<currentMemory unit='KiB'>8388608</currentMemory>
<memoryBacking>
<nosharepages/>
</memoryBacking>
<vcpu placement='static'>8</vcpu>
<cputune>
<vcpupin vcpu='0' cpuset='6'/>
<vcpupin vcpu='1' cpuset='30'/>
<vcpupin vcpu='2' cpuset='7'/>
<vcpupin vcpu='3' cpuset='31'/>
<vcpupin vcpu='4' cpuset='8'/>
<vcpupin vcpu='5' cpuset='32'/>
<vcpupin vcpu='6' cpuset='9'/>
<vcpupin vcpu='7' cpuset='33'/>
</cputune>
<os>
<type arch='x86_64' machine='pc-q35-3.1'>hvm</type>
<loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
<nvram>/etc/libvirt/qemu/nvram/18c0c596-a5fe-45f5-ae00-6a86497a4b3f_VARS-pure-efi.fd</nvram>
</os>
<features>
<acpi/>
<apic/>
</features>
<cpu mode='host-passthrough' check='none'/>
<clock offset='utc'>
<timer name='rtc' tickpolicy='catchup'/>
<timer name='pit' tickpolicy='delay'/>
<timer name='hpet' present='no'/>
</clock>
<on_poweroff>destroy</on_poweroff>
<on_reboot>restart</on_reboot>
<on_crash>restart</on_crash>
<devices>
<emulator>/usr/local/sbin/qemu</emulator>
<disk type='file' device='disk'>
<driver name='qemu' type='qcow2' cache='writeback'/>
<source file='/mnt/user/domains/MacinaboxCatalina/Clover.qcow2'/>
<target dev='hdc' bus='sata'/>
<boot order='1'/>
<address type='drive' controller='0' bus='0' target='0' unit='2'/>
</disk>
<disk type='file' device='disk'>
<driver name='qemu' type='raw' cache='writeback'/>
<source file='/mnt/user/domains/MacinaboxCatalina/Catalina-install.img'/>
<target dev='hdd' bus='sata'/>
<address type='drive' controller='0' bus='0' target='0' unit='3'/>
</disk>
<disk type='file' device='disk'>
<driver name='qemu' type='raw' cache='writeback'/>
<source file='/mnt/user/domains/MacinaboxCatalina/macos_disk.img'/>
<target dev='hde' bus='sata'/>
<address type='drive' controller='0' bus='0' target='0' unit='4'/>
</disk>
<controller type='sata' index='0'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
</controller>
<controller type='pci' index='0' model='pcie-root'/>
<controller type='pci' index='1' model='pcie-root-port'>
<model name='pcie-root-port'/>
<target chassis='1' port='0x10'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0' multifunction='on'/>
</controller>
<controller type='pci' index='2' model='pcie-root-port'>
<model name='pcie-root-port'/>
<target chassis='2' port='0x11'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x1'/>
</controller>
<controller type='pci' index='3' model='pcie-root-port'>
<model name='pcie-root-port'/>
<target chassis='3' port='0x12'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x2'/>
</controller>
<controller type='pci' index='4' model='pcie-root-port'>
<model name='pcie-root-port'/>
<target chassis='4' port='0x13'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
</controller>
<controller type='virtio-serial' index='0'>
<address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
</controller>
<controller type='usb' index='0' model='ich9-ehci1'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
</controller>
<controller type='usb' index='0' model='ich9-uhci1'>
<master startport='0'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
</controller>
<controller type='usb' index='0' model='ich9-uhci2'>
<master startport='2'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
</controller>
<controller type='usb' index='0' model='ich9-uhci3'>
<master startport='4'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
</controller>
<interface type='bridge'>
<mac address='52:54:00:46:2e:4b'/>
<source bridge='br0'/>
<model type='e1000-82545em'/>
<address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
</interface>
<serial type='pty'>
<target type='isa-serial' port='0'>
<model name='isa-serial'/>
</target>
</serial>
<console type='pty'>
<target type='serial' port='0'/>
</console>
<channel type='unix'>
<target type='virtio' name='org.qemu.guest_agent.0'/>
<address type='virtio-serial' controller='0' bus='0' port='1'/>
</channel>
<input type='tablet' bus='usb'>
<address type='usb' bus='0' port='1'/>
</input>
<input type='mouse' bus='ps2'/>
<input type='keyboard' bus='ps2'/>
<graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
<listen type='address' address='0.0.0.0'/>
</graphics>
<video>
<model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
</video>
<memballoon model='virtio'>
<address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
</memballoon>
</devices>
<qemu:commandline>
<qemu:arg value='-usb'/>
<qemu:arg value='-device'/>
<qemu:arg value='usb-kbd,bus=usb-bus.0'/>
<qemu:arg value='-device'/>
<qemu:arg value='isa-applesmc,osk=gone'/>
<qemu:arg value='-smbios'/>
<qemu:arg value='type=2'/>
<qemu:arg value='-cpu'/>
<qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check'/>
</qemu:commandline>
</domain>

Edited October 29, 2019 by frodr

Holdlang · October 29, 2019

Hi guys!

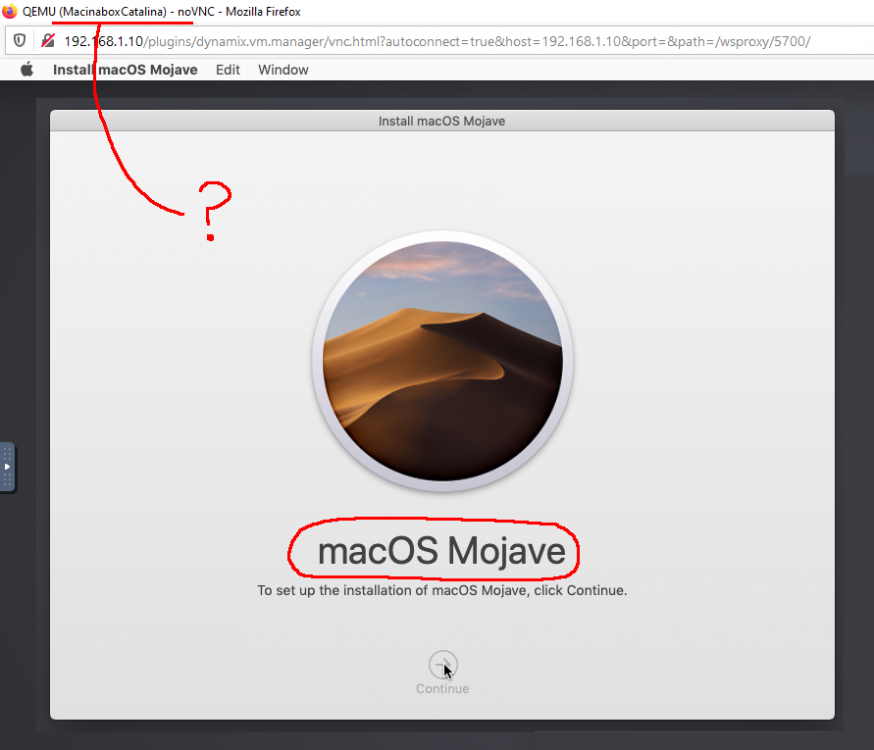

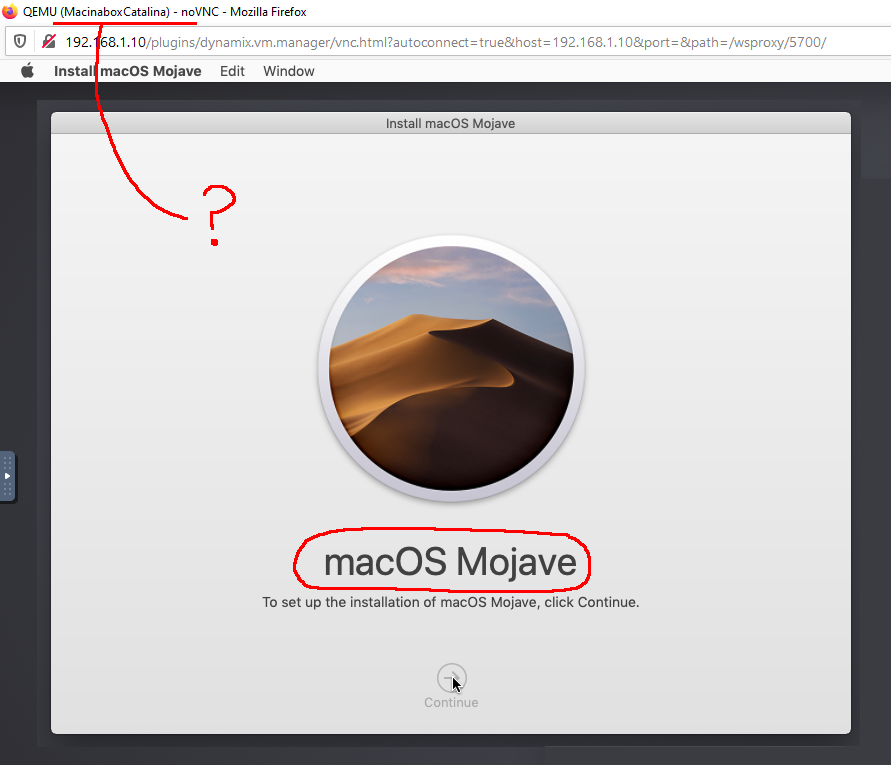

Any idea why I get Mojave installer when i select Catarina?

The script downloaded to /mnt/user/domains/MacinaboxCatalina and have Catalina-install.img.

Still it try to install Mojave.

Holdlang · October 29, 2019

1 hour ago, frodr said:

<loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
<nvram>/etc/libvirt/qemu/nvram/18c0c596-a5fe-45f5-ae00-6a86497a4b3f_VARS-pure-efi.fd</nvram>

change this back to:

    <loader readonly='yes' type='pflash'>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_CODE.fd</loader>
    <nvram>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_VARS.fd</nvram>

or if your domain directory is different then you need to point it there.

Edited October 29, 2019 by Holdlang
clarifying stuff

frodr · October 29, 2019

1 hour ago, Holdlang said:
change this back to:
    <loader readonly='yes' type='pflash'>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_CODE.fd</loader>
    <nvram>/mnt/user/domains/MacinaboxCatalina/ovmf/OVMF_VARS.fd</nvram>
or if your domain directory is different then you need to point it there.

Thank you very much. Its working.

cyberspectre · October 29, 2019

21 hours ago, MortalMonkey said:

Change disk type to raw in the template.

It wasn't this. Actually, I found that it happened whenever I had another VM running. Disabling the other VMs, I got it to work.

MortalMonkey · October 29, 2019

2 minutes ago, cyberspectre said:

It wasn't this. Actually, I found that it happened whenever I had another VM running. Disabling the other VMs, I got it to work.

Odd. I guess it would cause issues if they happened to share the same cpu cores or the ram was over provisioned. I have 3 vms on my machine and shut down one to boot up macosx because they share the same cpu cores.

eubbenhadd · October 29, 2019

Got to the part where I can start the VM, and I get the following execution error: "Cannot get interface MTU on 'br0': No such device". Nothing useful in the VM log.

Any suggestions?

-------------

Supermicro X10SL7-F v1.01

Intel Xeon E3-1230 v3

16gb DDR 3 ECC

Jagadguru · October 30, 2019

5 hours ago, Holdlang said:

Hi guys!

Any idea why I get Mojave installer when i select Catarina?

The script downloaded to /mnt/user/domains/MacinaboxCatalina and have Catalina-install.img.

Still it try to install Mojave.

Same problem here. Must be downloading the wrong recovery img.

John_M · October 30, 2019

2 hours ago, eubbenhadd said:

Any suggestions?

Have you set up a different bridge for VMs? The container assumes br0, which is the default.

eubbenhadd · October 30, 2019

8 minutes ago, John_M said:

Have you set up a different bridge for VMs? The container assumes br0, which is the default.

Nope, haven't set up jack for VMs, I don't even have any other VMs set up anymore.

John_M · October 30, 2019

10 minutes ago, eubbenhadd said:

Nope, haven't set up jack for VMs, I don't even have any other VMs set up anymore.

The settings would actually be for networking (Settings -> Network Settings). In that case you need to provide more information, unless someone else wants to make a guess.

eubbenhadd · October 30, 2019

1 hour ago, John_M said:

The settings would actually be for networking (Settings -> Network Settings). In that case you need to provide more information, unless someone else wants to make a guess.

Got it worked out, turns out there was a separate bridge set up, not sure how, but I changed the name in the VM and it worked. Thanks!

drawde · October 30, 2019

15 hours ago, mkono87 said:

All im getting is the UFI interactive shell. If I try to boot one of the disks nothing happens.

i'm having the same issue. thoughts? i've seen this in the past, i think my omvf doesn't work as in other VMs i've also had to use seabios.

EDIT: nevermind, seems the instructions has been updated. followed and working now.

Edited October 30, 2019 by drawde

mheeniac · October 30, 2019

11 hours ago, Holdlang said:

Hi guys!

Any idea why I get Mojave installer when i select Catarina?

The script downloaded to /mnt/user/domains/MacinaboxCatalina and have Catalina-install.img.

Still it try to install Mojave.

I am getting the same problem. Deleted and did it again because I thought I must have selected the wrong version by accident but no success. Can confirm the naming says Catalina but when I get to the install it says Mojave.

Young_Max · October 30, 2019

docker log：

<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
Starting process at Wed Oct 30 09:15:56 Asia 2019
<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

I am going to download the Catalina recovery media. Please be patient!
.
.
Collecting requests (from -r requirements.txt (line 1))
Downloading https://files.pythonhosted.org/packages/51/bd/23c926cd341ea6b7dd0b2a00aba99ae0f828be89d72b2190f27c11d4b7fb/requests-2.22.0-py2.py3-none-any.whl (57kB)
Collecting click (from -r requirements.txt (line 2))
Retrying (Retry(total=4, connect=None, read=None, redirect=None, status=None)) after connection broken by 'ReadTimeoutError("HTTPSConnectionPool(host='pypi.python.org', port=443): Read timed out. (read timeout=15)",)': /simple/click/
Downloading https://files.pythonhosted.org/packages/fa/37/45185cb5abbc30d7257104c434fe0b07e5a195a6847506c074527aa599ec/Click-7.0-py2.py3-none-any.whl (81kB)
Collecting urllib3!=1.25.0,!=1.25.1,<1.26,>=1.21.1 (from requests->-r requirements.txt (line 1))
Downloading https://files.pythonhosted.org/packages/e0/da/55f51ea951e1b7c63a579c09dd7db825bb730ec1fe9c0180fc77bfb31448/urllib3-1.25.6-py2.py3-none-any.whl (125kB)
Collecting certifi>=2017.4.17 (from requests->-r requirements.txt (line 1))
Retrying (Retry(total=4, connect=None, read=None, redirect=None, status=None)) after connection broken by 'ReadTimeoutError("HTTPSConnectionPool(host='pypi.org', port=443): Read timed out. (read timeout=15)",)': /simple/certifi/
Downloading https://files.pythonhosted.org/packages/18/b0/8146a4f8dd402f60744fa380bc73ca47303cccf8b9190fd16a827281eac2/certifi-2019.9.11-py2.py3-none-any.whl (154kB)
Exception:
Traceback (most recent call last):
File "/usr/lib/python2.7/dist-packages/pip/basecommand.py", line 215, in main
status = self.run(options, args)
File "/usr/lib/python2.7/dist-packages/pip/commands/install.py", line 353, in run
wb.build(autobuilding=True)
File "/usr/lib/python2.7/dist-packages/pip/wheel.py", line 749, in build
self.requirement_set.prepare_files(self.finder)
File "/usr/lib/python2.7/dist-packages/pip/req/req_set.py", line 380, in prepare_files
ignore_dependencies=self.ignore_dependencies))
File "/usr/lib/python2.7/dist-packages/pip/req/req_set.py", line 620, in _prepare_file
session=self.session, hashes=hashes)
File "/usr/lib/python2.7/dist-packages/pip/download.py", line 821, in unpack_url
hashes=hashes
File "/usr/lib/python2.7/dist-packages/pip/download.py", line 659, in unpack_http_url
hashes)
File "/usr/lib/python2.7/dist-packages/pip/download.py", line 882, in _download_http_url
_download_url(resp, link, content_file, hashes)
File "/usr/lib/python2.7/dist-packages/pip/download.py", line 603, in _download_url
hashes.check_against_chunks(downloaded_chunks)
File "/usr/lib/python2.7/dist-packages/pip/utils/hashes.py", line 46, in check_against_chunks
for chunk in chunks:
File "/usr/lib/python2.7/dist-packages/pip/download.py", line 571, in written_chunks
for chunk in chunks:
File "/usr/lib/python2.7/dist-packages/pip/utils/ui.py", line 139, in iter
for x in it:
File "/usr/lib/python2.7/dist-packages/pip/download.py", line 560, in resp_read
decode_content=False):
File "/usr/share/python-wheels/urllib3-1.22-py2.py3-none-any.whl/urllib3/response.py", line 436, in stream
data = self.read(amt=amt, decode_content=decode_content)
File "/usr/share/python-wheels/urllib3-1.22-py2.py3-none-any.whl/urllib3/response.py", line 401, in read
raise IncompleteRead(self._fp_bytes_read, self.length_remaining)
File "/usr/lib/python2.7/contextlib.py", line 35, in __exit__
self.gen.throw(type, value, traceback)
File "/usr/share/python-wheels/urllib3-1.22-py2.py3-none-any.whl/urllib3/response.py", line 316, in _error_catcher
raise ReadTimeoutError(self._pool, None, 'Read timed out.')
ReadTimeoutError: HTTPSConnectionPool(host='files.pythonhosted.org', port=443): Read timed out.
Traceback (most recent call last):
File "fetch-macos.py", line 9, in <module>
import click
ImportError: No module named click

importerror：no module named click

chewchump · October 30, 2019

I am getting a boot loop after changing from 2 to 4 CPUs, I've added the XML at the end of the file and then I had the same problem as frodr with the funny screen so I amended as per Holdlang with this...

   <loader readonly='yes' type='pflash'>/mnt/user/domains/MacinaboxMojave/ovmf/OVMF_CODE.fd</loader>
    <nvram>/mnt/user/domains/MacinaboxMojave/ovmf/OVMF_VARS.fd</nvram>

Now I'm getting a boot loop which isn't throwing any errors in the log. I can see this on boot (as below), then it gets to clover, I see a apple logo then sudden reset.

er_state_obj_get_for_recover:3848 No ER state object for volume Preboot rolling is not happening, nothing to recover

er_state_obj_get_for_recover:3848 No ER state object for volume baseOS (what I called my disk) rolling is not happening, nothing to recover

er_state_obj_get_for_recover:3848 No ER state object for volume Recovery rolling is not happening, nothing to recover

er_state_obj_get_for_recover:3848 No ER state object for volume VM rolling is not happening, nothing to recover

Any ideas? Shall I post my XML?

Edited October 30, 2019 by chewchump

ffhelllskjdje · October 30, 2019

On 10/28/2019 at 11:37 PM, InfInIty said:

Is anyone else not able to login to icloud. I get an error connecting to icloud server, whenever i try and sign in.

Same, cannot connect to iCloud

CorneliousJD · October 30, 2019

Ok, so when I tried this a few days ago I got stuck, but now I'm booting to the installer just fine.

However this time I picked Catalina, and it looks like it downloaded the Mojave recovery media, as it tells me it's going to install Mojave even though I picked Catalina.

My old .img file for Catalina-install.img was 2,095.724KB, this new one that says Mojave in the actual installer (filename is still Catalina-install.img) is 2,085.568KB

I've put the old file in it's place but it doesn't boot, it starts to load the 2nd bar under the Apple logo and doesn't go any further than that.

Any advice? Is it against rules to share a direct download link to the Catalina-install.img?

John_M · October 30, 2019

50 minutes ago, CorneliousJD said:

Any advice? Is it against rules to share a direct download link to the Catalina-install.img?

Yes, I should think it is. I don't know why it's downloading the wrong recovery media but a few people have noticed the same. It worked for me for Catalina and there hasn't been an update to the container since then so I can't explain why it seems to work for some people but not others. I can only tell you that I only used the container once and that was to set up a Catalina VM. I haven't used it a second time and probably won't because I'm not entirely sure how it works, where it's getting its files from or how they are modified from stock. I already have High Sierra and Mojave VMs, which I created the manual way, using installers downloaded directly from Apple on one of my real Macs. Though they took quite a bit of effort I understood and was in control of each step and the use of the EFI partition and Clover Configurator allowed customisation after the installation. This automated method uses a separate Clover boot volume and doesn't appear to allow the kind of customisation I need to ensure that the serial number doesn't clash with any genuine ones from Apple.

EDIT: One thought struck me. Did you use it the first time to download the Mojave installer? Maybe there's a bug that causes it to remember the first installer and then download it again the next time, even if something else is selected. You could try removing the container and its appdata and installing it again.

Edited October 30, 2019 by John_M
Try starting with a fresh container

John_M · October 30, 2019

1 hour ago, ffhelllskjdje said:

Same, cannot connect to iCloud

That's a common Hackintosh problem. I don't use i-anything. Did you change the NIC type as mentioned in earlier posts?

John_M · October 30, 2019

3 hours ago, chewchump said:

Any ideas?

Just a suggestion that you keep a copy of the original working version of the XML so that you can repair your edited version when the customised parts get deleted by the template editor.

zzgus · October 30, 2019

Another one with the same problem. Catalina template and Mojave downloading.
It's my secon try if this helps.

UPDATE **** HAVE TRIED ON MY SECOND SERVER FIRST INSTALL AND ALSO DOWNLOADING MOJAVE ****

Thankyou
Gus

Edited October 30, 2019 by zzgus

John_M · October 30, 2019

6 hours ago, Young_Max said:

importerror：no module named click

Incomplete download:

Read timed out.

Try again later.

ffhelllskjdje · October 30, 2019

2 hours ago, John_M said:

That's a common Hackintosh problem. I don't use i-anything. Did you change the NIC type as mentioned in earlier posts?

Yes, changed

ClintWilkenson · October 30, 2019

Things are going pretty good after working through some of the issues others have learned from in this thread. I chose High Sierra because ~~I'm a huge stoner~~ I'm using an NVIDIA 1080ti for passthrough and it's compatible. The issues I'm having are:

I have two monitors, a Dell 144hz, 1440p w/ GSYNC over DP and a regular 1080p over HDMI. If I start the system with the Dell plugged in and turned on I get an offset apple logo and a tiny version of the display copied across the top of the monitor. However, it starts fine with only the 1080p monitor and will recognize the Dell once I'm booted into macOS (with GSYNC even! via the NVIDIA web driver)
Audio. I've passed through the NVIDIA 1080ti audio controller and the motherboard Intel C610/X99 series chipset HD audio controller but it's not working. the only thing I've done is download VooDooHDA.kext and put it in /System/Library/Extensions/ but I'm 99% sure that did nothing.

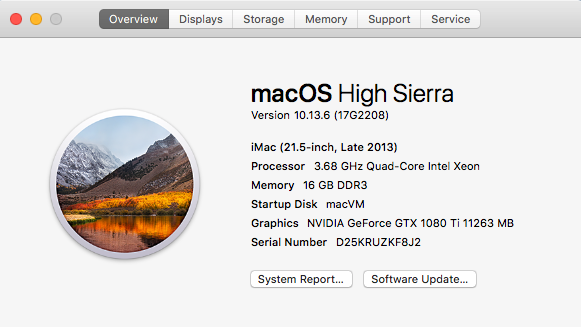

The version of High Sierra I'm on 10.13.6 (17G2208) doesn't want to automatically update to the last version of High Sierra, or manually update to the second to last version of High Sierra.

Also, what would happen to me GPU-wise if I tried to update to Mojave/Catalina through the App Store? would I retain any kind of NVIDIA support?

Anyway, here's my XML

<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm' id='16' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>MacinaboxHighSierra</name>
  <uuid>d98f9abf-cf2c-4d08-8699-475439c02ddd</uuid>
  <description>MacOS High Sierra</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="default.png" os="HighSierra"/>
  </metadata>
  <memory unit='KiB'>16777216</memory>
  <currentMemory unit='KiB'>16777216</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='2'/>
    <vcpupin vcpu='1' cpuset='8'/>
    <vcpupin vcpu='2' cpuset='3'/>
    <vcpupin vcpu='3' cpuset='9'/>
    <vcpupin vcpu='4' cpuset='4'/>
    <vcpupin vcpu='5' cpuset='10'/>
    <vcpupin vcpu='6' cpuset='5'/>
    <vcpupin vcpu='7' cpuset='11'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-q35-3.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/mnt/user/domains/MacinaboxHighSierra/ovmf/OVMF_CODE.fd</loader>
    <nvram>/mnt/user/domains/MacinaboxHighSierra/ovmf/OVMF_VARS.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='4' threads='2'/>
  </cpu>
  <clock offset='utc'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='qcow2' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxHighSierra/Clover.qcow2'/>
      <backingStore/>
      <target dev='hdc' bus='sata'/>
      <boot order='1'/>
      <alias name='sata0-0-2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='2'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxHighSierra/HighSierra-install.img'/>
      <backingStore/>
      <target dev='hdd' bus='sata'/>
      <alias name='sata0-0-3'/>
      <address type='drive' controller='0' bus='0' target='0' unit='3'/>
    </disk>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/MacinaboxHighSierra/macos_disk.img'/>
      <backingStore/>
      <target dev='hde' bus='sata'/>
      <alias name='sata0-0-4'/>
      <address type='drive' controller='0' bus='0' target='0' unit='4'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pcie-root'>
      <alias name='pcie.0'/>
    </controller>
    <controller type='pci' index='1' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='1' port='0x8'/>
      <alias name='pci.1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0' multifunction='on'/>
    </controller>
    <controller type='pci' index='2' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='2' port='0x9'/>
      <alias name='pci.2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='pci' index='3' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='3' port='0xa'/>
      <alias name='pci.3'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='4' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='4' port='0x13'/>
      <alias name='pci.4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x3'/>
    </controller>
    <controller type='pci' index='5' model='pcie-root-port'>
      <model name='pcie-root-port'/>
      <target chassis='5' port='0x14'/>
      <alias name='pci.5'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x4'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x02' slot='0x00' function='0x0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:37:c4:2b'/>
      <source bridge='br0'/>
      <target dev='vnet0'/>
      <model type='vmxnet3'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-16-MacinaboxHighSierra/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/user/isos/GPU ROM/Gigabyte.GTX1080Ti.11264.170329.rom'/>
      <address type='pci' domain='0x0000' bus='0x03' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x01' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x00' slot='0x1b' function='0x0'/>
      </source>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x046d'/>
        <product id='0xc537'/>
        <address bus='3' device='7'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x021e'/>
        <address bus='3' device='35'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='3'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
  <qemu:commandline>
    <qemu:arg value='-usb'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-mouse,bus=usb-bus.0'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='usb-kbd,bus=usb-bus.0'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='isa-applesmc,osk=s****************rk'/>
    <qemu:arg value='-smbios'/>
    <qemu:arg value='type=2'/>
    <qemu:arg value='-cpu'/>
    <qemu:arg value='Penryn,kvm=on,vendor=GenuineIntel,+invtsc,vmware-cpuid-freq=on,+pcid,+ssse3,+sse4.2,+popcnt,+avx,+aes,+xsave,+xsaveopt,check'/>
  </qemu:commandline>
</domain>

macVM.xml

[Support] SpaceinvaderOne - Macinabox

Recommended Posts

Link to comment

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

SpaceInvaderOne

SpaceInvaderOne

SpaceInvaderOne

Posted Images

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Join the conversation
