Unraid OS version 6.12.4 available

[ljm42]

The 6.12.4 release includes a fix for macvlan call traces(!) along with other features, bug fixes, and security patches.  All users are encouraged to upgrade.



Please refer also to the 6.12.0 Announcement post.



Upgrade steps for this release

1. As always, prior to upgrading, create a backup of your USB flash device:  "Main/Flash/Flash Device Settings" - click "Flash Backup".
2. Update all of your plugins. This is critical for the NVIDIA and Realtek plugins in particular.
3. If the system is currently running 6.12.0 - 6.12.3, we're going to suggest that you stop the array at this point. If it gets stuck on "Retry unmounting shares", open a web terminal and type:

   umount /var/lib/docker

   The array should now stop successfully (This issue was thought to be resolved with 6.12.3, but some systems are still having issues)

4. Go to Tools -> Update OS. If the update doesn't show, click "Check for Updates"
5. Wait for the update to download and install
6. If you have any plugins that install 3rd party drivers (NVIDIA, Realtek, etc), wait for the notification that the new version of the driver has been downloaded.
7. Reboot



Special thanks to all our contributors and beta testers and especially:

@bonienl for finding a solution to the macvlan problem!

@SimonF for bringing us the new System Drivers page



This thread is perfect for quick questions or comments, but if you suspect there will be back and forth for your specific issue, please start a new topic. Be sure to include your diagnostics.zip.

[thecode]

This is a great release which makes 6.12 so much better.

[Chunks]

Can I ask for a little clarity on this statement?



Quote

Note: if you previously used the 2-nic docker segmentation method, you will also want to revert that:



Is it recommended to revert from using 2 nic's to 1? Or just, running only 1 is an option now?

[ljm42]

2 minutes ago, Chunks said:

Can I ask for a little clarity on this statement?



Is it recommended to revert from using 2 nic's to 1? Or just, running only 1 is an option now?



There is no need to segment docker traffic to a second nic to avoid the macvlan problem. You can still do that, but there isn't really any benefit. Far simpler to do everything on a single nic.



I would not recommend mixing solutions, so either use the previous 2 nic solution OR use the new solution mentioned here.

[ljm42]

There seemed to be some confusion, so I have updated the 6.12.4 release notes to make it clear that the new macvlan solution does work with bonding:

https://docs.unraid.net/unraid-os/release-notes/6.12.4/

[Gingersnap155]

I was reading through the notes about macvtap having some benefits. Is there any downside to using it instead?


from my understand staying set to macvlan on the docket network and disabling the bond would enable macvtap?


Planning to make the shift to 6.12.4 from 6.11.5 this weekend and have been reading through things to have my ducks in a row.

[Revan335]

With IPvlan no Config changes required?

Edited August 31, 2023 by Revan335

[ezhik]

No issues, fully upgraded two systems - no problems!



NOTE: @ich777 : every upgrade NVIDIA PLUGIN resets to "latest: vNNN.NN.NN" option rather than the one that user selects. Is this something that can be fixed? I keep my version as "PRODUCTION" rather than "LATEST".

[ljm42]

17 hours ago, Revan335 said:

With IPvlan no Config changes required?



Yep! Config changes are just for folks who want to use macvlan



EDIT: To be more clear... if you already have ipvlan enabled, and are happy with that, then no config changes are needed after upgrading

[ljm42]

1 hour ago, Gingersnap155 said:

I was reading through the notes about macvtap having some benefits. Is there any downside to using it instead?


from my understand staying set to macvlan on the docket network and disabling the bond would enable macvtap?


Planning to make the shift to 6.12.4 from 6.11.5 this weekend and have been reading through things to have my ducks in a row.



We haven't found any downsides to enabling macvtap, as mentioned it may even be faster



Bond doesn't matter, disable bridge to enable macvtap

[ich777]

9 hours ago, ezhik said:

I keep my version as "PRODUCTION" rather than "LATEST".

This should not happen, did you wait until the plugin update helper told you it‘s okay to reboot now via the Unraid notifications?



This is also something that should be reported in the Nvidia thread since it‘s a plugin.



I‘ll try this on my test machine later today.



EDIT: This is now resolved and I'll post a quick follow up in the Nvidia Driver thread.

[morreale]

Can I get some clarification around moving from macvlan to ipvlan?

I have upgraded my backup server and made the change to ipvlan with bridging still enabled. nothing seeing any issues but it is a backup with no VMs and only two dockers running not using a custom network



concerned about primary server that is still using macvlan, bridging enabled, host access to custom networks : disabled, ~30 docker containers (10 are using a custom network) and several VMs (some use their own ports on a 4 port nic -Blue Iris for example which is also on a separate vlan)



What exactly do I need to change when converting to ipvlan?  Does bridging need to be on or off? host access to custom networks?



Thanks!

[unCoreX]

Hi,

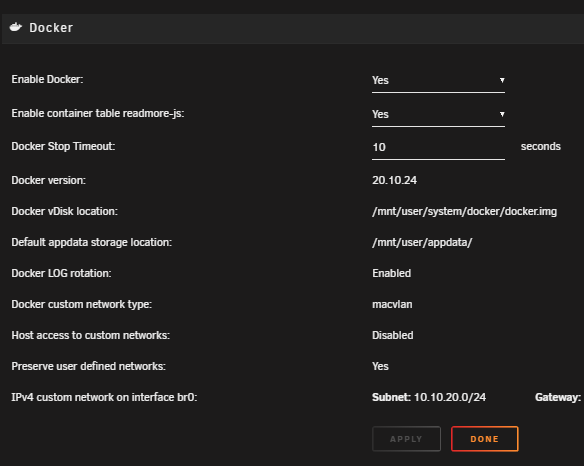

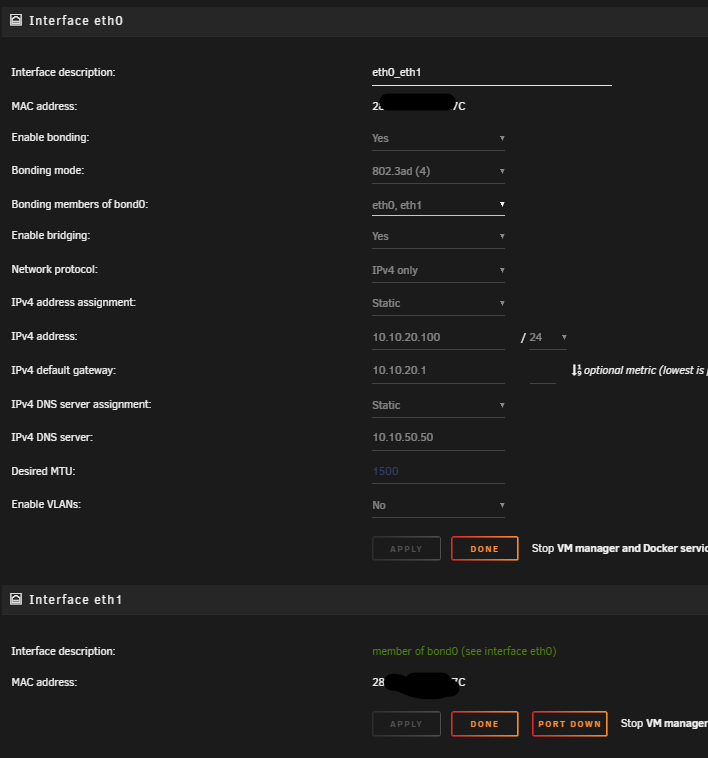

Is this update gonna make some problems for me when I'm running like this?
I do have ab firewall that don't like when I use IPVLAN... when you have over 30 containers and all of the came up with same MAC address with different IP, I had problems to access my containers. That's why I use MACVLAN. Never hade any CALL TRACES error before.

Almost all my containers are using br0 network.



Edited September 1, 2023 by CiscoCoreX

[KluthR]

Quote

Settings > Docker > Host access to custom networks = Enabled

But thats not needed for the macvtap solution, right? Its just needed in case Host <-> containers want to talk, like ususal?

[strike]

1 hour ago, CiscoCoreX said:

Hi,

Is this update gonna make some problems for me when I'm running like this?
I do have ab firewall that don't like when I use IPVLAN... when you have over 30 containers and all of the came up with same MAC address with different IP, I had problems to access my containers. That's why I use MACVLAN. Never hade any CALL TRACES error before.

Almost all my containers are using br0 network.

Correct me if I'm wrong anyone, but as I understand it you can still use macvlan, but instead of br0 it will now be eth0 and everything should work as before. That's what I read when I skimmed through the release notes anyway. I'm also using macvlan and will continue to do so if I can.

[bk101]

Quick question, if we want to follow the following steps do we do them BEFORE updating to 6.12.4 or AFTER updating?



"For those users, we have a new method that reworks networking to avoid this. Tweak a few settings and your Docker containers, VMs, and WireGuard tunnels should automatically adjust to use them:

Settings > Network Settings > eth0 > Enable Bridging = No

Settings > Docker > Host access to custom networks = Enabled"

[Ollebro]

Updated from Version: 6.12.3 to Version: 6.12.4 and lost all my docker containers. Any tips on how to get them back?

[steff94]

Upgrade worked fine but a few containers lost their storage mapping and therefore the config is gone.
Containers who lost their config are uptime Kuma and changedetection



any help?

[KluthR]

1 hour ago, Ollebro said:

lost all my docker containers

Are the xmls still existing in /boot/config/plugins/dockerman/templates-user?

[unCoreX]

4 hours ago, strike said:

Correct me if I'm wrong anyone, but as I understand it you can still use macvlan, but instead of br0 it will now be eth0 and everything should work as before. That's what I read when I skimmed through the release notes anyway. I'm also using macvlan and will continue to do so if I can.

Hi, did you upgrade?

[strike]

24 minutes ago, CiscoCoreX said:

Hi, did you upgrade?

Not yet, gonna upgrade during next week.

Edited September 1, 2023 by strike

[unCoreX]

9 minutes ago, strike said:

Not yet, gonna update during next week.

I took the risk and updated now,. Seems to my everything went smoothly. Only one thing i noticed, the DOCKER page took much longer time to open, hmmm



That's probably why? It took 12 sec top open the DOCKER tap.



Edited September 1, 2023 by CiscoCoreX

[Masterwishx]

17 minutes ago, CiscoCoreX said:

21 minutes ago, strike said:



I took the risk and updated now,. Seems to my everything went smoothly. Only one thing i noticed, the DOCKER page took much longer time to open, hmmm



Stange ,but in my case all WebUI in 6.12.4 working faster than in 6.12.3 .

[Gingersnap155]

Updated from 6.11.5 to 6.12.4 today and zero issues using macvtap so far. All dockers and shares working properly.

[TheIlluminate]

About to update from 6.12.3 using the ipvlan work around as I was getting crashes.  I'm also using ubiquity UDMP and a 48 port switch so I'm wondering if there is anything I specifically need to do other then what's in the update notes?



Also would the 6.12.3 setup cause issues when trying to enable aggregation through my switch since my dell r730xd and the network card should support it?  Because every time I tried my system would not like it.  And if so would this update help fix that?



Thanks guys.
